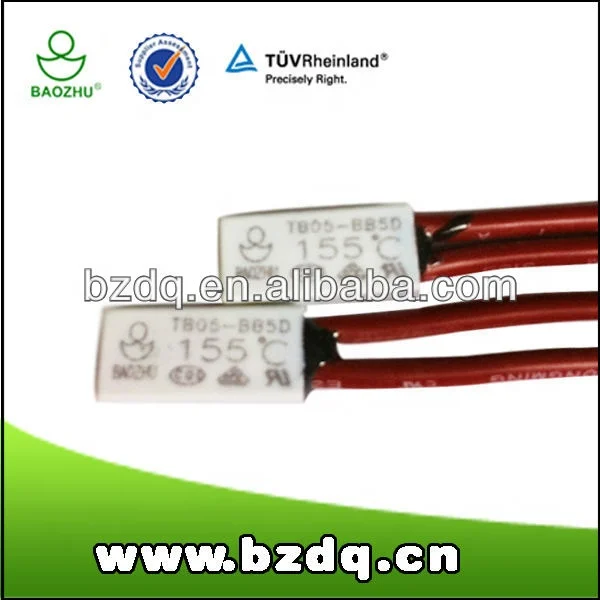

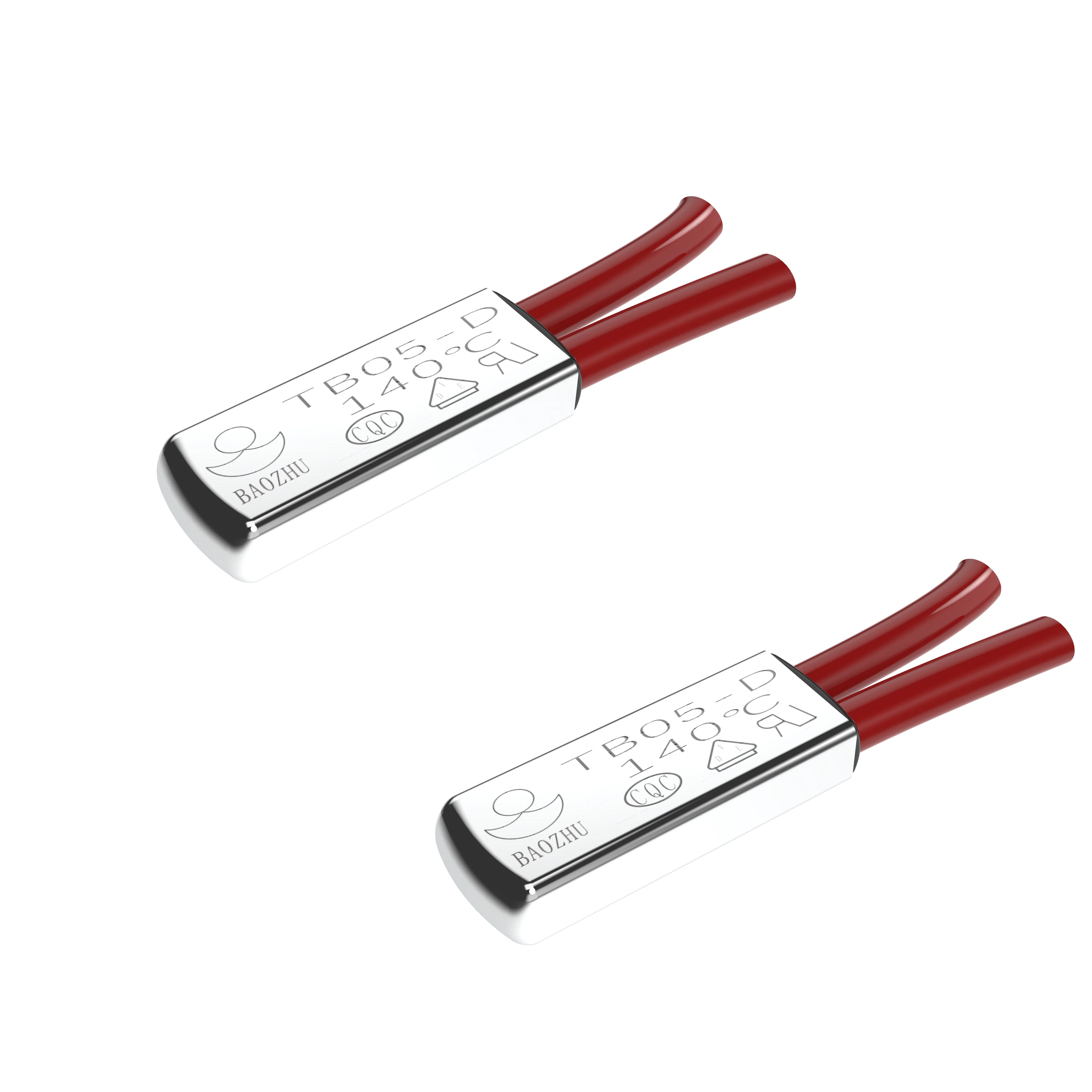

battery packs 250v 5a bimetal overheat thermostat temperature thermal switch

AGENCY

FILE NUMBER

STANDARD NUMBER

APPLICATION

UL

E258703

2111

Motor protection

VDE

In testing

EN60730-2-3

Lighting ballast

CB

CN8029

IEC60730-1

Motor protection

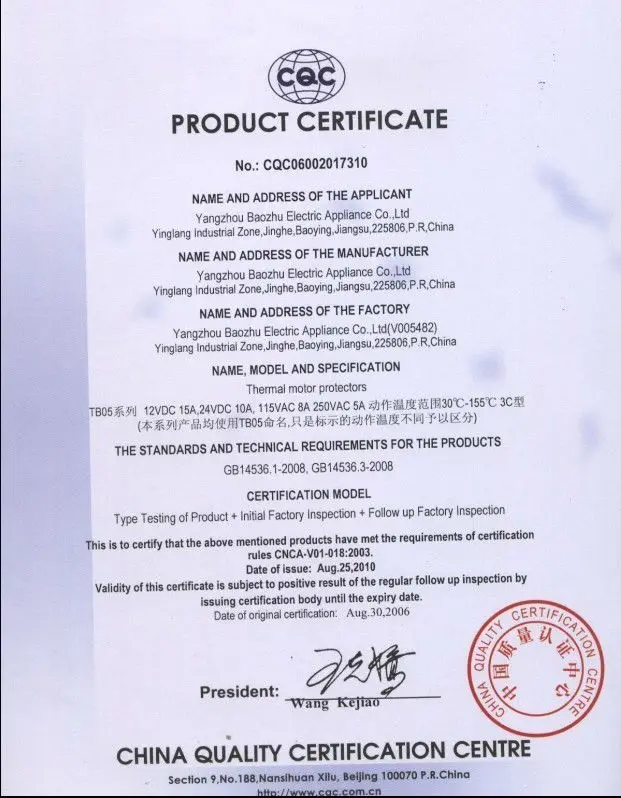

CQC

CQC06002017310

GB14536.1 GB14536.3

Motor protection Limit and regulating controls

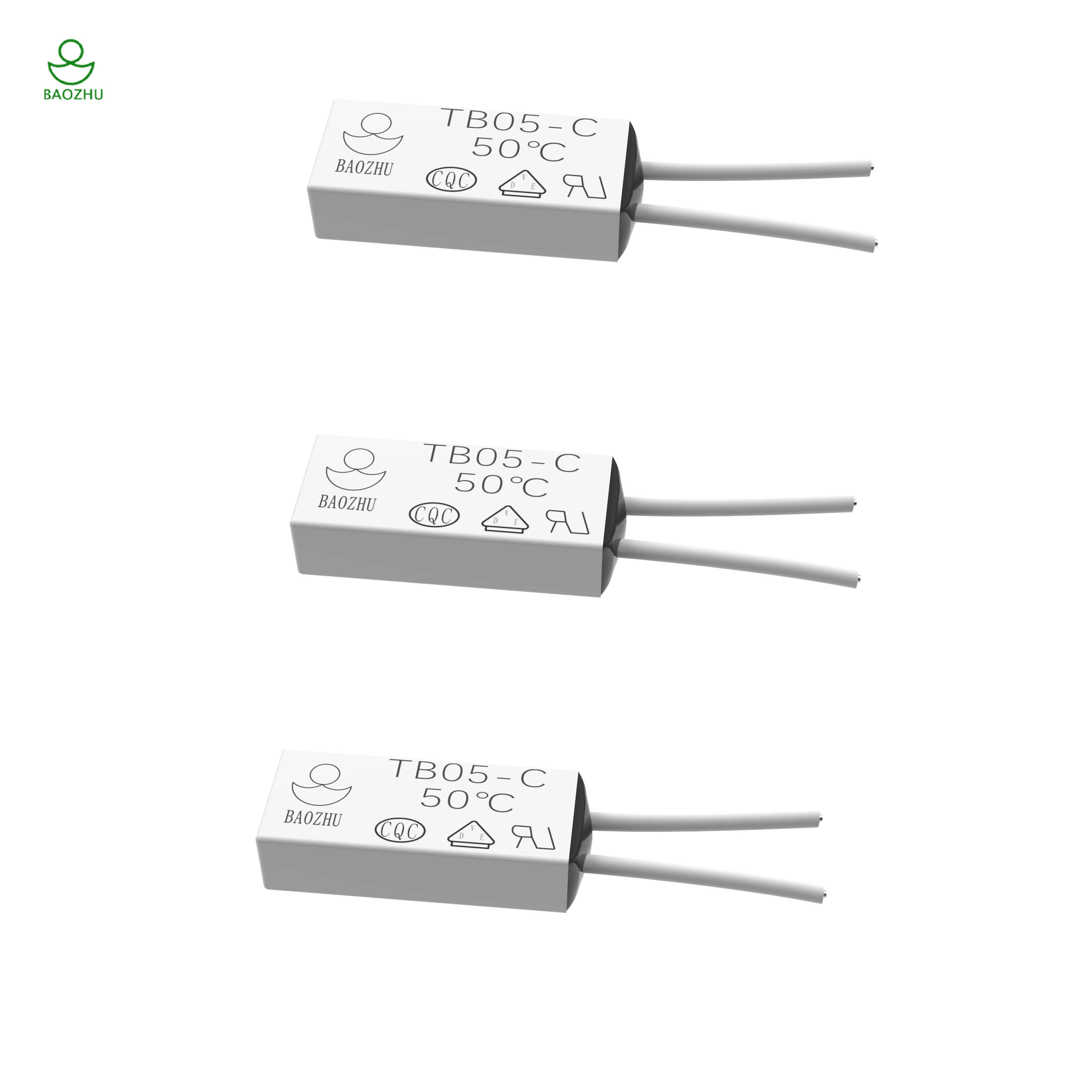

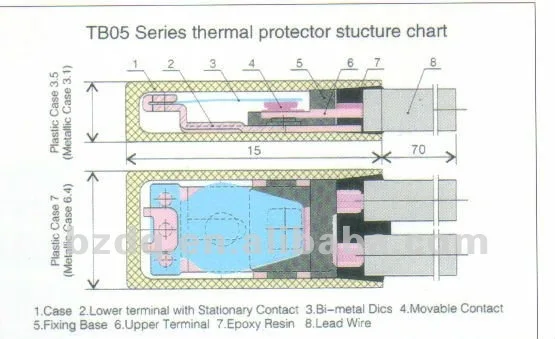

MODEL

L(mm)

W(mm)

H(mm)

LEAD WIRE

TB05-BB5D

15

7

3.5

3266--AWG22#3135--AWG24# or Nickel strip normally.length is 70mm or according to customer'srequire

TB05-BB1D

15

6.4

3.1

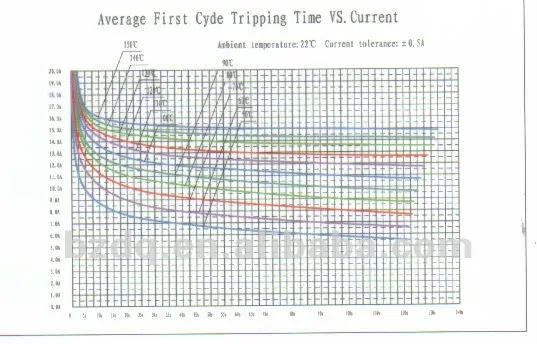

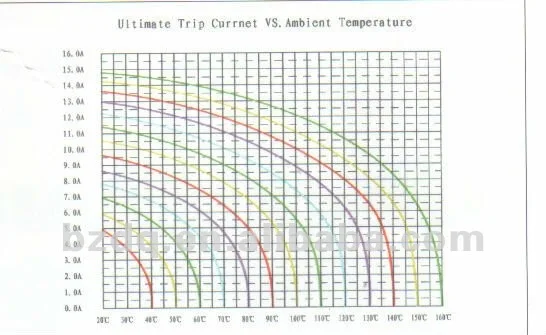

VOLTAGE

CURRENT

24 VDC

10 amperes

250 VAC

5 amperes

CODE

OPEN TEMP

RESET TEMP

CODE

OPEN TEMP

RESET TEMP

30

30±3.5°C

≥20°C

95

95±5°C

70±15°C

35

35±4°C

≥25°C

100

100±5°C

70±15°C

40

40±4.5°C

≥30°C

105

105±5°C

75±15°C

45

45±5°C

≥33°C

110

110±5°C

75±15°C

50

50±5°C

≥35°C

115

115±5°C

80±15°C

55

55±5°C

42±6°C

120

120±5°C

85±15°C

60

60±5°C

45±8°C

125

125±5°C

85±15°C

65

65±5°C

48±10°C

130

130±5°C

90±15°C

70

70±5°C

50±12°C

135

135±5°C

95±15°C

75

75±5°C

53±14°C

140

140±5°C

100±15°C

80

80±5°C

55±15°C

145

145±5°C

100±15°C

85

85±5°C

60±15°C

150

150±5°C

105±15°C

90

90±5°C

65±15°C

155

155±5°C

110±15°C
