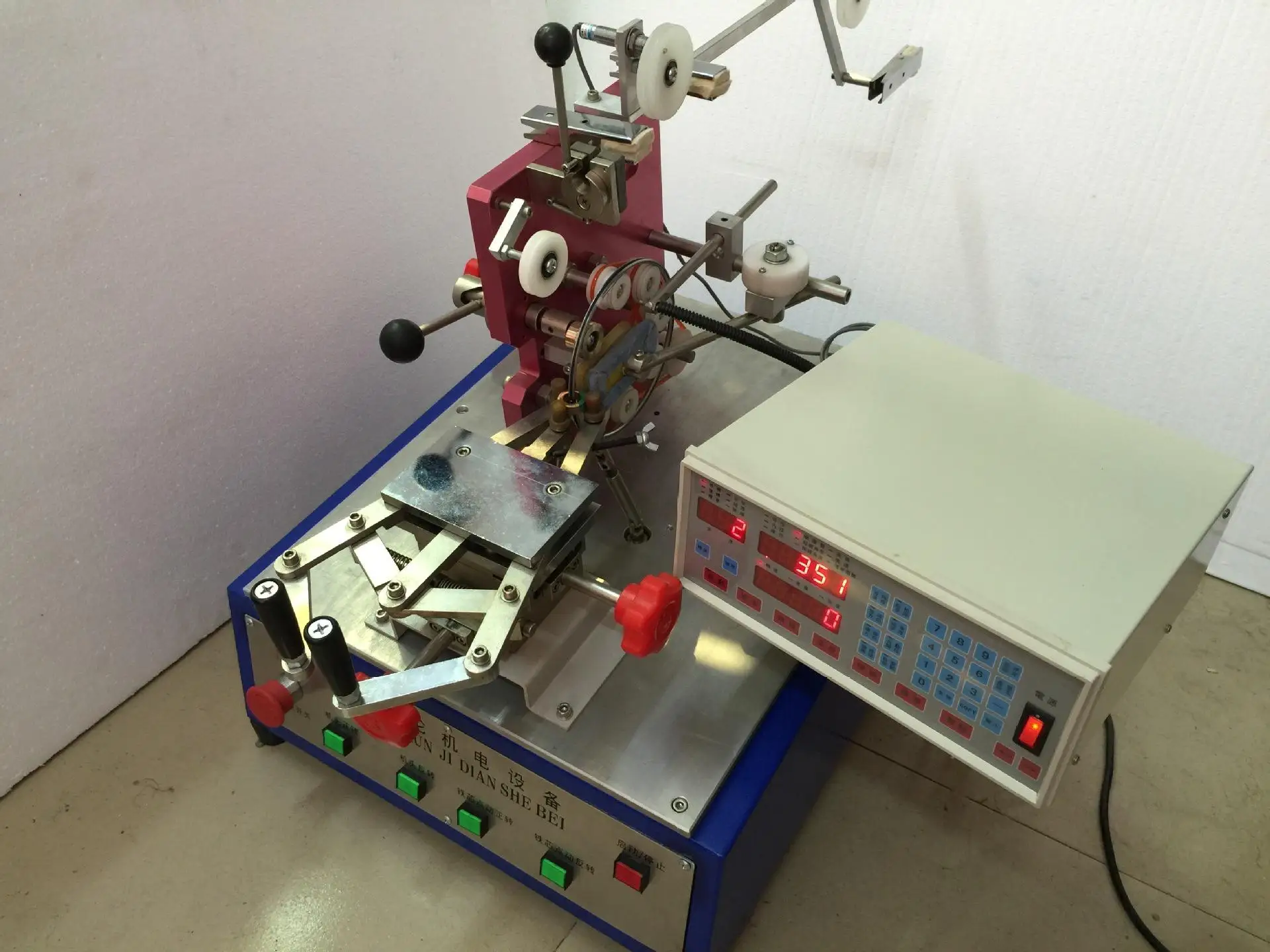

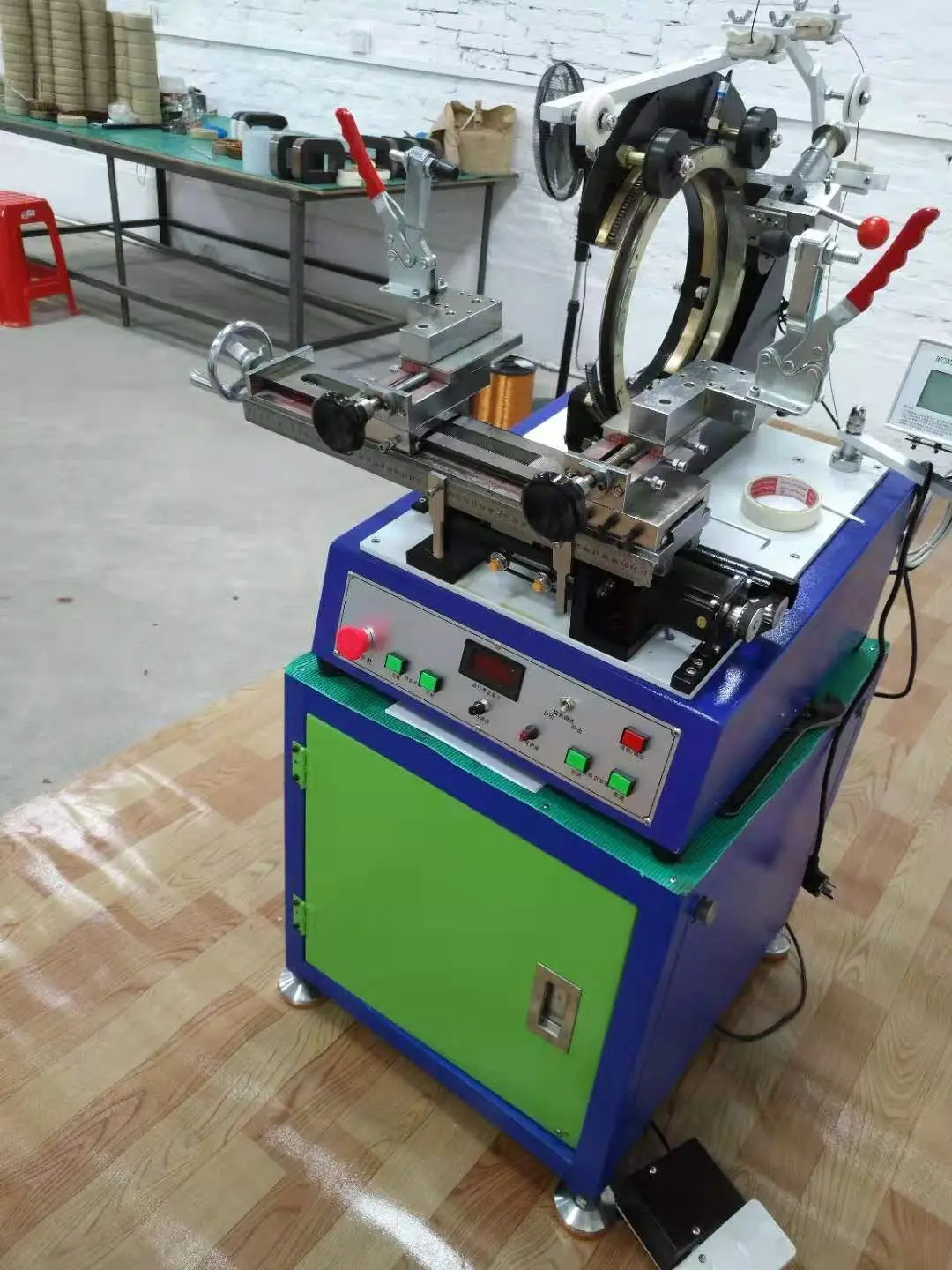

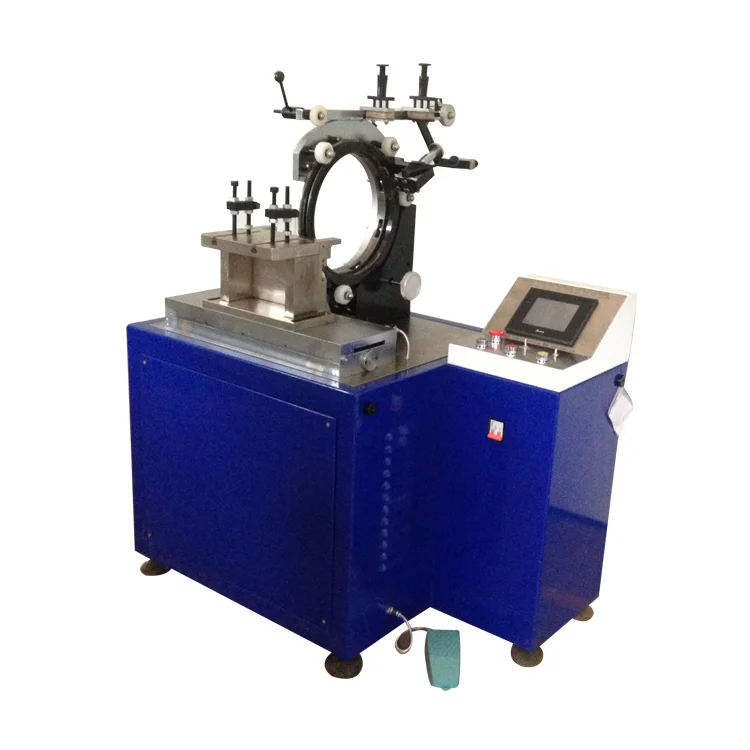

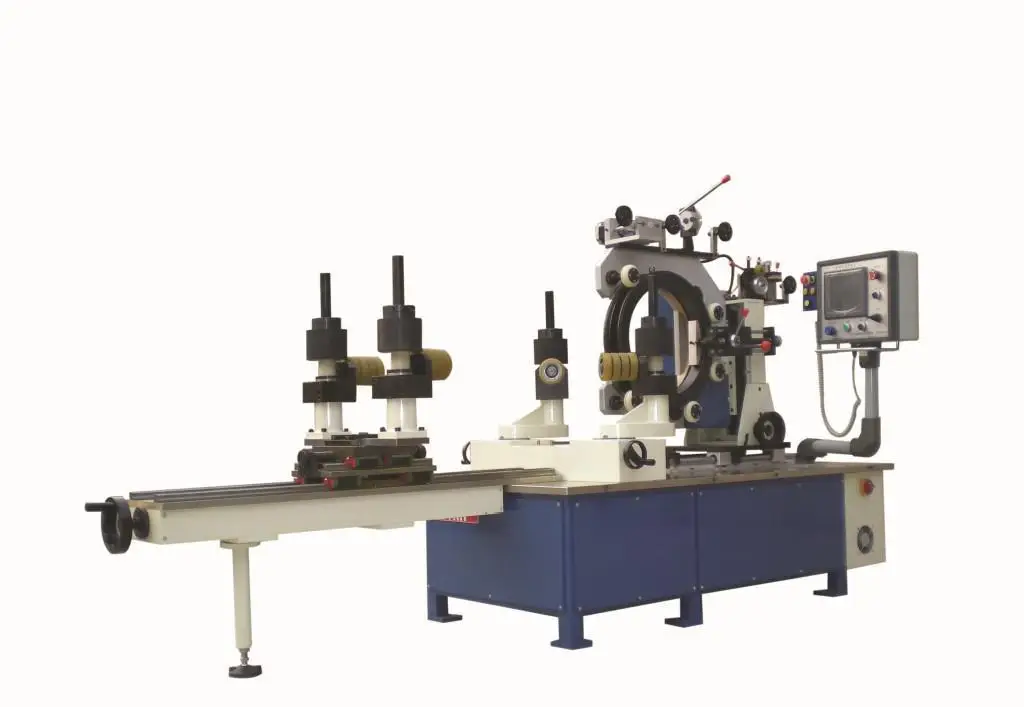

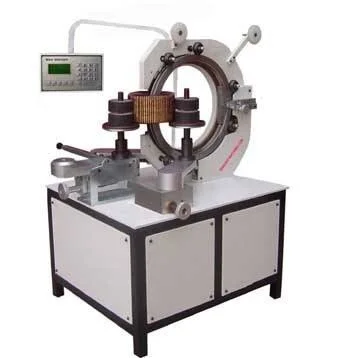

Current Transformer Winding machine,toroidal transformer winding machine
- Category: >>>
- Supplier: Shanghai Orinno International Business Co. Ltd.
Share on (759931401):
Product Overview
Description
Products Description
Nominal diameter of varnished wire | φ1.2~3.2mm |
Minimum internal diameter of the coil after winding | φ100mm |
Maximum external diameter of the coil after winding | φ350mm |
Maximum height of the coil after winding | 130mm |
Maximum diameter of winding wheel | φ480mm |
Maximum rotation speed of winding wheel | 100RPM |
Total power of machine | 2.5KW |
Maximum external dimension of machine (Length x Width x Height) | 1500×1100×1300mm |
Maximum weight (Kg) | 650kg |
Machine Composition
1 Winding head
2.Core rotator
3. Controller
4. Main rack
2.Core rotator
3. Controller
4. Main rack
Main Feature
1. Advanced digital control technology, this machine has the functions of automatic counting, automatic display, automatic stop and keeping memory when stop.
2.Its tension control technology is the internationally advanced electromagnetic damping technology.
3. Through multi-wire parallel winding mechanism, this machine can wind double or triple wires together
4. The operation is very convenient and simple
2.Its tension control technology is the internationally advanced electromagnetic damping technology.
3. Through multi-wire parallel winding mechanism, this machine can wind double or triple wires together
4. The operation is very convenient and simple
Application
This machine is suitable for making the products such as voltage regulator, voltage stabilizer, toroid transformer, mutual inductor etc. It is especially suitable for winding different kinds of toroid coils in small quantity
