Fiber Optic Splice Closures

Product Overview

Description

                    Fiber Optic Splice Closures

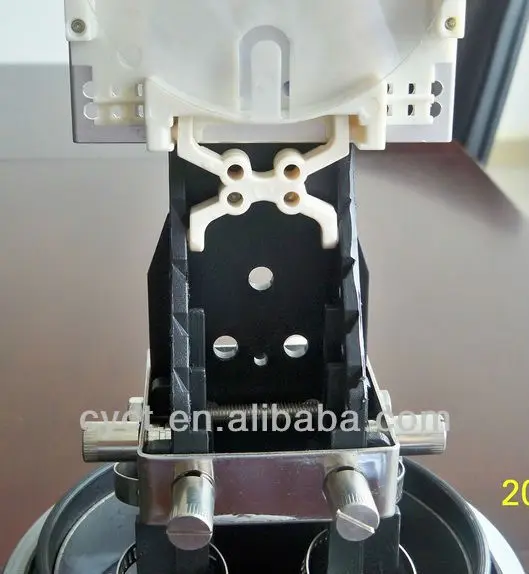

GP01-A Fiber Optic Splice Closures are environmentally sealed, fully mechanical enclosure for the fiber management system that provides the functions of splicing and passive component integration in the external network.



Fiber Optic Splice Closures Features:

Fiber Optic Splice Closures used Single-ended design, dome structure and heat shrinkable sealing, suitable for aerial,underground and ducted system.Convenient to install, protect and operate.



GP01-A connection box for optical cable is accord with Chinese Telecom Industry Standard: YD/T 814.1-2004 Standard and relative rules.



Fiber Optic Splice Closures application condition :



Temperature of environment: -40°C~+60°C;Pressure: 70kPa~106kPa,

Life-span of application: more than 20years









Specification of  Fiber Optic Splice Closures :

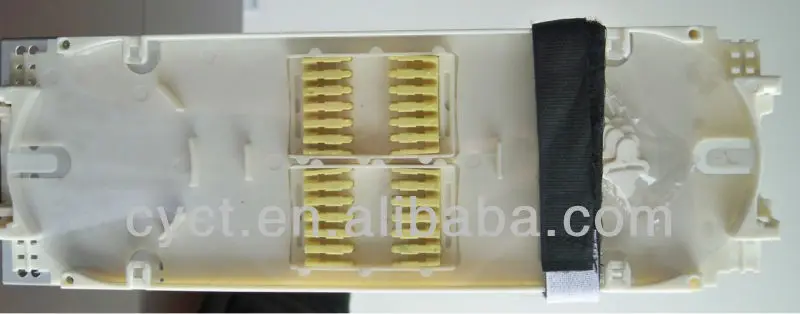

There are two parts of this Fiber Optic Splice Closures. One is used for bunchy, and the other one for ribbon.



Number of tray/type	Bunchy	Ribbon	Notes
one tray	24	144(12 ribbons)	configure according to mold
two trays	48	288(24 ribbons)
three trays	72	432(36 ribbons)
four trays	96	576(42 ribbons)



Contact us for more information of  Fiber Optic Splice Closures.
