C9335 series/T8445 series/C50/C9365 series/T8465/T8470 Brake Disk Lathe

Main Specifications

C9335/C9335A

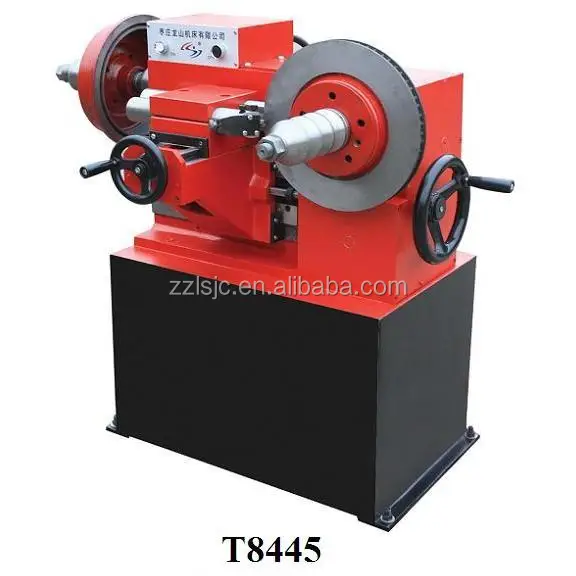

T8445/T8445A/T8445FCV

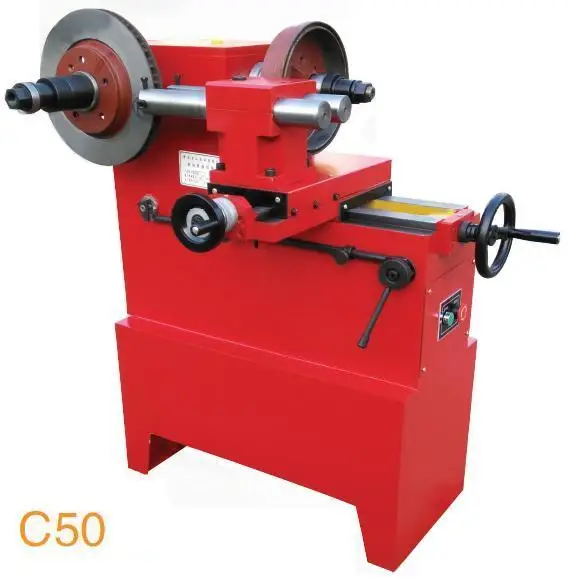

C50

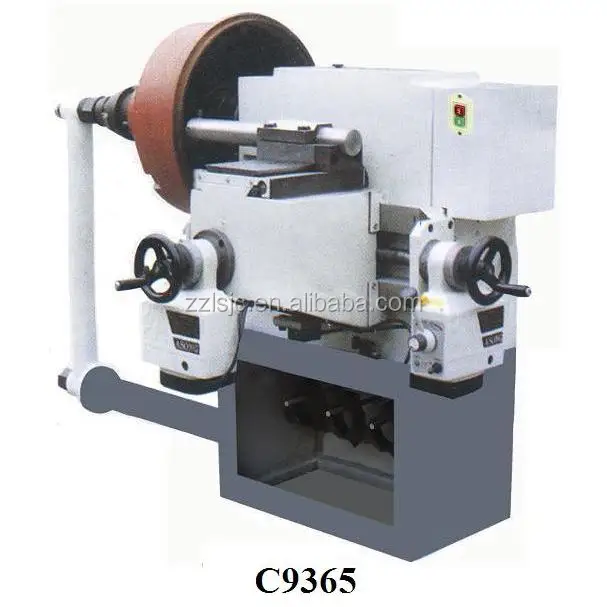

C9365

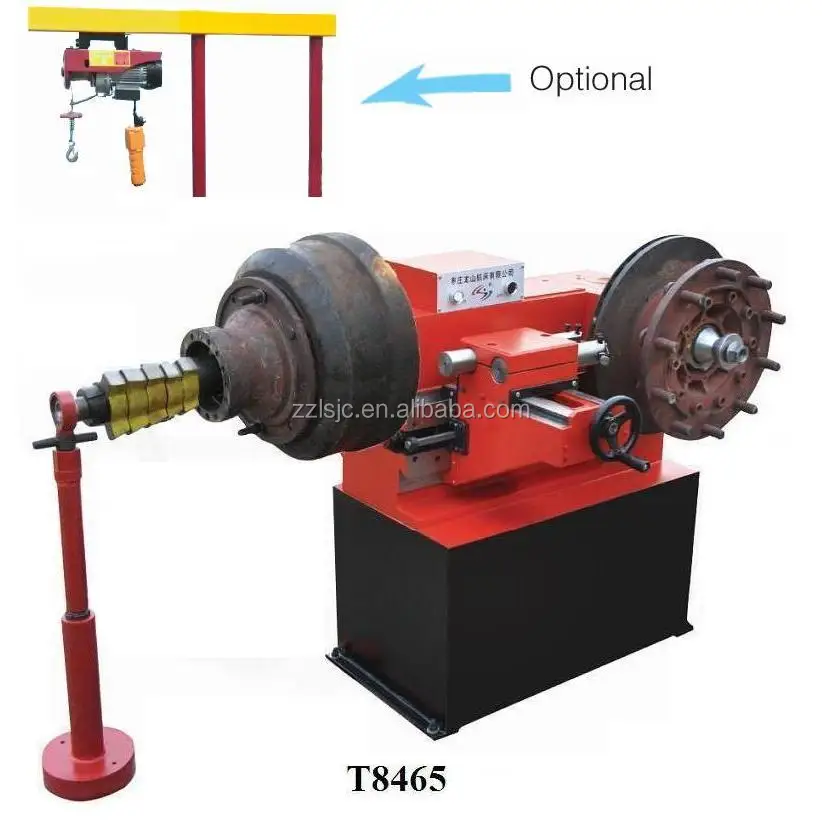

T8465

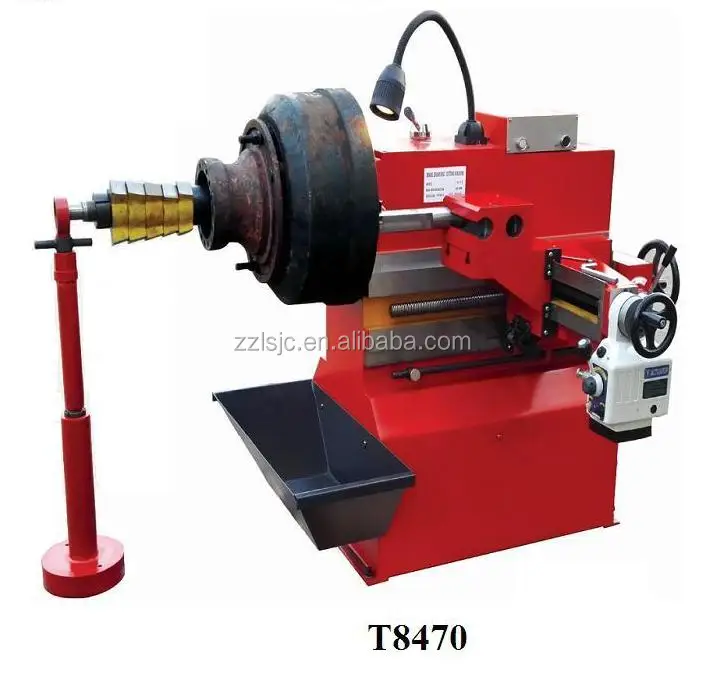

T8470

Processing Diameter  mm

Brake Drum

180-350

180-450(Optional for medium drum)

<320

<650(Optional for small drum)

<700(Optional for small drum)

Brake Disc

180-350

<420

<500

<480(Optional for small disc)

<500

<550

Rotating Speed of Work-piece  r/min

75/130

30/52/85

30/54/80

30/49/88

30/52/85

30/54/80

Max. Travel of Tool  mm

100

170/170/150

225

256

250

300

Feeding Rate  mm/r

0.15/0.16

0.16 0.30/0.16 0.30/Variable

0.15/0.26

Infinitely variable

0.16 0.30

0.16

Standard Packing Dimensions (L/W/H)  mm

850/630/830

900/870/1060

1120/970/1070

980/980/1160

1350/1150/1230

G.W  kg

222/230

320

300

500

490

570

Motor Power  kw

C9335 0.75/1.1, others 1.1

1.5
