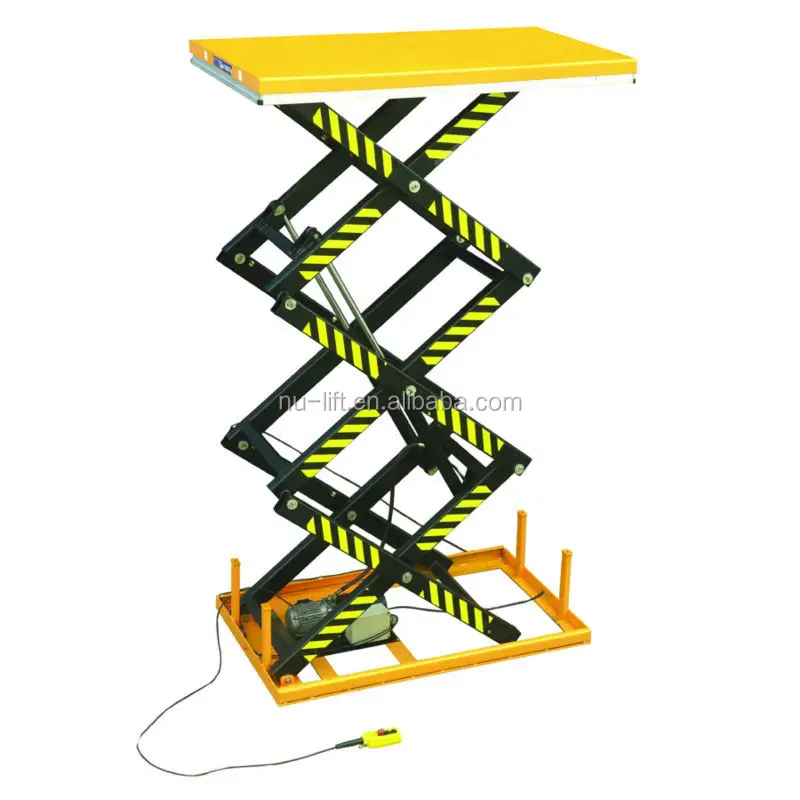

Электрическая гидравлическая Тройная подъемная платформа для ножниц

Product Overview

Description

Heavy duty design
Meet EN1570 norm and ANSI/ASME safety standard.

These models can be used in above-floor or in-floor pit applications.



Standard Safety Features

Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

Safety clearance between scissors to prevent trapping during operation.



Other Standard Features

Self lubricating bushings on pivot points.

Removable lifting eye to facilitable handling and lift table installation.









Model		HT1000	HT2000
Capacity	Kg	1000	2000
Lowered Height	mm	470	560
Raised Height	mm	3000	3000
Platform Size	mm	1700x1000	1700x1000
Base Frame Size	mm	1600x1000	1606x1010
Lift Time	(sec)	60-70 100 for w/o loading	70-80 120 for w/o loading
Power Pack		380V/50HZ,AC2.2kw
Net Weight	kg	450	750
