Wire rope press machine/wire rope swage machine for wire rope slings
- Category: >>>
- Supplier: Jiangsu Xingtai Hydraulic Manufacture Co. Ltd.
Share on (761792400):
Product Overview
Description
Product Description

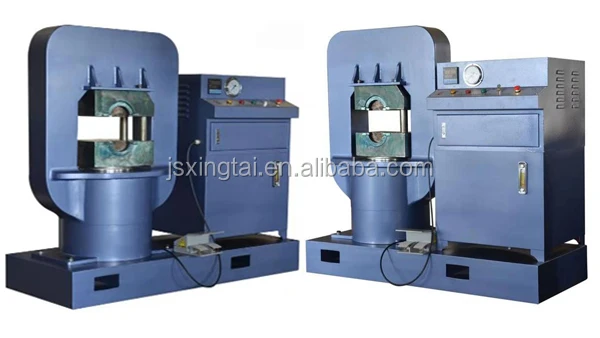

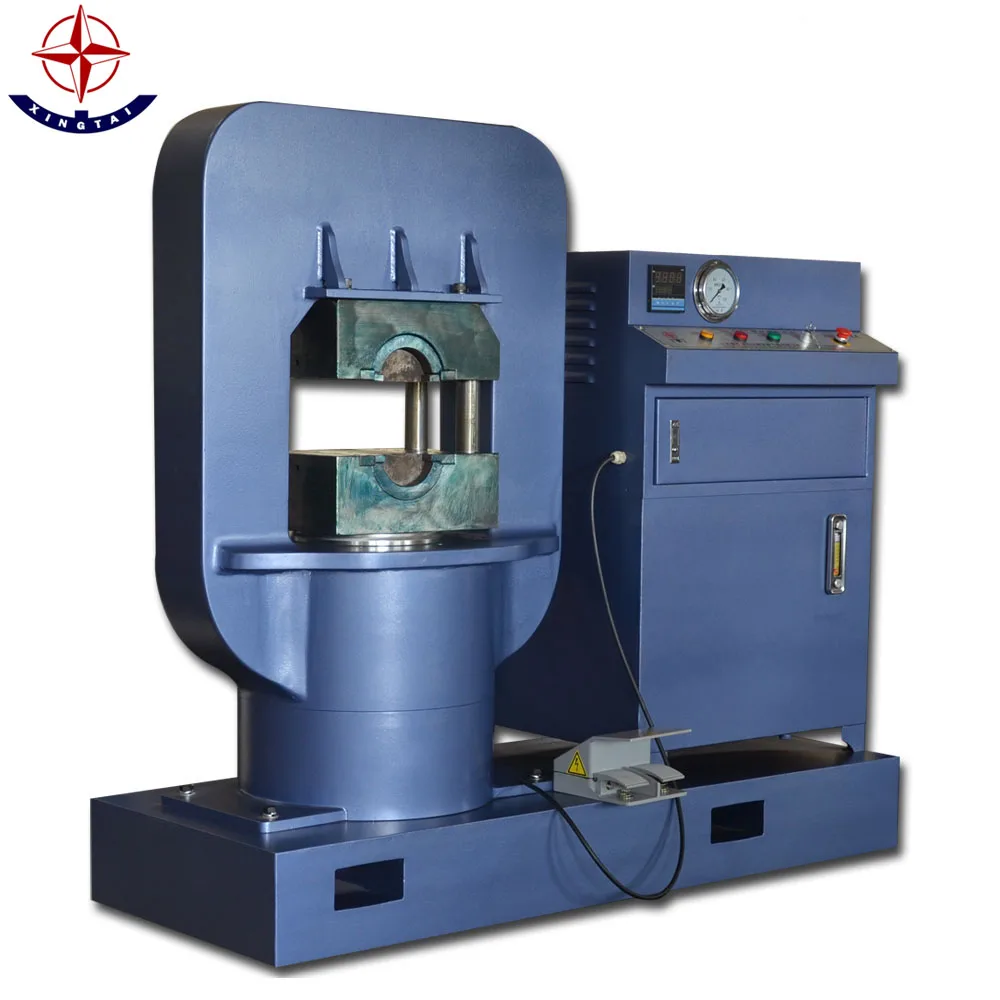

650Ton Steel Wire Rope Press Machine is hydraulic wire rope swage machine, used to make wire rope slings. Widely used at marine, wharf, metallurgy, railway, electrics and other filed. Xingtai machines have exported to UK, Australia, Thailand, India, Nigeria, Russia, Botswana, Polland, South Africa and so on.
Feature of Xingtai wire rope press machine,

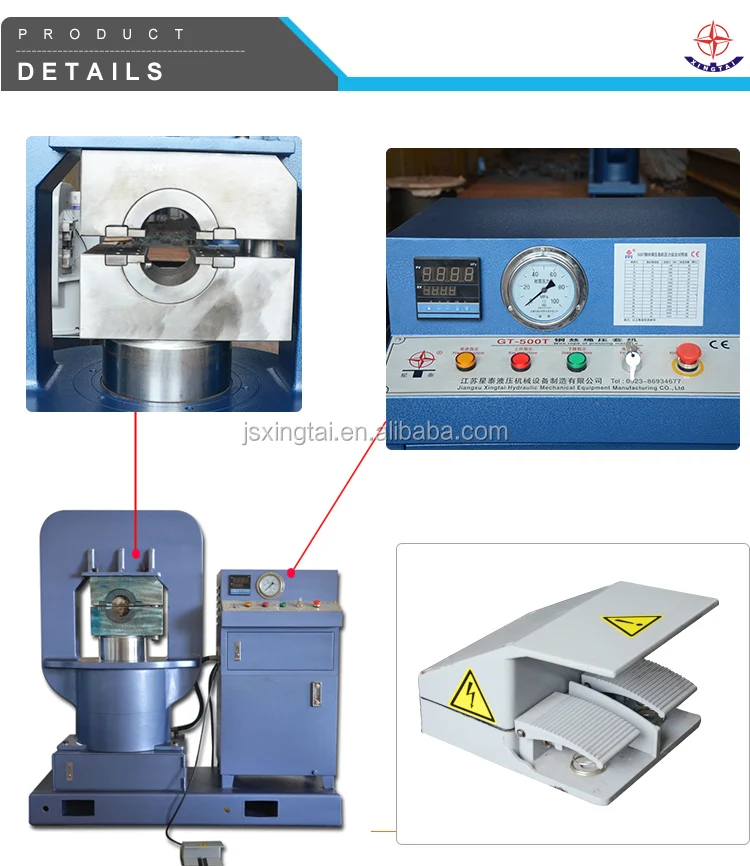

1. The whole door design, small size, high strength, good concentricity, pressed slings with smooth surface
2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life.
3. Xingtai use latest materials, Combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable
4. Round mold design and automatic positioning is easy to change different molds.
Technical data of wire rope press machine (GT-650T)
Mode No. | GT-650T |
Max press power (KN) | 6500 |
Max wire rope diameter in one pressing (mm) | Φ38 |
Max wire rope diameter in multi-pressing (mm) | Φ48 |
Power (KW) | 5.5 |
Max working pressure (Mpa) | 58Mpa |
Max piston movement (mm) | 160 |
The up speed of piston (mm/sec) | 4.5 |
The down speed of piston (mm/sec) | 8 |
Total length (mm) | 1650 |
Total width (mm) | 650 |
Total height (mm) | 1600 |
Net weight (kg) | 3000 |
Packaging & Shipping
shrinkwrap and iron box
Our Services
1. Warranty period: one year
2. Fast delivery reliable quality
3. Competitive price and 24 hours technical support
4. We delivery goods to port as clients' request
5. OEM service
6. CE
Company Information
Jiangsu Xingtai Hydraulic Manufacture Co.,Ltd was founded in 1992, and located in Taizhou City, Jiangsu Province, China. Xingtai hydraulic engages in hydraulic wire rope press machine, wire rope annealing and tapering machine,aluminium sleeve,and lifting clamp. Xingtai hydraulic owns advanced producing equipment, tremendous technique capacity, authoritative test facility, prefect quality management system.
Xingtai hydraulic swage construction is forgged from high stength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life. Xingtai hydraulic machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency. Xingtai hydraulic machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Russia, Botswana,Polland and so on.
Xingtai hydraulic regards the concept of high quality, competitive price, eternal promise as service policy, We shall meet customers'need and offer customer best service. We will try our best to provide service to our old and new clients as before and build our nice future together. More

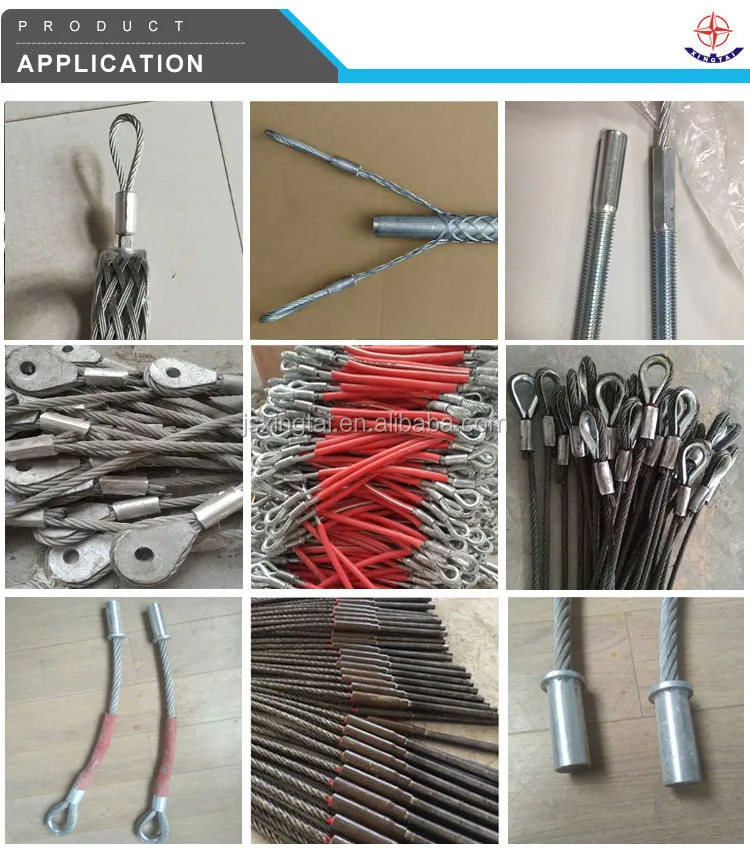

Buyer shows,
Contact information
Name: Happy Dai
Cell: 0086 15896002505
Tel: 0086-523-86932789
Skype: happyeveryday19861
Web: www.xtwireropemachine.com
