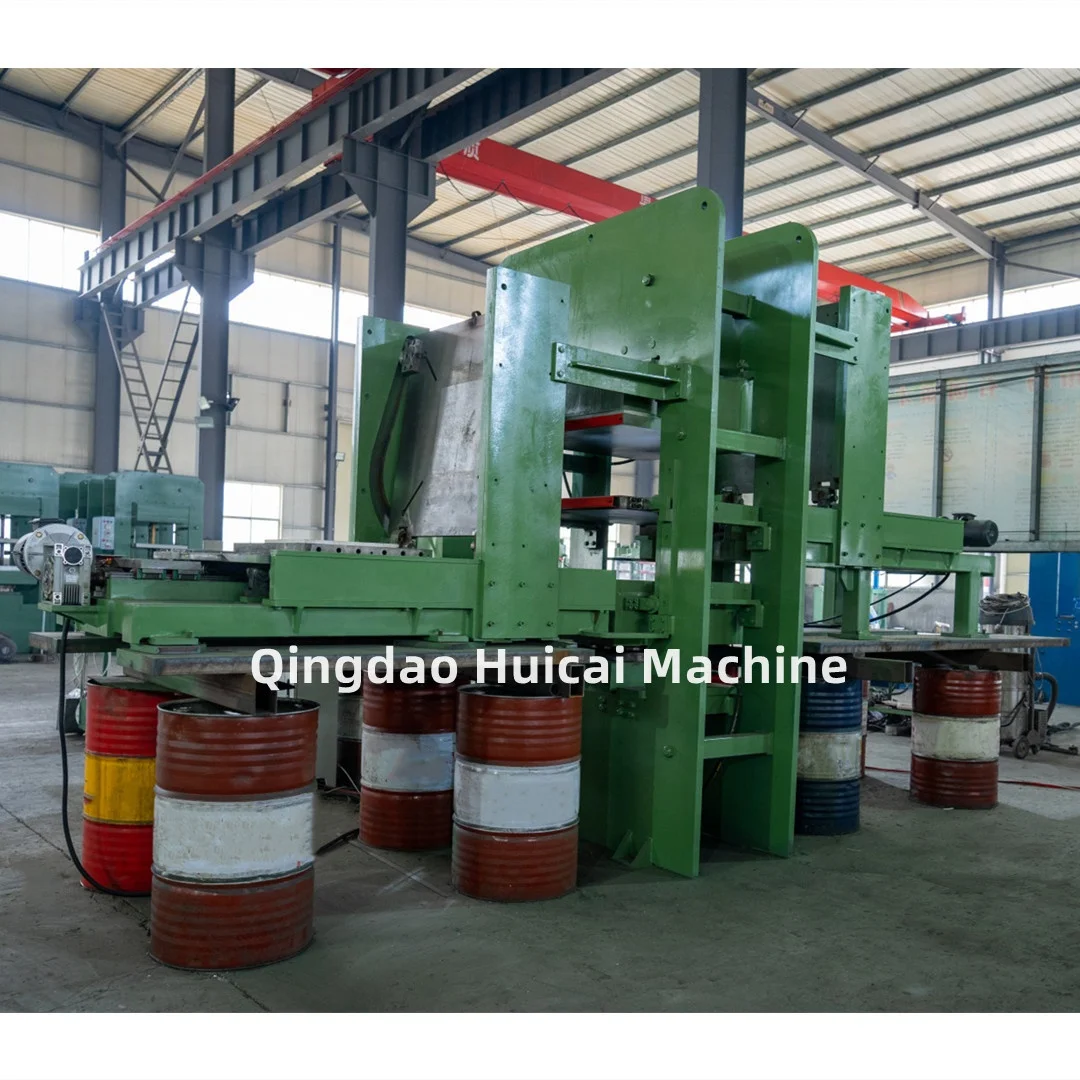

rubber processing machinery hydraulic vulcanizing press rubber curing machine

Product Overview

Description

Customize OEM/ODM SERVICE



WELCOME TO OUR FACTORY VIST AND NEGOTIATION

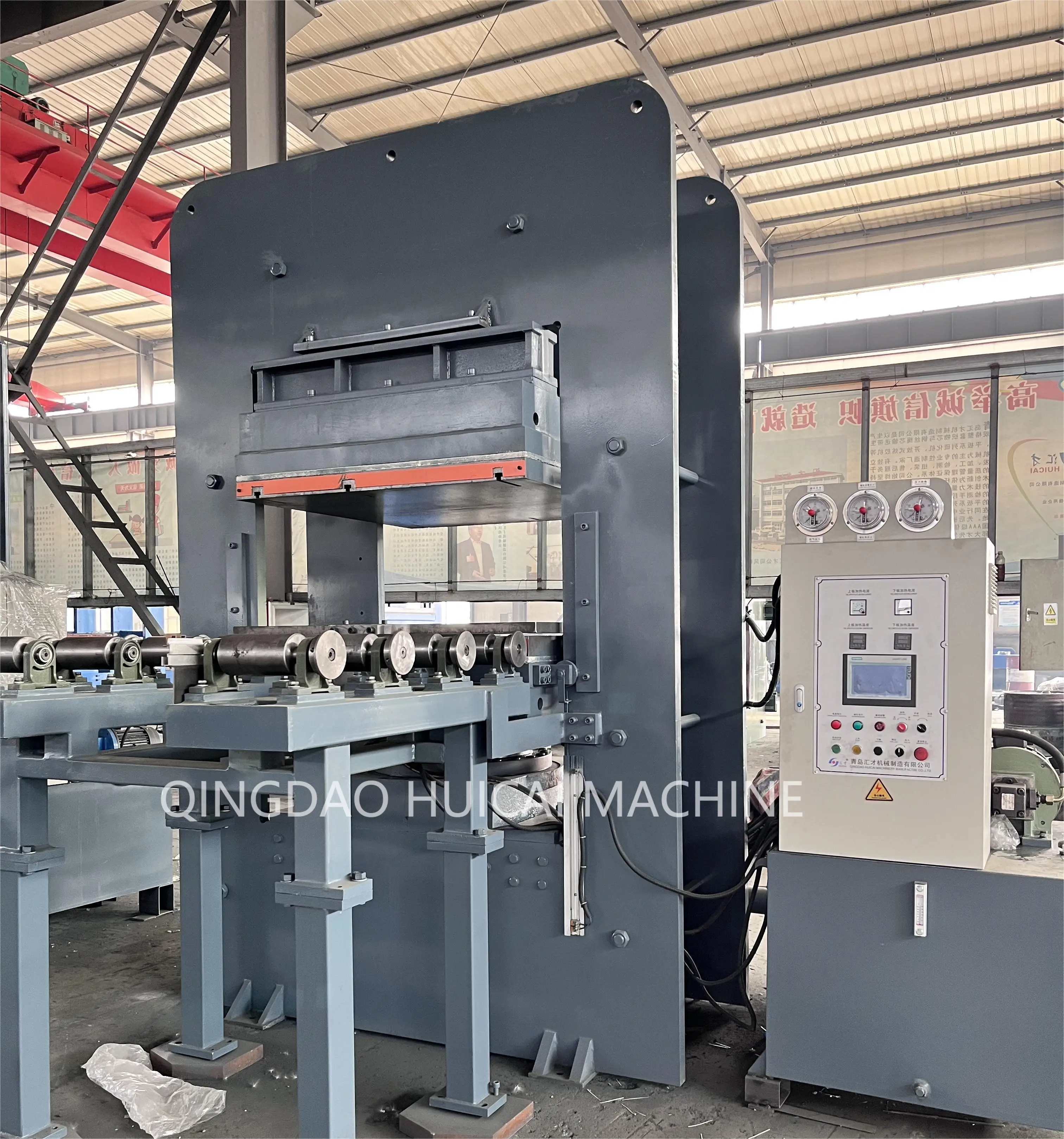

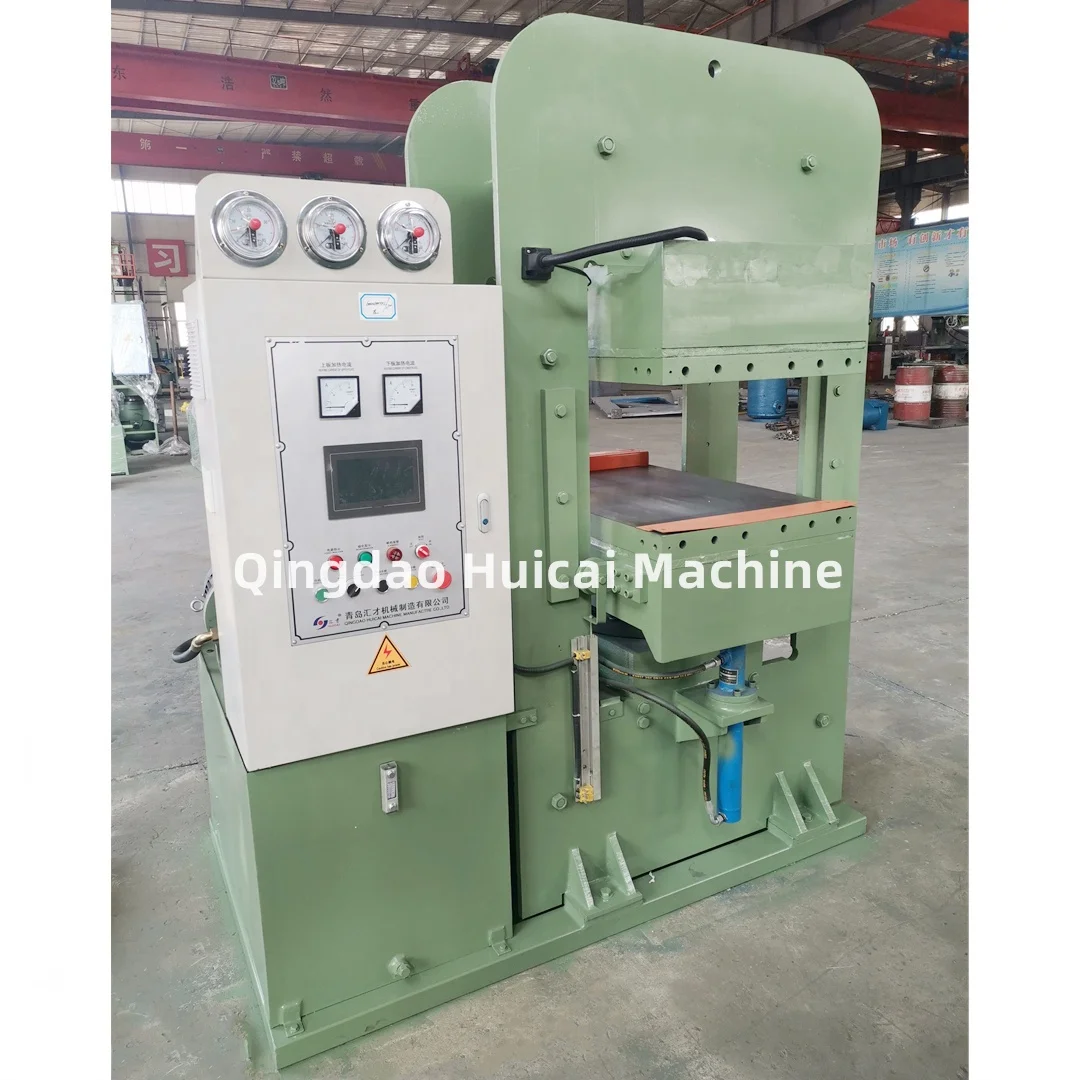

This rubber vulcanizing machine is belongs to medium-sized plate vulcanizing machine series, mainly for the rubber vulcanization, generally USES the pillar type and frame type structure, compact structure, beautiful modelling, and mold force is great. This machine is with its unique double temperature station structure and high pressure adapts to manufacturing all kinds of rubber products, such as Silicon Wristbandrubber tile,solid tire, rubber slippers, shoe sole, rubber stamp, etc.we also manufacture large vulcanizing machine forband .etc.

Features

1. High speed open/close molds, high production efficiency

2. Automatic in/out mold and ejector device, low labor strength

3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption

4. The electric system adopt PLC programming control, which is easy to be operated

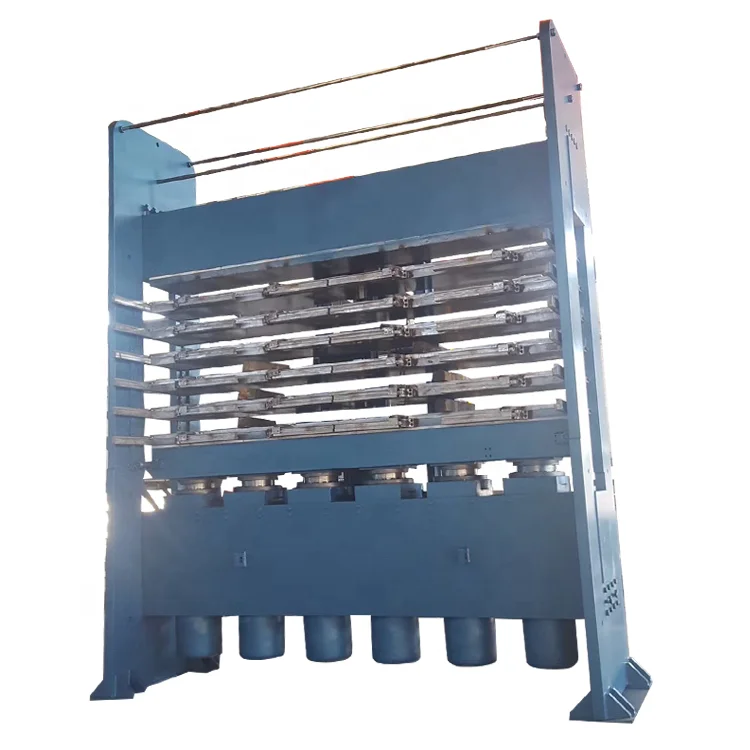

Total pressure	7.0MN
Platen size	3800x500x60mm
Working clearance	180mm
Working unit pressure	36.8kgf/cm2

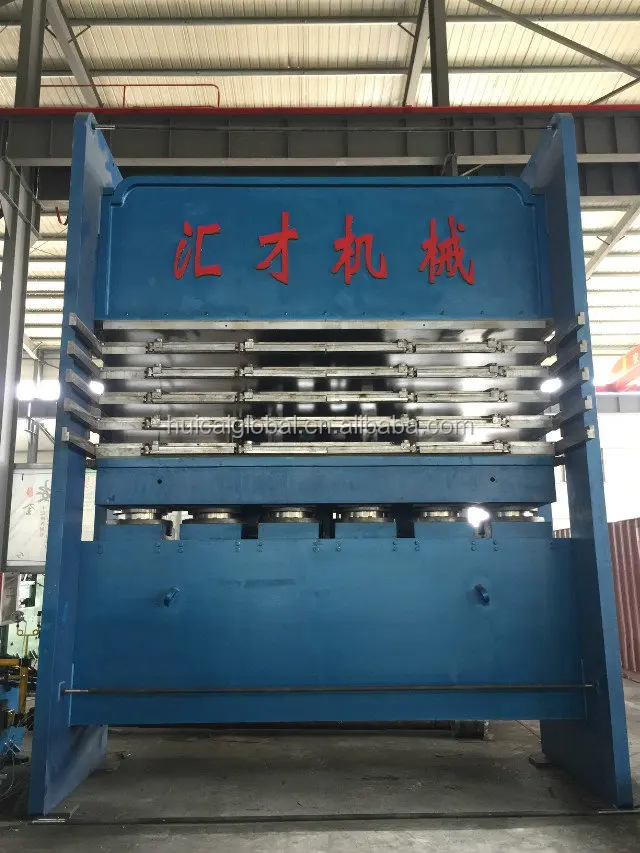

Working daylight	6
Cylinder material	Chilled cast iron alloy
No.of cylinder and diameter	6-Φ300mm
Piston stroke	1080mm
Working pressure	16.5Mpa
Heating manner	Steam/oil/electric
Temperature	170℃
Open and close mold structure	Main auxiliary hydraulic cylinder
Control	PLC automatic control

We are professional manufacturer of machinery



About us--

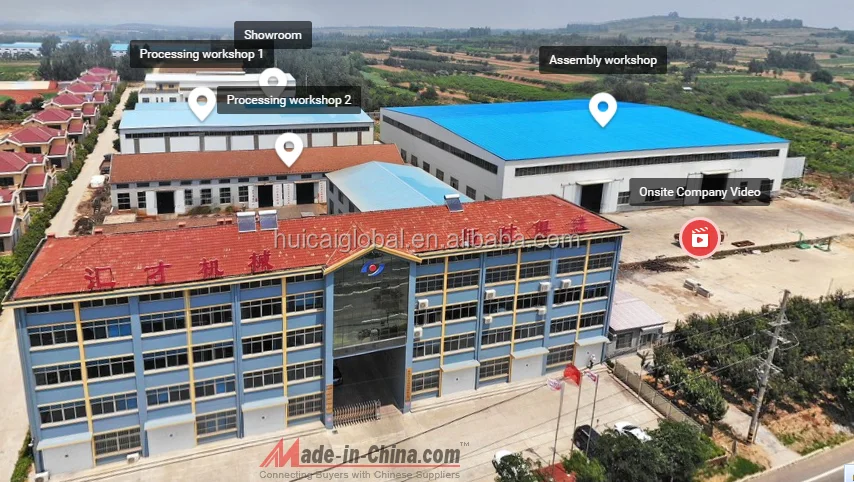

Qingdao HUICAI Machine Manufacture Co., LTD.



1. has specialized in machine manufacture almost 20 years;(since 1996)

2.100% real manufacture meet all your requests;

3.CE,ISO Certification;

4.provide one year quality guarantee and long-term technical support;

5.provide all kinds of rubber machine:

Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;

6.our machine are welcome by the world,popular in lots of markets



About Us:

We are a successful manufacturer and foreign trade company that has a good reputation of providing our customers with the best service and online buying experience in the business. Please feel free to email us or call us . Your email

will be appreciate and we reply you as soon as possible.



Notice:

we can accept FOB,CIF,CFR,EXW,etc.

Payment Item:30%TT in advance,70% balance before shipment.

Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter

Packing:bare packing, some parts are packed in wooden case.





If you are interested,please inquire.
