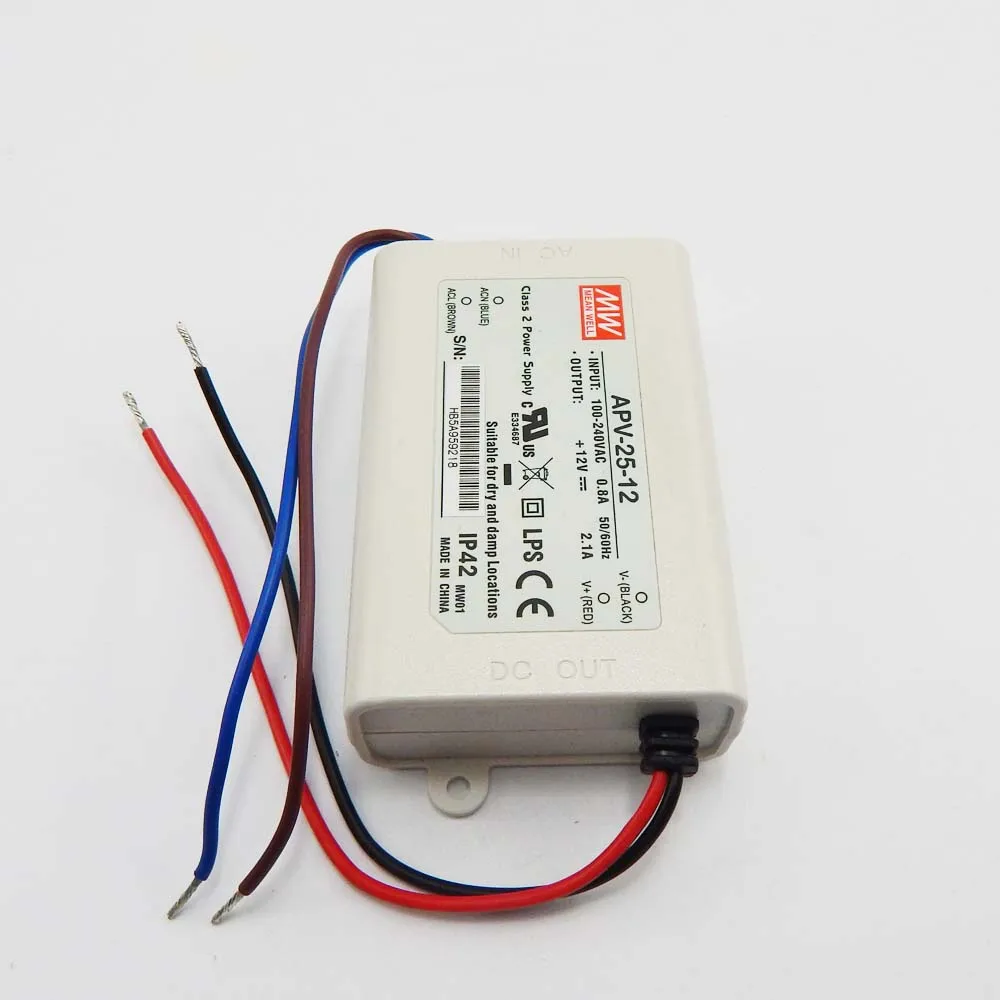

MEANWELL 12V 2A LED Driver APV-25-12
MEANWELL 12V 2A LED Driver APV-25-12
MEANWELL 12V 2A LED Driver APV-25-12
MEANWELL 12V 2A LED Driver APV-25-12
MEANWELL 12V 2A LED Driver APV-25-12
MEANWELL 12V 2A LED Driver APV-25-12

MEANWELL 12V 2A LED Driver APV 25 12

Share on (762055995):


Price:

Quantity:


Product Overview

Description


Original MEAN WELL!








APV-25-12








ORIGINAL MEAN WELL.jpg

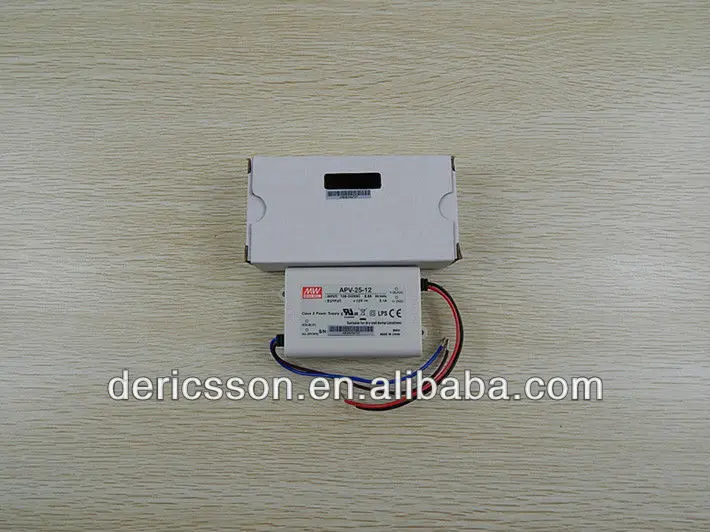

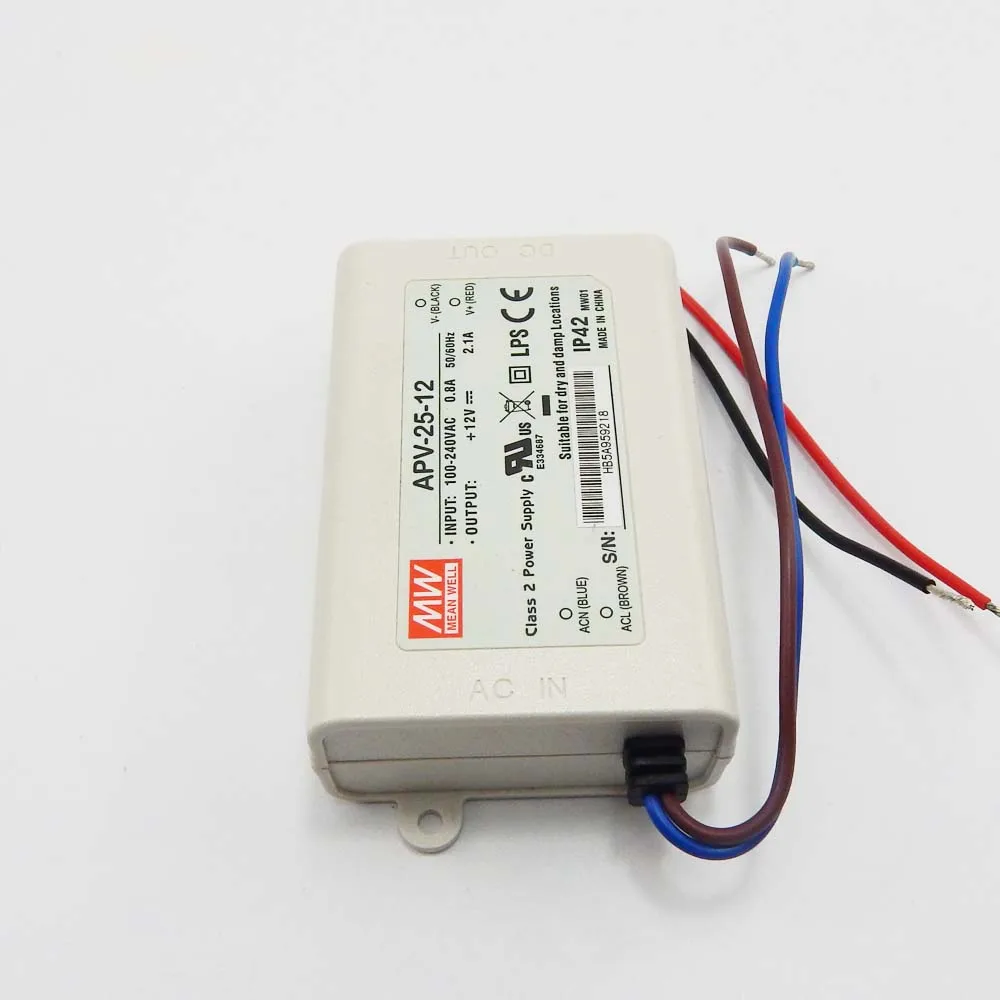

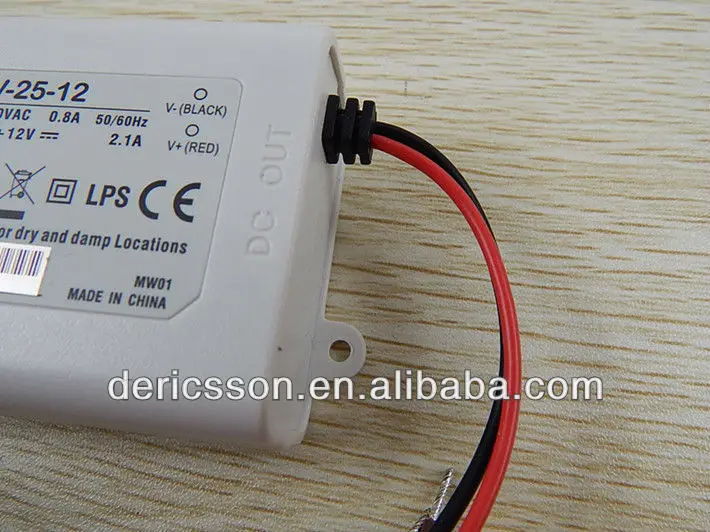

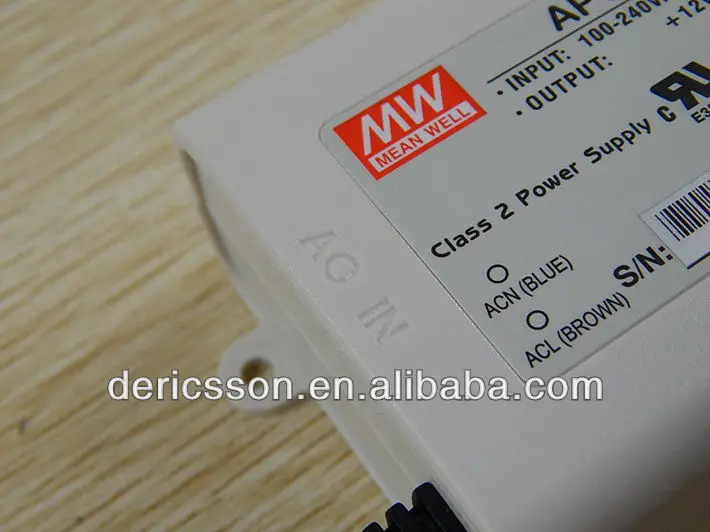

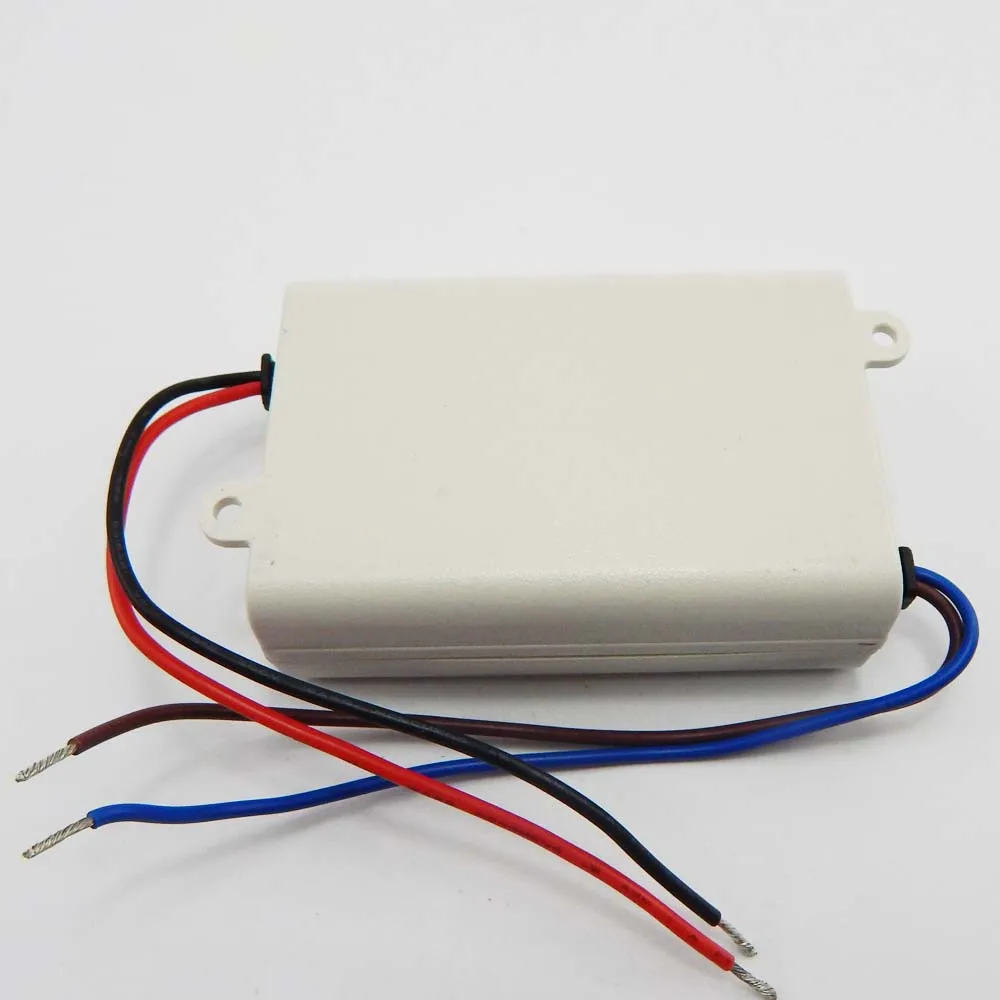

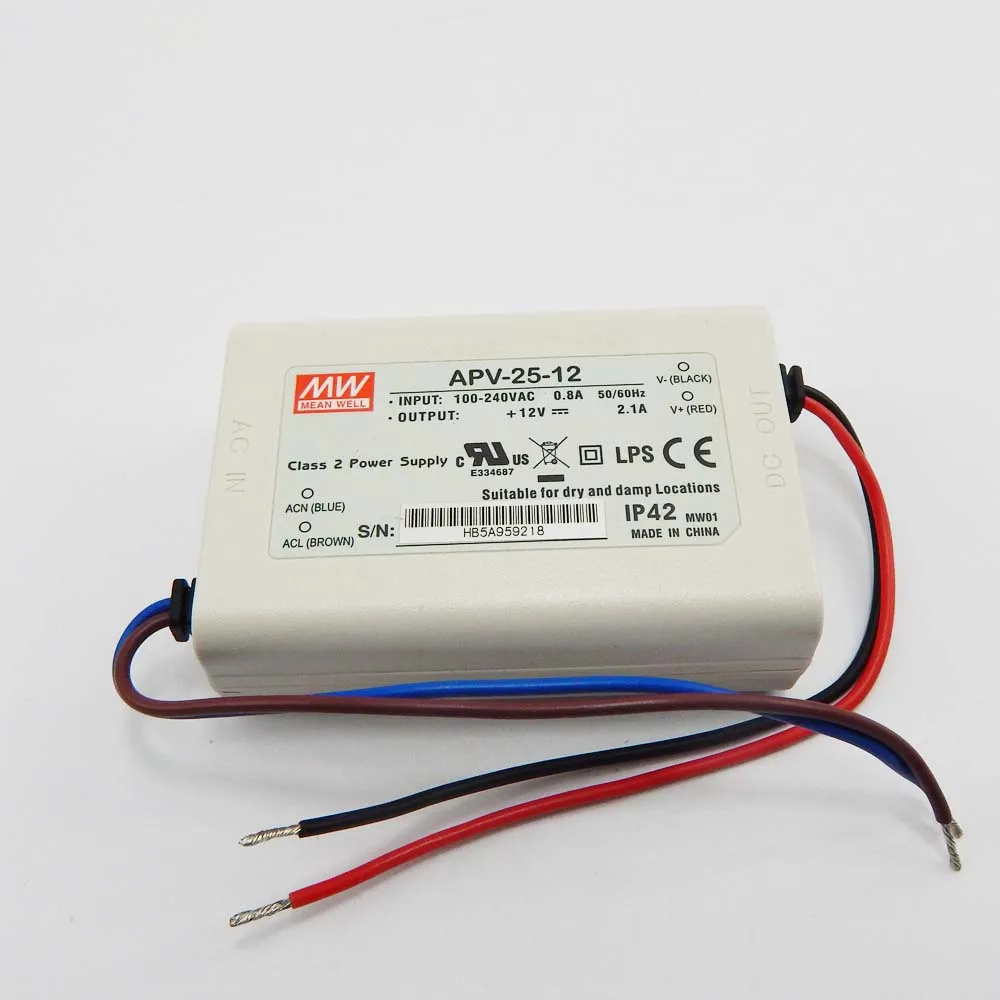

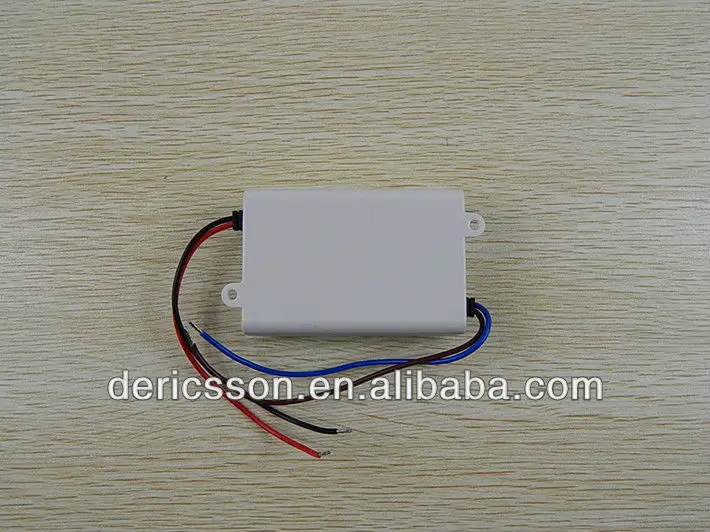

Product Pictures





Here is the detailed info for my MEANWELL 12V 2A LED Driver APV-25-12 . Hope you like it.































































Product Information





Features :



  • Constant voltage design

  • Universal AC input / Full range

  • Withstand 300VAC surge input for 5 seconds

  • Protections: Short circuit / Over current/ Over voltage

  • Cooling by free air convection

  • Small and compact size

  • Fully isolated plastic case

  • IP30 design

  • Pass LPS

  • Suitable for LED lighting and moving sign applications

  • 100% full load burn-in test

  • Low cost, high reliability

  • 2 years warranty
















































































































































MODEL



APV-25-12



OUTPUT



DC VOLTAGE



12V



RATED CURRENT



2.1A



CURRENT RANGE



0 ~ 2.1A



RATED POWER



25.2W



RIPPLE & NOISE (max.) Note.2



150mVp-p



VOLTAGE TOLERANCE Note.3



±5.0%



LINE REGULATION



±1.0%



LOAD REGULATION Note.8



±2.0%



SETUP, RISE TIME Note.9



1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load



HOLD UP TIME (Typ.)



20ms/230VAC 12ms/115VAC at full load



INPUT



VOLTAGE RANGE Note.5



90 ~ 264VAC 127 ~ 370VDC



FREQUENCY RANGE



47 ~ 63Hz



EFFICIENCY (Typ.)



82%



AC CURRENT (Typ.)



0.4A/230VAC 0.8A/115VAC



INRUSH CURRENT (Typ.)



COLD START 45A(twidth=310μs measured at 50% Ipeak) at 230VAC



LEAKAGE CURRENT



0.25mA / 240VAC



PROTECTION



OVERLOAD



Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed



OVER VOLTAGE



13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover



ENVIRONMENT



WORKING TEMP.



-30 ~ 70°C(Refer to "Derating Curve")



WORKING HUMIDITY



20 ~ 90% RH non-condensing



STORAGE TEMP., HUMIDITY



-40 ~ +80°C, 10 ~ 95% RH



TEMP. COEFFICIENT



±0.03%/°C(0 ~ 50°C)



VIBRATION



10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes



SAFETY &


EMC



SAFETY STANDARDS



UL8750 , CSA-C22.2 No. 250.0-13 approved; design refer to EN60950-1



WITHSTAND VOLTAGE



I/P-O/P:3KVAC



ISOLATION RESISTANCE



I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH



EMC EMISSION



Compliance to EN55022,EN61000-3-2 Class A,EN61000-3-3



EMC IMMUNITY



Compliance to EN55024,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A



OTHERS



MTBF



692.8K hrs min. MIL-HDBK-217F (25°C)



DIMENSION



84*57*29.5mm (L*W*H)



PACKING



0.13Kg; 72pcs / 10.4Kg / 0.92CUFT









Certificate





MW .jpg

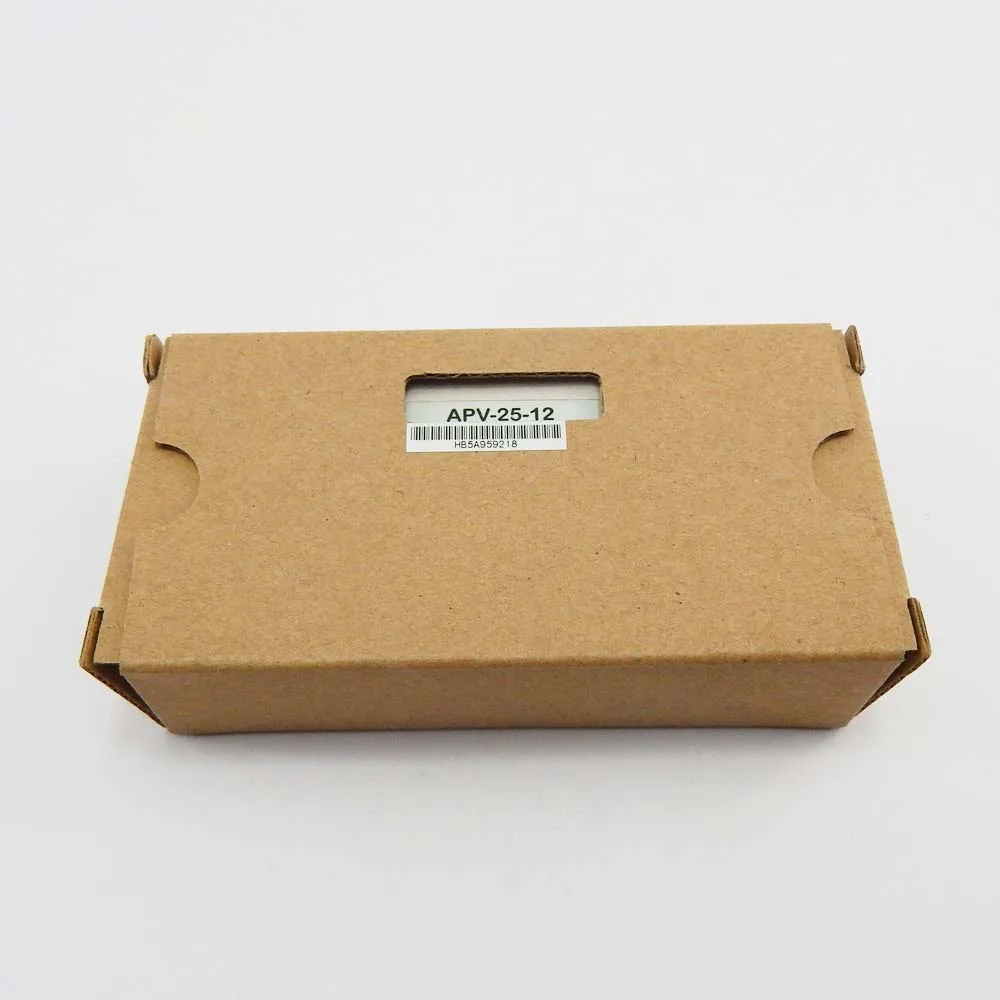

Storage and Packing



























Shipping

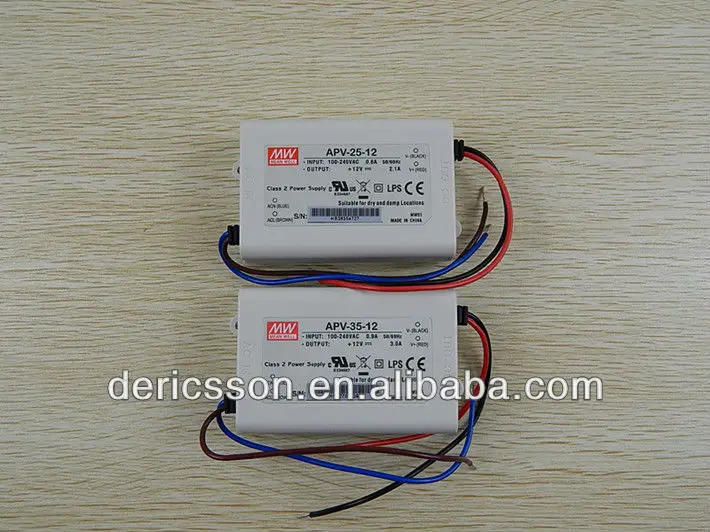

MEAN WELL Other Series
