Commercial Enterprise Electric Meat grinder JR 120

Product Overview

Description

Enterprise Meat grinder

     This series fresh Meat mincing machine suitable for big, medium and small meat food processing factory, it will mince form meat(frozen meat) and food skein to 6-16mm pellet. The machine is easy to wash, blade, mesh and the screw rod of this meat mincer have unique structure, make the meat grain temperature rise of processing low, meat grain distinct etc. Is the essential equipment of meat product processing.



Features:

    Contact product part adopt the high quality material produce of stainless steel completely, structure design is easy to dismantle to wash, accords with food sanitary requirement.



Working Principle:

Relying on the screw to push the raw meat in the feed box to the pre-cutting plate, the orifice plate and the reamer are relatively operated through the rotary extrusion of the screw, so that the raw meat is cut into granular shapes to ensure the uniformity of the meat filling



Technical parameter for Enterprise Meat grinder:



Model	JR-100	JR-120	JR-130
Capacity	500kg/h	1000-1500kg/h	2000-3000kg/h
Max quantity put into for one time	40kg	60kg	80kg
Power	3kw/380v	5.5kw/380v	11kw/380v
Weight	180kg	260kg	700kg
Overall dimension	980*550*900mm	960*550*1080mm	1315*700*1100mm

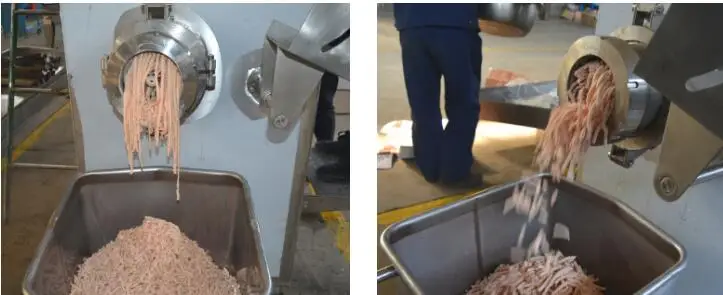

Use real shots:
