PIPE BAND SAW CUTTING MACHINE;PIPE SAWING MACHINE;PIPE BAND SAWING MACHINE

Product Overview

Description

High Speed Pipe Cutting Band Saw Machine; Pipe Cutting Sawing Machine

Model: PCBSM-48A; PCBSM-32A; PCBSM-24A; PCBSM-16A

Performance features

 Pipe Cutting Machine, Pipe Band Saw Machine, Pipe Cutting Band Saw Machine, Band Saw Machine,  Sawing Machine
On-line Performance: good (designed as per the one line equipment of the production line)
Cutting Speed: ≤2Min /pipe cut (DN200 SCH40)
High efficient automatic pipe cutting with automatic self length measuring system
Cutting quality: very good without length tolerance & Unlimited of pipe materials
 Application: be widely used in projects with a majority of heavy wall thickness & standard wall thickness pipes, especially for heavy wall thickness stainless steel pipe, duplex stainless steep pipe, alloy steel pipe & other non ferrous steel pipe and difficult to machining pipe materials with heavy wall thickness.
Technical parameters

 Structure: horizontal and with two posts

 Pipe diameter applicable: DN400-1200 ( φ 426-1219);DN200-800( φ 219-813);DN50~600(φ60~610); DN50~400 (φ60~426)

 Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

Feeding speed: stepless speed adjustment

Speed of the band saw:  17-85m/min; 27, 52 or 78 m/min18, 42 or 68 m/min

Size of the band saw: 10800*67*1.6; 8880*67*1.6; 6700X*41*1.3; 4570X*34*1.1

Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.

Band saw tension: tensioning & loosen automatically by hydraulic cylinder

Cooling system: Built in coolant pump

Length-measuring system: a mechanical Length-measuring system could be provided so as to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system.

Conveying system: roller conveying systems for band saw cutting machine driven by motor are equipped if necessary to realized pipe feeding in & feeding out automatically.

Welcome you to contact us to get more informatons.

Or Learn more about us pls ref to website: www.pipemachinechina.com

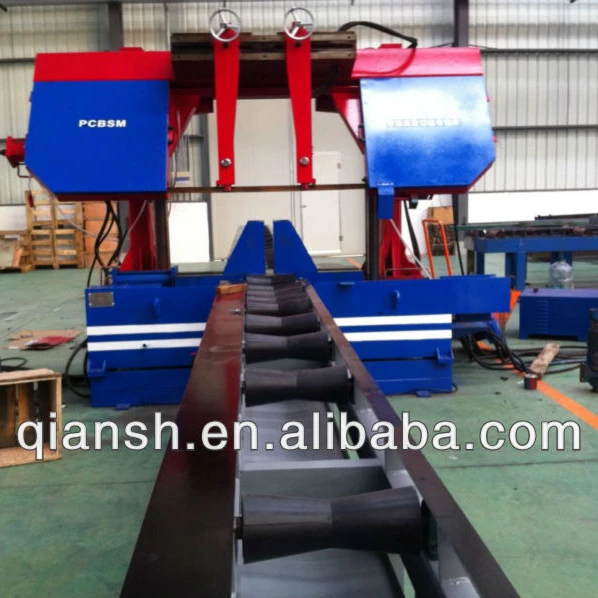

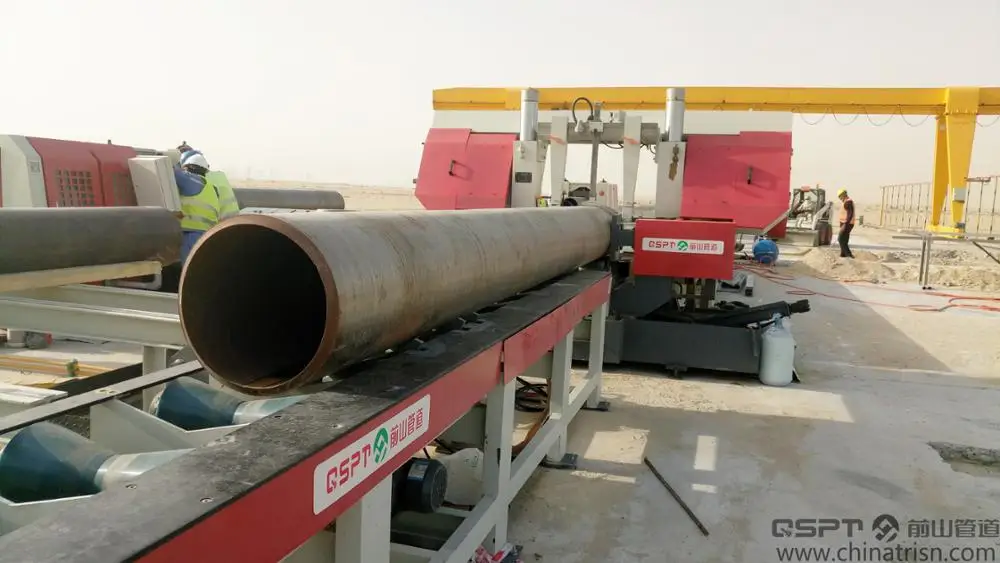

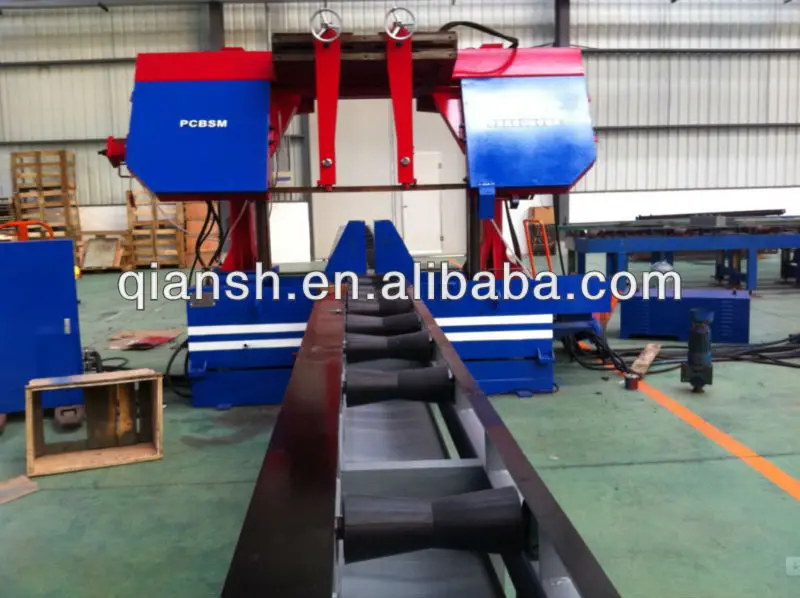

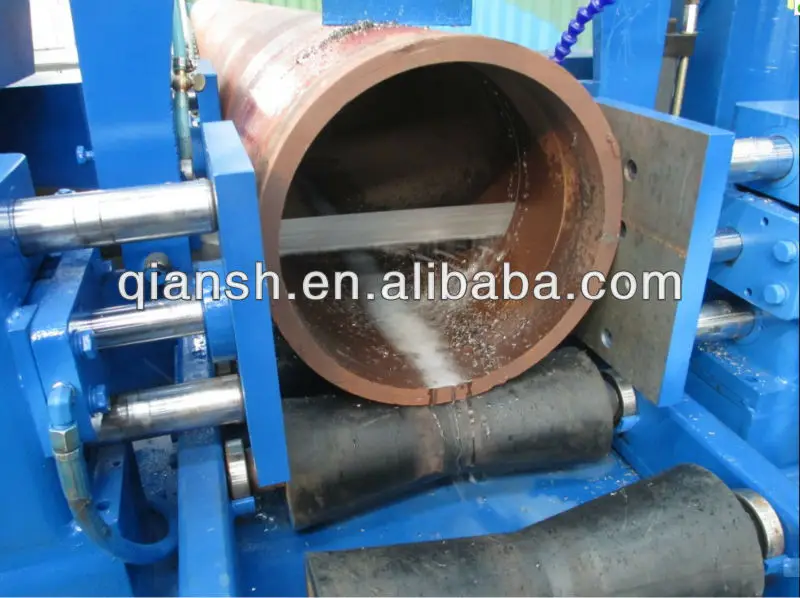

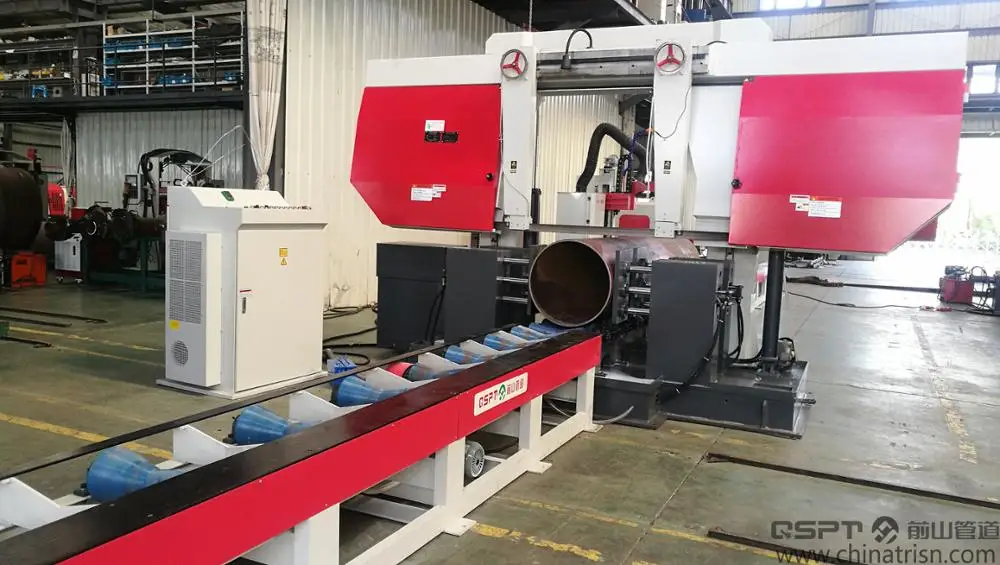

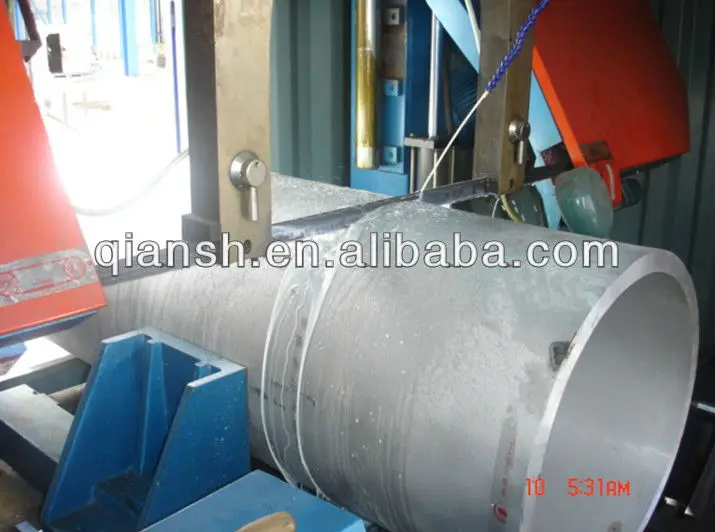

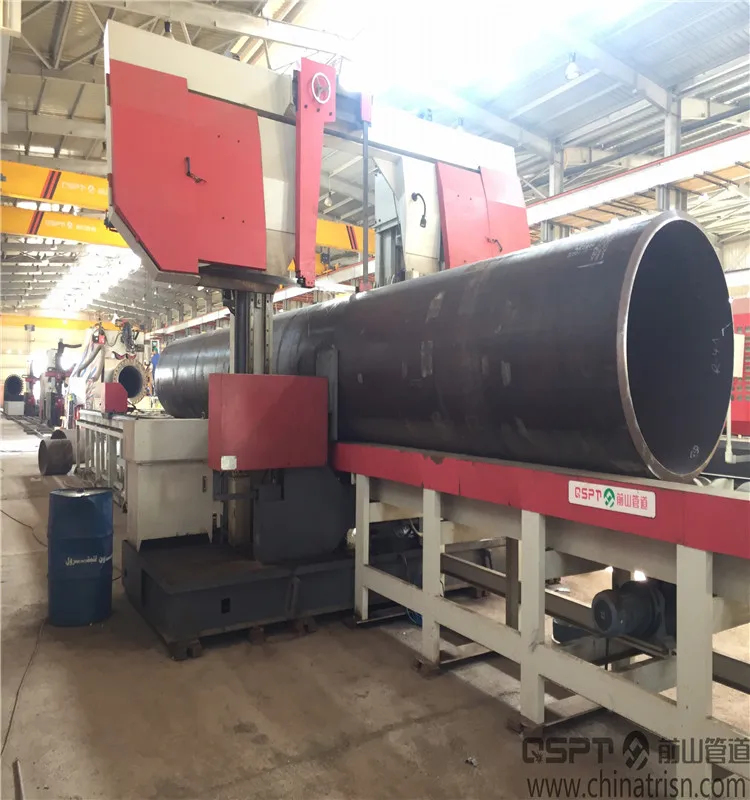

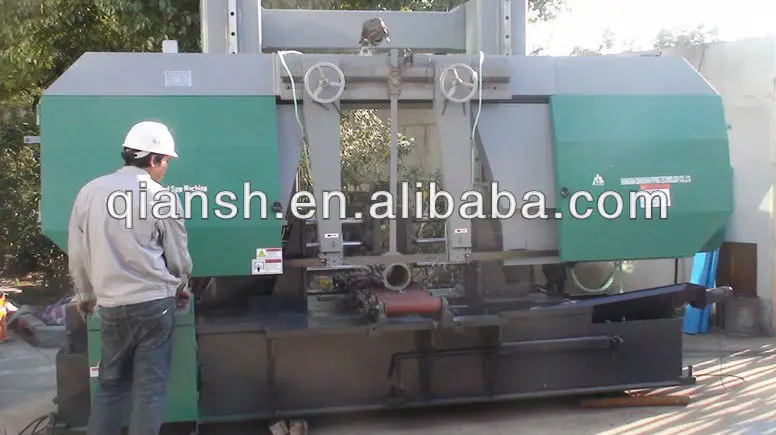

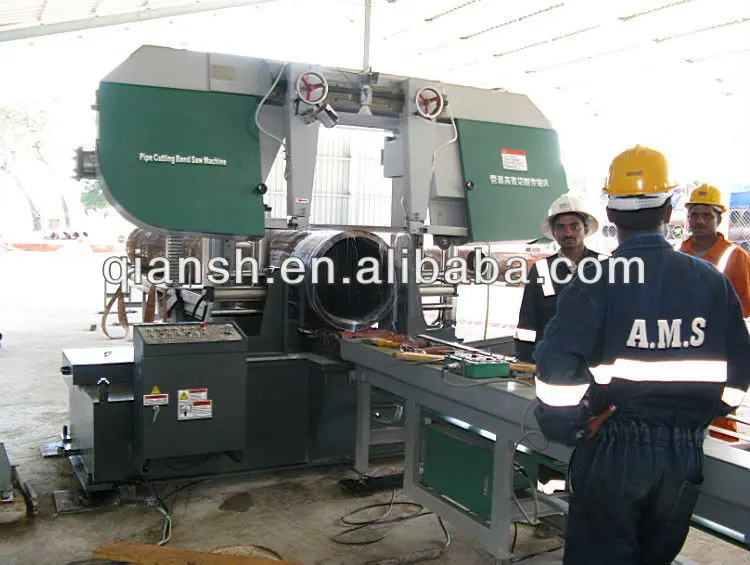

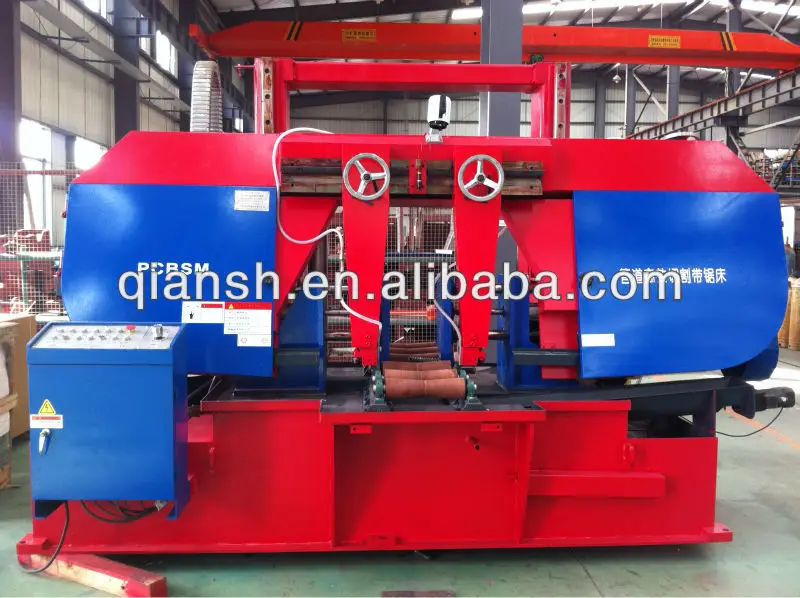

Reference Photos:
