Portable Solar Water Filter Solar Water Purification System

Product Overview

Description

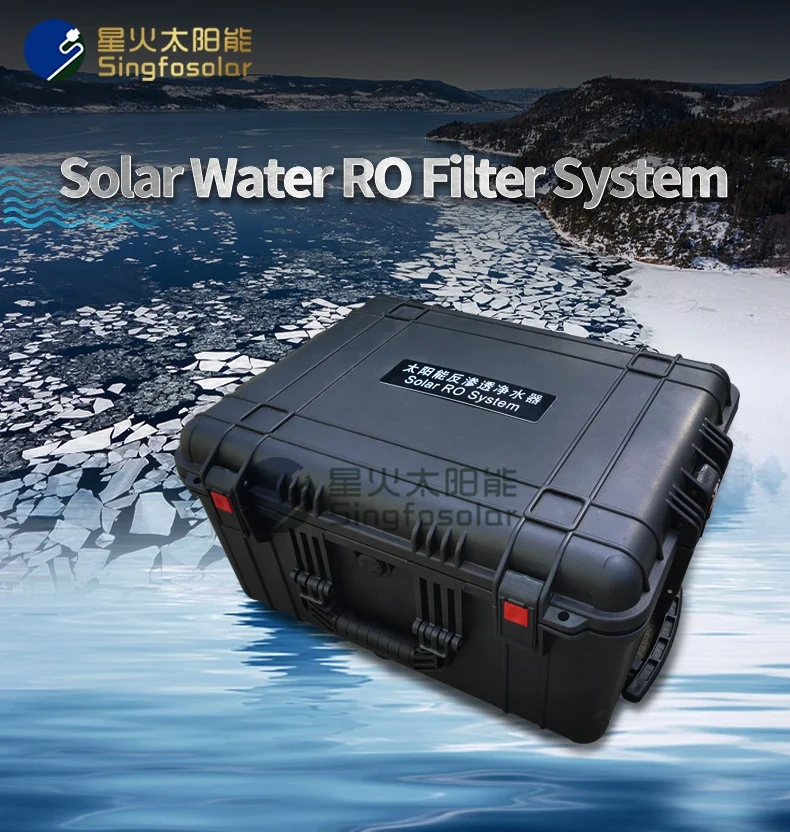

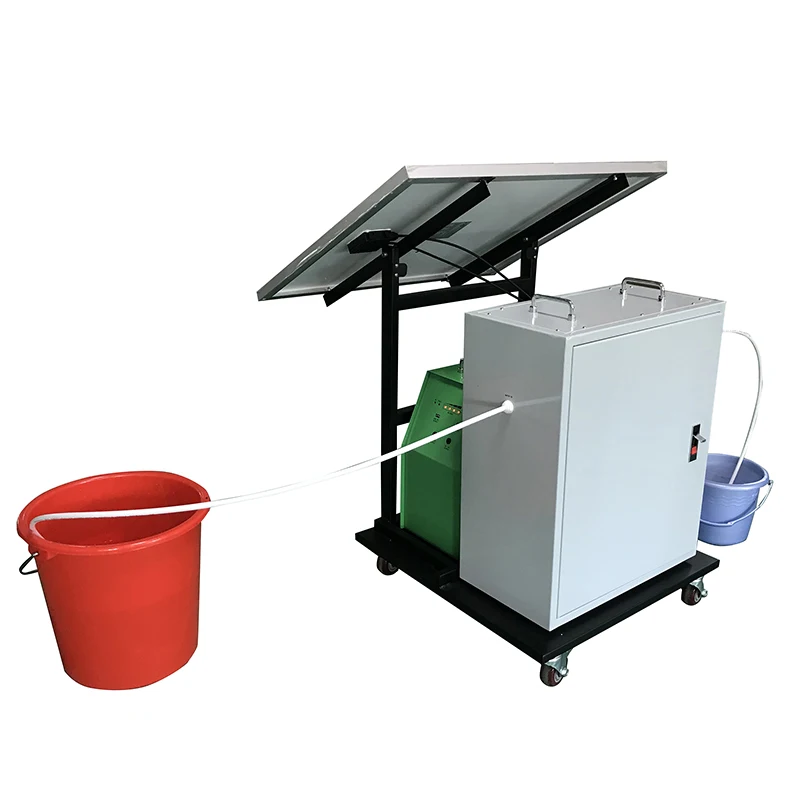

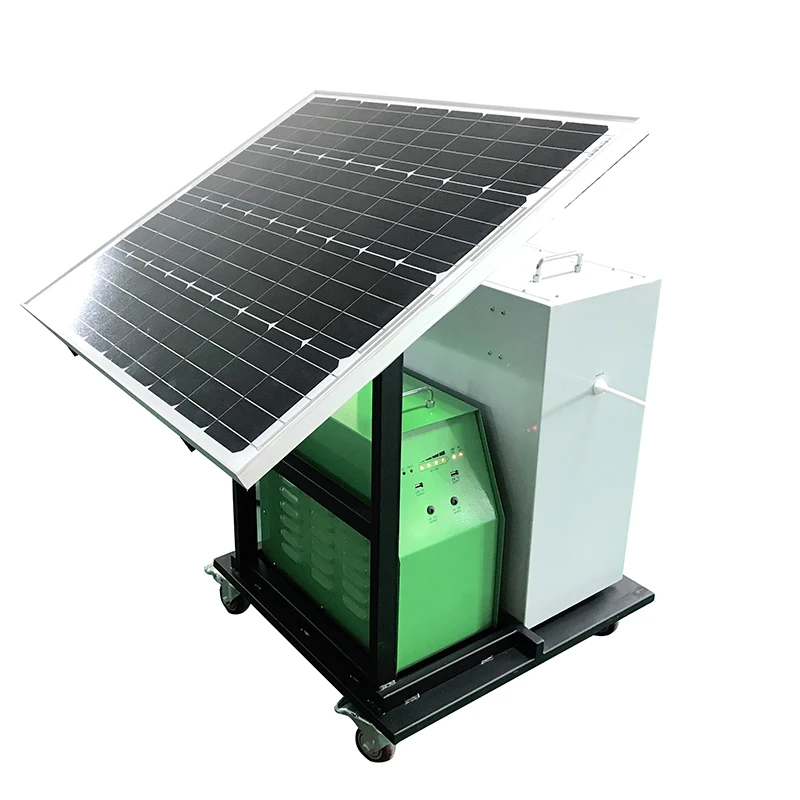

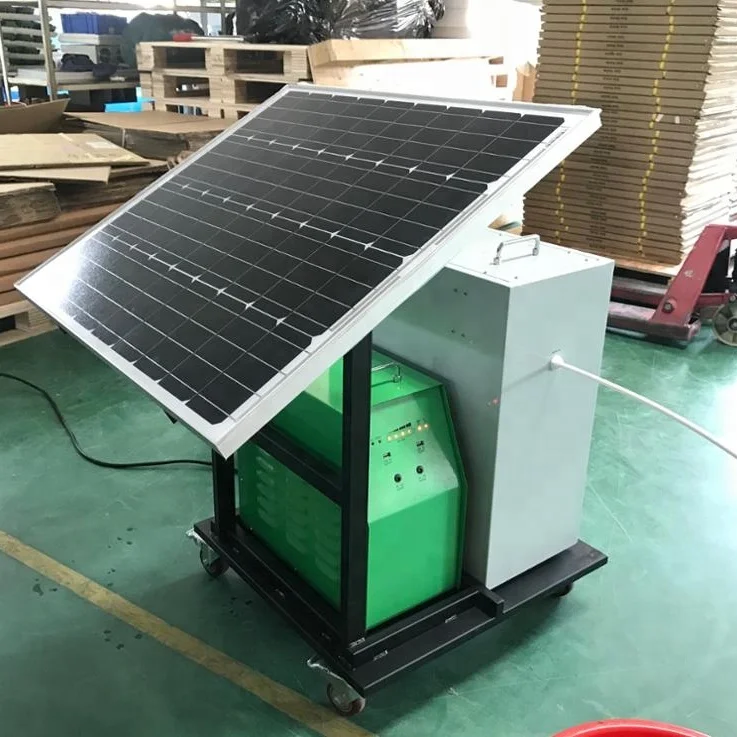

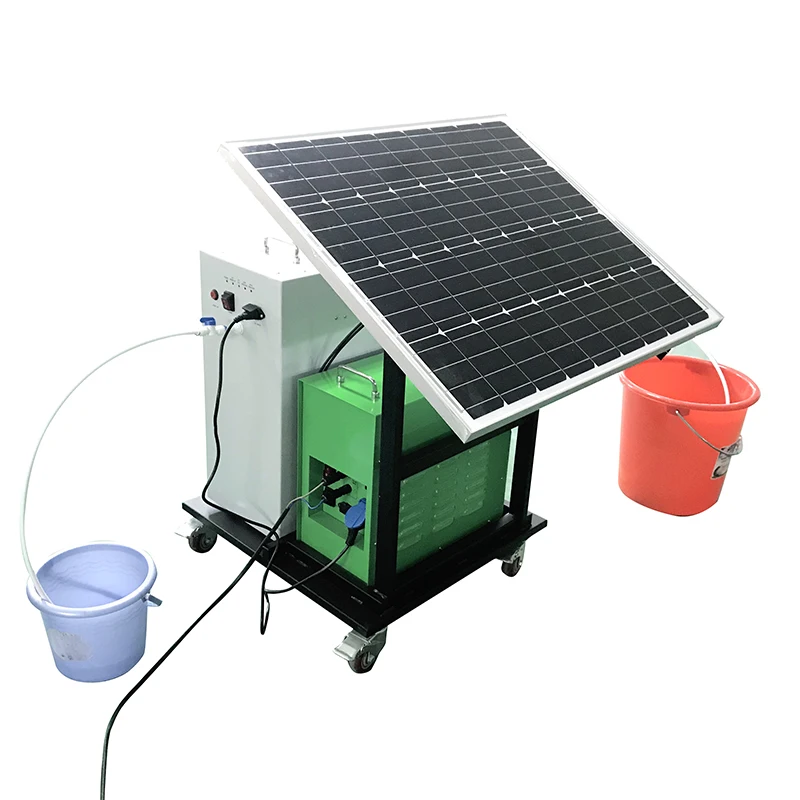

Portable Solar Water Filter Solar Water Purification System

The SingfoTM Water Purification System is a portable water filtration system that can draw and purify water from a range of sources, including water storage containers, ponds, lakes, and streams. The system, powered by renewable solar energy, requires no gasoline or other fuels, and is powerful enough to provide up to 940 gallons of safe, clean drinking water in one day.









 Porduct Features:



- Renewable solar energy powered,requires no gasoline or other fuels

- Draw and purify water from wells, ponds, streams or rain water

- Providing  100% safe, clean drinking water anytime and anywhere

- Carbon filter clean the water,  UV light  kills bacteria's and viruses

- Can purify 150 Liters of safe, clean drinking water in one hour

- Simple to use, low maintanance



Function Paremeter



Technical Data
Solar Panels	Type	1 X 80W  SFP80-36 Panels
	Rated Maximum Power (Pmax)	80W
	Voltage @ Pmax (Vmp)	18.05V
	Cell Type	Polycrystalline
Controller	SPEC	12V 10A
	Mode	PWM
Battery	Voltage	12V
	Capacity	52AH
	Battery Type	Deep Cycle, Sealed Gel, Lead acid
Filter	Filtration Technolog	UF ultrafiltration membrane
	Activated carbon filter	Cartridge type 20", 10 - 20 micron
	Cartridge Size	20inch
Performance	Produce fresh water per hour	150L/H
	Quality of produced water	9.9999% virus- and bacteria free





Fitting List
Item Name	Description	QTY (pcs)
Solar Panels	18V 80W	1
Battery	12V 50AH	1
Controller	12V 10Am	1
Solar Panel Bracker	/	1 set
Host Box	/	1 set
Activated Carbon Filters	/	1 set





Pcaking Size
Solar Panels	1196*541*35mm
The Water Filter System (Not include solar panels)	790*530*660mm
Totally G.W.	99KG



 Applicaiton:



- Ideal for Temporary Installations

-  Ideal for Emergency Situations

- Rural area with no power



Our company show



Our Certificates :
