Rubber banbury mixer





1.      Application of machine



It is used for plasticating and mixing of rubber.



2.      Main specification



Model	XM-160X30	XM-160X(4~40)	XMN-190X(6~60)	XM-250X20	XM-270X(4~40)	XM-400X(6~60)
Total Volume of mixing chamber	160 2-wings	147 4-wings	200	253 2-wings	235(255) 4-wings	425 4-wings
Working Volume of mixing chamber	120	110	140	140	176(191)	319
Speed of rear rotor	30	4~40	6~60	20	4~40	6~60
Speed ratio of rotors	1:1.16	1:1.16	1:1	1:1.16	1:1.17 or 1:1	1:1.15 or 1:1
Pressure of compressed air	0.6~0.8	0.6~0.8	Hydraulic ram	0.6~0.8	0.6~0.8 Hydraulic ram	0.6~0.8 Hydraulic ram
Consumption of compressed air	~70	~70	Hydraulic ram	~40	160~200 Hydraulic ram	~350 Hydraulic ram
Pressure of cooling water	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Consumption of cooling water	~45	~45	~60	~23	~100	~150
Power of driving motor	355	500	1100	250	1250	2X1250
Dimension (LXWXH)	8000X3250X5180	9000×4000×5260	9000×4500×6200	7100X3905X4953	10060×5000×6330	11150×4960×7040
Gross weight(excluding main motor)t	~37	~40	~45	~35	~59	~76
Note:The machine is divided into left or right diven







3.      Construction brief







The machine is divided into right-hand driving and left-hand driving according  with transmission. The worker affront feeding door direction, transmission system is right or left, then its transmission type is right-hand driving or left-hand driving. The transmission is confirmed according to the requirement of consumer.

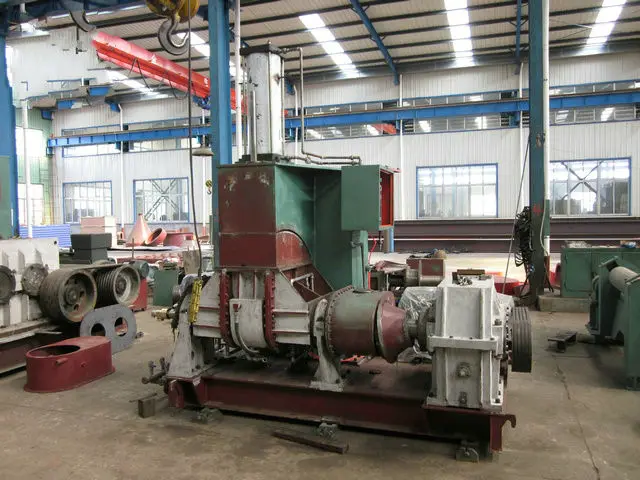

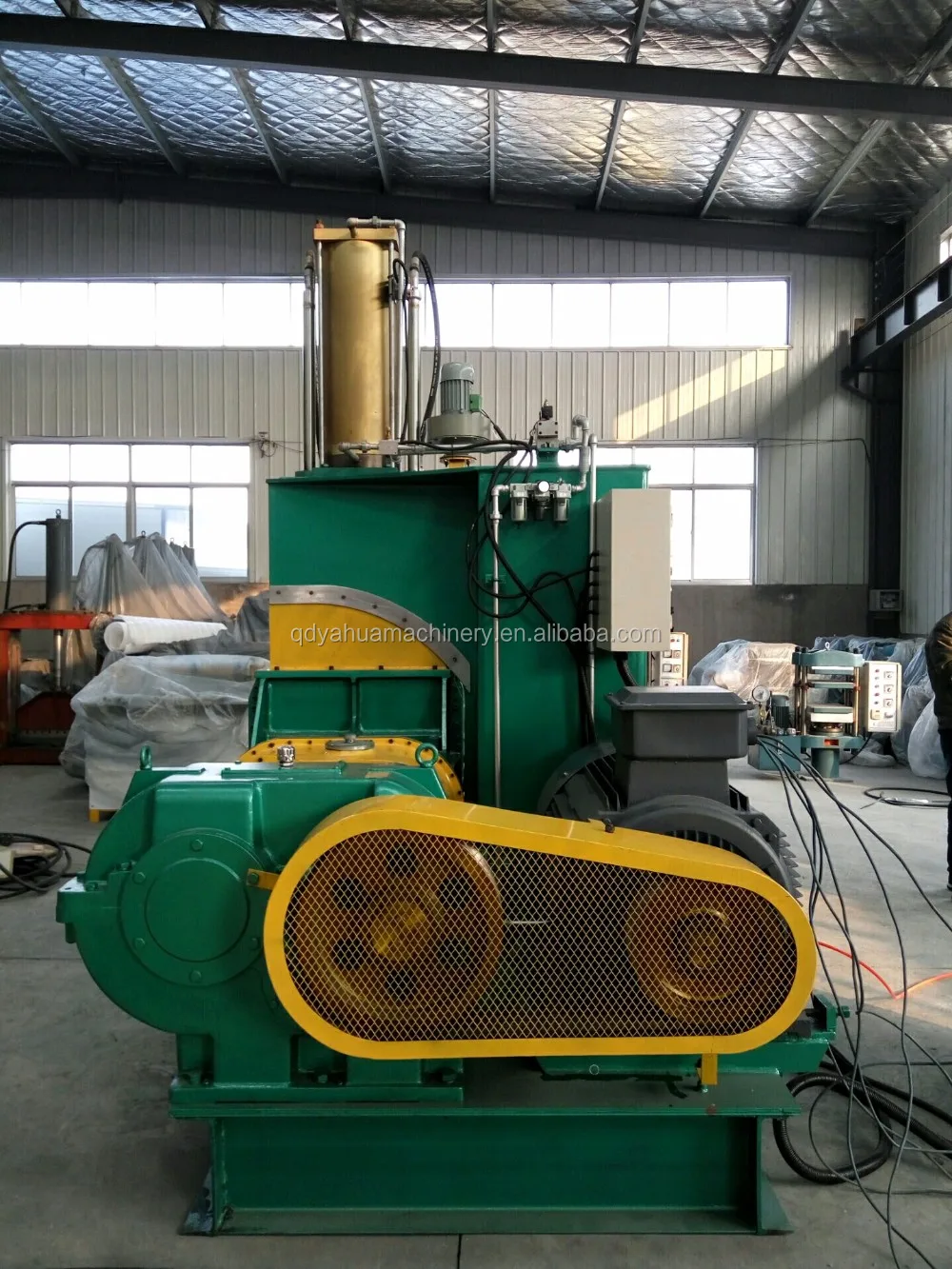

The machine consists of main machine, speed reducer, main motor, appertain equipment etc. as shown in Fig.1, Fig.3.

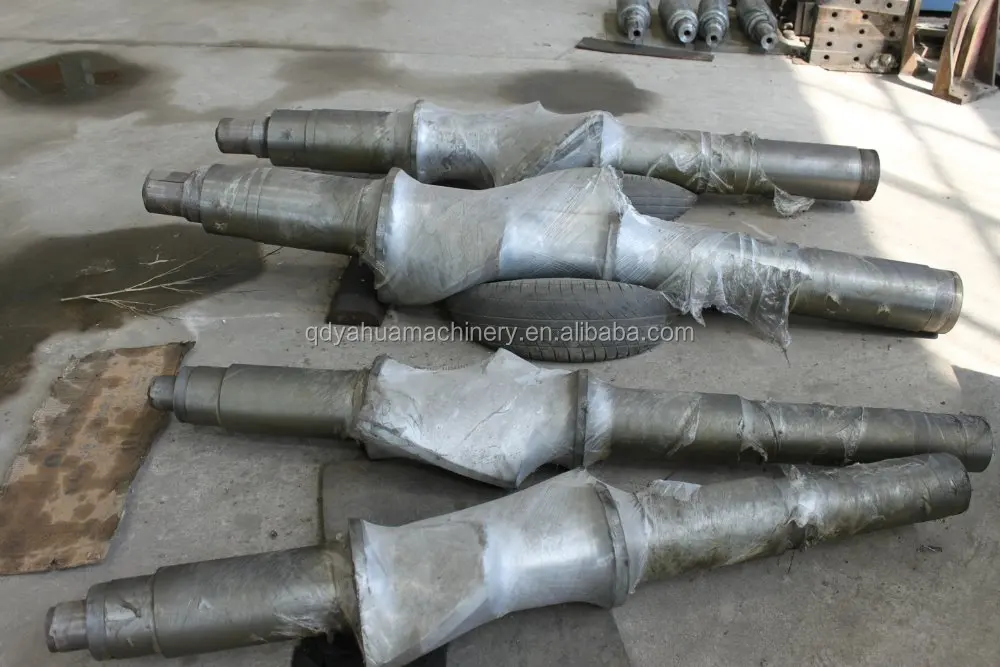

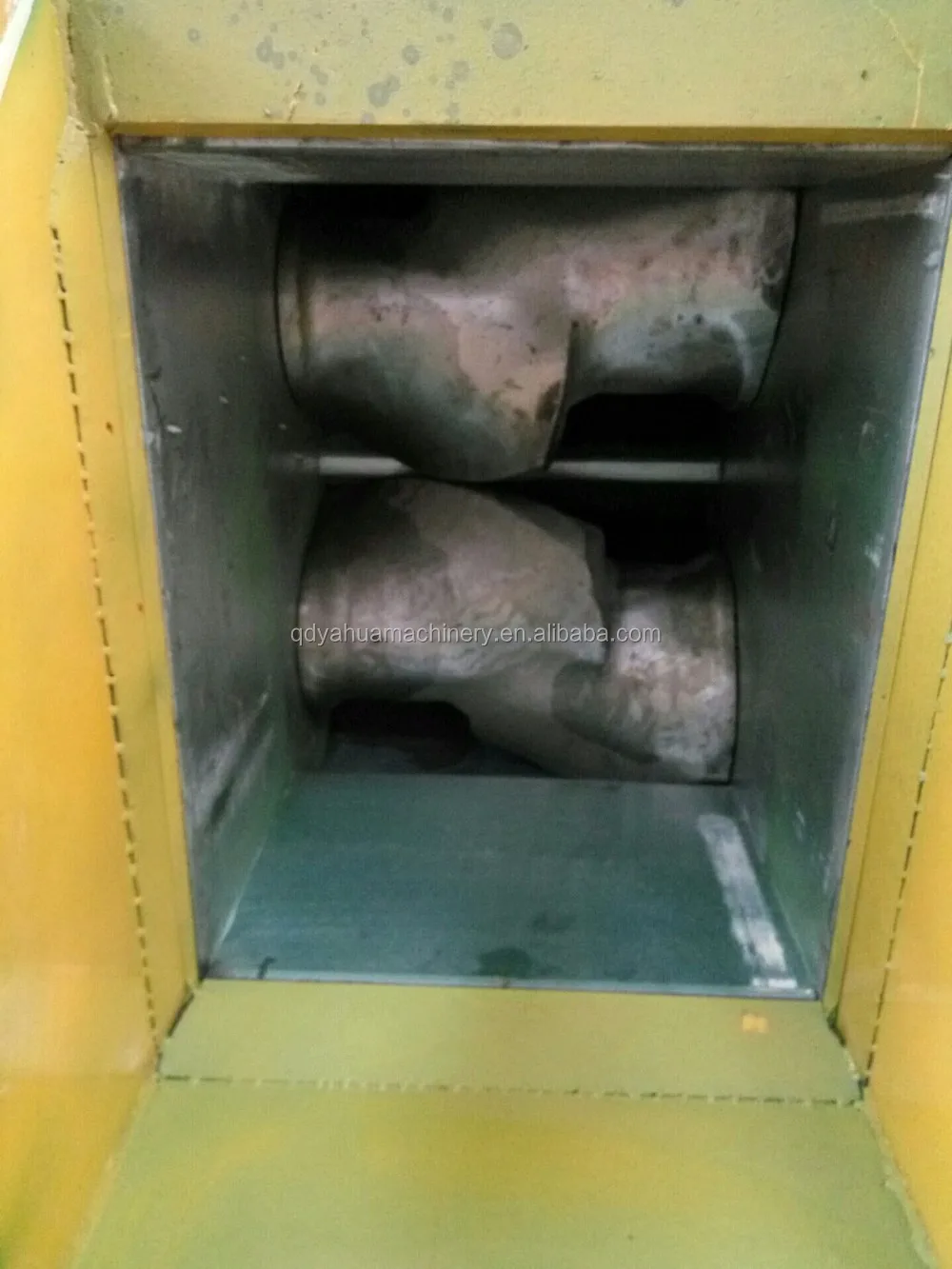

Main machine consists of mixing chamber, rotor device, feeding device, discharge device etc. Speed reducer and rotors are rotated toward each other to proceed to plasticate and mix.



Furthermore, furnished with pneumatic control system of feeding door, discharge door, the action of float weight up and down, furnished with cooling system of mixing chamber, rotors, drop door, float weight, furnished with the end surface sealing device for rotor and the end surface sealing device for guide on the bed plate of mixing chamber.



Operation method has manual, auto. Control method of mixing has time control and power control, and it has temperature control device. The operation is shown in the manual for electrical part.
