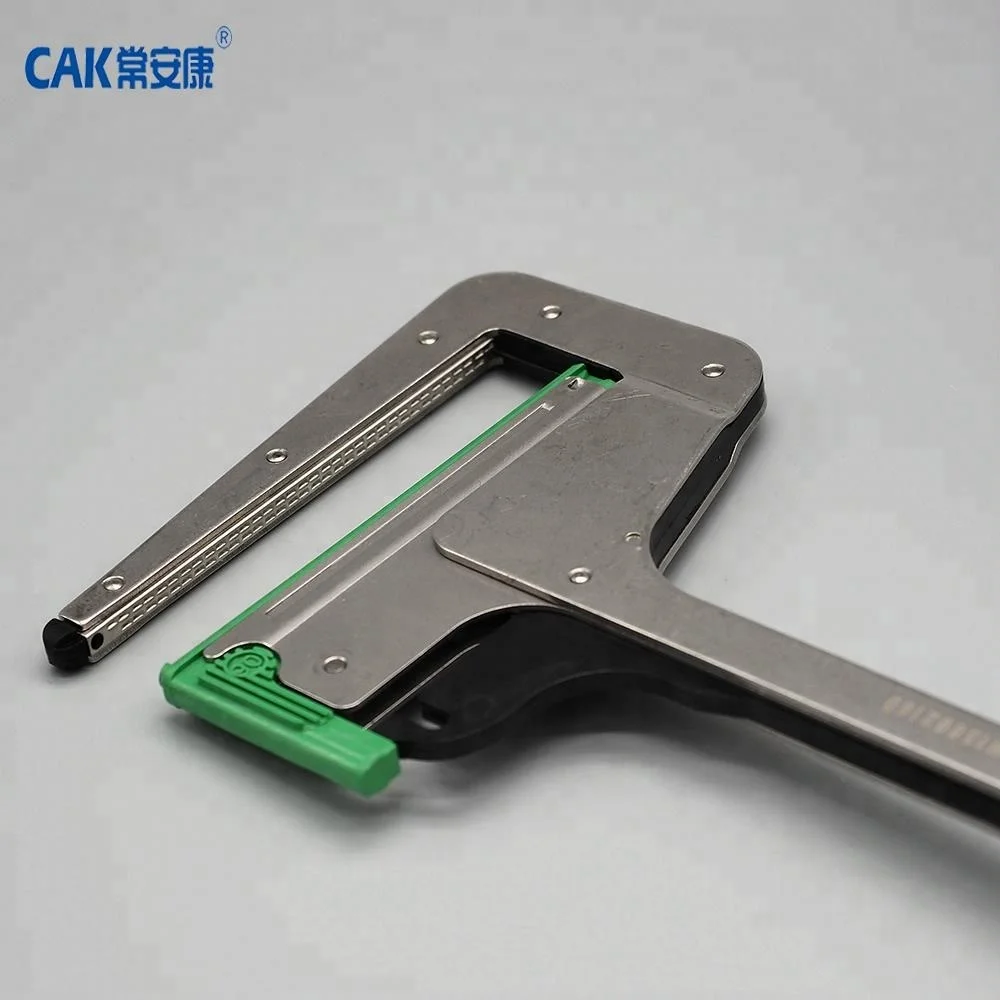

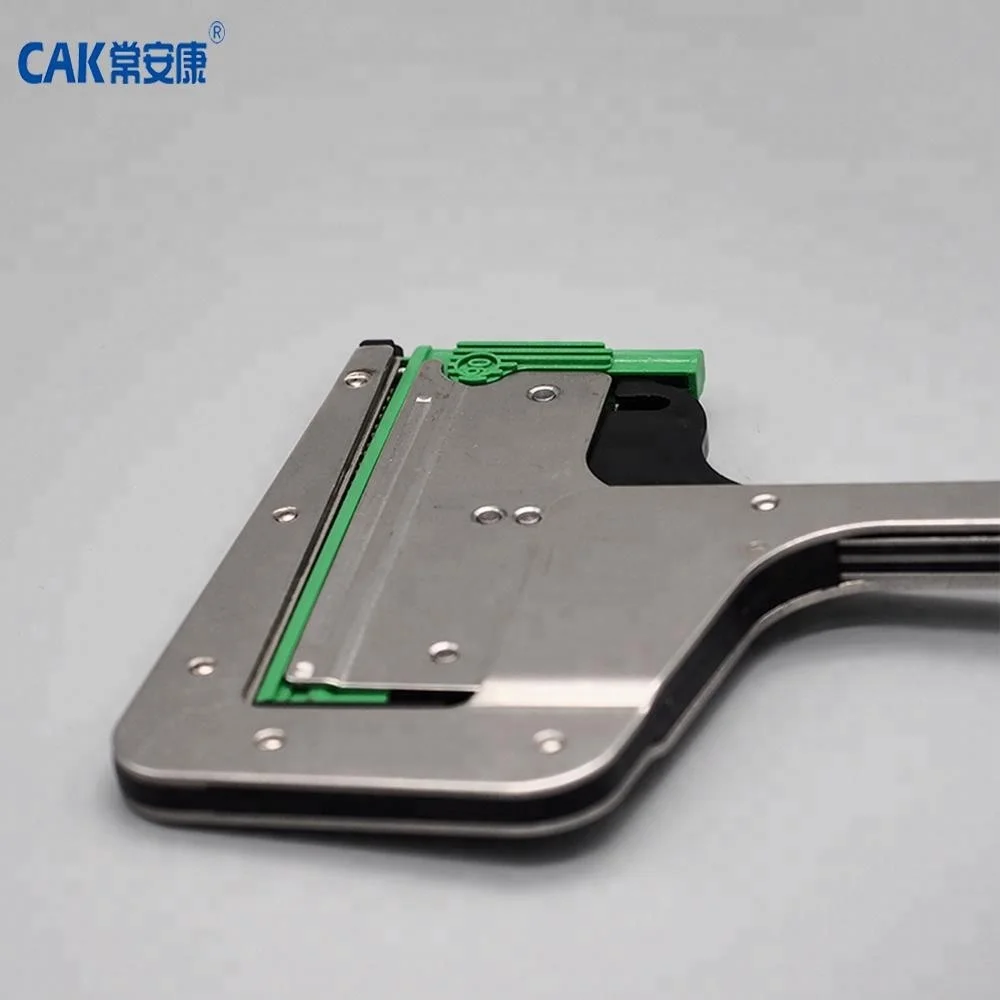

suture stapler

Product Overview

Description

CAK linear stapler under CE mark



Applicable Operation

To anastomosis the remaining end and close the incision in surgical operation.

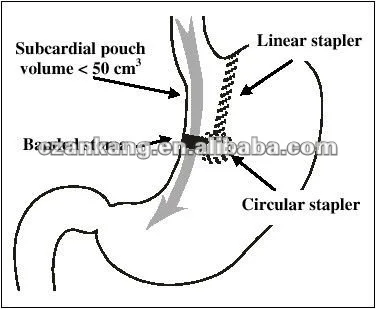

Fig.1. Vertical banded gastroplasty: division of the stomach performed by circular and linear stapler with banded stoma.

Features

1.Material:Titanium,ABS
2.Sterilization method:Irradiation

3.Easy and convenient to operate.
4.With CE and ISO certificated.
5.Flat anvil design,easy acess to the tissue.

6.Automatic retaining pin, prevent tissue spill out of the instrument jaw.

7.Easy regulate the height of the nail stores according to the thickness of the tissue.



Technological Parameters

Model	Stitch length(mm)	Suture Thickness(mm)	Number of Nail	Height of Nail(mm)
AKYZXA/B-30H	39	1.5-2.5	11	4.8
AKYZXA/B-30L	39	1.0-2.0	11	4.1
AKYZXA/B-45H	50	1.5-2.5	15	4.8
AKYZXA/B-45L	50	1.0-2.0	15	4.1
AKYZXA/B-60H	67	1.5-2.5	21	4.8
AKYZXA/B-60L	67	1.0-2.0	21	4.1
AKYZXA/B-90H	100	1.5-2.5	33	4.8
AKYZXA/B-90L	100	1.0-2.0	33	4.1
