hot feed rubber extruder machine
- Category: >>>
- Supplier: Qingdao Yahua Machinery Co. Ltd. [Shandong China]Qingdao
Share on (765774395):
Product Overview
Description
rubber extruder
Detailed Product Description
rubber extruder is mainly used for extruding rubber hoses, if changing various different heads, it can also extrude rubber bar
forms of screw and screw thread: double-head convergent type
screw diameter:120mm
length-diameter ratio of screw:4.6
rotary speed of screw:5.6-55.6 r/min
motor power: electromagnetic speed 22kw
production capacity:100-450kg/h
steam pressure:0.2-0.4Mpa
cooling water pressure:0.2-0.4Mpa
sizeLxWxH:2427x750x1330
weight(not contain machine-head):3000kg
Technical Parameters :

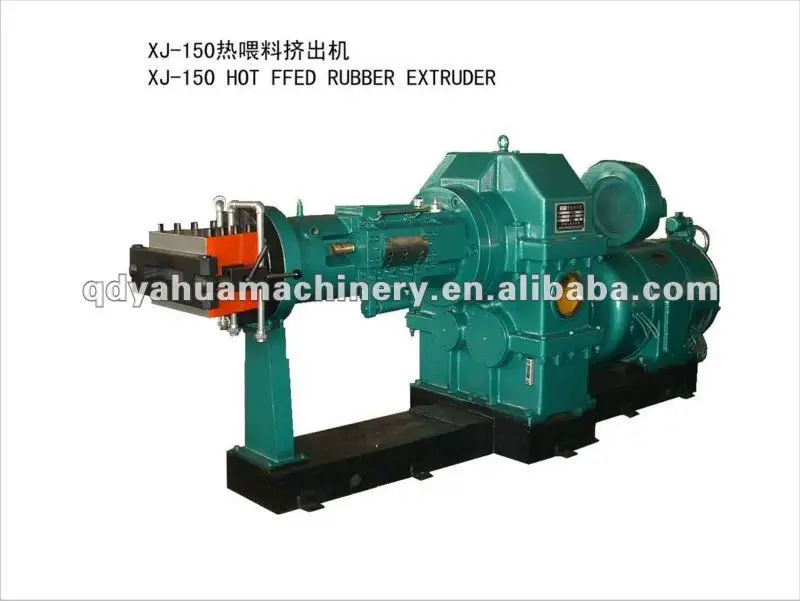

Parameters/ Version | XJ-65 | XJ-85 | XJ-115 | XJ-150 | XJ-200 |
Screw outer diameter(mm) | 65 | 85 | 115 | 150 | 200 |
Length-diameter ratio | 4 | 4.3 | 4.8 | 4.43 | 4.35 |
Compression ration |
| 1.3 | 1.3 | 1.34 |
|
Screw rotation speed (r/min) | 20.27.35.47 | 28.40.56.80 | 33.46.60 | 27-81 | 22.4-67.2 |
Power (kw) | 7.5 | 11/15 | 22 | 18.3-55 commutator machine | 25-75 commutator machine |
Product capacity (kg/h) | 50-80 | 70-210 | 100-420 | 700-1200 | 1500-2200 |
Steam pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0.3 |
Cooling water pressure (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2 | 0.2-0..3 |
Compress air pressure (Mpa) |
|
|
|
| 0.3-0.6 |
Size (l*w*h) (mm) | 1630*604*1050 | 2050*700*1200 | 1630*604*1050 | 3411*814*1470 | 4564*1800*1750 |
Weight (nohead) | 1200 | 2500 | 3000 | 5000 | 8000 |
Model | XJL-160 | XJL-200 | XJL-220 | XJL-250 | XJL-300 |
Screw diameter | 160 | 200 | 220 | 250 | 300 |
Screw L/D ratio | 14 | 14 | 16 or14 | 18 | 12 |
Rotation Speed | 60 | 55 | 44 | 33 | 26 |
Power | 75kW DC | 90kW DC | 110kW DC | 160kW DC | 220kW DC |
Capacity |

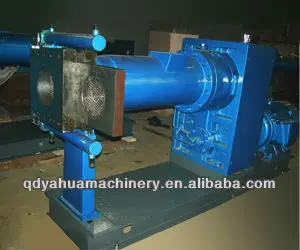

The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.
