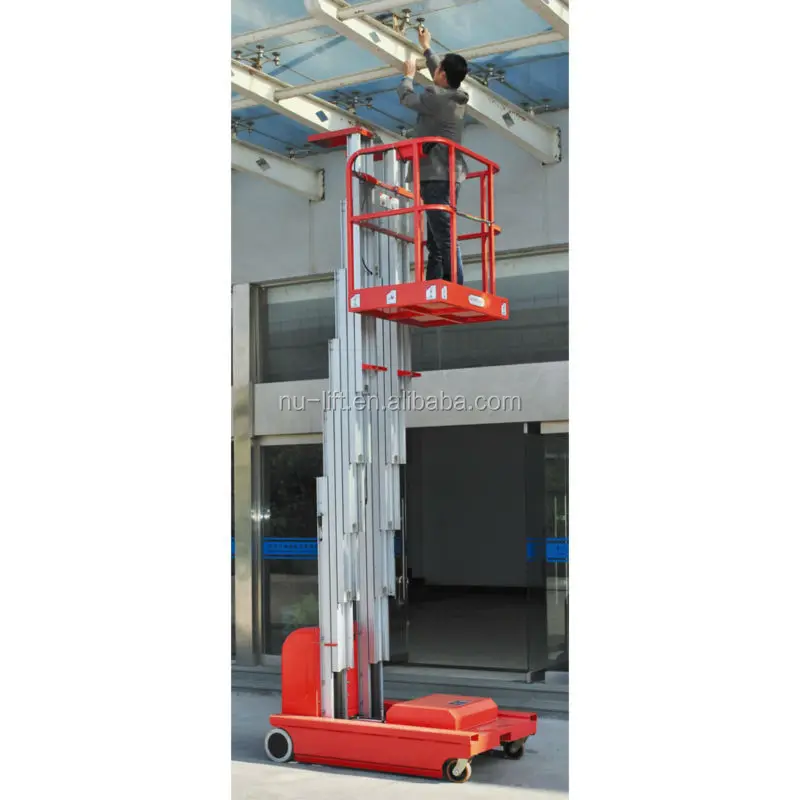

Самоходная электрическая Алюминиевая Рабочая платформа

Product Overview

Description

Product Description

Self-propelled, operator can drive on platform.

•Capacity:150Kg,200Kg.

•Max.Platform Height:7500,9000mm.

•Electric Lifting and Electric Moving.







Model		FAWP7.5-2000	FAWP9-2000
Rated Load Capacity	kg	200	150
Platform Height	mm	7500	9000
Max. Working Height	mm	9000	10500
Min. Platform Height	mm	530	530
Ground Clearance	mm	70	70
Platform Size	mm	1000x700x1150	1000x700x1150
Max. Drive Speed	Km/h	3~4	3~4
Min. Turning Radius	mm	1600	1600
Max. Climbing Capacity	%	10~15	10~15
Drive Wheel	mm	Ø230x80	Ø230x80
Castor Wheel	mm	Ø150	Ø150
Drive Motor	V/Kw	2x24/0.4	2x24/0.4
Lifting Motor	V/Kw	24/2.2	24/2.2
Batteries	V/Ah	2x12/150	2x12/150
Charger	V/Ah	24/15	24/15
Overall Length	mm	1500	1500
Overall Width	mm	1000	1000
Overall Height	mm	1960	1960
Net Weight	KG	1100	1250
