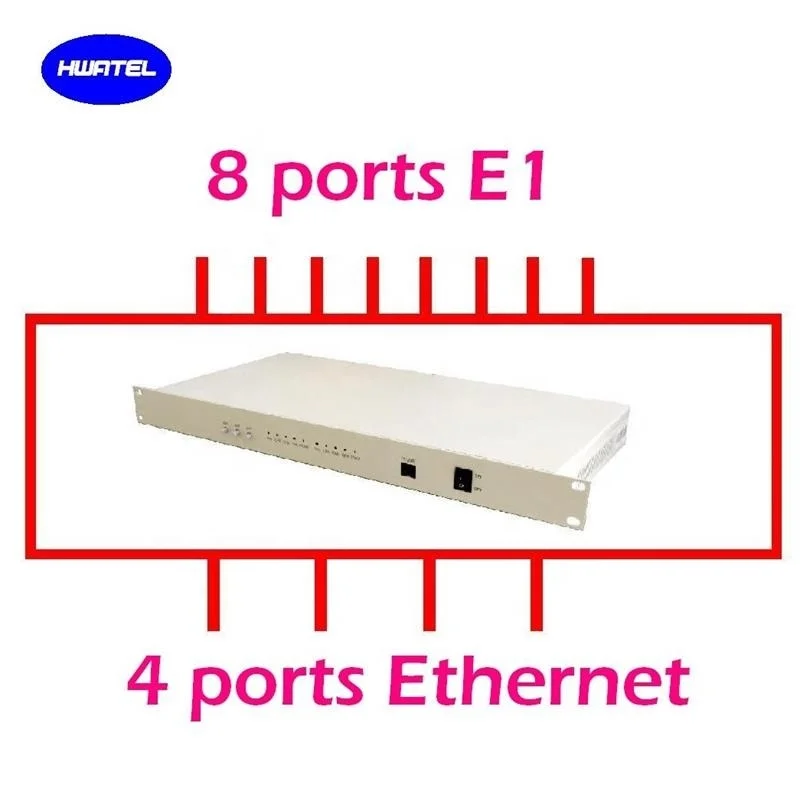

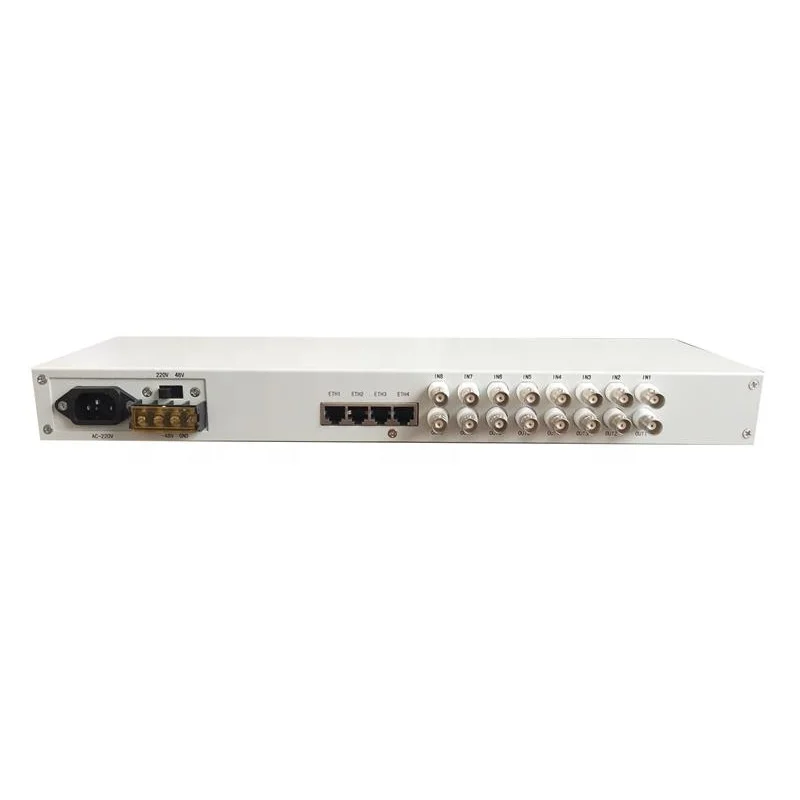

8 E1 to Ethernet protocol converter 8 E1 to Ethernet for DSLAM BTS
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (766129745):
Product Overview
Description

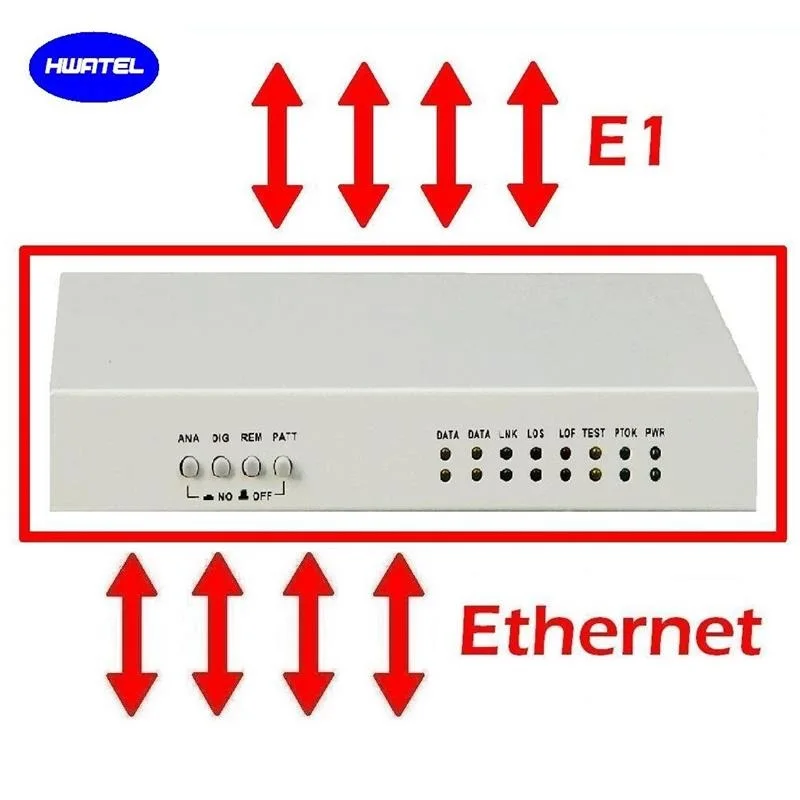

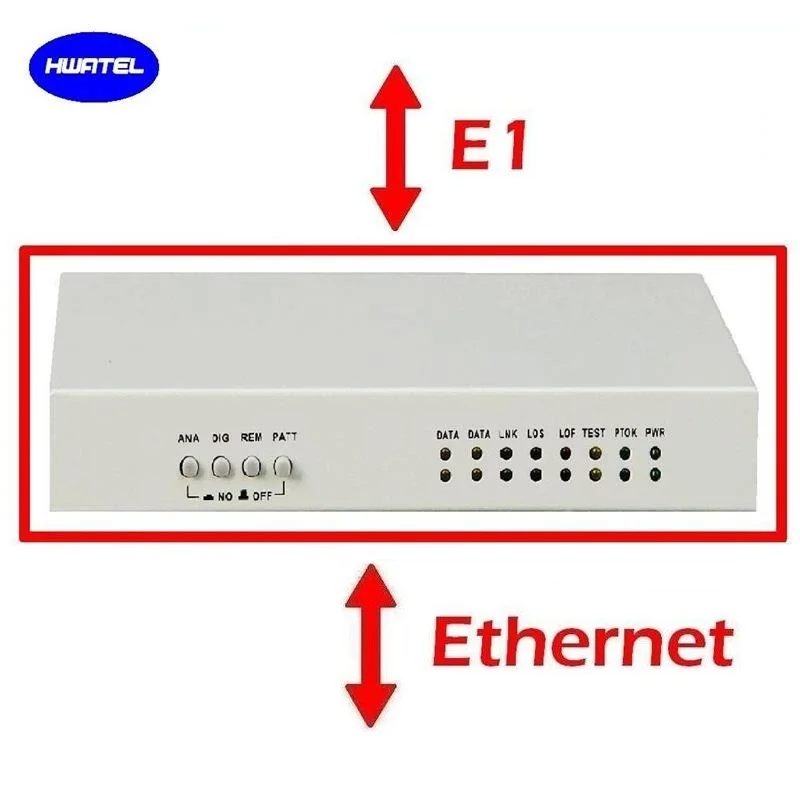

Ethernet to 8 E1 converter
8 E1 to Ethernet Net Bridge
8 E1 Protocal Converter

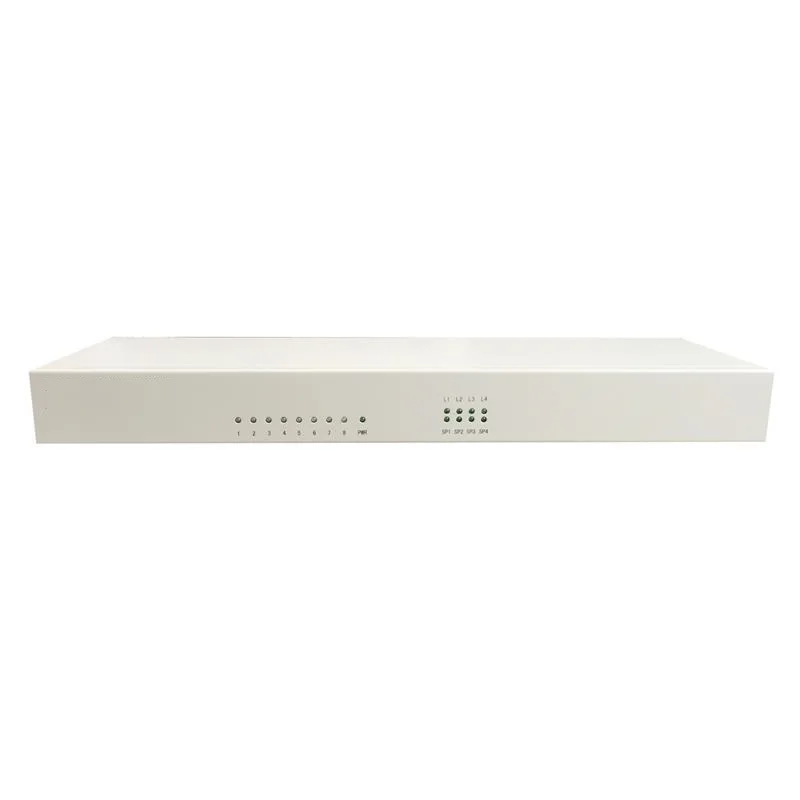

Eth-8E1
Overview
Since 1998, import technology from RAD compnay, HWATEL is the first converter manufactory in china , in past 15 year HWATEL sell nearly 1 million pcs interface converter all over the world. HWATEL interface converter/Digital Terminal Unit family have over 50 models of products, provide interface convert between data, voice interface to any network interface, and provide voice, data, video and legacy service access service.
HWATEL Protocol interface converter/Digital Terminal Unit family have over 50 models of products, provide interface convert between data, voice interface to any network interface, and provide voice, data, video and legacy service access service. OEM for ZTE, D-LINK, ADC, CTC and many European and Taiwan company
There are 7 serial products in HWATEL protocol converter family:
- Ethernet Converter
- UNIVERSAL RACK MOUNT SHELF
- ETHERNET AGREGATE GATEWAY
- HYBRID CONVERTER: ETH+DATA+VOICE
- DATA CONVERTER
- ELECTRICAL-OPTICAL CONVERTER
- TDM OVER IP
Product Description
Eth-xx series products are high performance, self-learning Ethernet bridges. Their low cost make them ideal for cost-sensitive bridging applications or as LAN extenders or segments over bit-stream type infrastructures.
 |  |  |
 |  |  |
 |  |  |
Feature
- Provide 2 clock mode: E1 master clock, E1 line clock.
- Support 3 loop test mode: local loop, to remote loop, order remote loop.
- Embed BER tester, generate pseudo random code and test BER online
- Equip Ethernet monitor, when problem detected, auto-reset to eliminate problem
- LED indicator the status of both local and remote side equipment
- Suitable for backhaul IP DSLAM, 3G,WiMAX base station, Layer 2 VPN, Inter-office or enterprise LAN connection
- Circuit bounding with HDLC, MPPP or standard EoPDH GFP
Tech Specification
- E1 interface
Standard: ITU-T G.703
Line Rate : Nx64Kbps, N=1~32
Impedance : 75 ohm(unbalance) and 120ohm(balance)
Connector: BNC for 75 ohm and RJ45 for 120-ohm
Jitter Performance: better than ITU-T G.742 and G.823
- Ethernet
Speed: 10M/100M, full/half duplex self adapt.
Standard: Support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC address table: 4096 MAC addresses.
Ethernet buffer: 64 M bits SDRAM
support AUTO-MDIX (cross over and straight through self adapt)
- VLAN support IEEE 802.1d

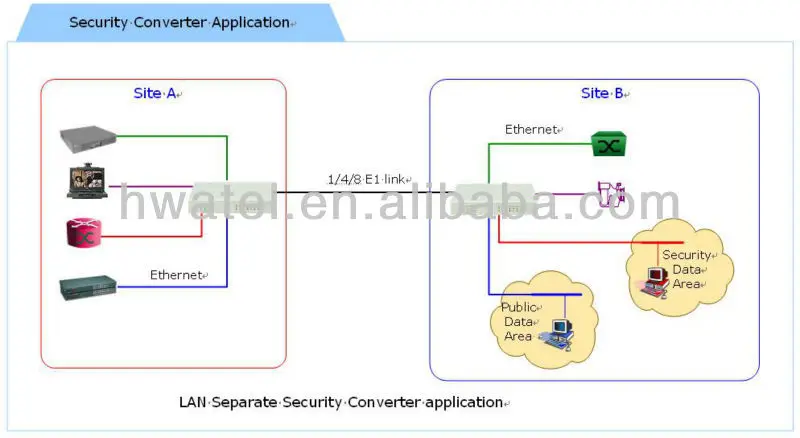

Application
