EASCO Spliting PP Polypropylene Cable Conduits
- Category: >>>
- Supplier: Shanghai Pudong Yuqiao Plastics Co. Ltd.
Share on (766382821):
Product Overview
Description
EASCO Spliting PP Polypropylene Cable Conduits
Application: Allows the cables to be mounted in to machines, equipment, control panel cabinets and walls with only a few steps. For Mechanical manufacturing, electrical insulation system, lighting device,car manufacturing, aviation device, metro, train, automation controlling systems. And wherever the requirements of UL94 V0 are demanded.
FEATURES
1)Good flexibility. Good bending performance.
2)Resistant to weak acid, grease.Anti-friction.
3)Durable.
4) Easy, tool-free assembly.
5)Standard hole diameters.
6)Single Openning Split PP Conduit.
7)Using Method: place calbes in conduit, fixed with adaptor or fittings.
DRAWINGS
| Description: | Polypropelene Corrugated Split Conduit with UL94V0 classification |
| Material: | Polypropelene |
| Operating Temperature | |
| Intermittent Operating Temperature: | |
| Certification: | CE. ROHS.ISO9001.ISO14001 |
| Flammability: | UL94 V0 |
| Color: | Black. Colors can be customized upon reasonable quantity. |
SPECIFICATIONS
| Part No. | Size | I.D. | O.D. | Packing (M) |
| EAP-PP-10.0V0 | 1/4" | 6.5 | 10 | 100 |
| EAP-PP-13.0V0 | 5/16" | 10 | 13 | 100 |
| EAP-PP-15.8V0 | 3/8" | 12 | 15.8 | 100 |
| EAP-PP-21.2V0 | 1/2" | 17 | 21.2 | 100 |
| EAP-PP-28.5V0 | 3/4" | 23 | 28.5 | 50 |
| EAP-PP-34.5V0 | 1" | 29 | 34.5 | 50 |
| EAP-PP-42.5V0 | 1 1/4" | 36 | 42.5 | 50 |
| EAP-PP-54.5V0 | 2" | 48 | 54.5 | 25 |
| EAP-PP-74.0V0 | 2 1/2" | 63 | 74 | 10 |
| EAP-PP-88.0V0 | 3" | 76 | 88 | 10 |
| EAP-PP-108.0V0 | 4" | 94 | 108 | 10 |

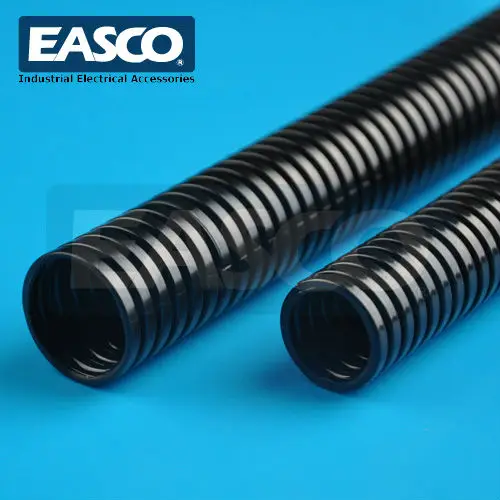

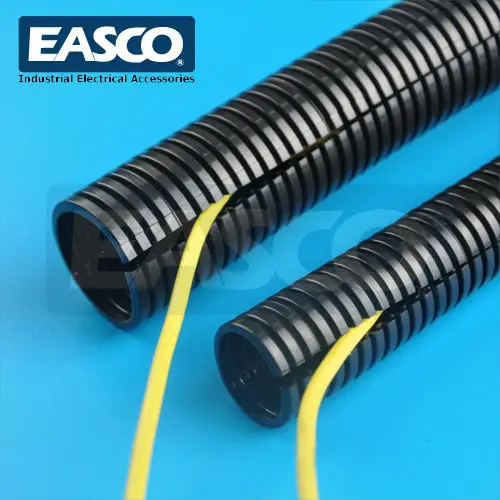

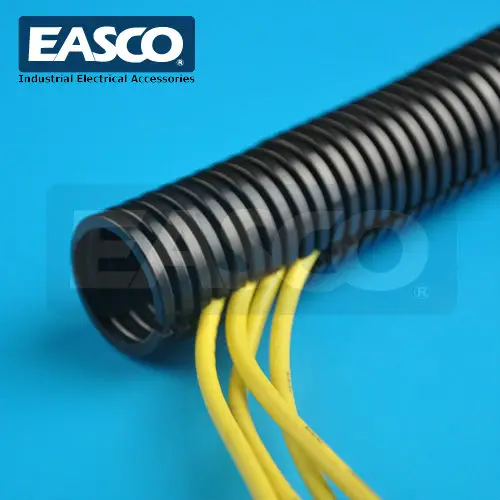

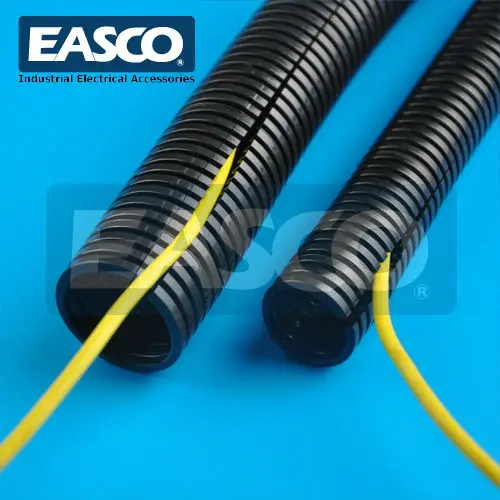

PICTRUES for Split Corrugated PP Conduit

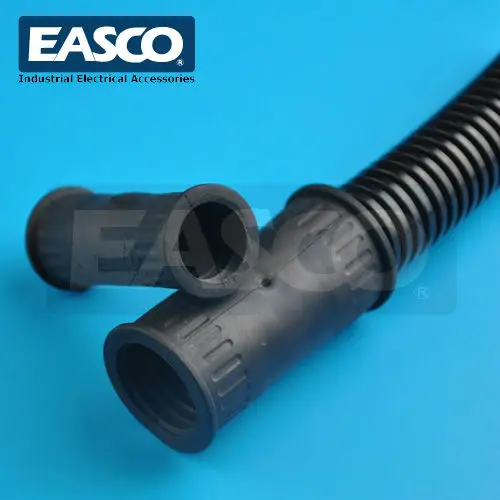

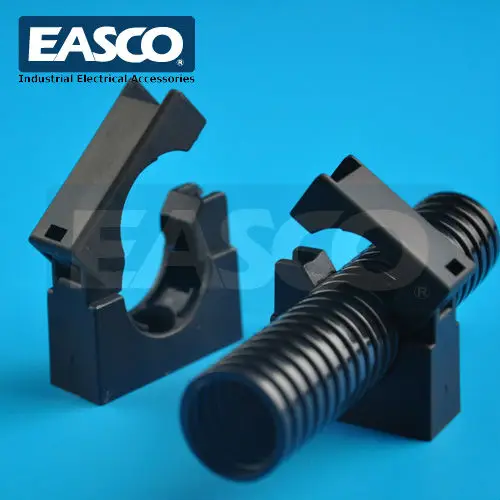

Pictures for PP Split Corrugated Cable Conduit with fittings and adaptors:

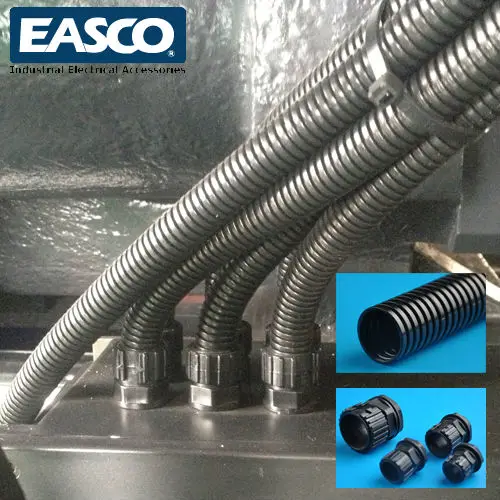

Picutres for the Application of Polypropelene Split Corrugated Conduit:
