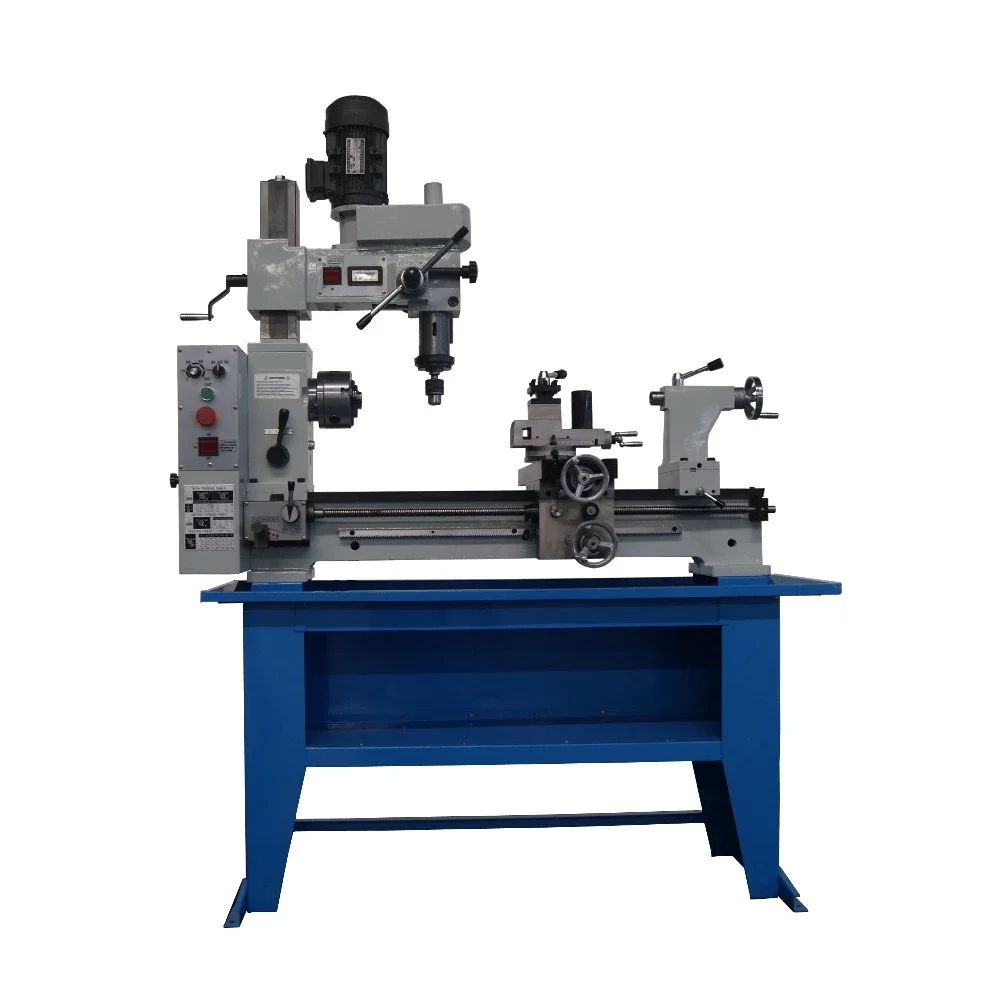

Multi purpose machine drilling and milling machine lathe machine with CE HQ800V 2
Multi-purpose machine drilling and milling machine lathe machine with CE HQ800V-2
Multi-purpose machine drilling and milling machine lathe machine with CE HQ800V-2
Multi-purpose machine drilling and milling machine lathe machine with CE HQ800V-2
Multi-purpose machine drilling and milling machine lathe machine with CE HQ800V-2

Multi purpose machine drilling and milling machine lathe machine with CE HQ800V 2

Share on (766626626):


Price:$1,700.00 - $1,800.00

Quantity:


Product Overview

Description



Product Description


  1.  1.A kind of combination machines with turning ,milling,drilling and threading.
    2.Suitable for processing metal,wood and other materials
    3. Excellent advantage of various functions,small,occupation and economlization
    4.Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making,education training,household utensils'making,etc


Specification
Model
HQ800-V-2
Turning
Height from bed surface to spidle
210mm
Max.diameter of cutting
130mm
Distance between center
800mm
Max.longitudinal travel
700mm
Max.cross travel
195mm
Spindle taper
MT4
Spindle hole
28mm
Spindle speed
0-1500r.p.m
Motor power
0.75KW
Drilling&Milling
Mill&Drill Spindle taper
MT3
Mill&Drill Spindle travel of up and down
110mm
Mill&Drill Spindle headstock travel of up and down
200mm
Distance between spindle and worktable
420mm
Range of spindle speed
0-1500r.p.m
Worktable size
475mm*160mm
Max.drilling capacit
φ22mm
Max.end milling
φ28mm
Max.face milling
φ80mm
Motor power
0.75KW






Features
1.Vector Frequency Converter and Variable Frequency ACmotor can get high torque cutting under low speed.
2.Speed of both the main spindle and Mill&Drill spindle can be adjusted variably during its range of 0-1500r.p.m.Easily operating and reading
3.200mm travel of the Drilling&milling headstock on square column from up to down can realize different sizes of work-pieces processing.
4.Precise positioning of drill and mill head,to ensure the stability of the milling size
5.Square column is more aigid and more beautiful.


  • Stadard Accs

1.Change
2.Tool-post wrench
3.Wedge
4.Center
5.Allen wrench
6.3-jaw chuck,wrench and tie-rod


Packing&Shipping
