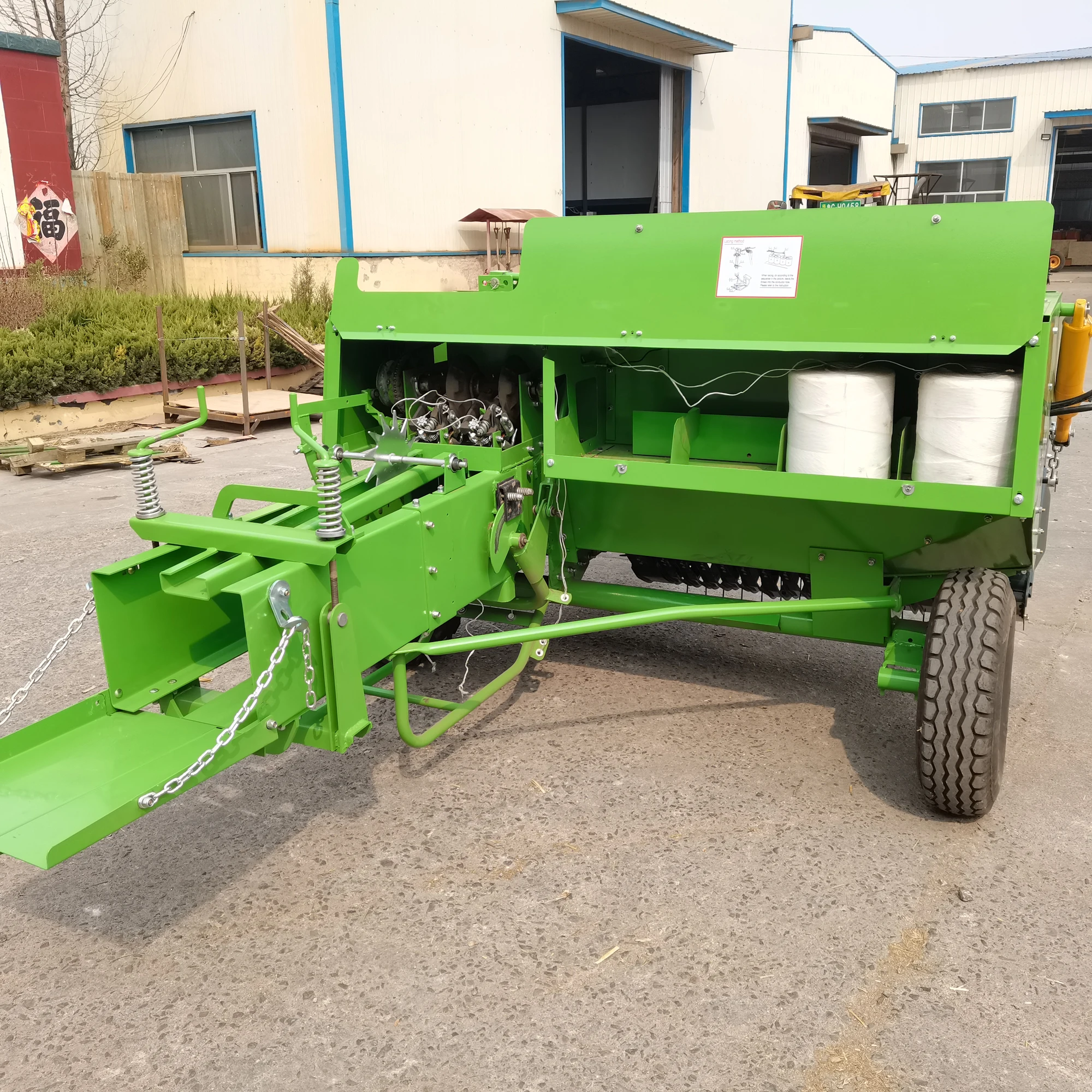

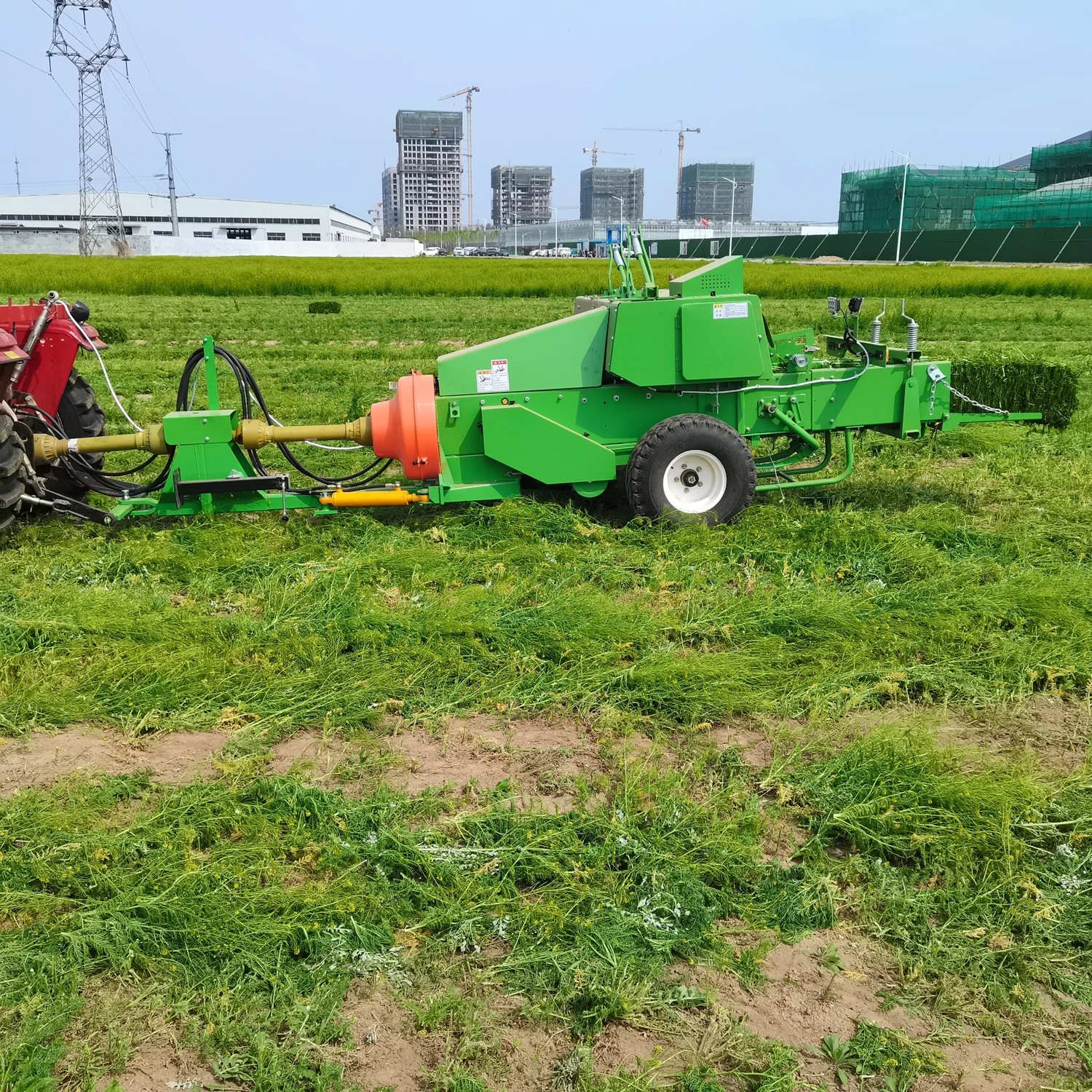

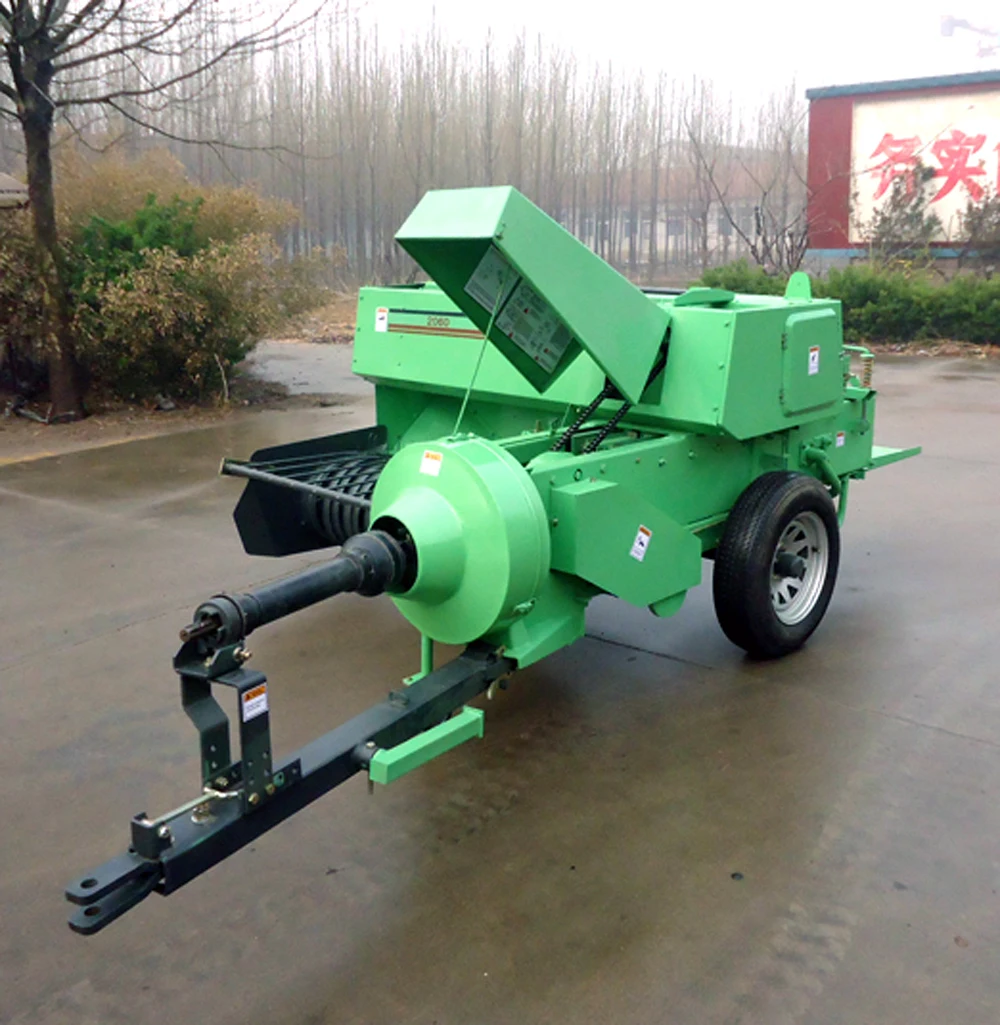

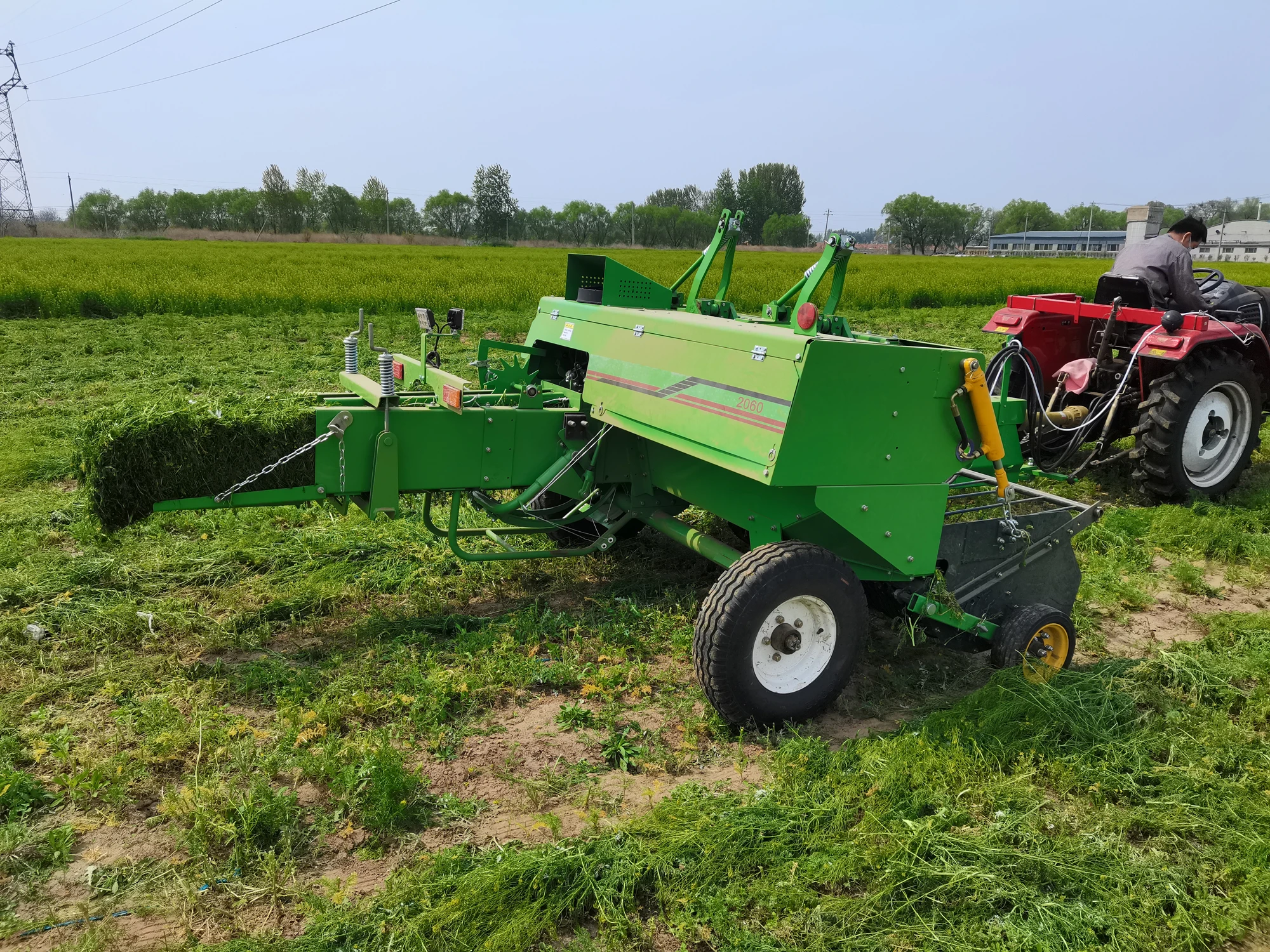

RXYK2060 mini square baler

Product Overview

Description

 small square baler RXFK2060

The square baler is designed for picking up and packing hay, crop straw and stalk into square bales.



This machine is greatly reduce the area of the straw storage,improve the capacity of transport,reduce  the possibility of fire accident.hay baler is the indispensable equipment of the animal husbandry and paper-making industry.



1.Offset design to compact tractors from 25-80hp.



2.Widely used in hay , wheat , rice , corn , soybean , alfalfa and ect.



3.Larger working width , lower lost.



4.Height efficiency than round baler , since strapping and eiecting bales while the tractors walking.



5.Bales length and density adjustable.









Model	RXFK2060
Dimensions	4200x2150x1300mm
structural weight	1030kgs
working width	1440mm
working capability	80-240bales/hour
cross section of bales	320x420mm
length of bales	300mm-1200mm adjustable
matched power	25-50HP
PTO RPM	540

















	hydraulic adjusting towing angle

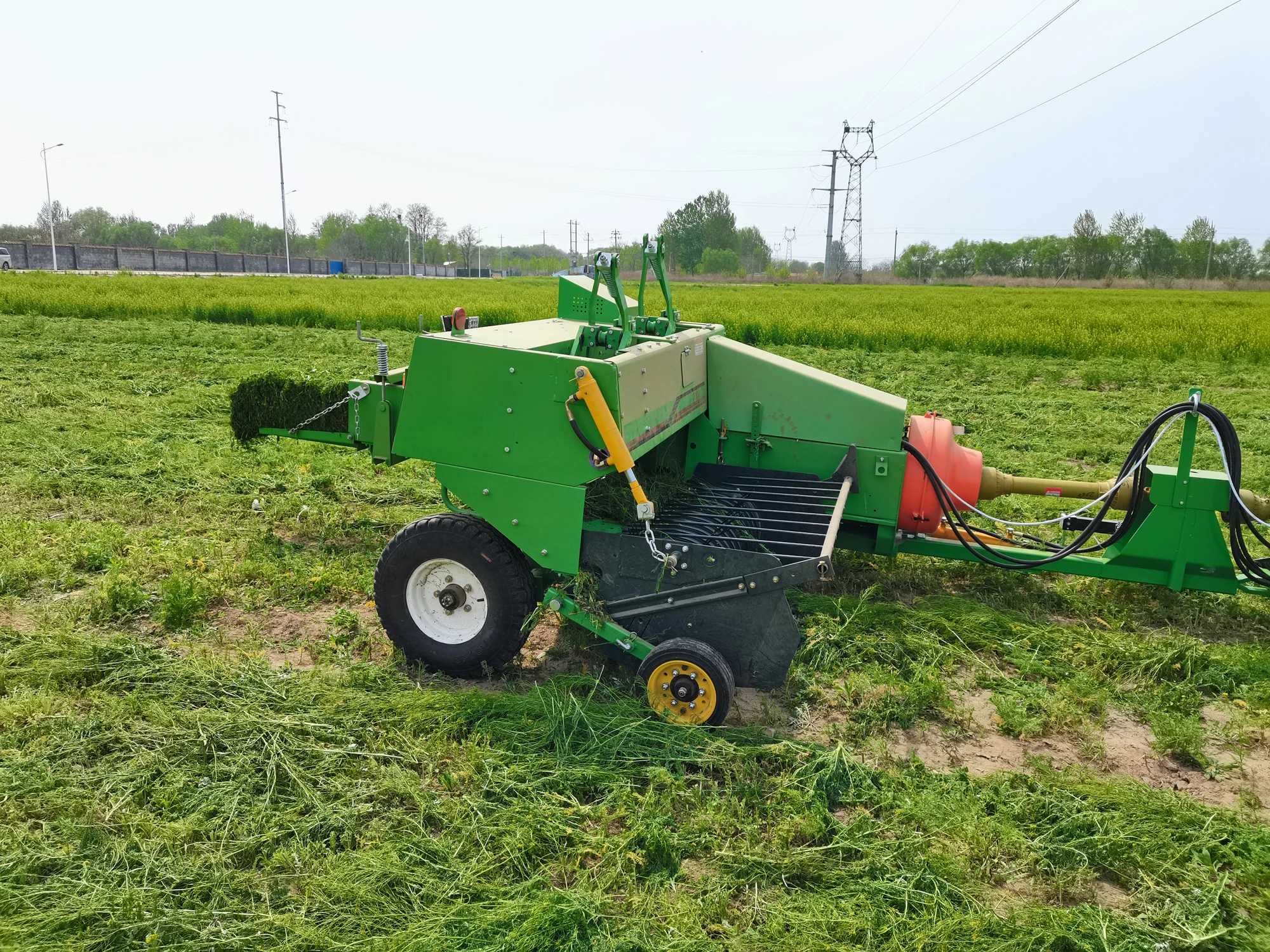

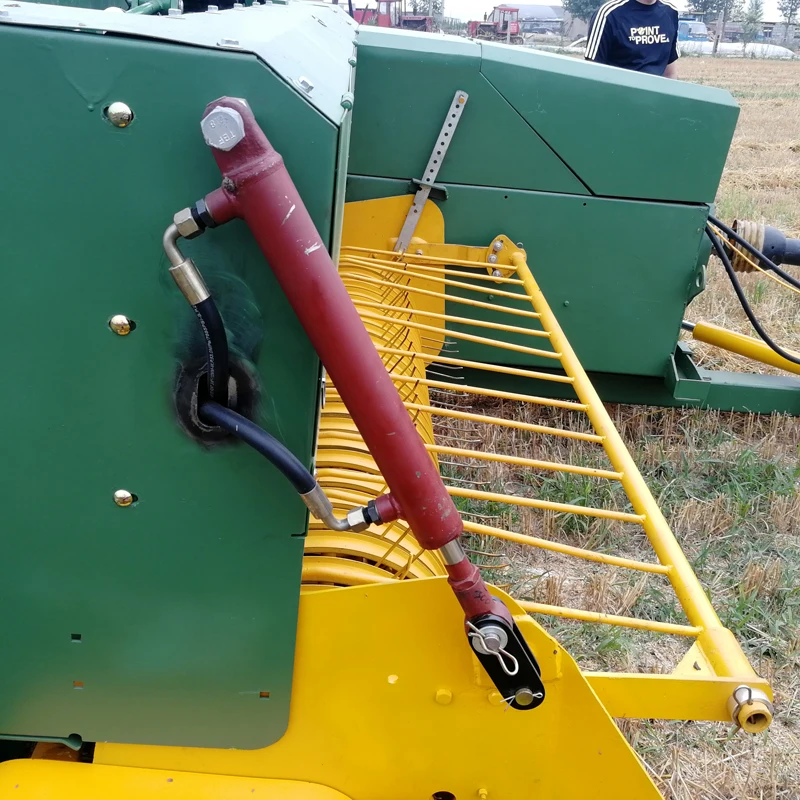

hydraulic adjusting pickup height

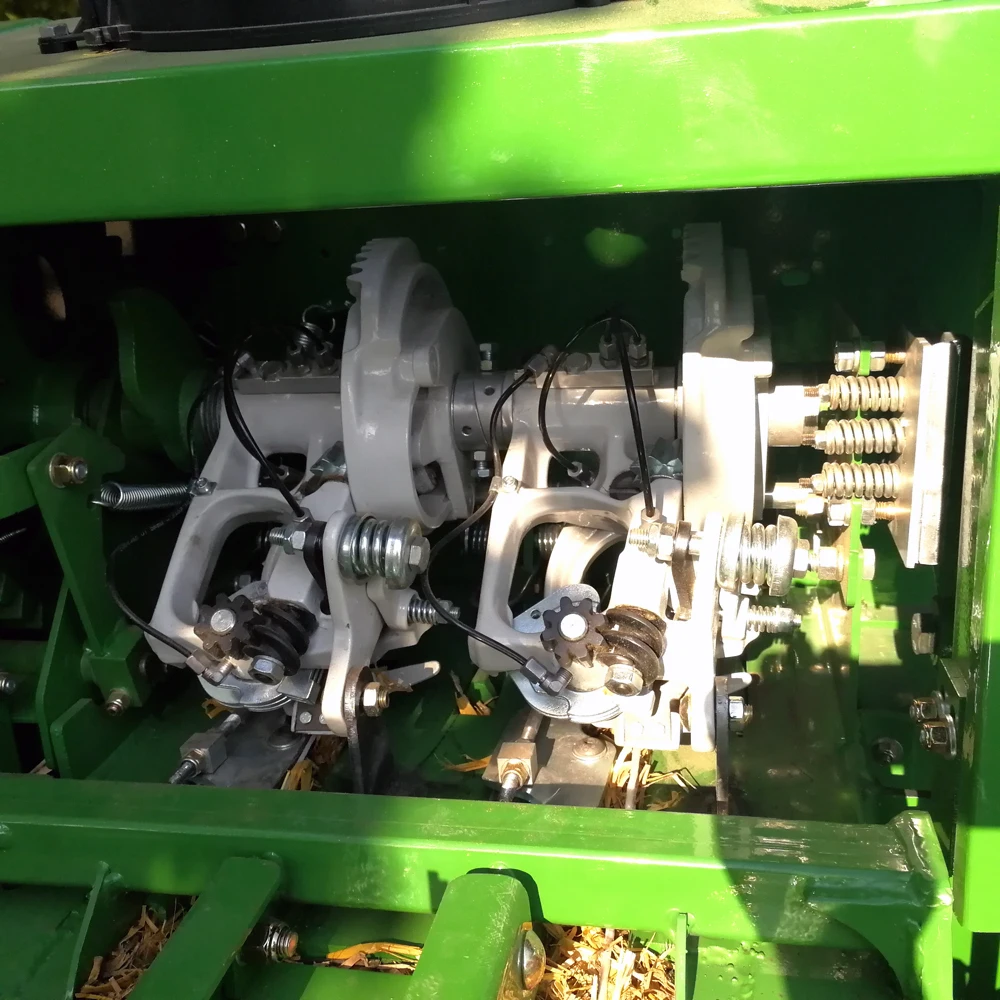

German knotter

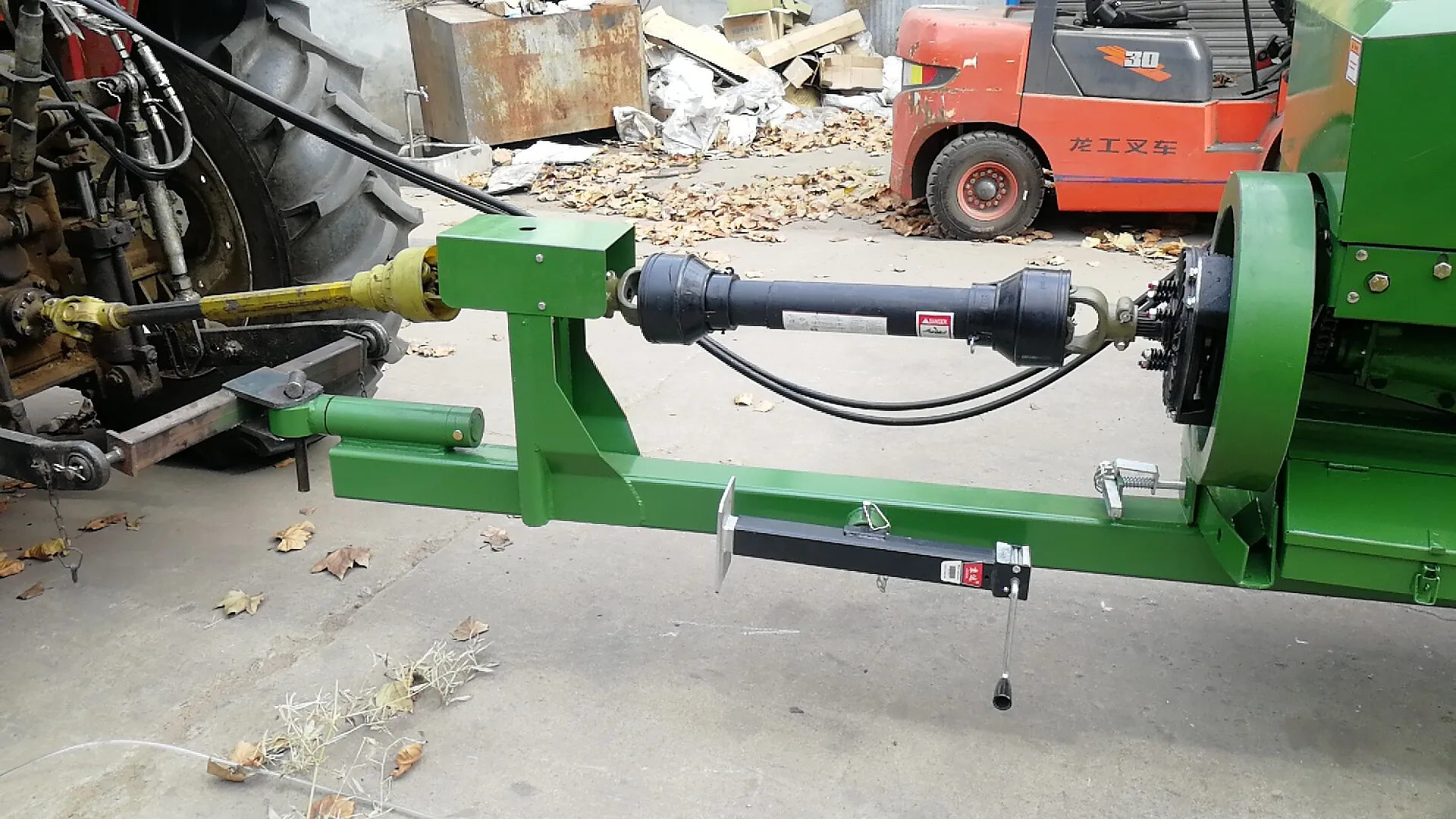

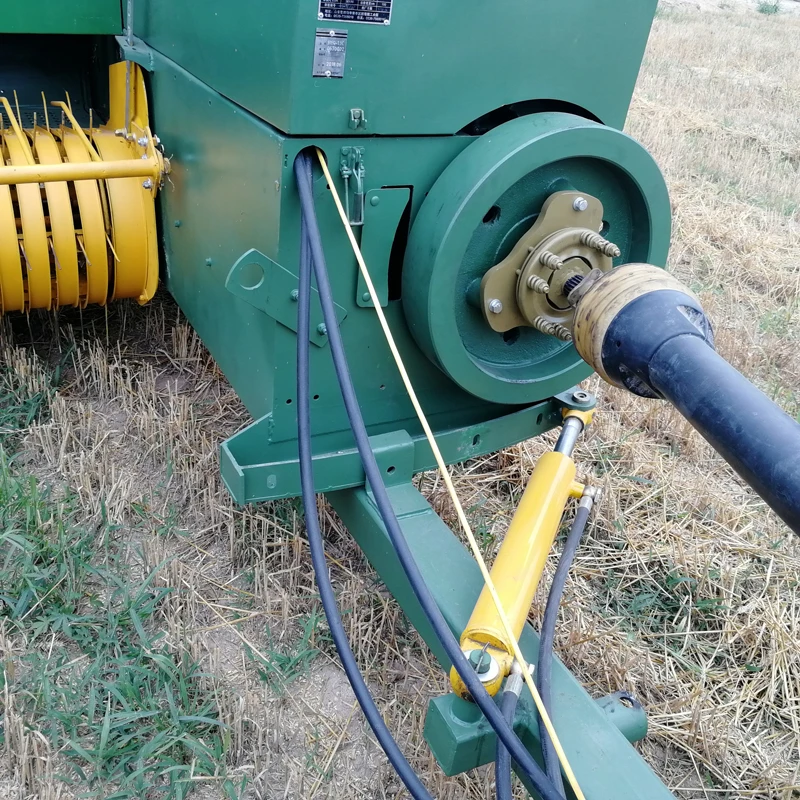

	two stage PTO transmission. smaller turn Radius and protect the PTO shaft.
