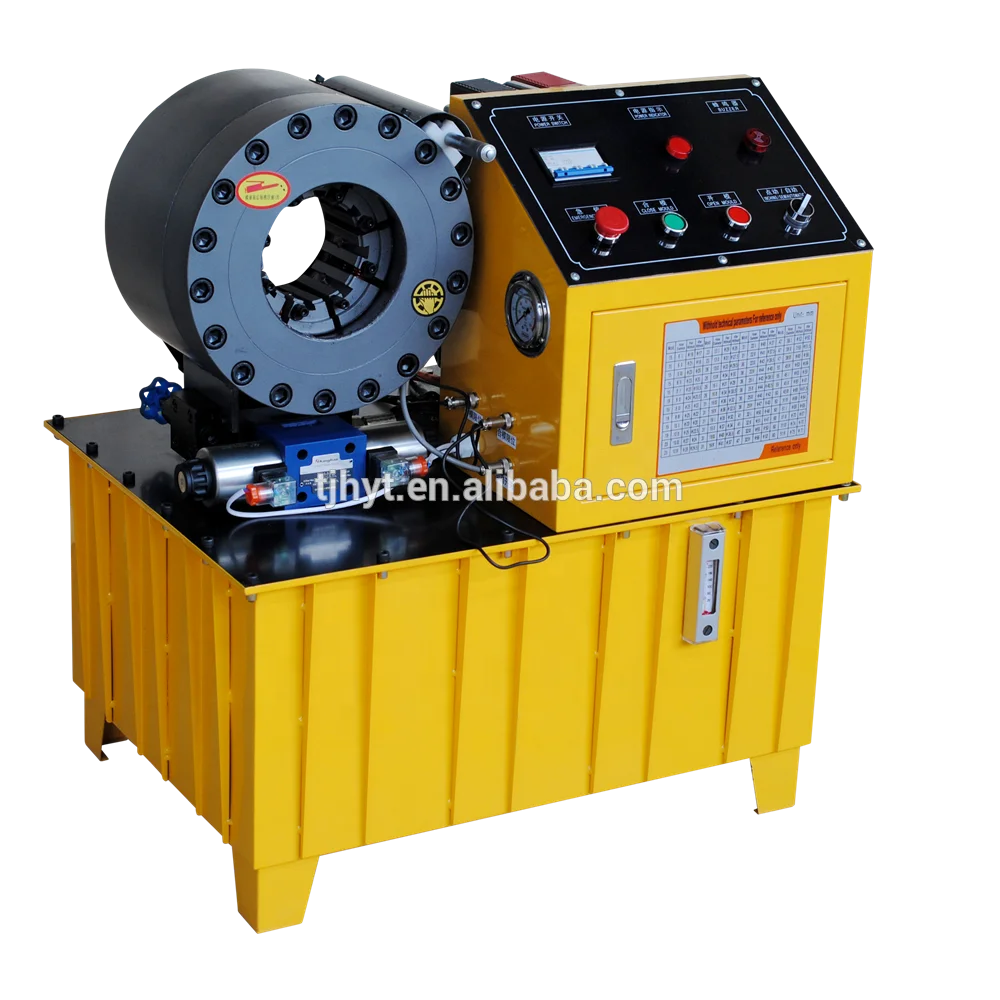

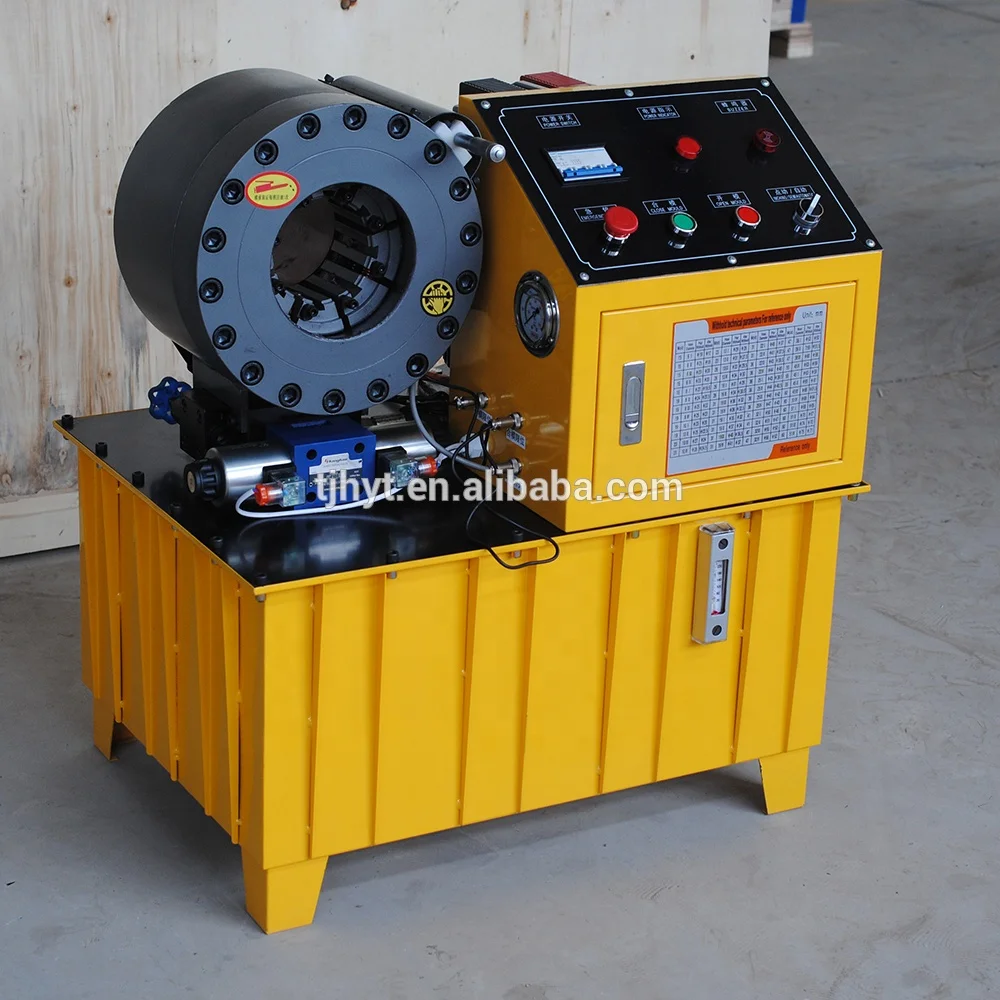

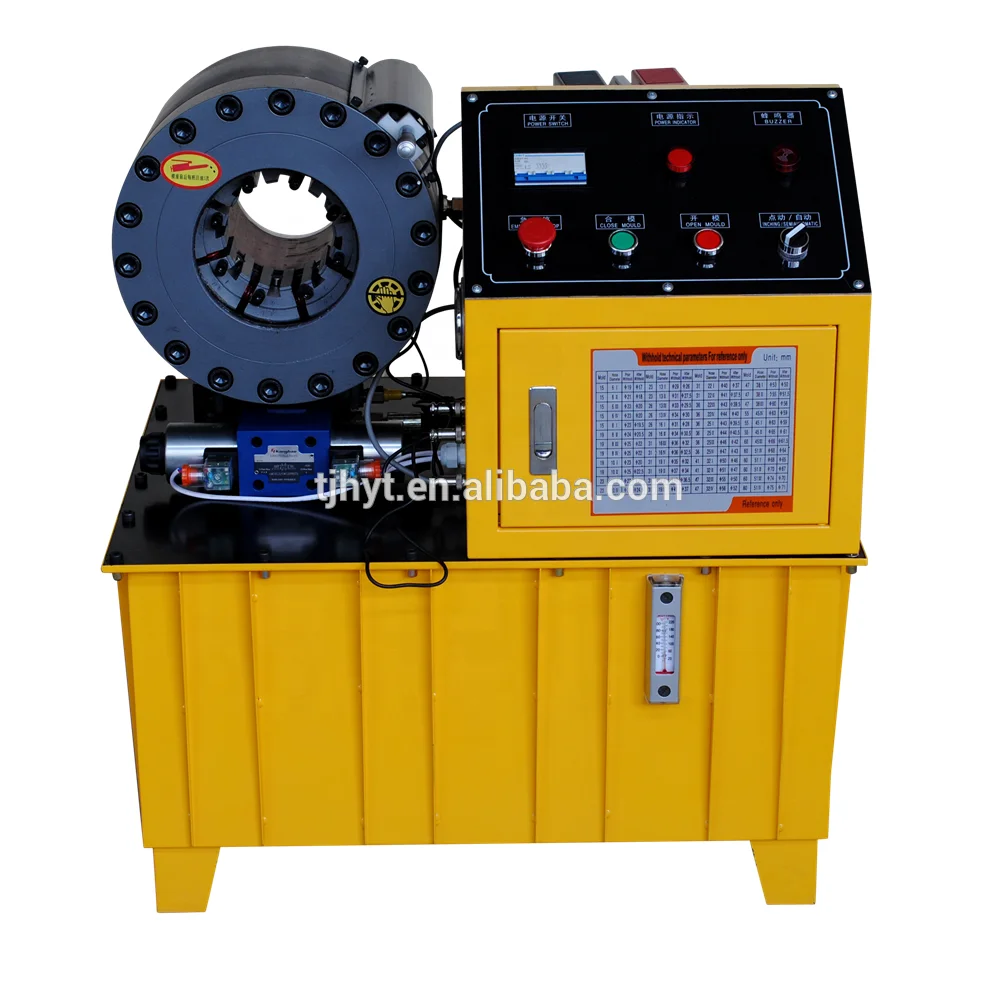

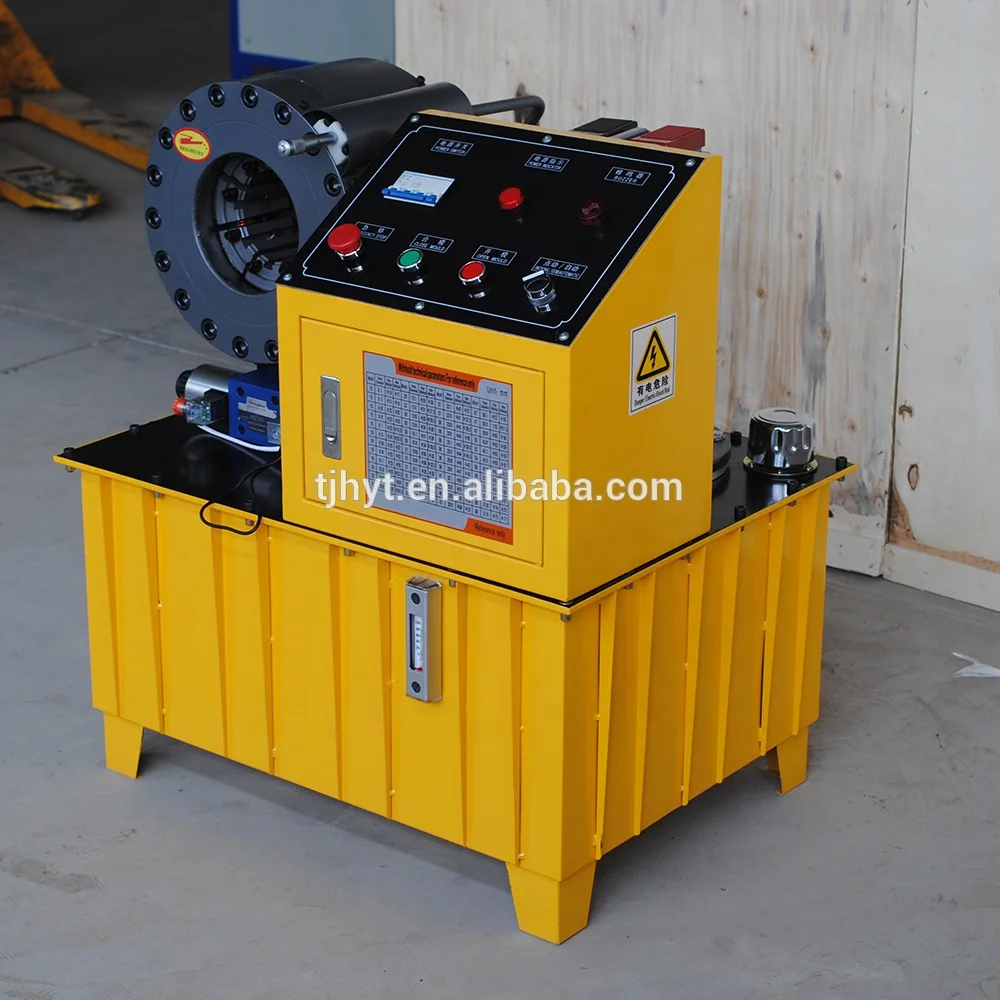

Technical parameter of hose crimping machine
| product name | hose crimping machine |
| brand name | HOYITE |
| model number | HYT-51 |
| place of origin | Tianjin,China |
| crimping range | ID6-51mm |
| rated pressure | 31.5mpa |
| the largest crimping pressure | 409T |
| micrometer precision | 0.02mm |
| oil pump out-let quantity | 5ml/rad/3kw (380V/50Hz-3 phase) 2.5ml/rad/2.2kw (220V/50Hz-1 phase) |
| dimension | 670mm*430mm*950mm |
| weight | about 260 kgs |
| muber of dies | 10 sets |

The function of hose crimping machine

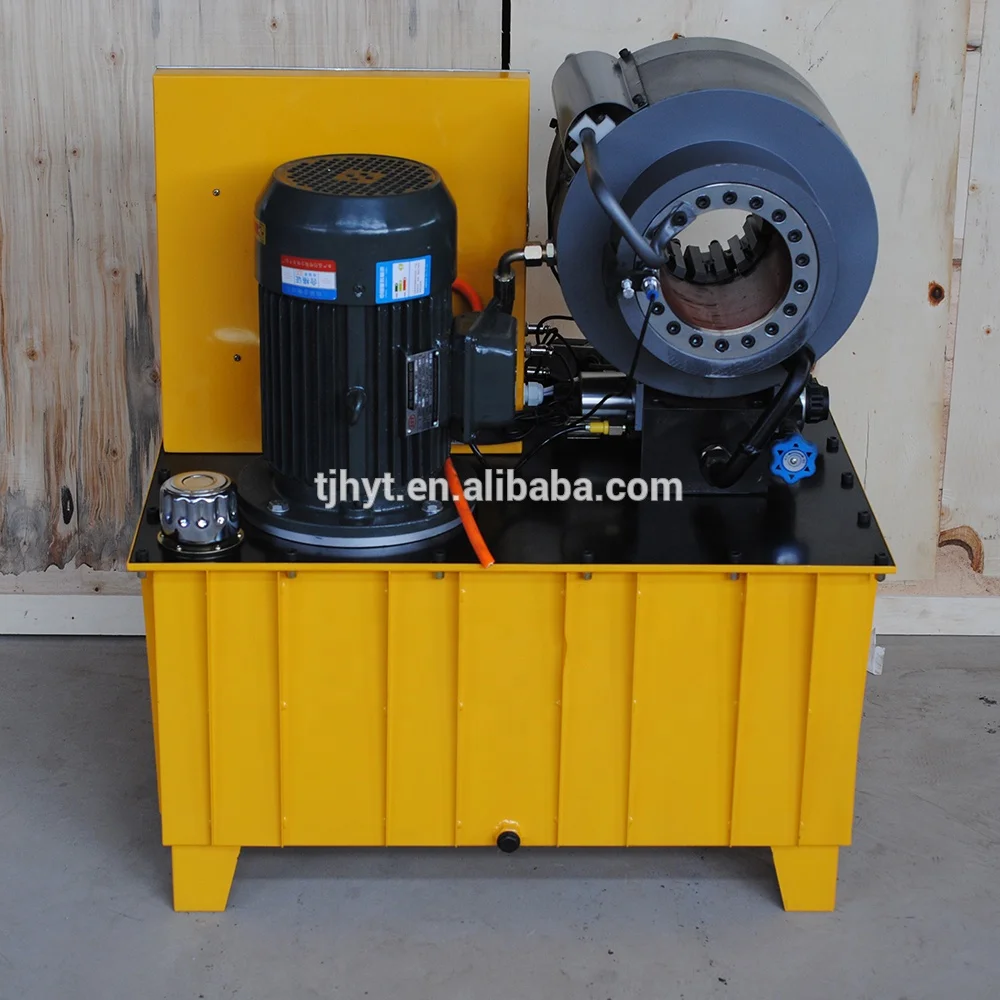

used hydraulic hose crimping machine also called hose locking machine ,rubber hose locking machine ,mainly by burke institution,motor,gear pump,the control valve and fuel tank composition.Suitable for mechanical engineering of the high pressure hose assembly withhold processing,aslo withhold two-way bend,jumbo bend and deformed head.
How to used the hose crimping machine?
1.Look at the manual,we will supply a manual with every used hydraulic hose crimping machine.
2.Put the hose and hose fittings together.
3.Extens them to the machine head ,find the position.
4.Adjust the micorometer precision.
5.Turn on the power.
6.Correct use and identify the button above.
7.With the adjustment the mold ,the used hydraulic hose crimping machine can finish the crimping work very easily.
CE certificate of o hose crimping machine
Guarantee period and information about our company
Our company website is:www.tjhyt.cn,if you have some question about our company ,you can browse our web.
Our used hydraulic hose crimping machine guarantee time is 365 days,if the machine or the dies broken during this time,you can change for you.
At the same time ,we can supply hydraulic rubber hose and expamdable water hose too,if you have this kind of need,we can help you .It can save your time and money.
