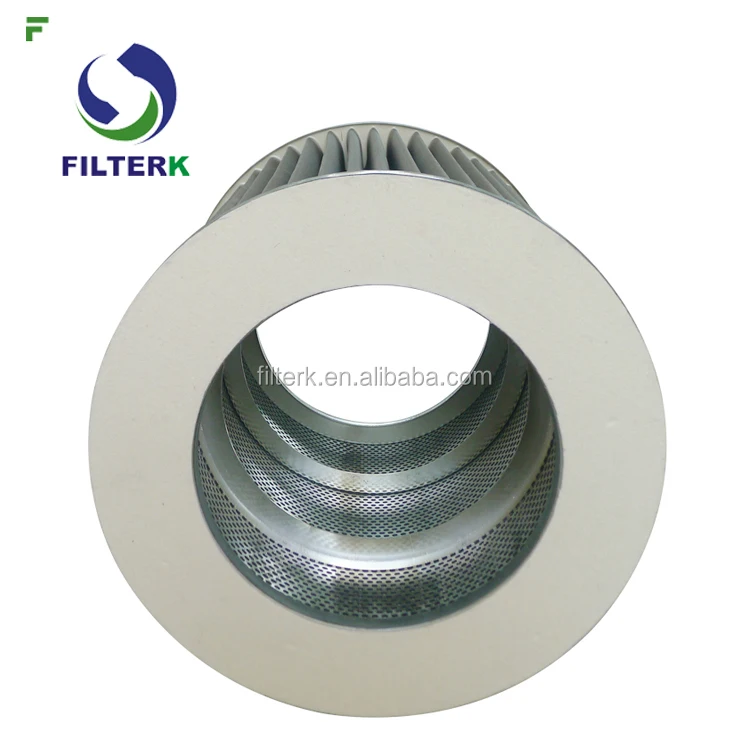

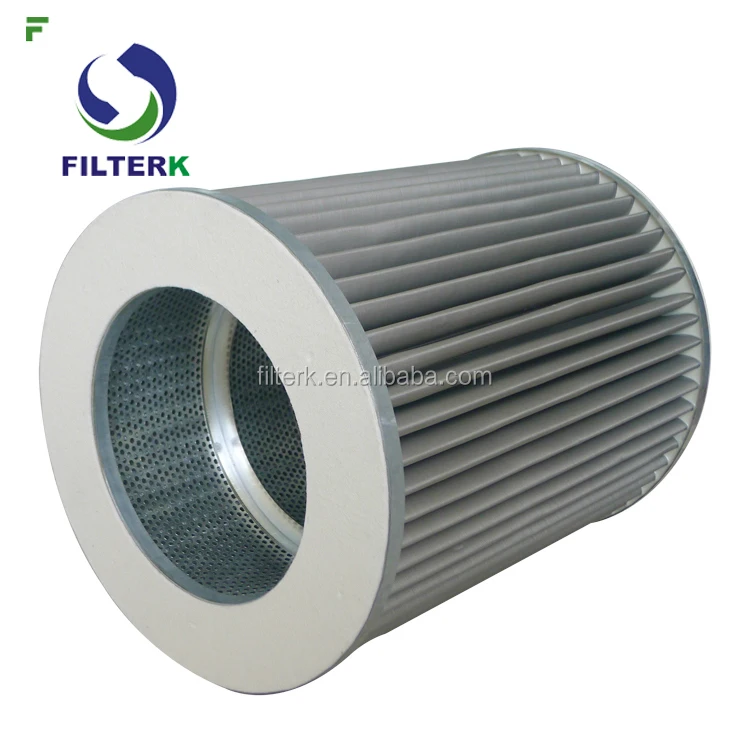

FILTERK G5.0 5 Micron Pleated Gas Filter Cartridge

GAS FILTER

Gas filters apply to gas, rtificial coal gas and other non-corrosive gases,such as:nitrogen,carbon dioxide,propane,butane etc.gas and liquid and solid-liquid separation.They are essential separation and purification equipment components used in gas gathering stations,compressor stations, distribution stations,pigging stations,end stations and a wide range of applications.They can filter dirt in pipes and flaking debris on the pipe wall,to ensure the safe operation of gas and gas equipments,so meet pipeline transportation and natural gas quality requirements of users.

OCCASION TO USE

Gas filters are mainly used in natural gas purification plant,long-distance pipeline station,city gas pipeline network,natural gas chemical plant,coking plant,iron and steel metallurgical plant, non-corrosive gas metering and so on.

MAIN PARAMETERS

Working Pressure:0.4MPa,1.6MPa,4.0MPa,6.4MPa (It can be customized above 6.4MPa)

Connecting Flanges:ANSI 150/300/600 RF PN 16/40/63/100 RF

Operating Temperature:-10~+50 °C

Filtering Accuracy:3μm,5μm,10μm,20μm,50μm,100μm,120μm,140μm etc.

Filtration Efficiency:99.9% filter above 3μ(rely on the filter accuracy selected) solid particles

Suitable Medium:natural gas,artificial coal gas,liquefied gas and other non-corrosive gases

Design Specifications:SME VIII div.1,GB150,EN13445

Structure:circle,semi-circular

Filter Material:polyester fibers,stainless steel wire mesh

FEATURES

Small filtration resistance,large filter traffic,strong pollutant capacity,long service life,fiber diameter and the gap is adjustable in the production process,filter microporous' small inner layer and large outer layer increases the flow and pollutant capacity,and filters are not easy to clog,so prolong the service life.
