Машина для переработки шин, измельченная шина в резиновые крошки с сертификатом CE

Product Overview

Description

  Machine shredded tire into rubber crumb XKP350/400/450/560/560L

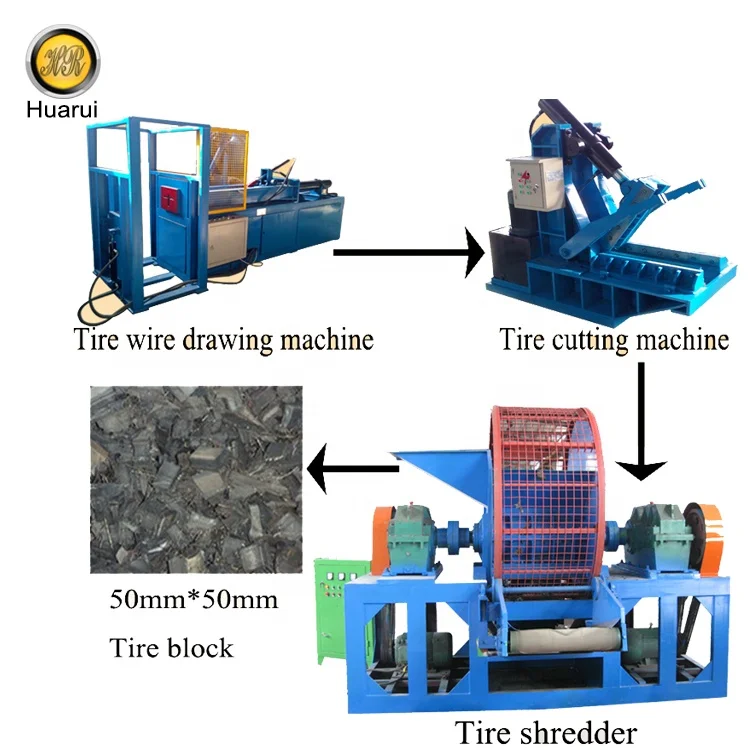

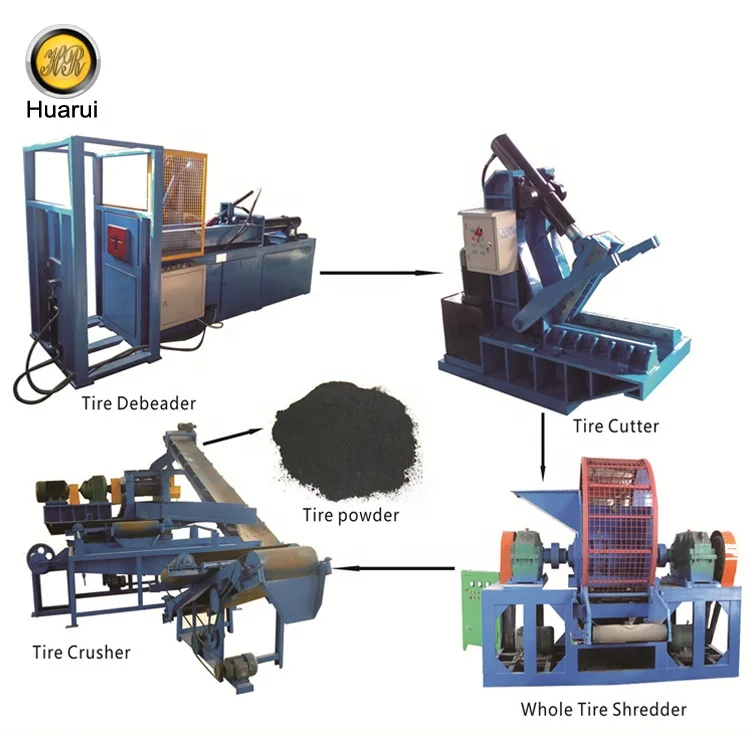

Process flows: waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.



Rubber powder processing equipments

The whole set of rubber powder making equipments are consist of three main parts: scrap tires separating equipments, crusher set and grading magnetic separator.



1.  Waste tire separating equipments

These machines are special for disintegration, circle cutting, strip cutting and slice cutting of waste tires.

(1) Tire circle cutter



Name of product	Motor power	Weight	Capacity	Specification	Overall dimension
Tire circle cutter	4 KW	650 kg	40pcs/h	650- 1250 mm (Both reinforced tire and nylon tires)	1.8m*1.3m*1.6m.



(2) Tire Strip cutter



Name of product	Motor power	Weight	Capacity	Strip Specification	Overall dimension
Tire strip cutter	4 KW	850 kg	2.5T/h	5*8 cm	1.3m*0.8m*1.65m.



(3) Tire Slice cutter



Name of product	Motor power	Weight	Capacity	Dicer specification	Overall dimension
Tire Slice cutter	5.5 KW	800 kg	0.8 T/h	3*5*8 cm	1m*0.8m*1.4m

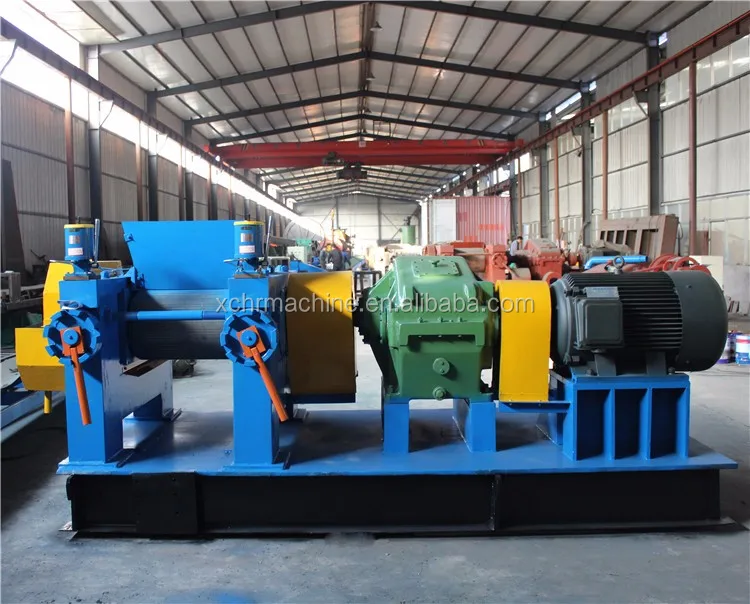

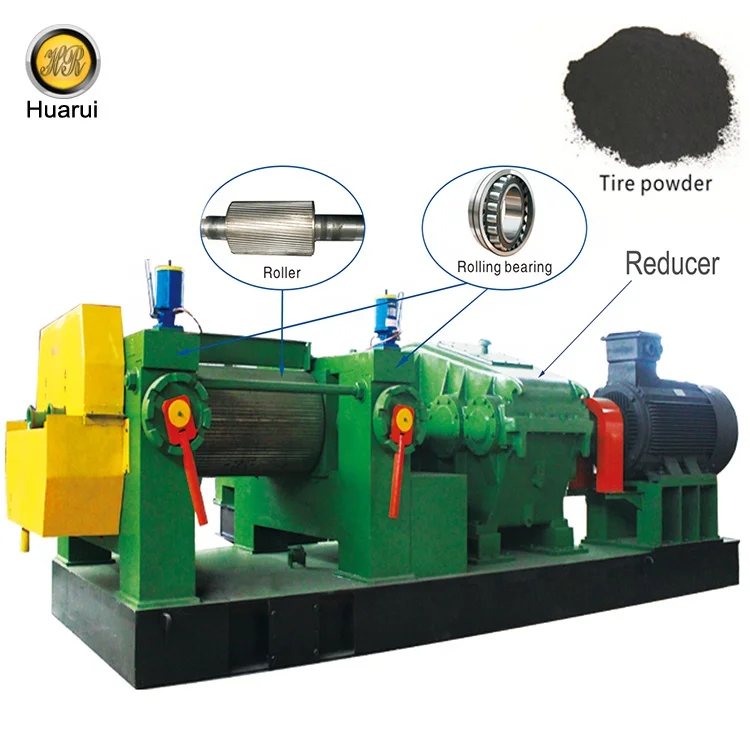

2. Rubber powder machine

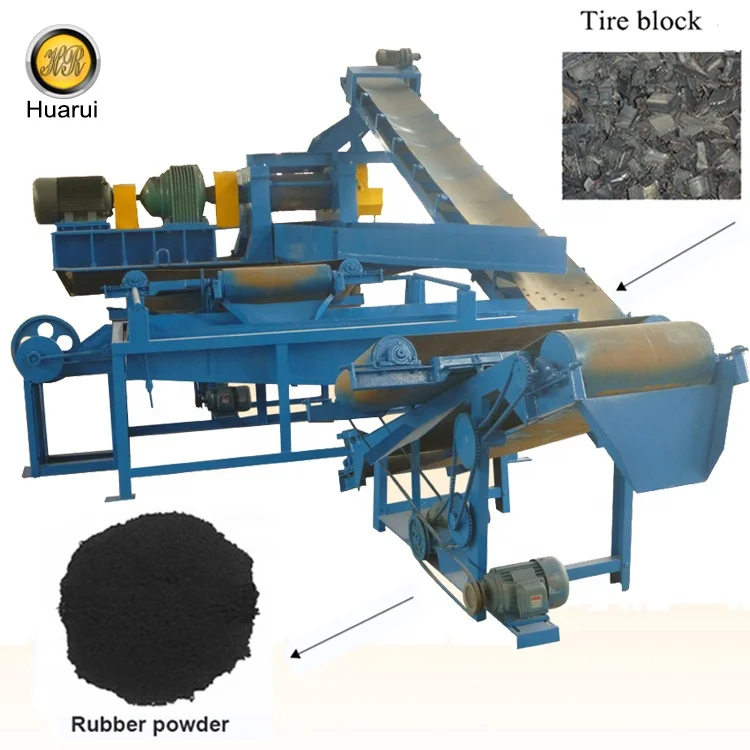

The crusher set consists of host machine (rubber powder machine), conveyor and main vibrating screen.





Technical parameter:

Model No.	XKP-350	XKP-400	XKP-450	XKP-560	XKP-560L
Diameter of front roll	300 mm (groove)	400 mm (groove)	450 mm (groove)	560 mm (groove)	560 mm (groove)
Diameter of back roll	300 mm (groove)	400 mm (groove)	450 mm (groove)	510 mm (groove)	560 mm (groove)
Drum working length	500mm	600mm	760mm	800mm	1000mm
Front roll liner speed	26.2m/min	34.5 m/min	38.0 m/min	40.6m/min	44m/min
Roll ratio	1:2.5	1:2.5	1:2.5	1:2.5	1:2.5
Max roller spacing	10mm	10 mm	10 mm	10 mm	10mm
Motor power	30KW/37KW	45KW/55KW	75KW /90KW	90KW/110KW	132KW/160KW
Weight	6T	8.5 T	11T	17.5T	21T
L*W*H	3.5*1.6*1.5m	4.3*1.8*1.6m	4.6*2.0*1.65m	5.3*2.0*1.7m	5.6*2.0*1.7m

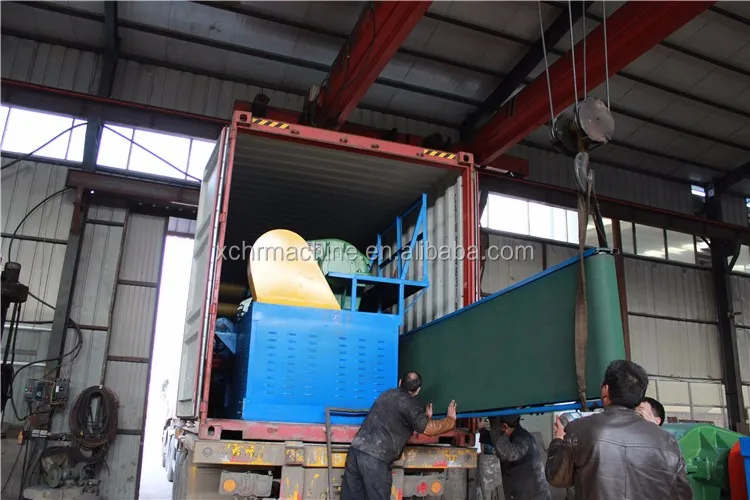

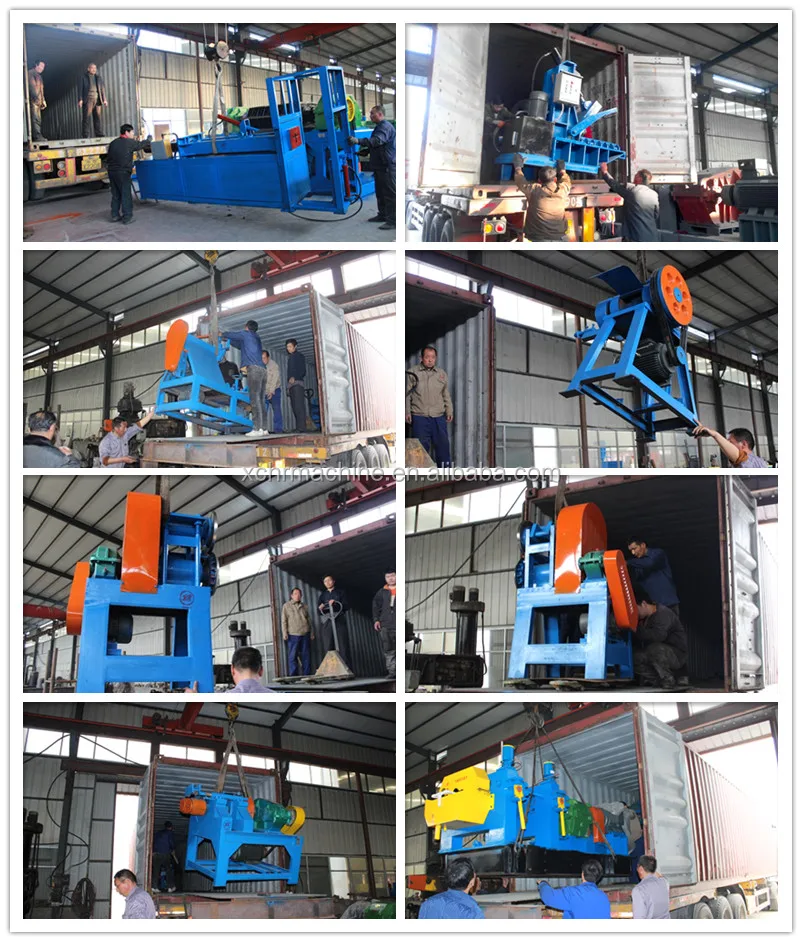

Shippment:

Our services:

Clients show:



Contact person: Ada Wang,

Skype: wu.ada1 ,

Whatsapp/Wechat is 0086 13569926370
