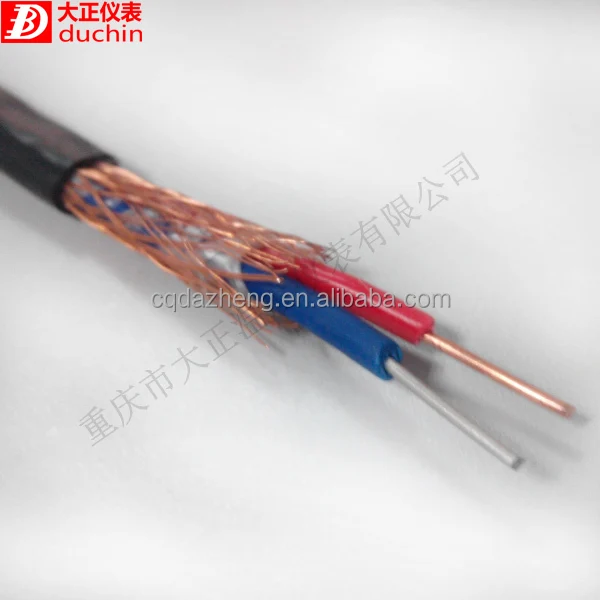

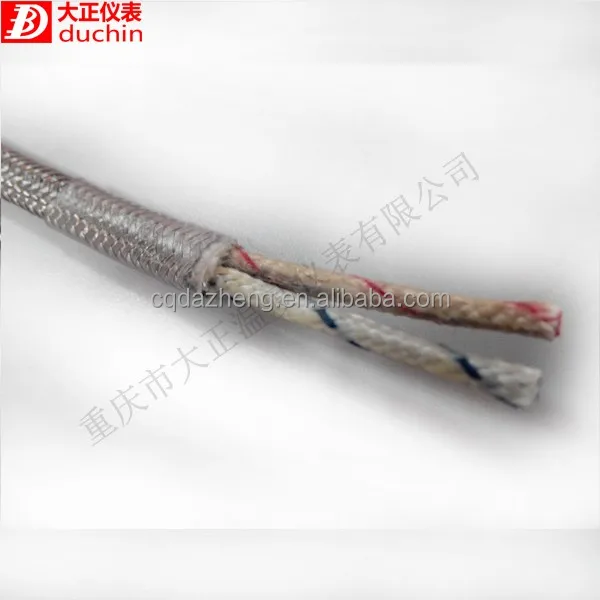

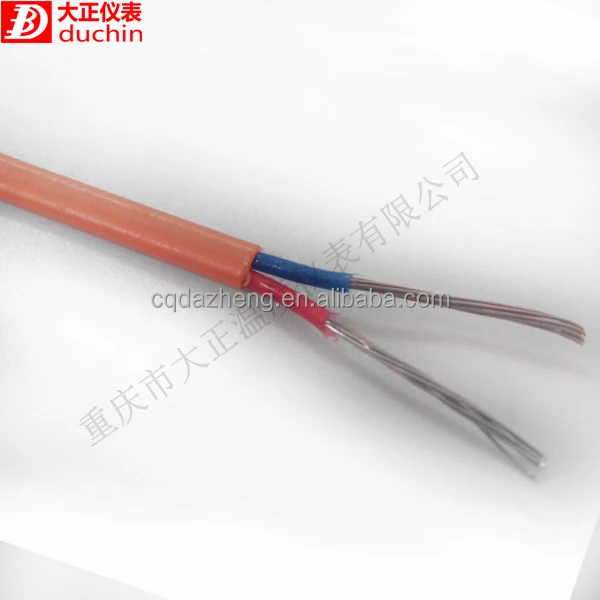

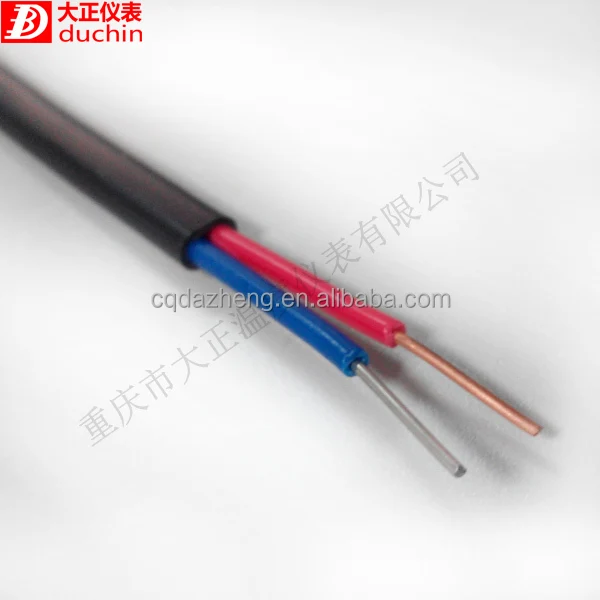

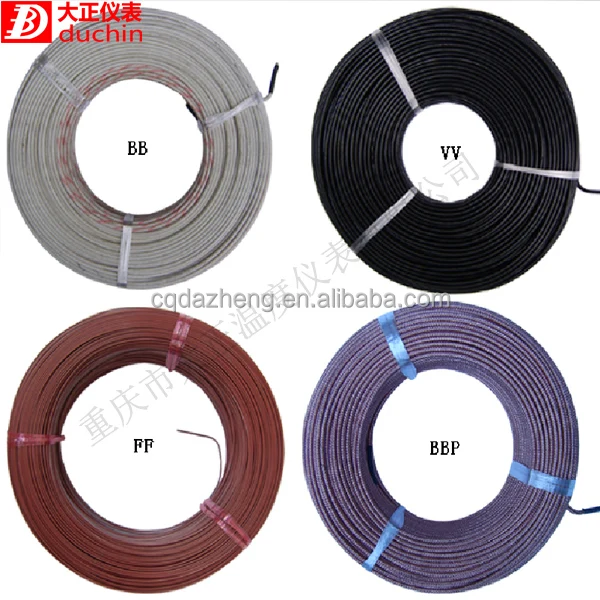

k type thermocouple compensation wire

Thermocouple wire

Application

Thermocouple wire

1.    Thermocouple:K,J,E,T,N,S

RTD:Cu,Ni

2.    Conductor dimension

Conductor square meter:0.2mm²,0.5 mm²,1.0 mm²,1.5 mm²,2.5 mm²

AWG standard

3.     Insulation layer material

V:PVC             0~105C

F:PTFE       0~350C

B:Fiberglass   0~300C

4.    Jacket layer material

V:PVC       0~105C

F:PTFE       0~350

B:Fiberglass   0~300C

5.     Shield material

P:Cu

P1:Tinned brass

6.     Color standard

Confroms to IEC584 standard

Cables with special material or special dimensions,welcome to contact for further discussion.
