DT-30 Slant Bed CNC Lathe Machine With Hydraulic Turret
Recommended Lathes
Brief Introduction
The machine tool is a full-function CNC lathe with two-axis linkage and semi-closed-loop control produced by our company. The bed of the main machine is made of integral casting, with 40° inclined layout of the bed guide, which has high rigidity, and the bed saddle and tailstock sliding body are linear guide, with small friction coefficient and good dynamic characteristics. The control system adopts Japanese FANUC 0i-TF PLUS system (or other domestic and foreign high quality systems) and AC servo drive, which is easy to operate, reliable and high degree of automation. Various turning processes can be performed on shaft parts within φ280mm and disk parts within φ300mm.
Main Configuration:

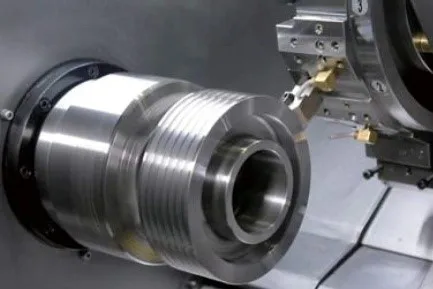

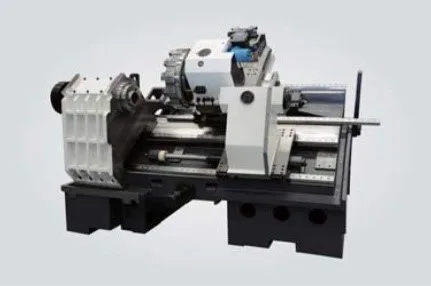

40°overall inclined bed, The maximum spindle speed is 5000 r/min, the fast moving speed is 30m/min, and the tool change time for adjacent stations is only 0.35s.6″hydraulic Solid chuck,12-station hydraulic turret, Hydraulic tailstock, Lateral waste device, Closed-end protection, box-type.
CE Standard and CE Certificate.
* As we are constantly working to improve our products, we reserve the right to update this
information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
Max. swing diameter over bed | mm | φ480 |
Max. turning diameter (Shaft/Disc) | mm | φ280/φ300 |
Max. turning length | mm | 300/500 |
Guideway type |
| Linear guideway |
Chuck Size | inch | 6 |
Type of spindle nose |
| A2-5 |
Spindle speed range | rpm | 5000 |
Spindle bore | mm | φ63 |
Max. bar capacity (Equipped with through-hole hydraulic chuck) | mm | φ45 |
Spindle motor power | kW | 7.5/11 |
Max. travel of X axis | mm | 155 |
Max. travel of Z axis | mm | 300/500 |
Rapid traverse of X/Z axis | m/min | 30/30 |
Turret type and tool numbers |
| Hydraulic 12-position turret |
Tool shank size | mm | 25 x 25 |
Indexing time(adjacent/farthest) | s | 0.35/1.6 |
Diameter of tailstock quill | mm | φ70 |
Tailstock quill stroke | mm | 120 |
X/Z axis positioning accuracy | mm | 0.005/0.005 |
X/Z axis repeatability accuracy | mm | 0.003/0.003 |
CNC Controller |
| Fanuc Oi-TF |
Machine dimensions(L x W x H) Rear chip conveyer | mm | 2360x2510x1835(300) 2660x2510x1835(500) |
Machine weight | kg | 4000/4800 |
Free Std Accessories

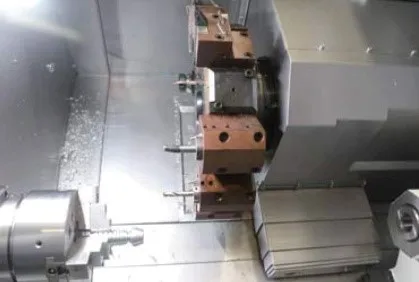

Hydraulic 12-position turret for DT series
Italy 12-position live tooling turret for DT-H series
NSK spindle bearings and X/Z axis bearings
X/Z THK ball screws & THK linear guideways
TAIWAN Non through-hole hydraulic chuck
Hydraulic tailstock
Heat exchanger
Chain-type chain conveyor
Automatic lubrication system
Standard toolkit
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such slant bed cnc lathe machines.
FAQ
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set.
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines.
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.

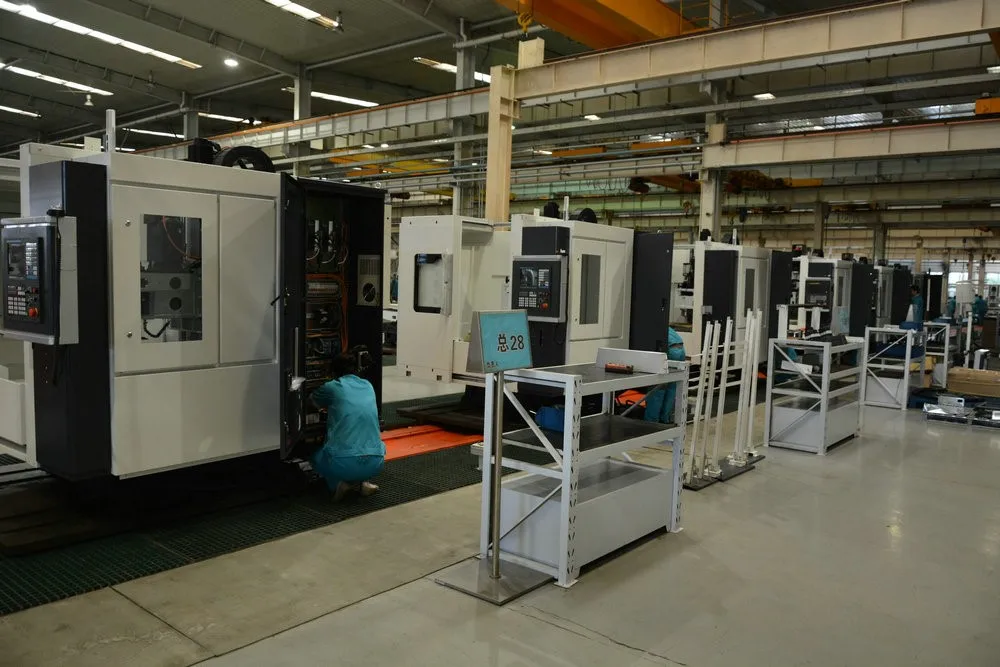

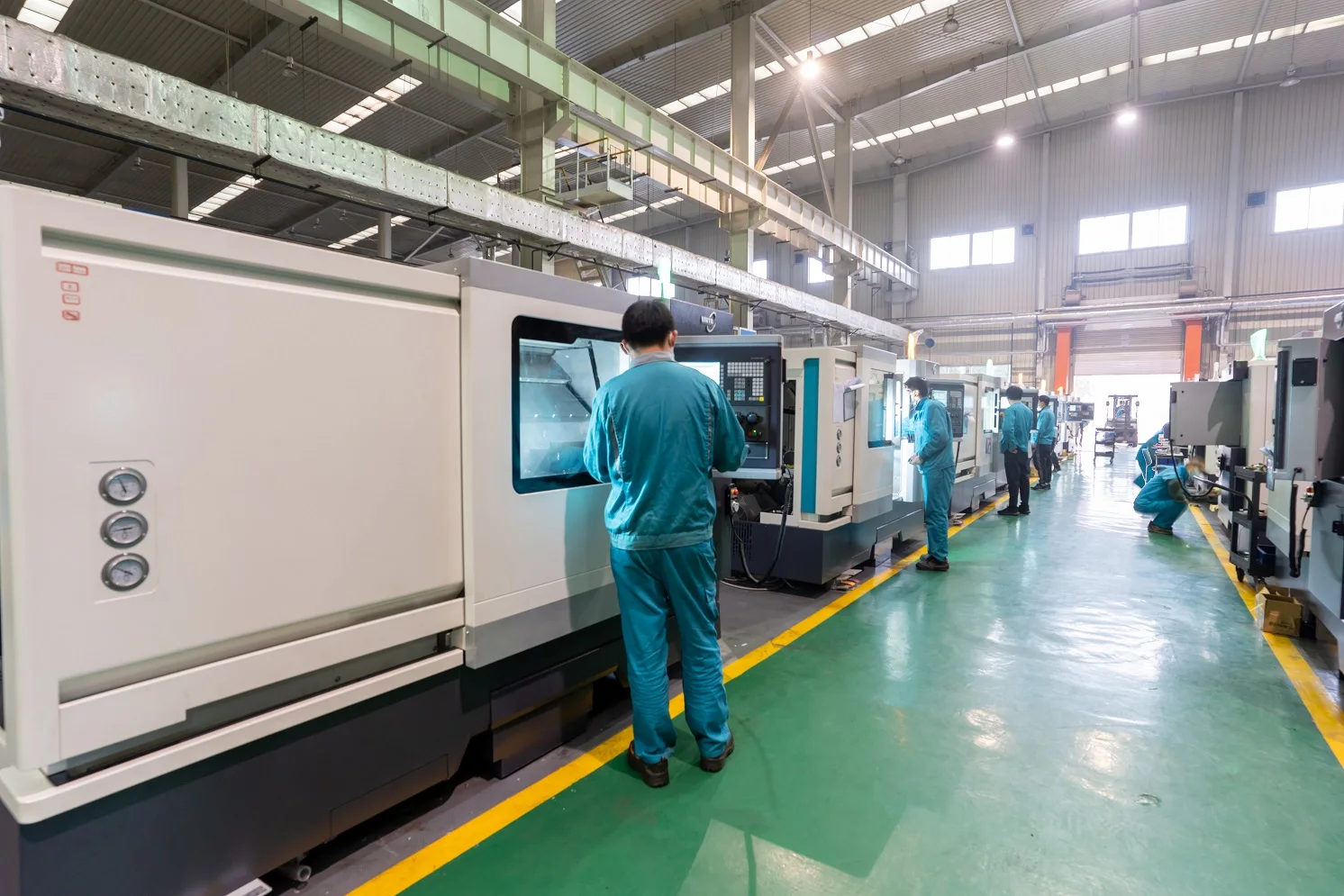

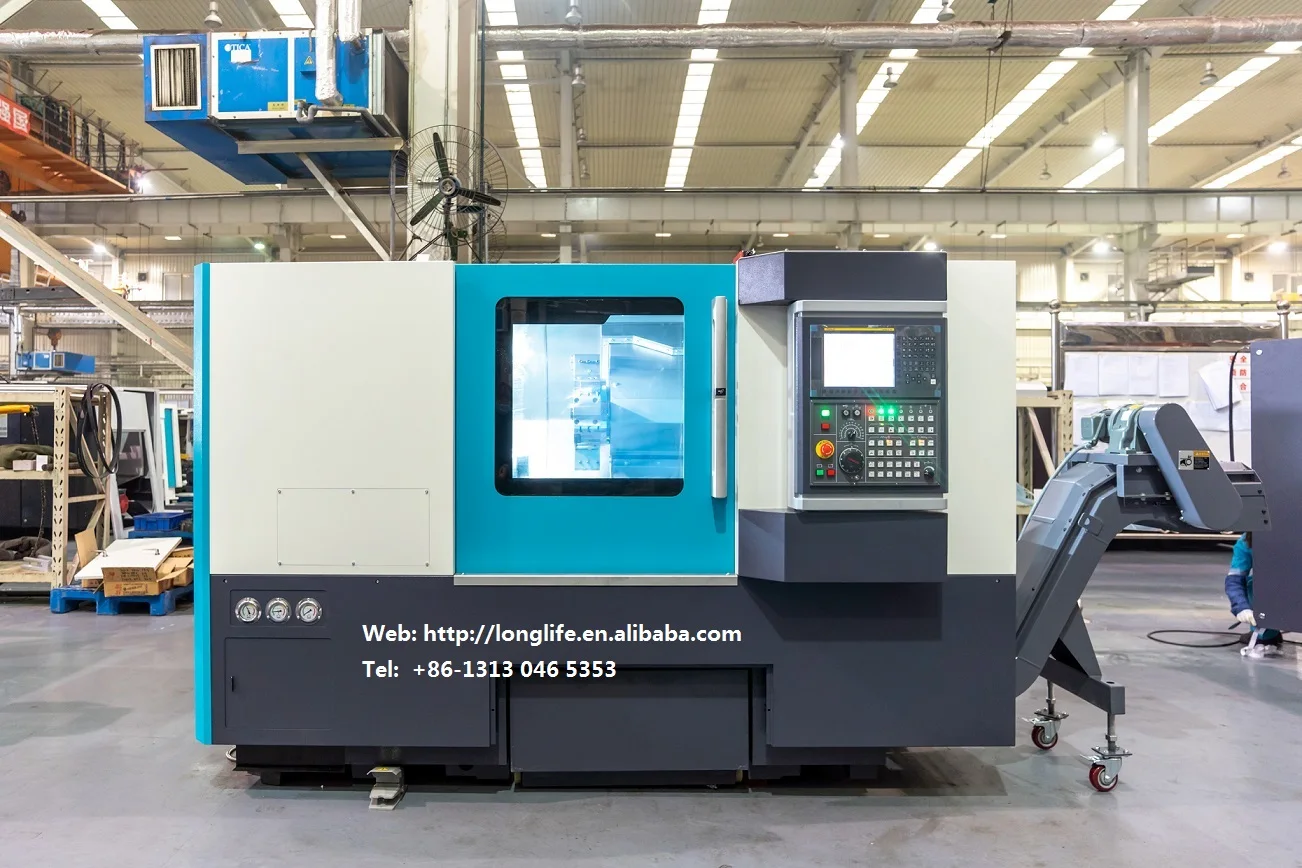

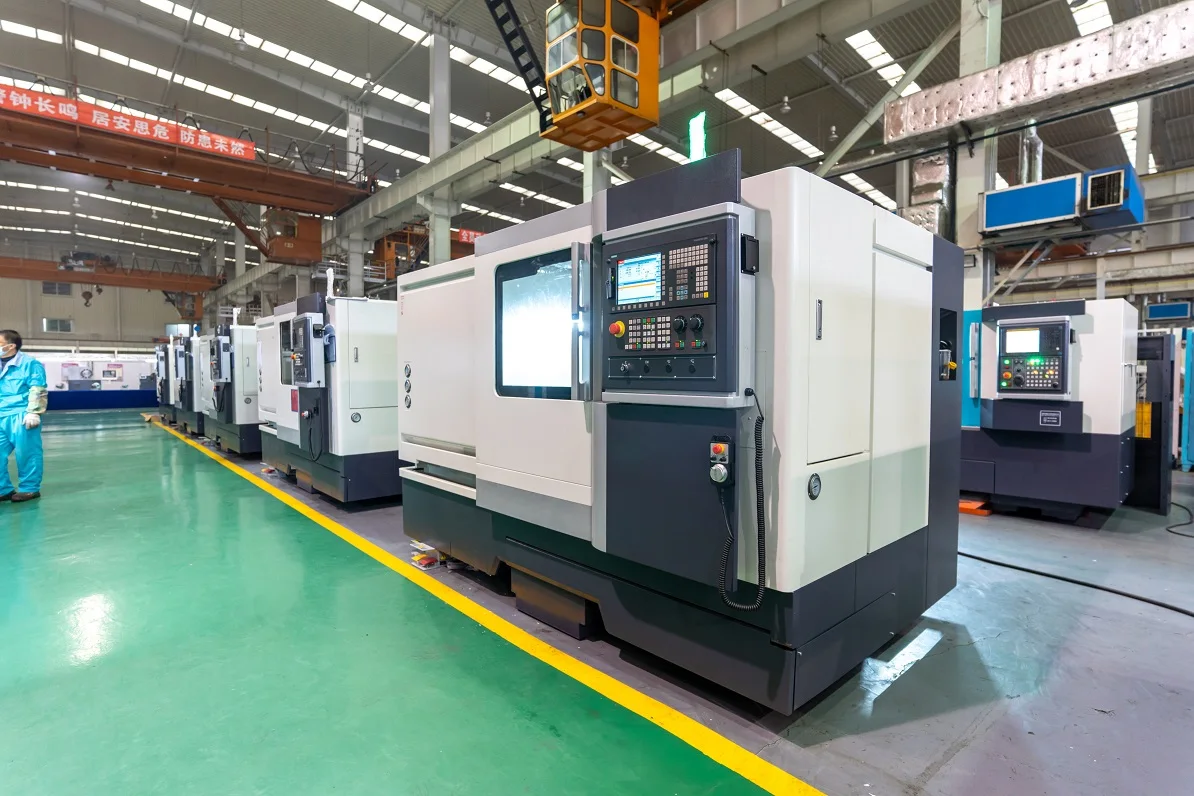

Factory Overview
