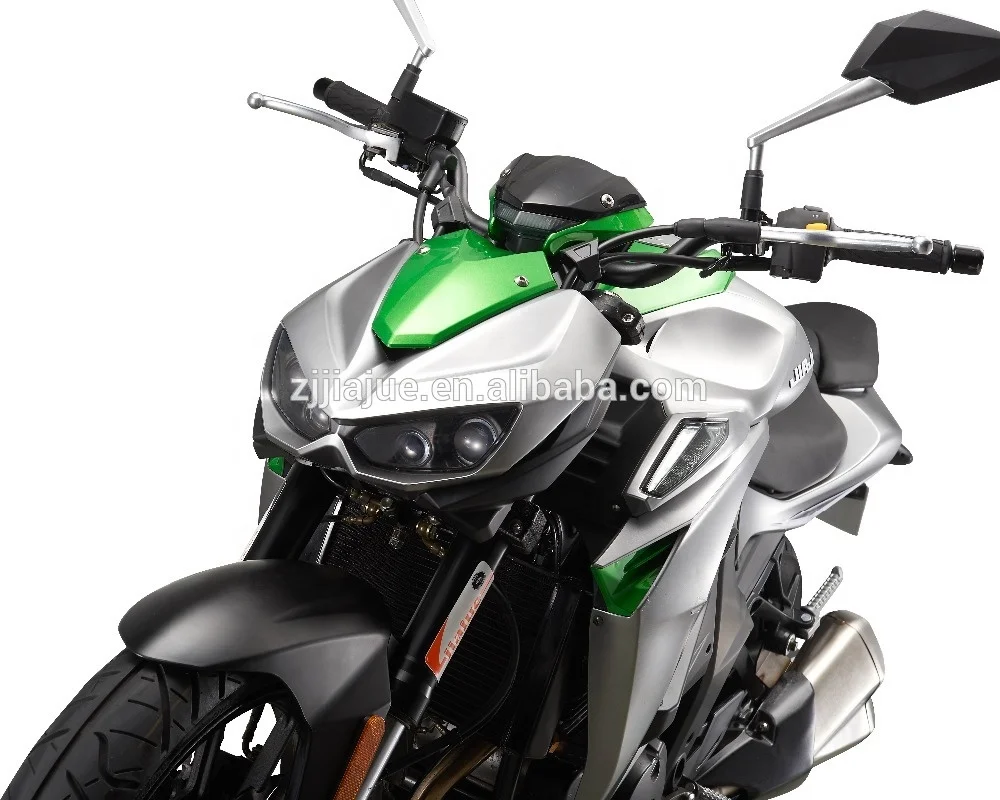

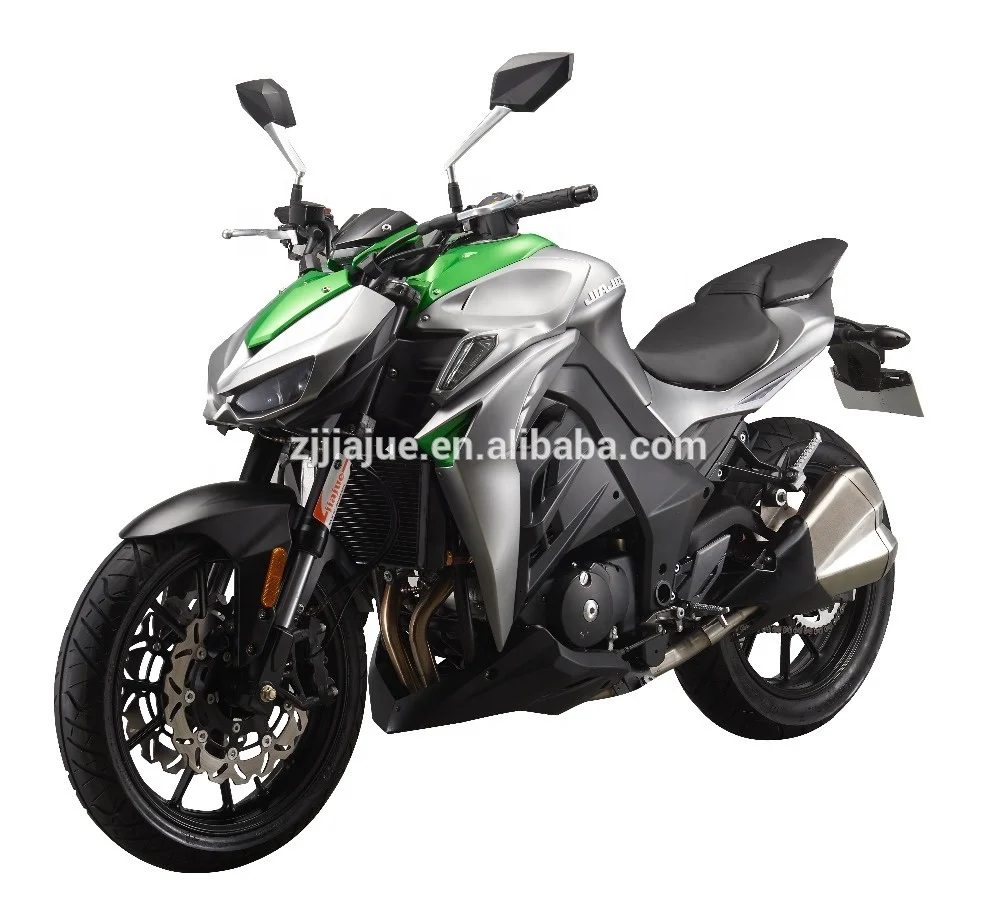

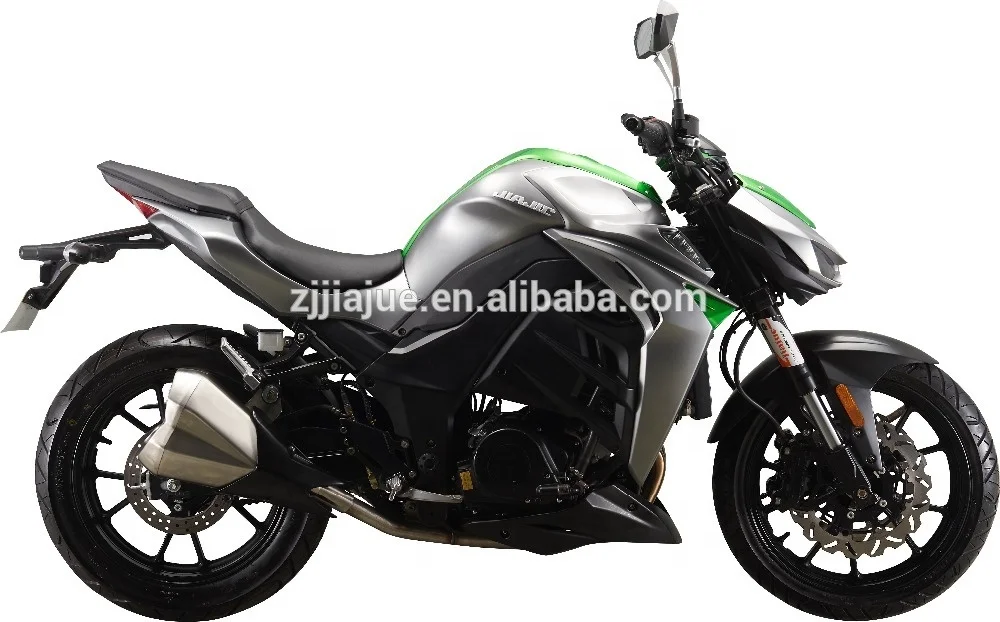

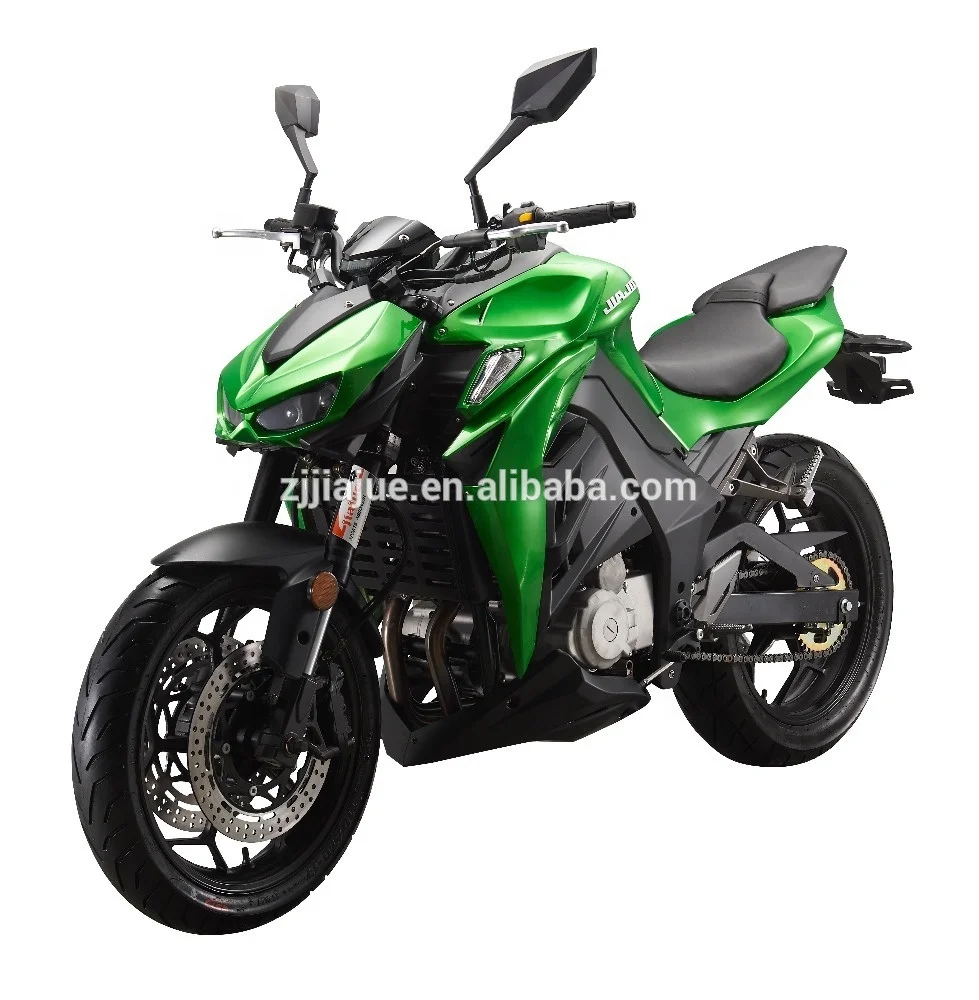

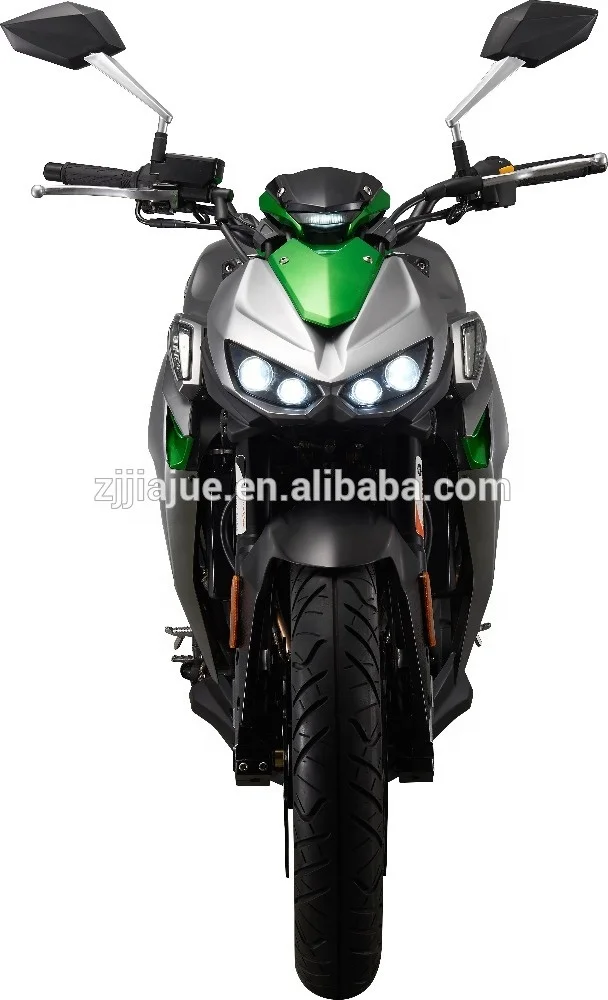

Jiajue 2018 inline two cylinder water cooled 200CC 250CC 400CC heavy motorcycle
- Category: >>>
- Supplier: Zhejiang Jiajue Motorcycle Manufacturing Co. Ltd. [zhejiang China]Zhejiang
Share on (768844673):
Product Overview
Description
N19 400CC
| SPECIFICATION | |
| Engine | |
| Type | in-line double cylinder synchronously, 4-stroke, water cooled, balance shaft inside |
| Displacement | 367cc |
| Bore x stroke | 63.5x 58 mm |
| Compression ratio | 10.5:1 |
| Rated output | 20.6kw/8300rpm |
| Max torque | 28N·M/6000rpm |
| Lubrication | force-feed& splash |
| Idle Speed | 1400rpm |
| Fuel | unleaded gasoline 92# |
| Fuel supply | EFI |
| Iginition | ECU |
| Exhaust system | with oxygen sensors |
| Clutch | manual wet multi-plate type |
| Engine Oil Capacity | 1800ml |
| Engine Oil filtration system | metal mesh with oil filter |
| Gearbox | 6-speed |
| Final drive | chain drive |
| EFI | Delphi MT05 |
| Spark plug | NGK D8TC |
| Starting | electric starting |
| Chassis | |
| Frame | seperated frame in whole, front part is double-tube type, rear part with aluminum structure |
| Front suspension | ø 37 mm upside down forks |
| Front suspension stroke | 90mm |
| Rear suspension | rear swing arm with lateral shock absorber with extension hydraulic brake and spring preload adjustment |
| Front brake | double floating disks ø300 mm with 4 pistons caliper |
| Front rim type | aluminum alloy |
| Front rim dimension | 3.0-17 or 3.5-17 |
| Rear brake | single disc ø240 mm with floating caliper single piston |
| Rear rim type | aluminum alloy |
| Rear rim dimension | 4.0-17 or 4.5-17 |
| Front tyre | 110/70-17 |
| Rear tyre | 150/70-17 |
| Dimensions | |
| Height excluding mirrors | 1045mm |
| Pilot seat height | 790mm |
| Length | 2090mm |
| Width excluding mirrors | 820mm |
| Ground clearance | 175mm |
| Unladen weight | 163 kg |
| Permitted total weight | 300kg |
| Usable tank volume | 17 liter |
| Wheelbase | 1430mm |
