good selling 4GL120 Reaper Head for Power Tiller Walking Tractor

Product Overview

Description

Best selling 4GL120 Reaper Head for Power Tiller/Walking Tractor





Introduction

Here are 3 models of reaper for option: 4G100, 4G120, 4G150, need to be attaced with 12-18hp power tiller.

The Machine could be not only suitable for the harvesting on the big, middle and small fields,

but also suitable on the area with inconvenient traffic.



Description

with a rugged, light weight, mobility flexible, simple and convenient operation of labor-saving, low-cut stubble, not pressure are summarized, and from the ridge away from the crop row spacing and the advantagesand restrictions.

Widely applicable to the size of the harvested crop land, especially for the harvest of muddy land.





Specifications



Item	4G 120 reaper head
Efficiency	0.2-0.3ha./h
Matched power	12-18hp walking tractor
Cutting width	1200mm
Dimension	1250*1000*600mm
Weight	90kg
Form of laying	Sideward in rows
Loss rate	Less than 1%
Placing angle	90°±20°

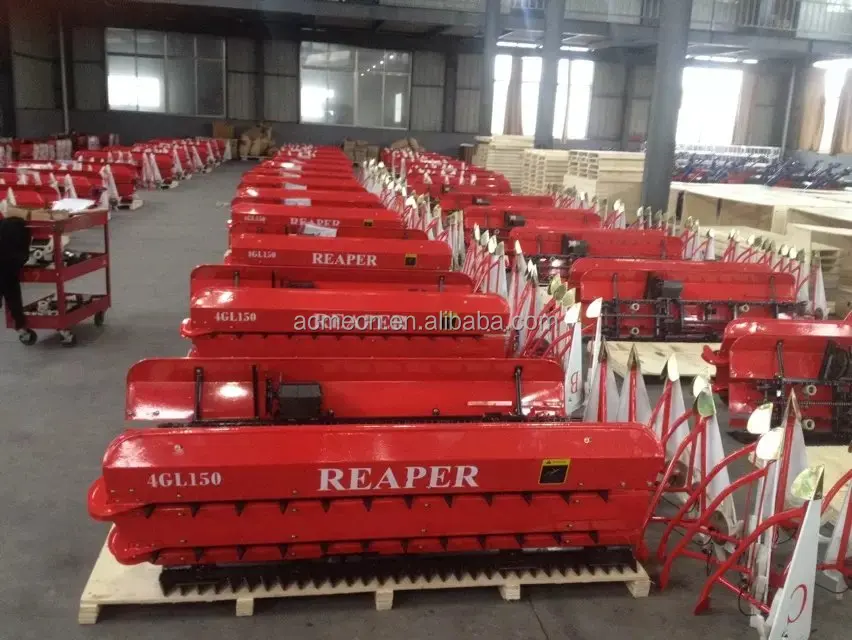

Besides, We also have other models: 4G80, 4G100, 4G120, 4G150 reaper, also 4GL series reaper head for power tiller/walking tractor.
