Diameter 40mm thermal conductive copper cob heat sink, The most ideal Custom house radiator
- Category: >>>
- Supplier: Hangzhou Jianfa Machinery Co. Ltd.
Share on (770015651):
Product Overview
Description

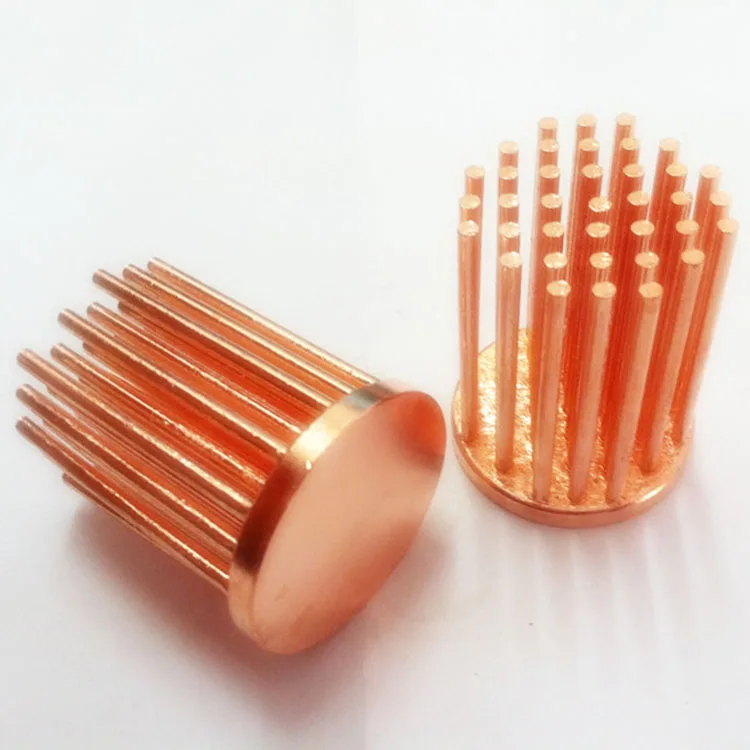

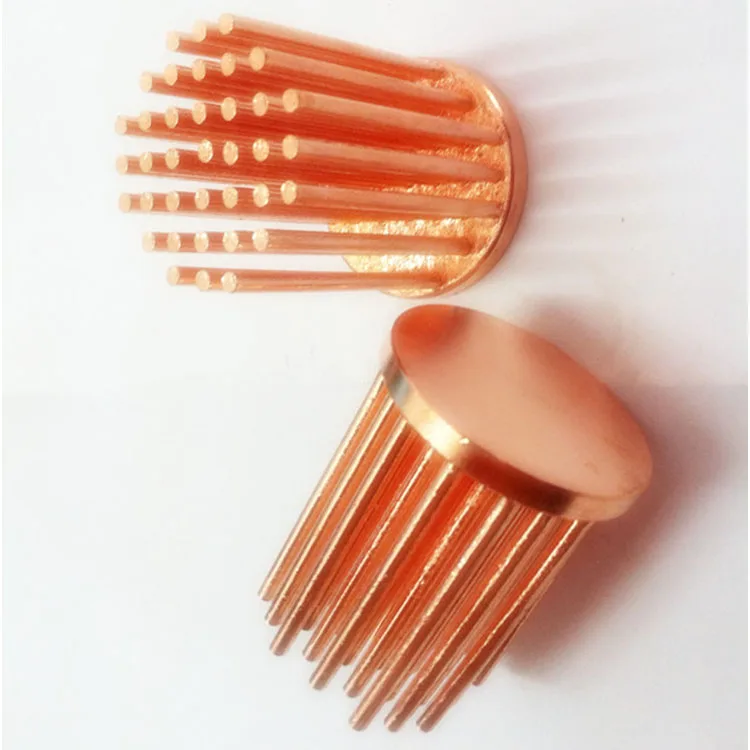

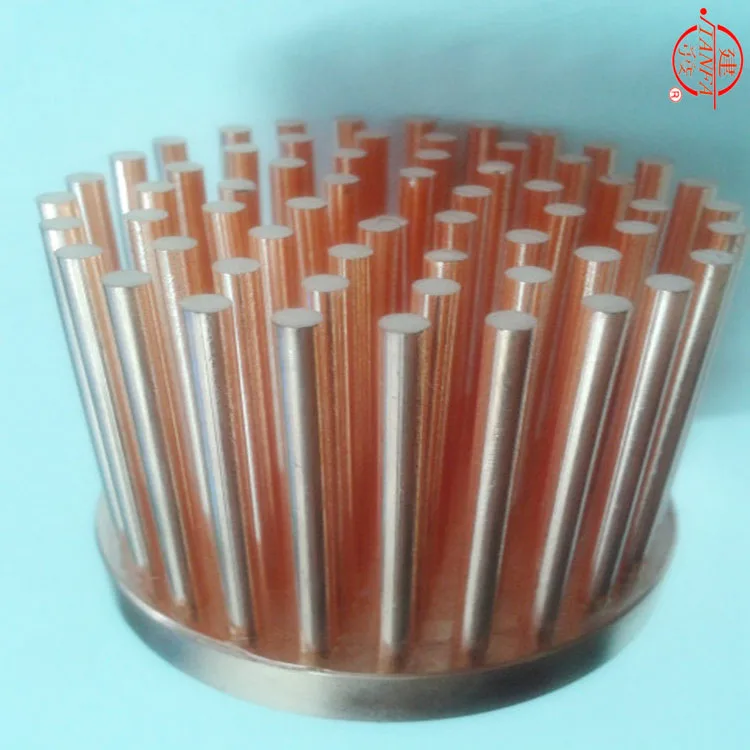

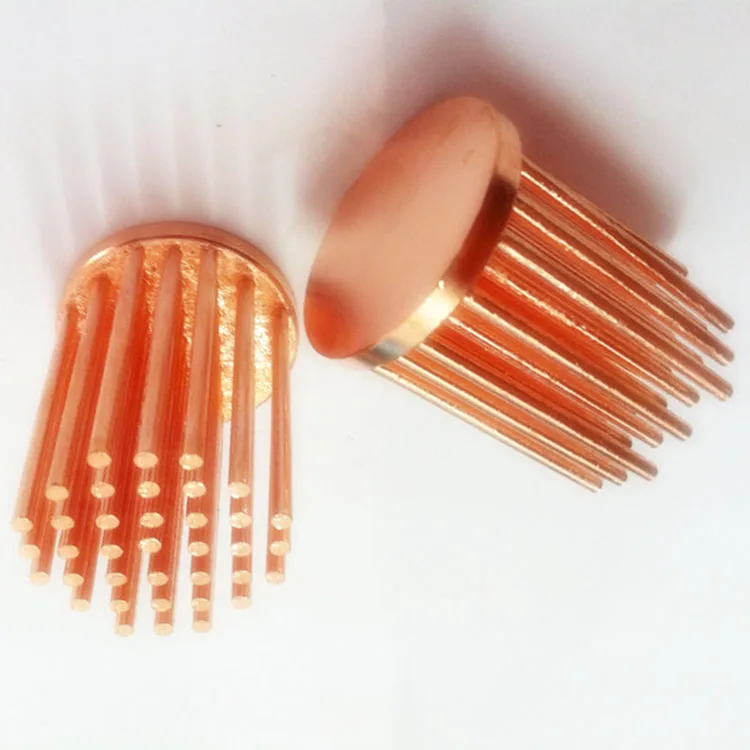

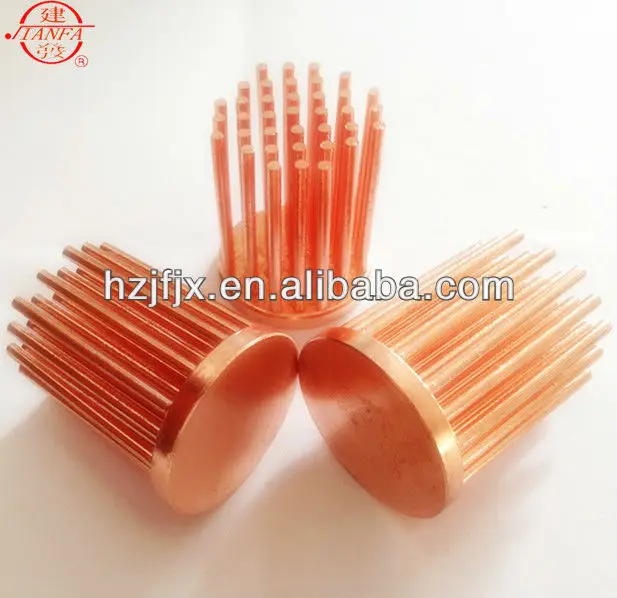

Diameter 40mm thermal conductive copper cob heat sink, The most ideal Custom house radiator
breaker A variety of standard shapes and sizes are available and these can be modified to meet your application requirements.
Item Number | Dia. (mm) | Height (mm) | Base Thk. (mm) | Material |
PF4001-40-5-101 | 40 | 40 | 5 | Copper |
PF4001-45-5-101 | 40 | 45 | 5 | Copper |
PF4001-50-5-101 | 40 | 50 | 5 | Copper |
PF5001-40-5-101 | 50 | 40 | 5 | Copper |
PF5001-45-5-101 | 50 | 45 | 5 | Copper |
PF5001-50-5-101 | 50 | 50 | 5 | Copper |
PF6001-40-5-101 | 60 | 40 | 5 | Copper |
PF6001-45-5-101 | 60 | 45 | 5 | Copper |
PF6001-50-5-101 | 60 | 50 | 5 | Copper |
PF7001-50-6-101 | 70 | 50 | 6 | Copper |
PF7001-55-6-101 | 70 | 55 | 6 | Copper |
PF7001-60-6-101 | 70 | 60 | 6 | Copper |
PF8001-50-6-101 | 80 | 50 | 6 | Copper |
PF8001-60-6-101 | 80 | 60 | 6 | Copper |
PF8001-70-6-101 | 80 | 70 | 6 | Copper |
PF11001-50-6-101 | 110 | 50 | 6 | Copper |
PF11001-60-6-101 | 110 | 60 | 6 | Copper |
PF11001-70-6-101 | 110 | 70 | 6 | Copper |
The reasons for this effect are
§ processingby a high densitiy of the microstructure in direction of the themal flow
§ structureby an fast and homogenous dissipation of the heat
