Твердые заклепки с круглой головкой из оцинкованной стали для заклепки листового металла 3,5X19
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (772763084):
Product Overview
Description

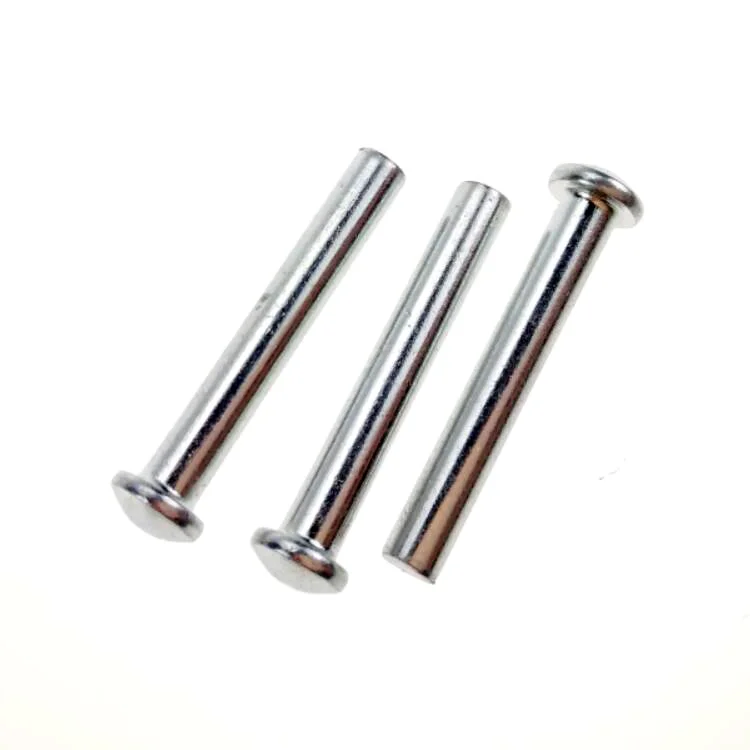

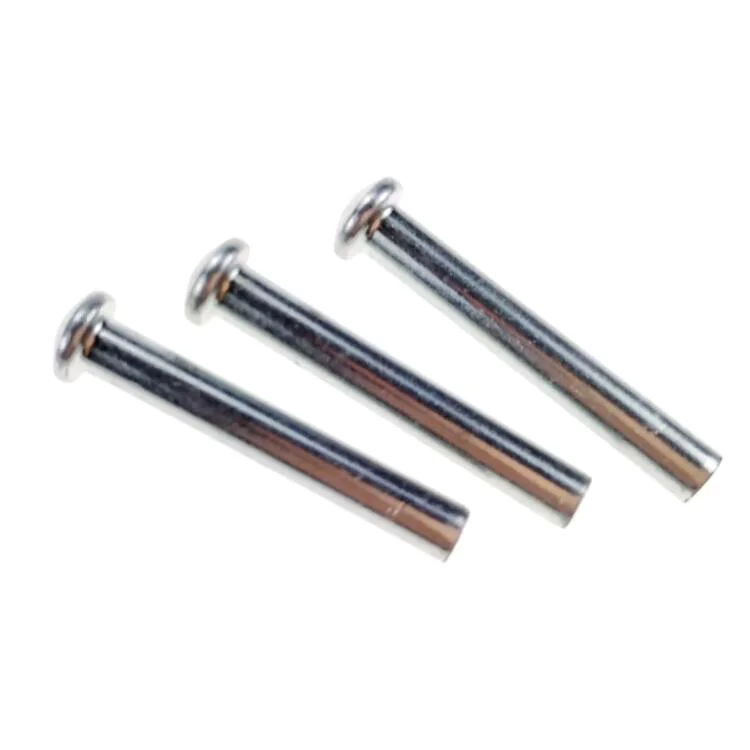

Galvanized Metal Steel Round Head Solid Rivets for Sheet Metal Fastener Riveting 3.5 X 19 Standard ASME / B 18.1.1
General Description
Round head sold rivets are made from carbon steel with zinc plated , flat point and solid shaft , it is used for riveting metal sheet parts of various industrial areas . Standard Solid rivets from daimeter 1.6 to 20 mm for different riveting thickness .
Technical Data
Material
Carbon steel
Physical Properties
Hardness ( HV ) | 200 | Yield Strength ( Mpa ) | 210 | Elongation ( % ) | 35 |
Tensile Strength ( Mpa ) | 320 | Torque |
| Reduction Area ( % ) | 45 |
Specification
| d | 1/8 |
|
L | 1" | |
Tolerance | 0.02 |

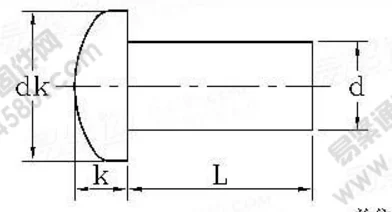

Optional Specifications
| d | dk | k |
| 1/16 | 0.118 | 0.04 |
| 3/32 | 0.173 | 0.06 |
| 1/8 | 0.225 | 0.078 |
| 5/32 | 0.279 | 0.096 |
| 3/16 | 0.334 | 0.114 |
| 7/32 | 0.391 | 0.133 |
| 1/4 | 0.444 | 0.151 |
| 9/32 | 0.499 | 0.17 |
| 5/16 | 0.552 | 0.187 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Zinc | 8 | 24 | RoHS |
Product Features
1 . Firm material
Round head rivets are made from top carbon steel .
2 . Not easy to be rusted
Zinc finish ensure rivets are not rusted in years .
3 . Easy to be operated
4 . Enviromental protection
5 . Strict dimensions
6 . Long service
Applications
Carbon steel round head rivets are used for riveting metal sheets with light duty for industrial areas .
Tips for Use
1 . Operated by riveting gun .
2 . Take care riveting thickness of objects
3 . Far from acid-base surroundings .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
kg / Bag : 3 Kg / CTN : 18 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kg / Box : 2 Kg / CTN : 16 L X W X H : 25 X 25 X 20 cm | Pallets
Kg / Pallet : 1500
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry .
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
