SSL20 40SB TO SSL20 40SB 0.5mm pitch IDC connector, extra fine coaxial cable connection micro coax cables

Product Overview

Description

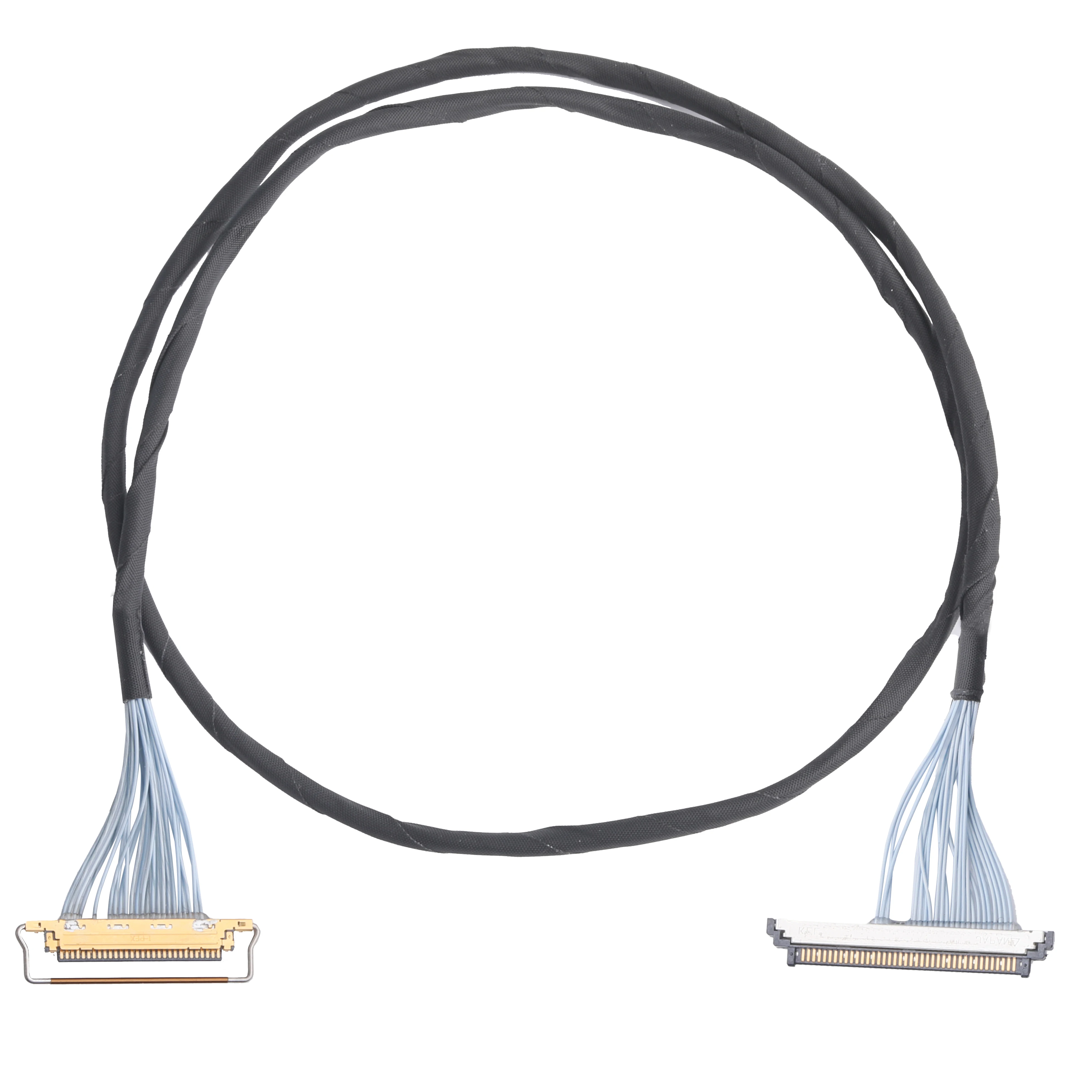

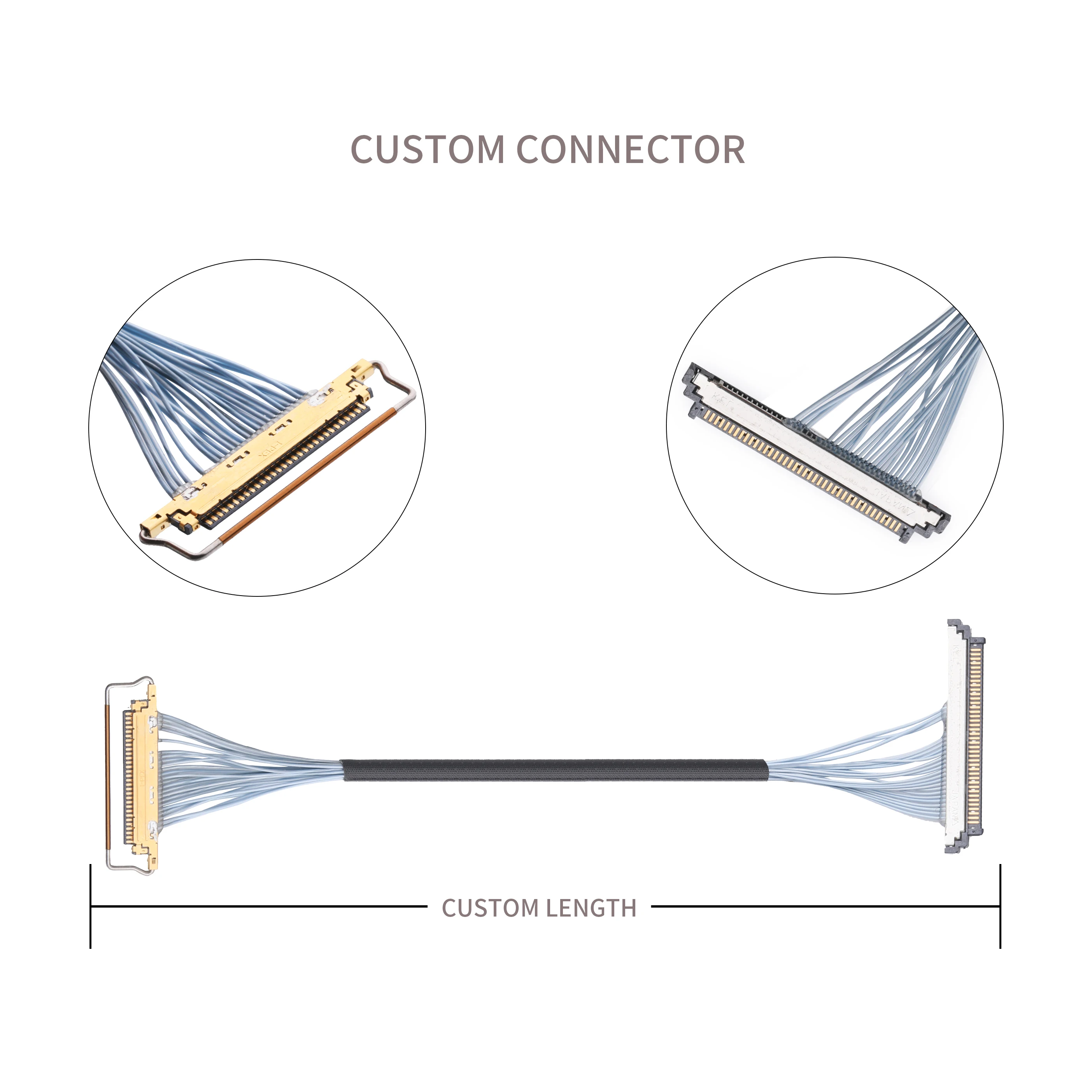

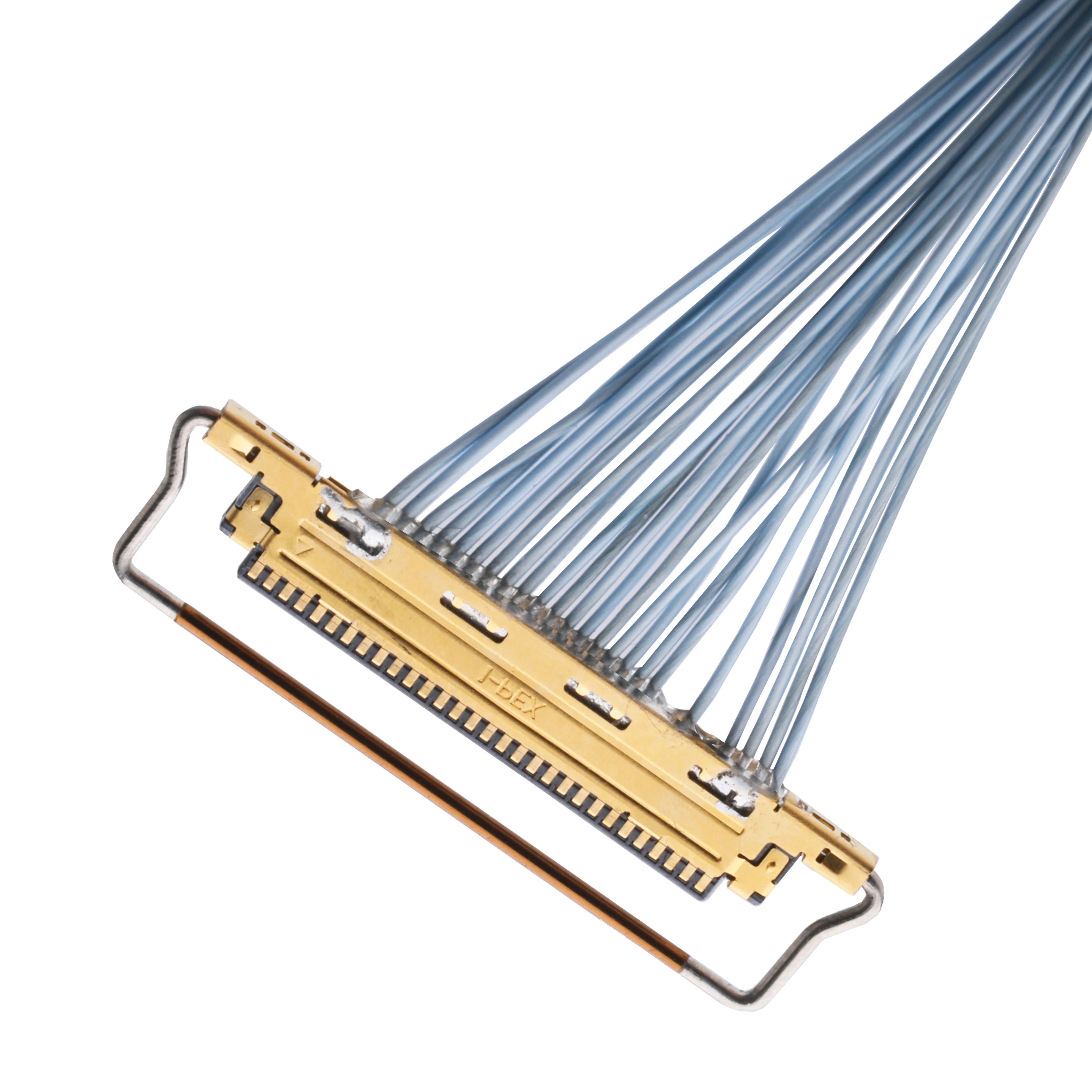

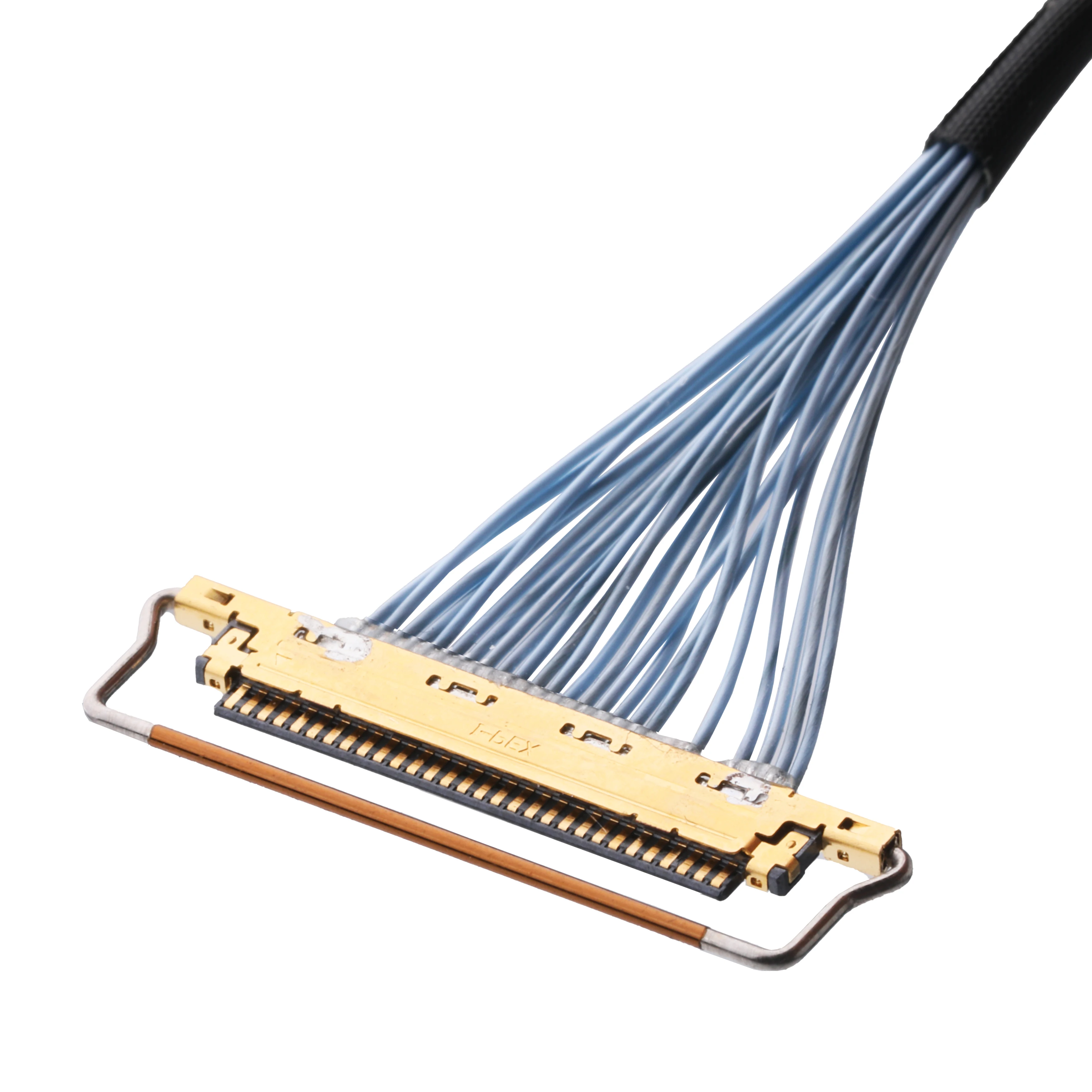

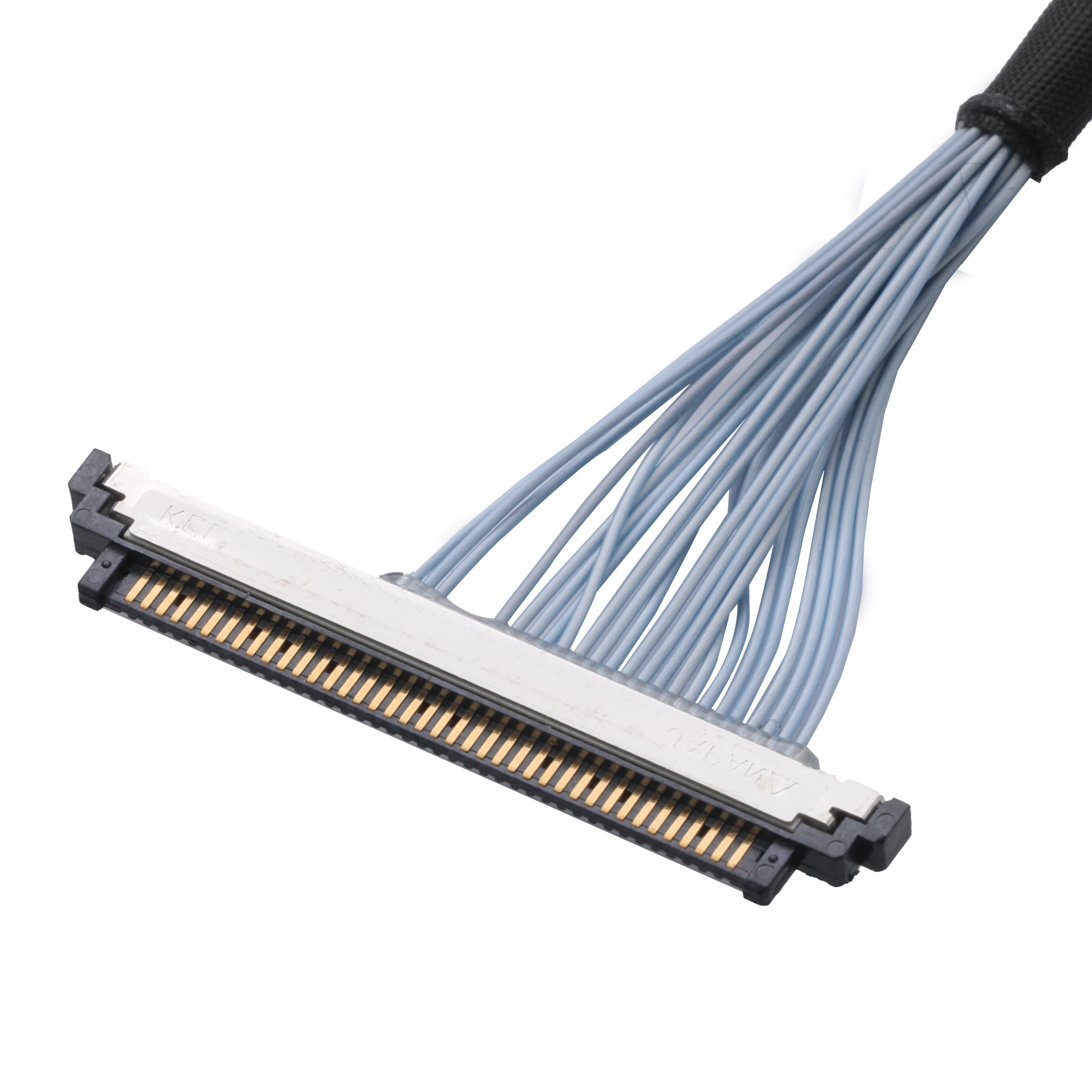

SSL20-40SB TO SSL20-40SB 0.5mm pitch IDC connector, extra-fine coaxial cable connection micro coax cables



Insulator materials	LCP (with glass-filled) UL94V-0 material, black
Contact material	Copper alloy
Contact plating	Gold over Nickel
Shell material	Copper alloy
Shell finish	Nickel plated base, tin-copper-plated finish
IDC cover material	[SSL20] LCP (with glass-filled) UL94V-0 material, off-white

Performance
Current rating	0.3A per contact
Contact resistance	100 mΩ or less
Dielectric withstand voltage	AC200V, 1 minute
Insulation resistance	DC250V, 100MΩ or more
Operating temperature	-40 ℃ ~ + 85 ℃
conforming cable	AWG # 40 coaxial cable





1. A compact connector with a mounting height of 1.4 mm and a mating width of 6.08 mm. (horizontal mating)

2. The cable assembly uses pressure welding method for bulk connection, improving connection reliability.

3. By adopting a metal shell, noise reduction and product strength are ensured.

4. multiple ground terminals are provided to improve transmission and EMS characteristics.

5. effective mating length of 0.5 mm is secured.

6. A straight type and a right angle type are available for the printed circuit board side connector. Therefore, horizontal mating and stacked mating can be selected.

Number of number of contacts: 10, 20, 30, 40





Application:
All KINDS OF LVDS CABLE FOR LCD PANEL
USED IN HDTV/DPD/GPS/LCD LED TV/LCD LED MONITOR
/NOTEBOOK/ LAPTOP/PROJECTOR ETC.
