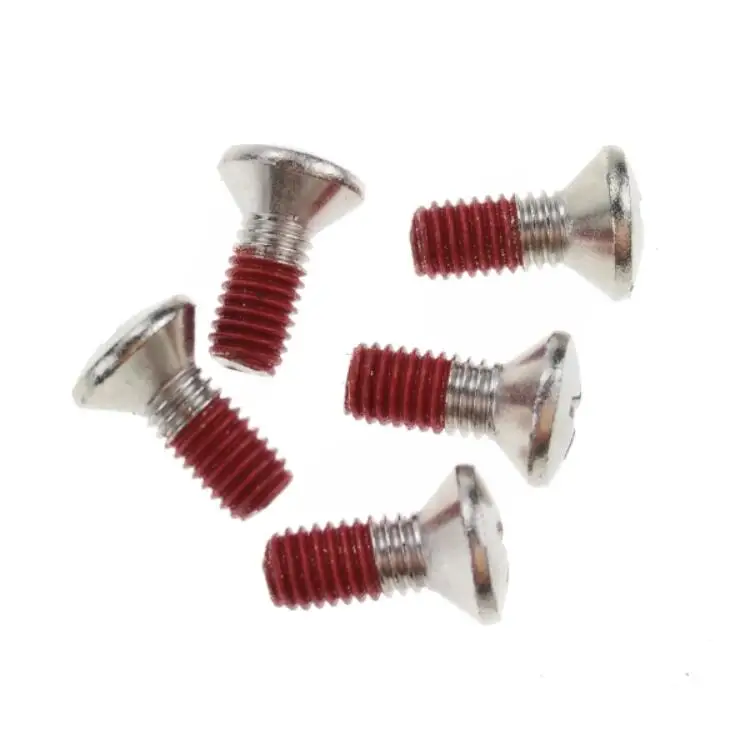

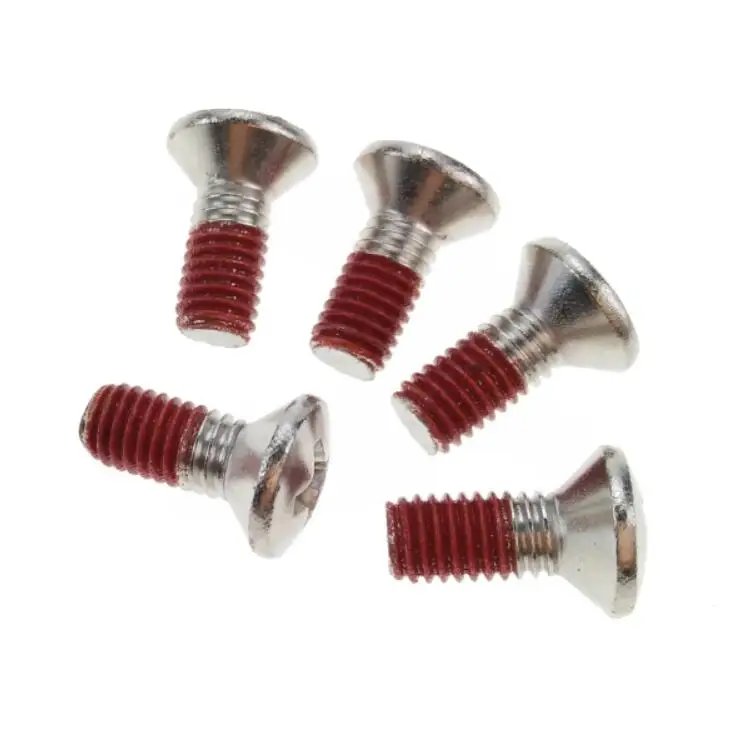

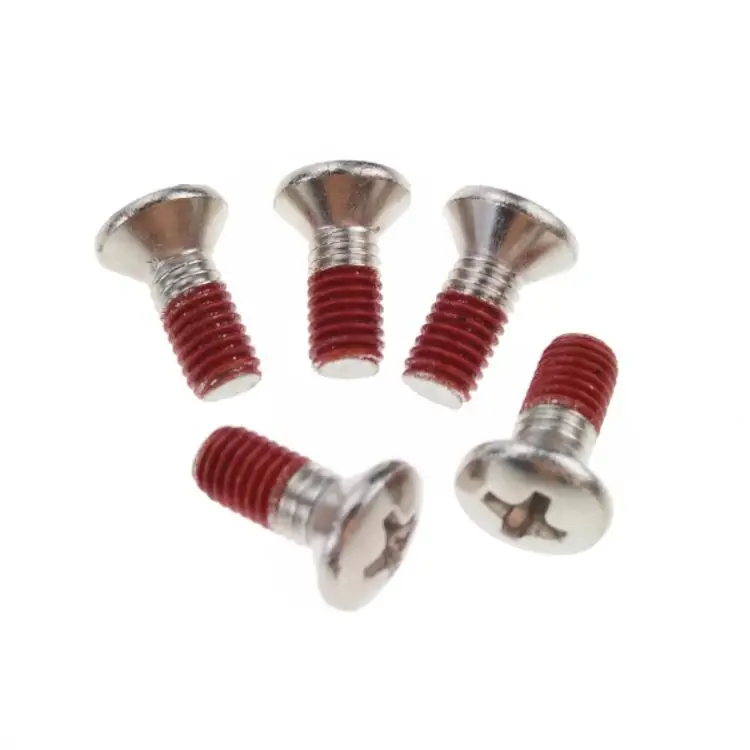

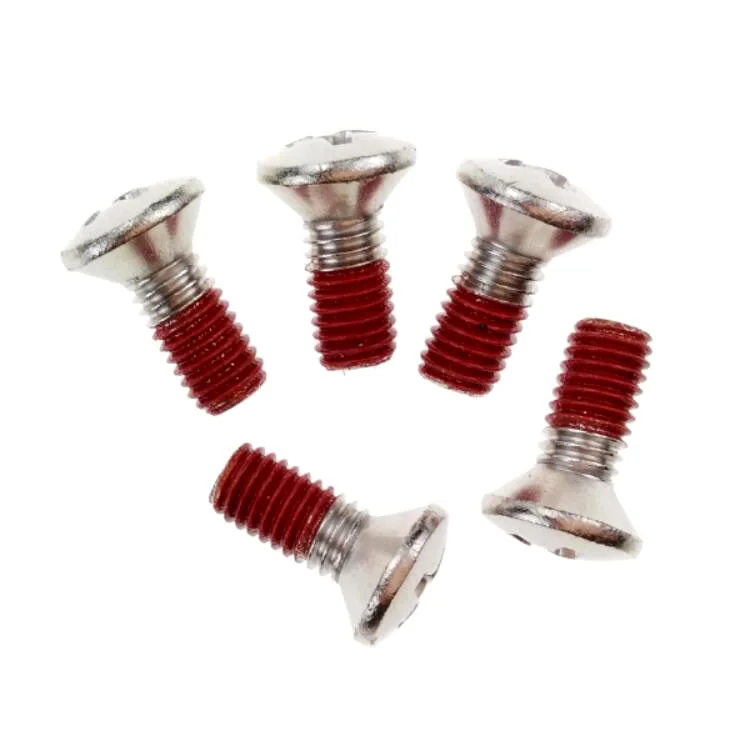

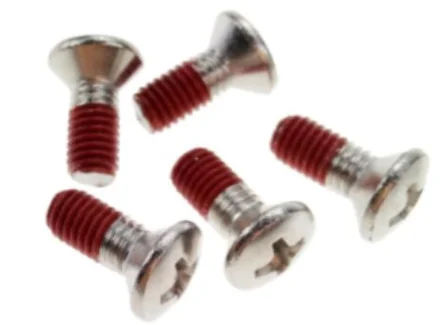

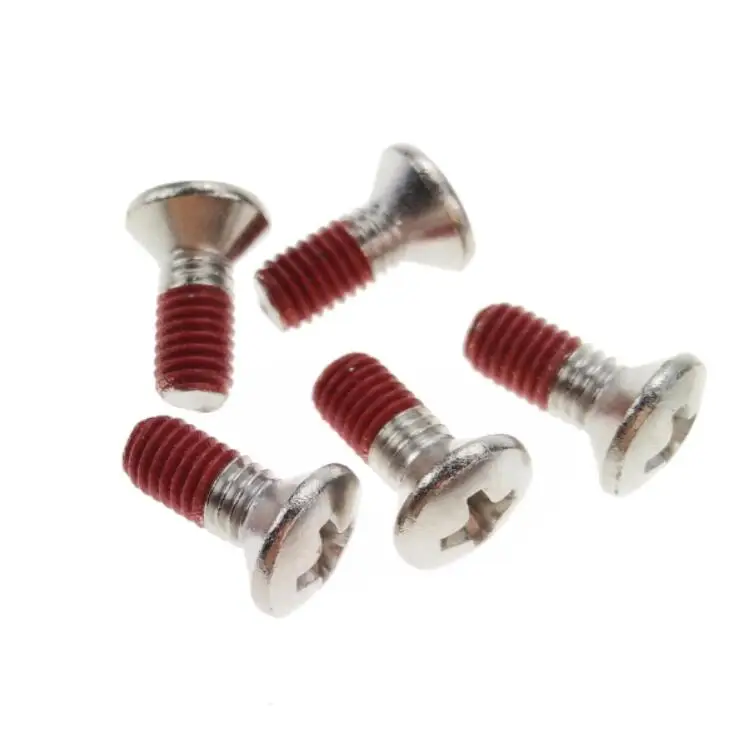

Stainless Steel Nylock Screws Self Locking Threads Oval Head Phillips Drive 8# 32 Fastener
- Category: Screws >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (775841183):
Product Overview
Description
Stainless Steel Nylock Screws Self Locking Threads Oval Head Phillips Drive 8# - 32 Fastener
General Description
Stainless steel nylock screws named self locking screws or anti-loose screws or nyloc screws as well , which with machine full threads and nylock locking patch on threads for preventing screws from slipping out , oval head design with phillips 2# drive , pollish surface for increasing brightness and enchance corrosion resistance .
Technical Data
Material
Stainless steel A2-70
Physical Properties
Hardness ( HV ) | 19 | Yield Strength ( Mpa ) | 210 | Elongation ( % ) | 45 |
Tensile Strength ( Mpa ) | 520 | Torque | 3 | Reduction Area ( % ) | 60 |
Specification
Thread diameter | 10# |
|
Thread Length | 1/2 | |
Pitch | 20/Inch | |
Head Diameter | 8.2 | |
Head Height | 3.5 | |
Drive | PH 2 |
Optional Specifications
| d | P | L |
| #0 | 80 | 3-5 |
| #1 | 64 | 4-8 |
| #2 | 58 | 4-10 |
| #3 | 48 | 5-12 |
| #4 | 40 | 5-15 |
| #5 | 32 | 8-20 |
| #6 | 32 | 8-25 |
| #7 | 24 | 8-30 |
| #8 | 24 | 10-30 |
| #10 | 20 | 10-60 |
| 1/4 | 18 | 15-80 |
| 5/16 | 16 | 20-100 |
| 7/16 | 14 | 30-200 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Polish | 3 | 120 | RoHS |
Product Features
1 . Perfect anti-loose performance
Stainless steel screws with nylock threads to stop screws to back out .
2 . Bright appearance
Screws are polished
3 . Standard threads
4 . Easy and quick installation
5 . No any burrs and scratch
6 . Good stability
7 . Not easy to be rusted
Applications
Oval head stainless steel screws are often used for
1 ) Household electrical appliances . TV , Washer , Cooker , Air conditioner etc.
2 ) Furniture . sofa , glass table , steel seat and table and decorative lighting etc .
3 ) Building . window and door , metal floor, steel structure and building beam etc
4 ) Heavy industry . Car , air , shipping , machinery and military equipments .
5 ) High technology industry . like automatic robots , Navigator and communication apparatus etc .
6 ) Office equipments . Fax , telephone , scanner , computer and office tables etc.
Tips for Use
1 . Use phillips screwdriver bit to operate stainless steel screws .
2 . The thread moving direction is from right to left , and back out in reverse direction .
3 . Do not use a sharp tool or bladed tool to drive the screws .
4 . Do not scratch the screw in harden something in order to keep bright surface .
5 . Keep screws in the dry warehouse .
Packing Details
 |  |  |
| In Bulk ( Bags + Carton )
Kgs / Bag : 5 Kgs / CTN : 20 L X W X H : 20 x 20 x15 cm | Boxes ( Boxes + Carton )
Kgs / Box : 3 Kgs / CTN : 15 L X W X H : 20 x 20 x 15 cm | Pallets
Kgs / pallet : 1500
L X W X H : 1 x 1 x 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
