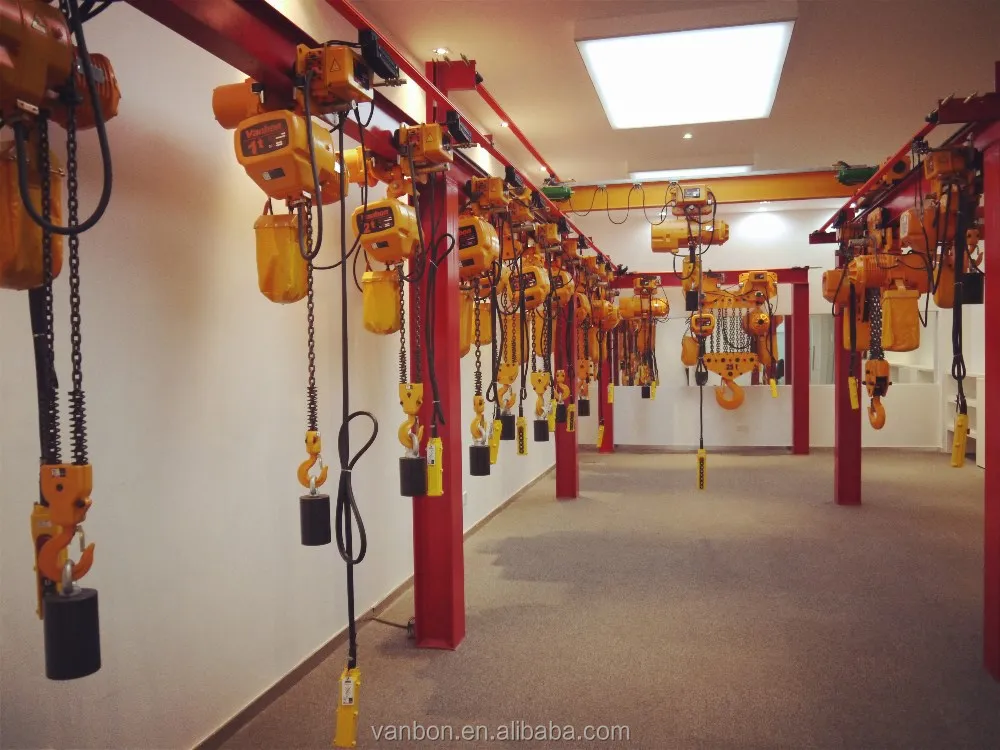

Vanbon 2ton chain hoist crane Electric Hoist

Product Overview

Description

Type		WBH-01002S	WBH-02002S	WBH-03002S	WBH-05002S
Capacity(t)		1	2	3	5
Standard Lifting Height(m)		3
Lifting Speed(m/min)		3.4	3.3	4.4	2.7
Lifting Motor	Power(kw)	0.75	1.5	3.0	3.0
	Rotation(r/min)	1440
	Phases	3
	Voltage(V)	200-440
	Frequency(Hz)	50
Operating Motor	Power(kw)	0.4	0.4	0.75	0.75
	Rotation(r/min)	1440
	Operating Speed(m/min)	11/21
	Phases	3
	Volatge(v)	200-440
	Frequency(Hz)	50
Chain Turns		2

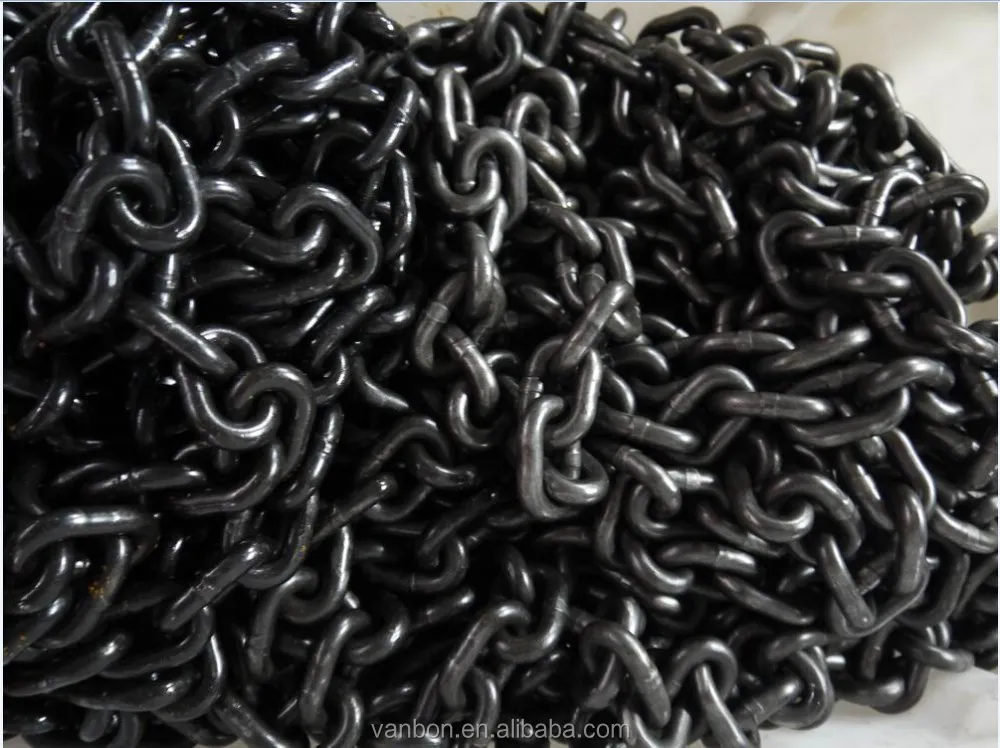

Chain Specification		Ø6.3	Ø7.1	Ø10.0	Ø11.2
Test Load(t)		1.25	2.5	3.75	6.25
Weight(kg)		1.25	73	131	151
I-Beam(mm)		58-153	82-178	100-178	100-178
Weight Added with 1m Higher(kg)		1.62	2.2	4.7	5.6



Type	WBH-01002S	WBH-02002S	WBH-03002S	WBH-05002S
H	695	815	930	1015
A	460	520	615	615
B	230	260	295	295
D	280	300	430	430
E	205	236	320	325
K	Ø40	Ø47	Ø59	Ø60
L	31	38	47	48
I	Ø31	Ø36	Ø43	Ø54
N	24	30	35	43
W	206	237	265	296
U	111	127	140	156
R	142	142	142	142
T	231	231	231	231
