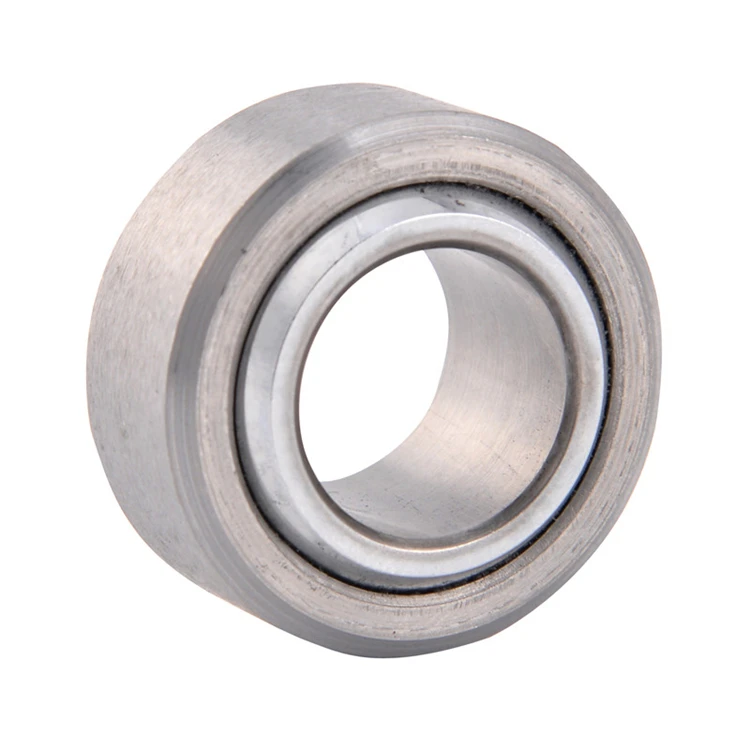

LDK COM8T maintenance free spherical plain bearings

Material Specification

a) Ball: Gcr15 bearing steel, hardened,HRC58-64,Precision ground,hard chrome plated.

b) Outer race: Carbon steel, with PTFE composite .

c) Sliding cotact surface: Steel/PTFE composite

Description

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.

Radial spherical plain bearings requiring maintenance have the sliding contact surface combination steel-on-steel. Bearings with this sliding contact surface combination require regular relubrication. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated. Bearings which have cylindrical extensions at both sides of the inner ring are intended for applications where normally spacer sleeves are arranged at either side of the bearing, or are specially designed for the bearing arrangements of hydraulic cylinders.
