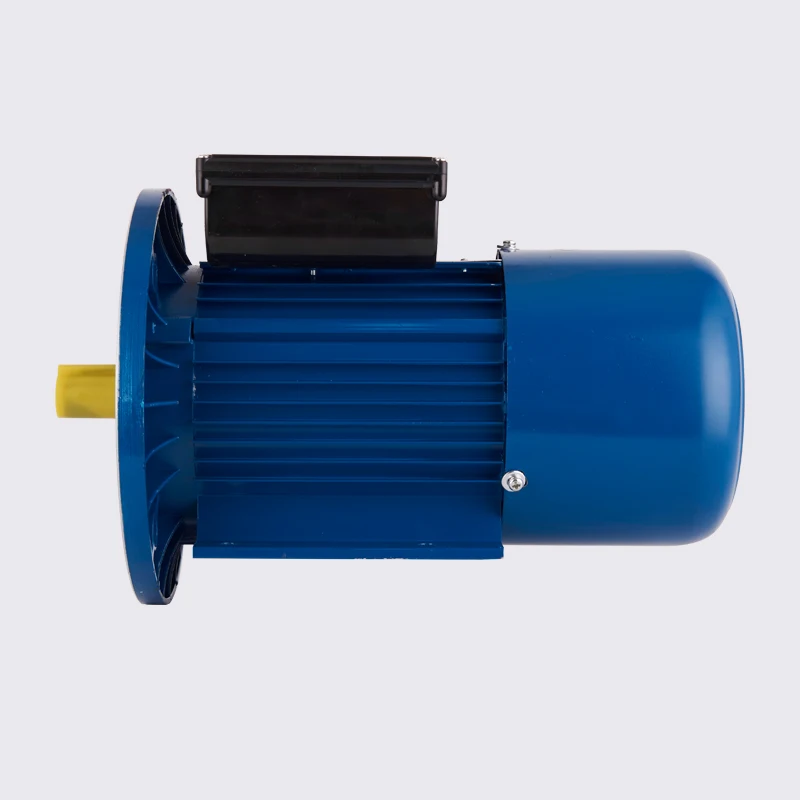

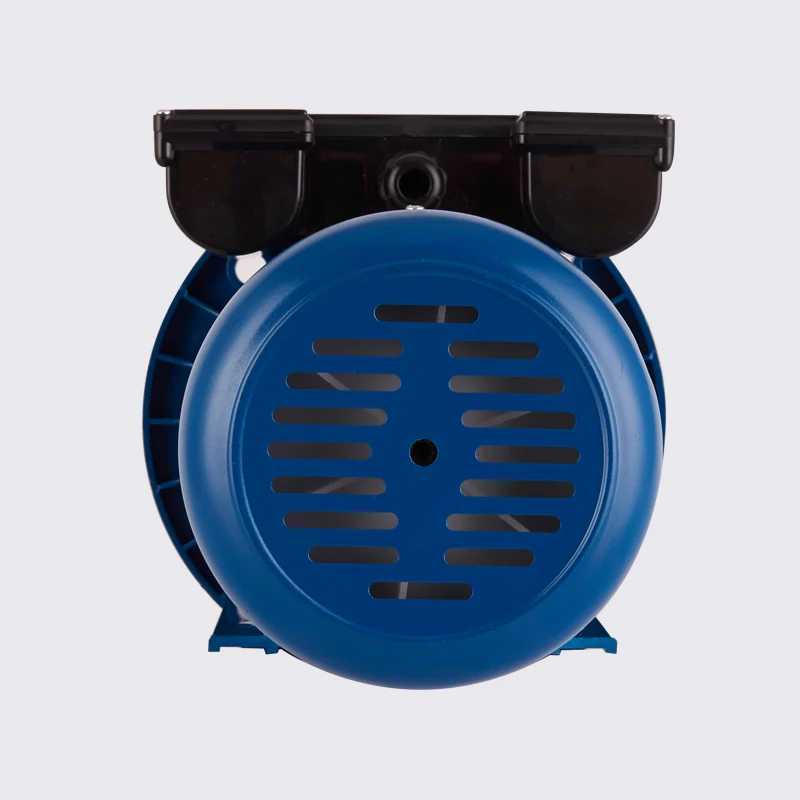

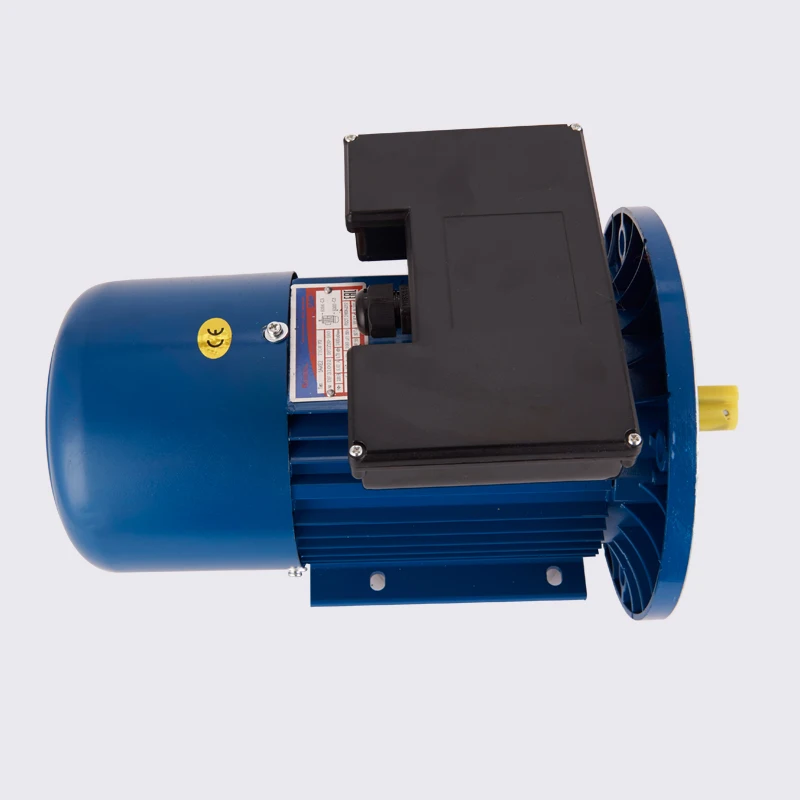

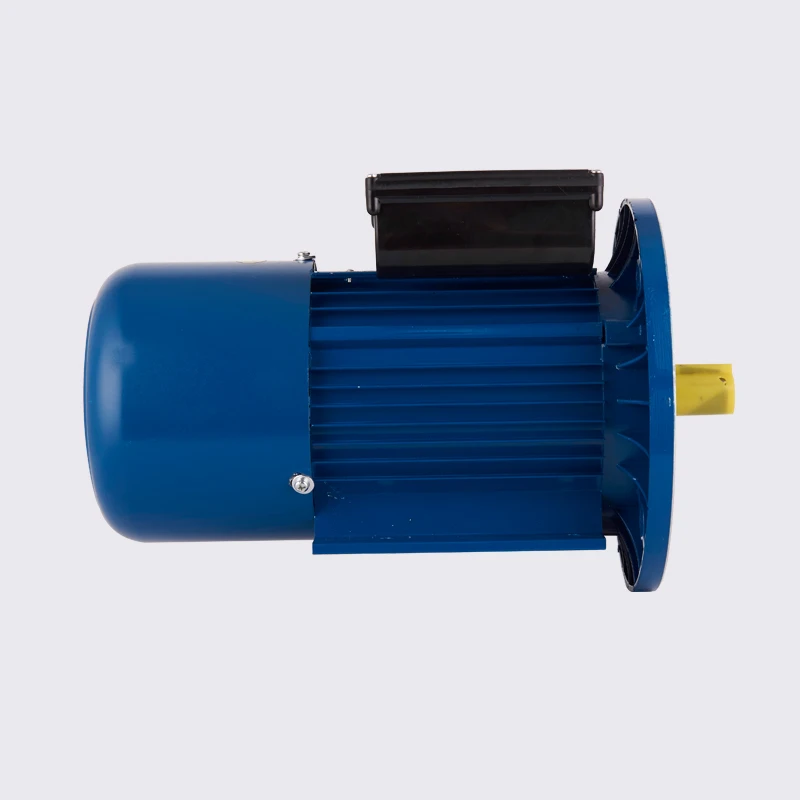

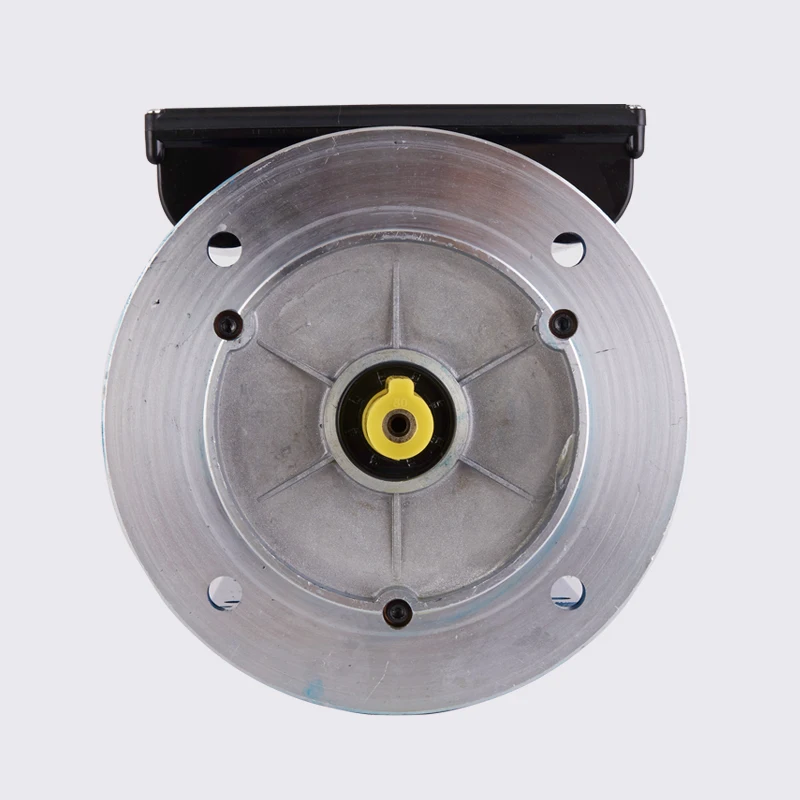

YL Series 2 HP Single Phase Induction Motor

Product Overview

Description

Electric Motor



Specifications:
1) Frame size: 71
2) Rated power: 0.37kW
3) Rated voltage: 110 - 120V, 200 - 240V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44
6) Insulation class: E, B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 2, 4, 6
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature: -15°C< θ <40°C
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia, East Asia, South America

Inner packing: Foam box
Outer packing: Carton

Conveyance:
Qty/20' FCL: 1,800pcs
