high quality chocolate conche/grinding machine
- Category: >>>
- Supplier: Zhengzhou Saiye Machinery Equipment Limited
Share on (778174242):
Product Overview
Description

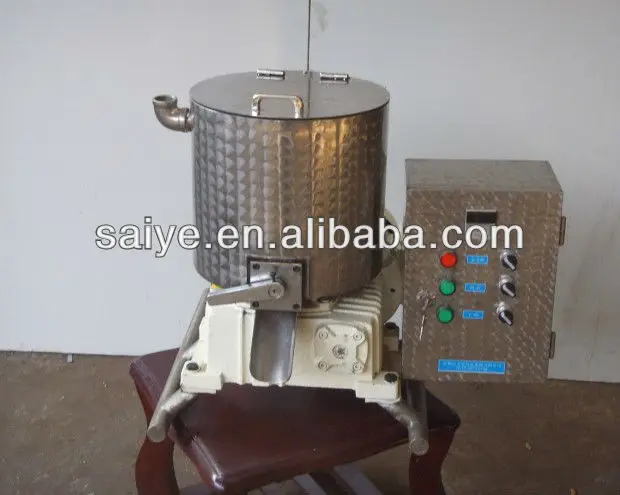

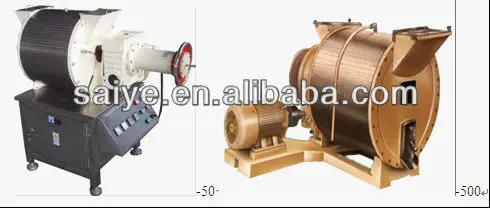

chocolate conche/grinding machine
It is the basic machine to grind chocolate material, as well as oil-bearing material, fluidness and some chemical raw material.
This machine adopts the worm wheel and worm screw driving system, the places contacting with food and the machine outer case are made of excellent alloy steel and stainless steel material. This machine is hand wheel operation with multi functions of grinding, dehydration, deodorization, dilution and emulsification. It is ideal equipment for chocolate production.
BASIC SPECIFICATION:
Model | SQM-5 | SJM-50 | SQM-500 | SQM-1000 |
Effective volume | 5L | 50L | 500L | 1000L |
Grinding fineness | 20-25um | 20-25um | 20-25um | 20-25um |
Grinding time | 8-12H | 10-16H | 14-18H | 14-20H |
Main motor | 2.2Kw | 1.5Kw | 15Kw | 22Kw |
Electric heating | 500W-220V | 500W-220V | 3000W-380V | 6000W-380V |
Scrawl motor |
|
| 1.5Kw |
|
Weight(kg) | 80 | 320 | 2990 | 4500 |
Dimensions (mm) | 0.7*0.48*0.63 | 1.2*0.8*1.1 | 2.15*1.86*1.25 | 2.8*1.6*2.5 |
