This circuit is 1 battery need ( exclude in this item ), one is for motor turn to right and other is for turn to left ( details can be check from the attached instruction in package )

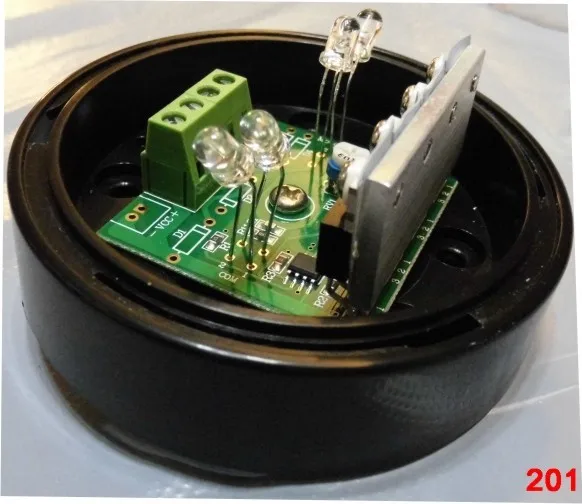

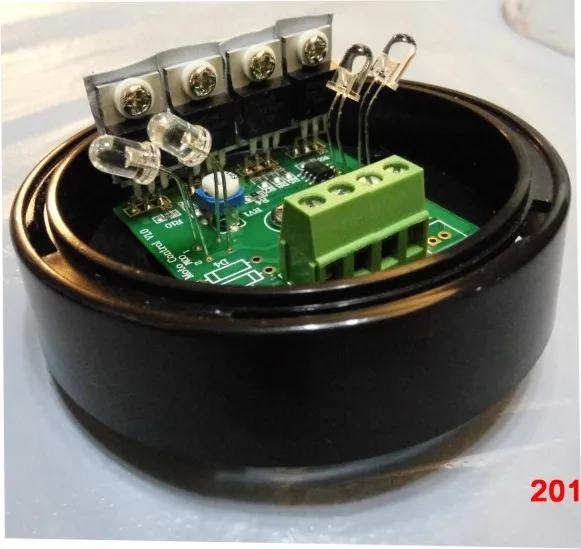

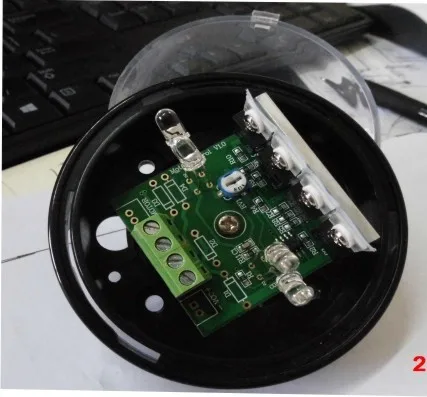

This solar tracking controller will drive a motor to position anything you want to follow the sun on a single axis. It can be used to position solar cells, a reflector to heat water, or anything else. The controller is mounted on the object to be steered with the sensors positioned along the rotational axis. Using most any D.C. motor up to a maximum of 12 VDC @ 10 amps( in the not loading condition ), it can easily cause a solar collector, reflector or array to follow the sun through a single axis. Motors suitable for this system can move quite large loads as long as proper gearing or lead screws are used. The controller uses a differential sensing approach and can drive the motor in either direction. PRODUCTS INTRODUCTION
Product Classification:
1. Single-Axis Type (Model No. SA V 5 )
Our single axis solar tracker has the function of tracking the movement of the sun during the time of sunrise to sunset. It can assist your solar collector to absorb more 35%-45% of solar energy in comparison with the collector which has not installed solar tracker.
This item suit for any one who would like to build the solar tracker system by them self .
Please click this link if you want buy the Dual axis solar tracker :
We can design any type sun tracker to fit your demand for example :
fit for Water heater / Heat transfer system / parabolic reflector system etc...
FAQ

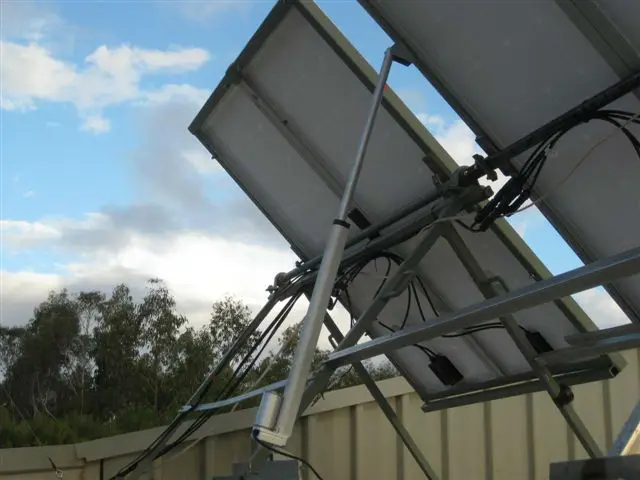

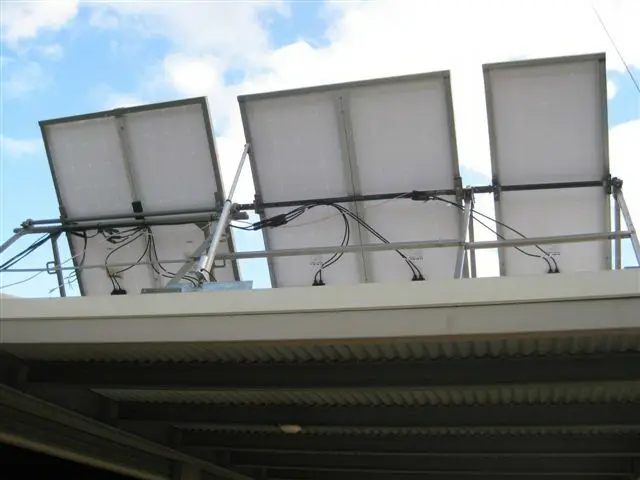

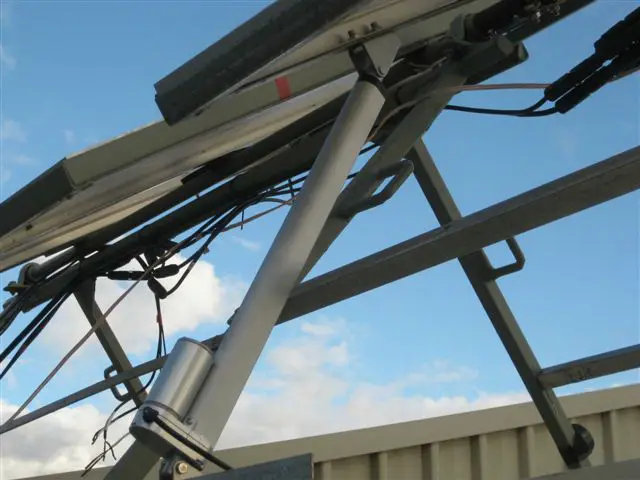

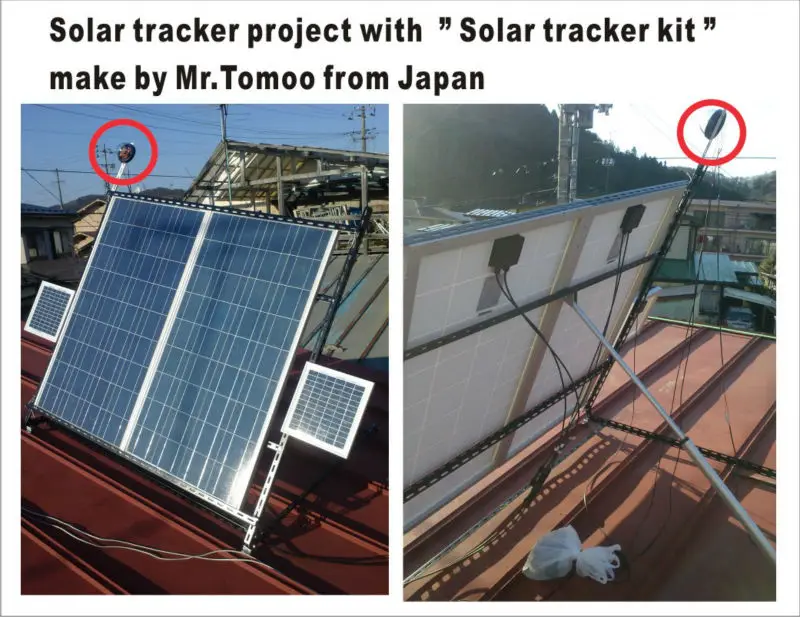

Please see below for some project from our clients they build with our product " Solar tracker kit "
Note :
We designed this solar tracker just want more people to use
high-performance equipment in their solar products, we hope
that more natural energy, reduce pollution emissions of the
products so that your children can breathe fresh air.
Hope you will support environmental protection.
In addition, We hope you can give our comment on the use of this
product, let us do better in the future, thanks to the use of
our products.
If any idea :
Please contact by e-mail directly Caution : Please do not attempt to change the use of this product, or change the input voltage and circuit. This may lead to damage to the product or burned, Please follow the instructions need to connect all the cables, otherwise the product can not work properly or damaged and the Company does not make any compensation to any improper use .
