Textile / knit fabric automatic folding machine in textile finishing machine

Product Overview

Description

Automatic Edge-aligning Cloth Rolling Inspecting Machine,Fabric Examination Machine, fabric inspection machine, roll inspection machine



-Usage:



Automatic Edge-aligning Cloth Rolling Inspecting Machine is suitable for inspecting and rolling up all kinds of cotton, knitted, woven, printed, and tricot fabrics etc.



-Technical parameters of Cloth Rolling Inspecting Machine:



1	Range of Fabric Width	1800mm~3600mm
2	Diameter of Fabric Rolls	≤600mm
3	Max. Linear Velocity	80m/min
4	Main Motor	1HP*2sets
5	Edge-aligning accuracy	±3mm
6	Dimension	2200mm(L)*2300mm(W)*1900mm(H)



-Characteristics of cloth rolling inspecting machine:



1.Photoelectric hydraulic edge-alignment system made in Taiwan is adopted. Power 1/2HP.



2.Fabric tension is adjustable via inverter, no shrink of fabric width during examination.



3.Automatic Edge-aligning Cloth Rolling Inspecting Machine is equipped with an spiral expanding roller to eliminate curled edge. Expanding power 1/2HP



4.Speed of main motor is controlled by two inverters. Power 1/2HP.



5.Digital counter installed on the examination machine could make accurate measurement of length in yards or meters which can be interchanged.



6.Winding roller and feeding roller are driven by gear motor made in Taiwan. Power 1HP×2 sets.



7.Imported special foamed winding roller could roll up warp and weft knitted plush and short floss without sliding movement and untidy edge. Fabric rolls are neither too tight nor too loose.



8.Optional cross cut and platform scale for this fabric examination machine.



9.High speed reaches 80m/min.

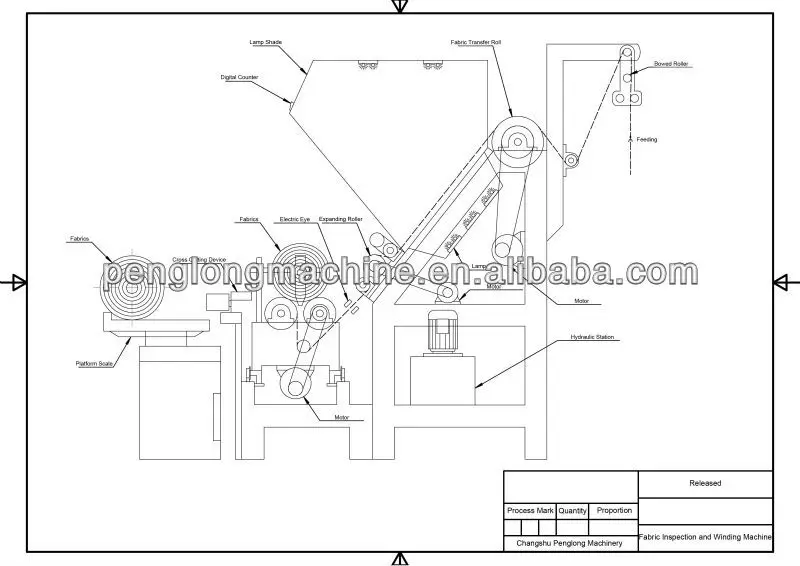

-Schematic Drawing

-CE Certification





-Detail pictures of cloth rolling inspecting machine









-About us





Welcome to make inquiry Automatic Edge-aligning Cloth Rolling Inspecting Machine.
