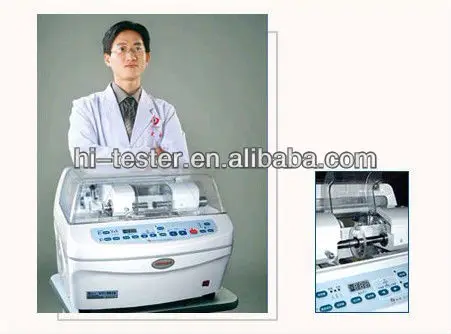

XY 5018 Automatic moulding edge grinding machine

Product Overview

Description

PT-XY-5018 automatic computer edge grinding machine



Introduction of function:

  1. LCD digital display function indicators

  2. Grinding pressure adjustment

  3. Built-in counter displays

Performance indicators:

  1. Host features: · digital tube function instructions; Pressure adjustment,

      grinding; , a built-in counter displays;

  2. System and the main features:

      using automatic tracking grinding system, USES the import material and

     diamond grinding wheel has reached the international level;

  3. the intelligent computer digital technology, can freely adjust pointy edges

      form, grinding force, grinding speed, to ensure the grinding quality.

Technical indicators:

  1. Abrasive disc diameter: ø 18 - ø 80 mm

  2. Grinding clamping force: 0.3-1.1.0 MPa (menu type multilevel surge tank)

  3. Grinding wheel diameter matching: ø 100

  4. Monolithic standard lens grinding time: 1 ` 55"

  5. Wire speed, grinding wheel job: 16.7 / S

  6. Work, electric voltage and frequency: AC220V (110 v) / 50 hz (60 hz)

  7. Electric power: 400 W

  8. Working environment temperature: 5 °C- 40 °C

  9. Installation dimensions: 468 x460x400 (mm)

  10. weight:53 kg
