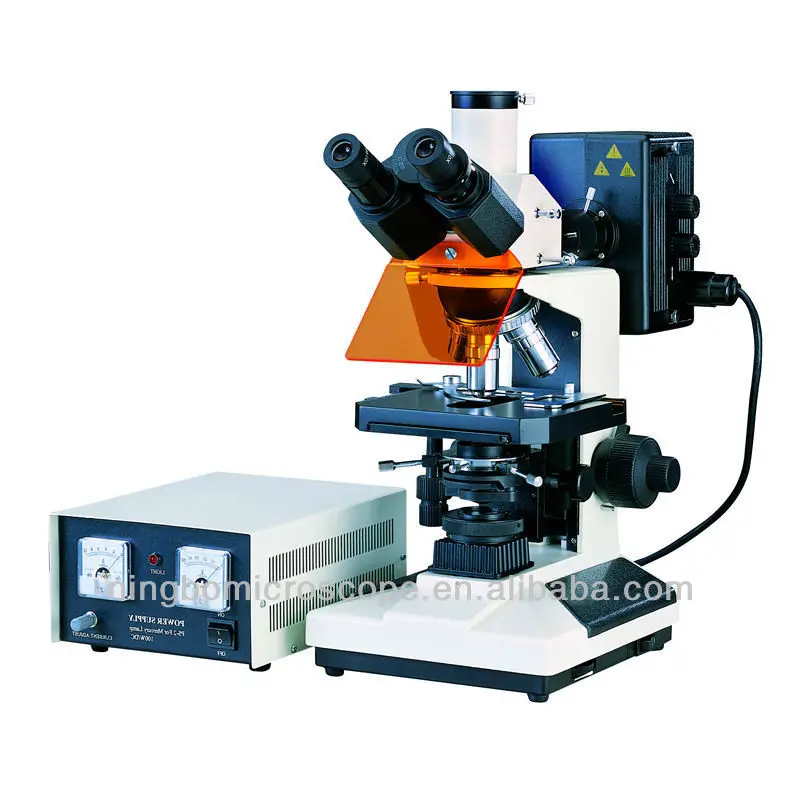

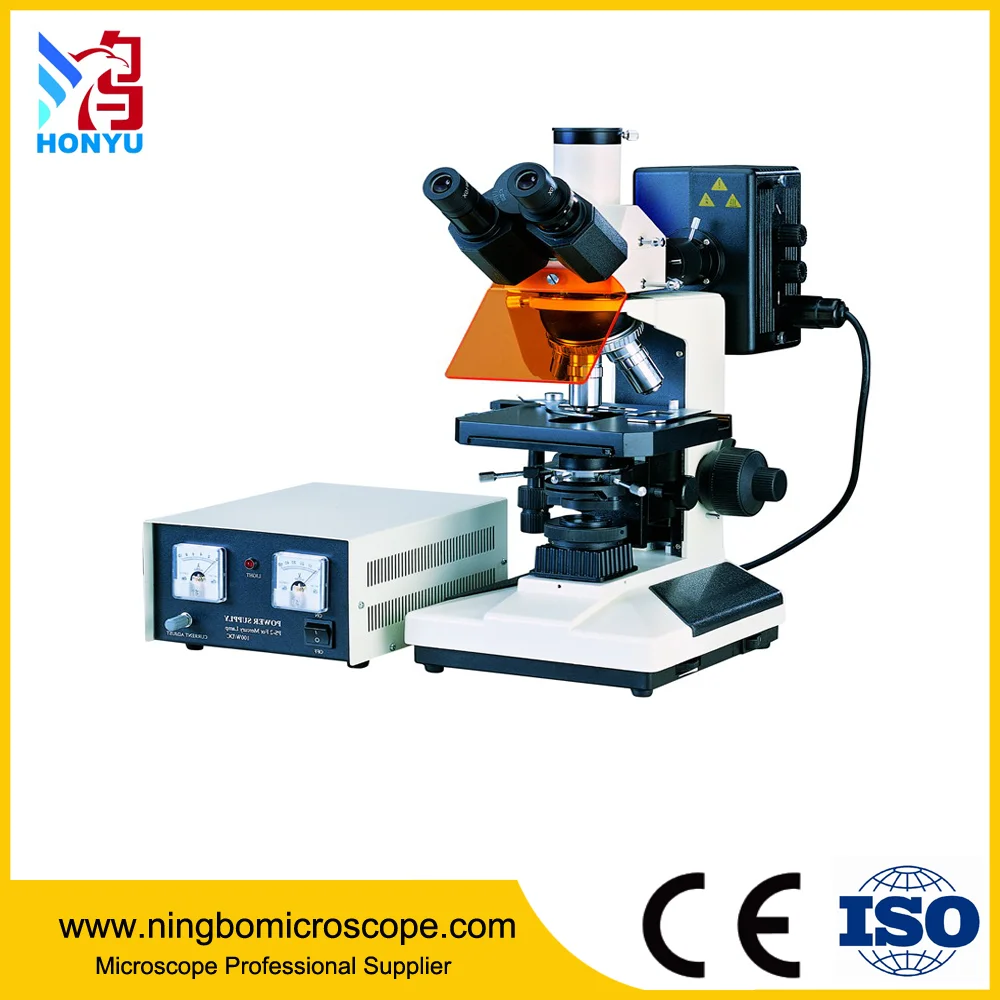

FLU.02.2001A&B Trinocular Fluorescent Microscope

Product Overview

Description

 Fluorscent Microscope



Description and Notes





FLU.02.2001A & B L2001 series reflected fluorescence microscopes are used for fluorescence microscopy and transmitted bright field observation. They are the ideal instruments in biology, cytology, oncology, geneticist, mmunology etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features



-- With wide field eyepieces, plan achromatic objectives and fluorescence objectives, the field of view is widely and clear.



-- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.



-- 6V 20W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit







Specification



Specification	FLU.02.2001A	FLU.02.2001B
Head	Trinocular (Inclination of 30°)
Eyepiece	Wide field WF10X (Φ20mm)
Objective	Plan achromatic PL 4X/0.10	Plan achromatic PL 4X/0.10
	Plan achromatic PL 10X/0.25	Plan achromatic PL 10X/0.25
		Plan achromatic PL 20X/0.40
	Plan achromatic PL 40X/0.65(Spring)	Plan achromatic PL 40X/0.65(Spring)
	Plan achromatic PL 100X/1.25(Spring, oil)	Plan achromatic PL 100X/1.25(Spring, oil)
	Fluorescence objectives FL 25X/0.65
	Fluorescence objectives FL 40X/1.00 (Spring, Glycerin)
Stage	Double layer mechanical (Size:160mmX140mm, Move range: 75mmX50mm)
Focus System	Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm
Condenser	Abbe condenser N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
	Frosted filter
Collector	For halogen lamp
Light Source	6V 20W halogen lamp with brightness control
Reflected Fluorescence System	Mercury lamp house 100W/DC
	Fluorescence filter system B exciton wavelength:420~485nm
	Fluorescence filter system G exciton wavelength:460~550nm



Optional Accessory



Namp of parts and Spec. Order No. Eyepiece Wide field eyepiece WF16X/11mm 1051016 Dividing 10X/20mm), 0.1mm/Div 1120010 Objective Plan achromatic objectives PL 5X/0.12 2040105 Fluorescence objectives FL 100X/1.25 (Spring, Glycerin) 2600111 Filter Green filter 115002 Yellow filter 115003 Fluorescence 100W fluorescence power supply(wide voltage and constant power and calculagraph) 100003 Reflected Fluorescence Fluorescence filter system UV exciton wavelength:330~400nm 115103 Fluorescence filter system V exciton wavelength:395~415nm 115104 Phase Contrast Unit Eyepiece: centering telescope 110001 Phase contrast plan achromatic objective 10X/0.25 PHPl) 2420110 Phase contrast plan achromatic objective 20X/0.40 PHP 2420120 Phase contrast plan achromatic objective 40X/0.65 PHP(Spring) 2420140 Phase contrast plan achromatic objective 100X/1.25 PHP(Spring, oil) 2420111 (PH-I) Turnplate phase contrast condenser 052001 (PH-II) Turnplate phase contrast condenser 052004 Flashboard phase contrast condenser 052002 Pull board phase contrast condenser 052003 CCD Adapter 0.4X 810001 0.5X 810004 1X 810002 0.5X with dividing 0.1mm/Div 810003 DC Adapter Digital camera adapter CANON (A610,A620,A630,A640) 820001 Photo Adapter 2.5X/4X Change over photograph adapter with 10X viewing eyepiece 840001 4X Focusing photograph adapter 840002
