25mm pm motor stepper motor 25L048 25L024

Product Overview

Description

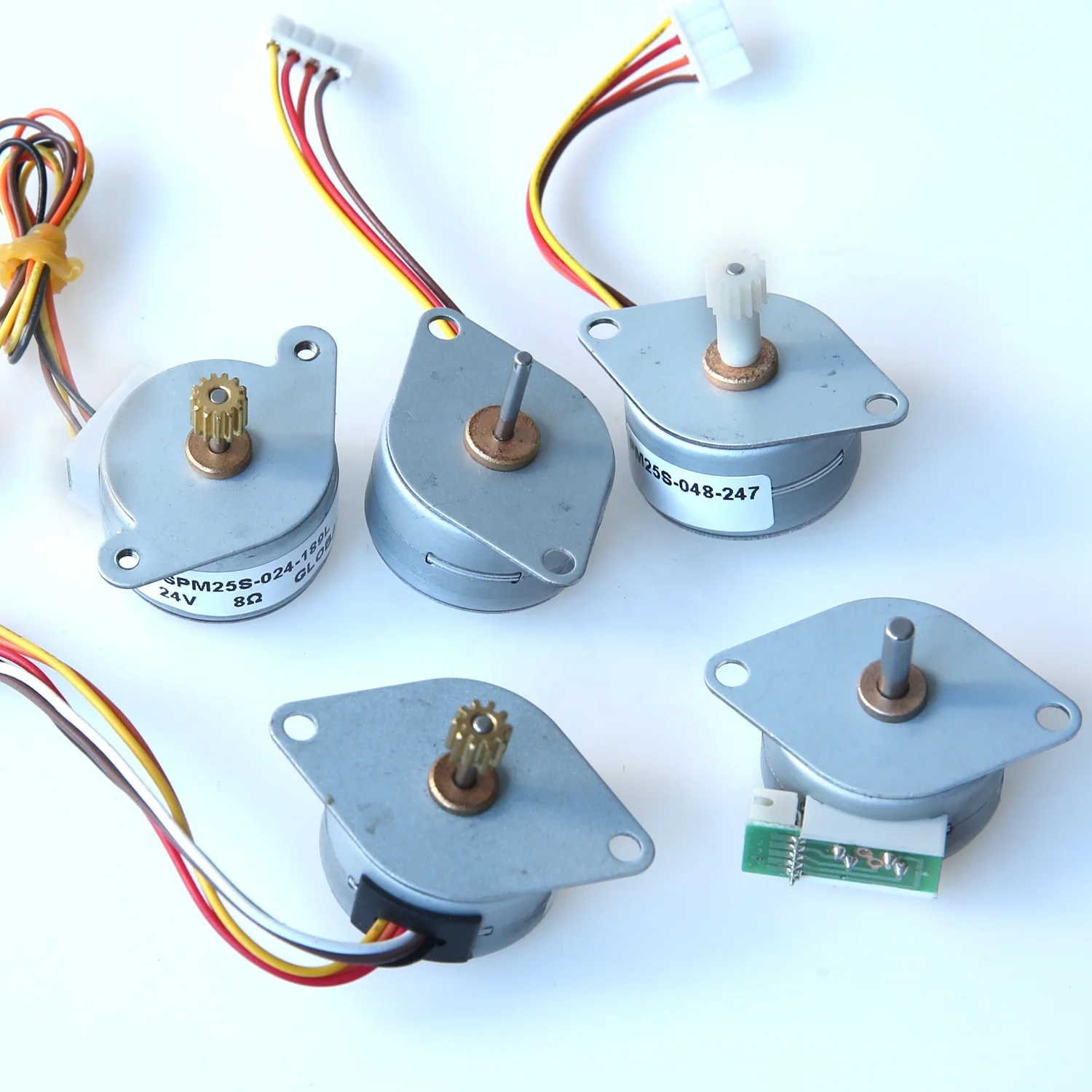

Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:





1. PM Stepper Motor:



Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048





2. PM Stepper Motor with gearbox(with different gear ratio):



Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048

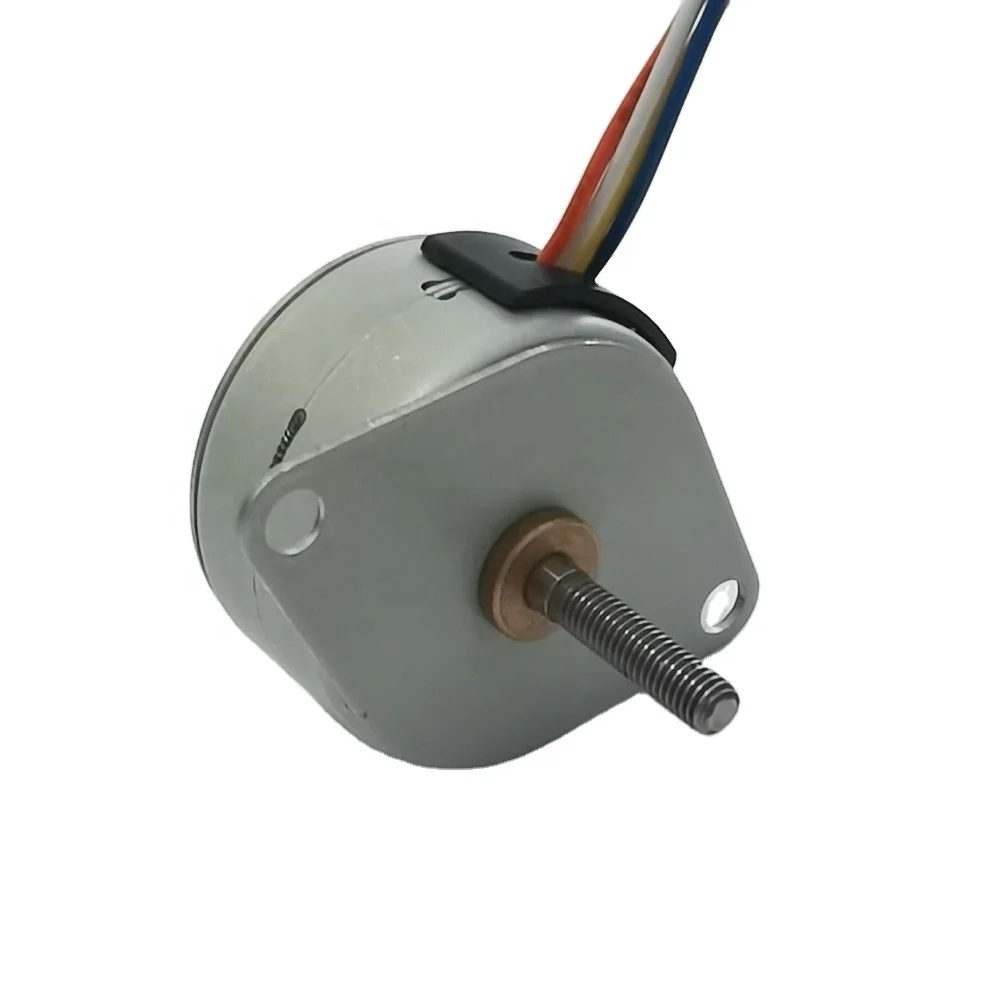

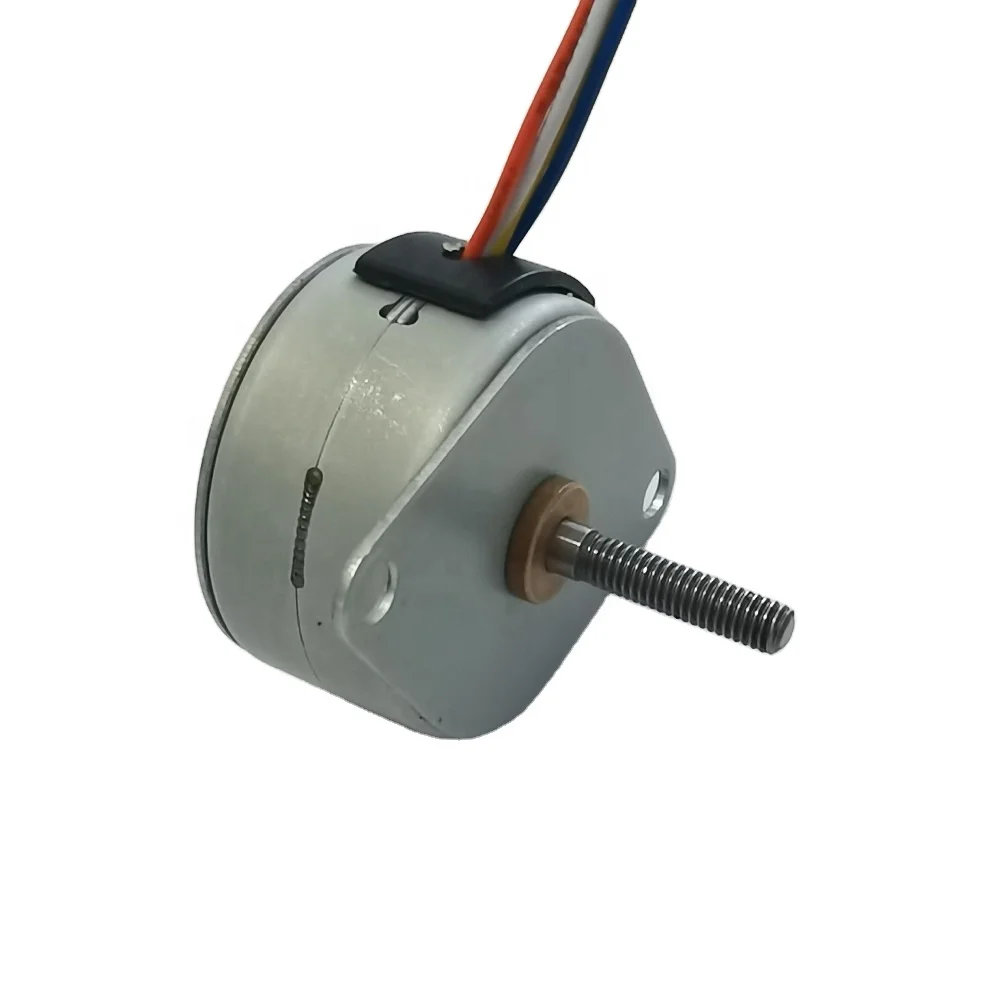

3. PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)







Application :

HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics



Highlights :

Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushed

Winding possibilities – Bipolar



General Specification:



Item	Specification
Step Angle Accuracy	±8%(full   step, no load)
Resistance Tolerance	±10%
Inductance Tolerance	±20%
Temperature Rise	80.C Max.(rated current,2   phase on)
Ambient Temperature	-20.C~+50.C
Insulation   Resistance	100MΩMin.   ,500VDC
Dielectric Strength	600VAC   , 1s , 3mA





Specification:

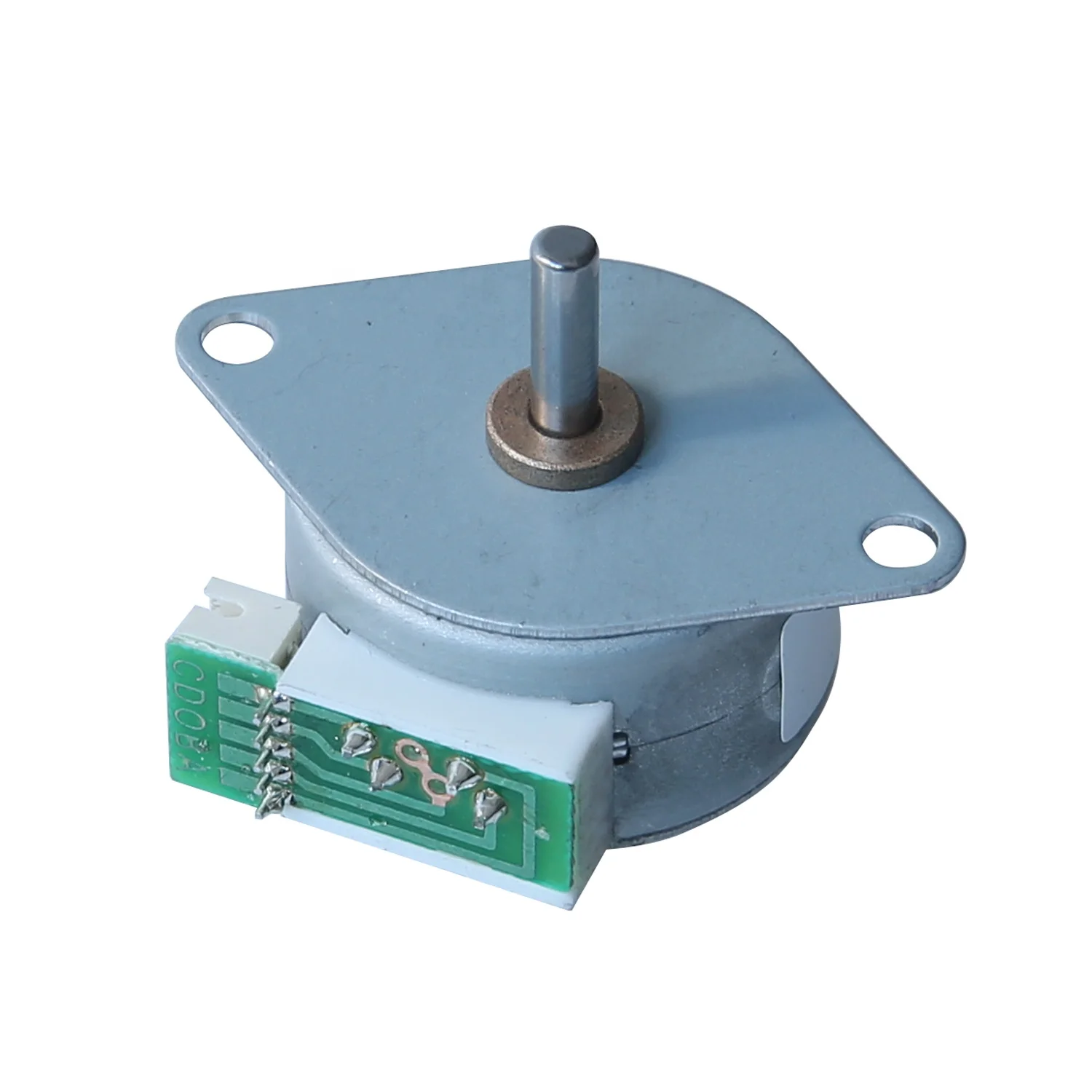

Model	Step Angle (Deg.)	No. of     Phase	Rated   Voltage (VDC)	Current /Phase(A)	Resistance     /Phase(Ω)	Holding Torque (gf.cm)	Max Pull-in Rate (PPS)	Pull-out Torque at 200PPS (g.cm)	Figure
PM25S-048-191	7.5	2	12	0.4	30	180	800	80	1
PM25S-048-113A	7.5	2	12	0.5	5	160	1000	120	2
PM25S-048-02	7.5	2	24	0.6	14	160	800		3
PM25S-048-03	7.5	4	5	0.5	10	130	600		3
PM25S-048-04	7.5	4	12	0.3	40	130	600		3
PM25S-048-132	7.5	4	12		60	110	750		4





 Dimension



Fig1



Fig2

Fig3



Fig4





Wire Diagram A                                                                                       B
