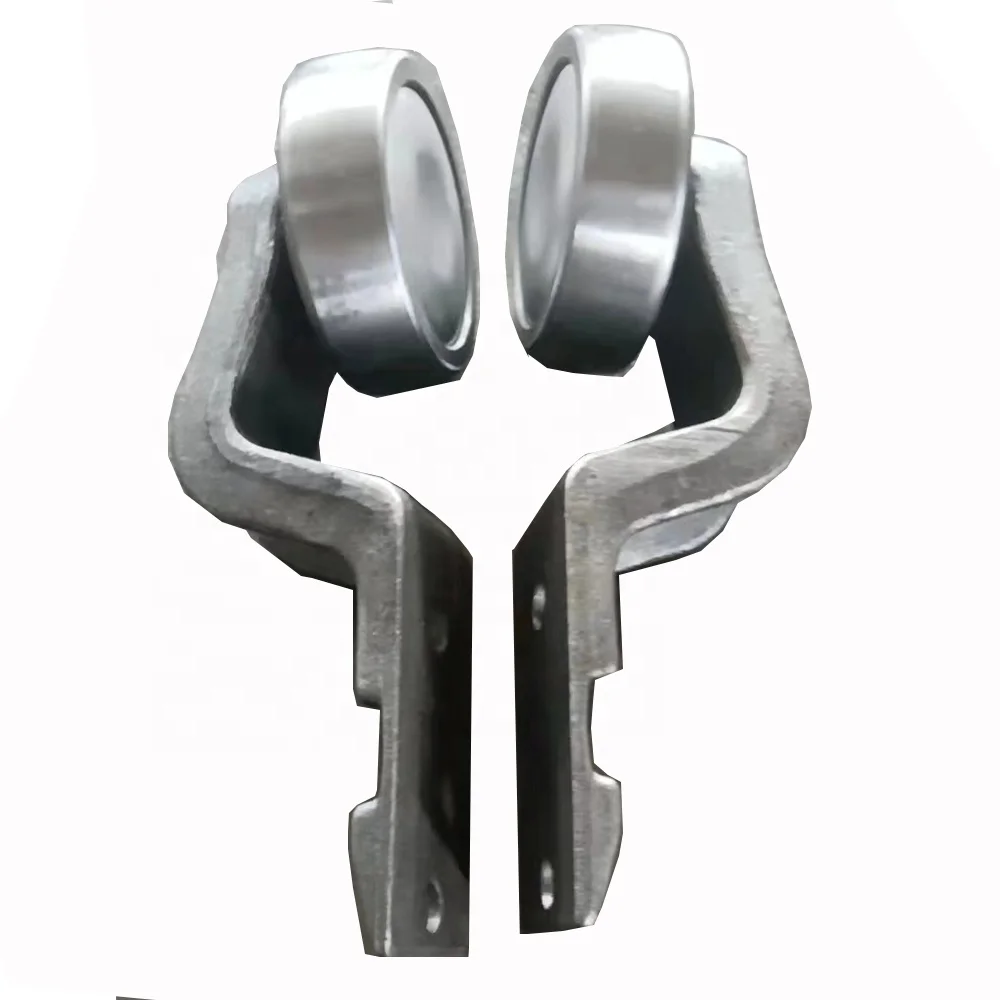

JS Hanger conveyor roller, Overhead conveyor hanger, small pulley

Product Overview

Description

JS Hanger conveyor roller, Overhead conveyor haner,

Hand Push Overhead Trolleys

small pulley

This product is mainly used in the general suspension chain conveyor system;

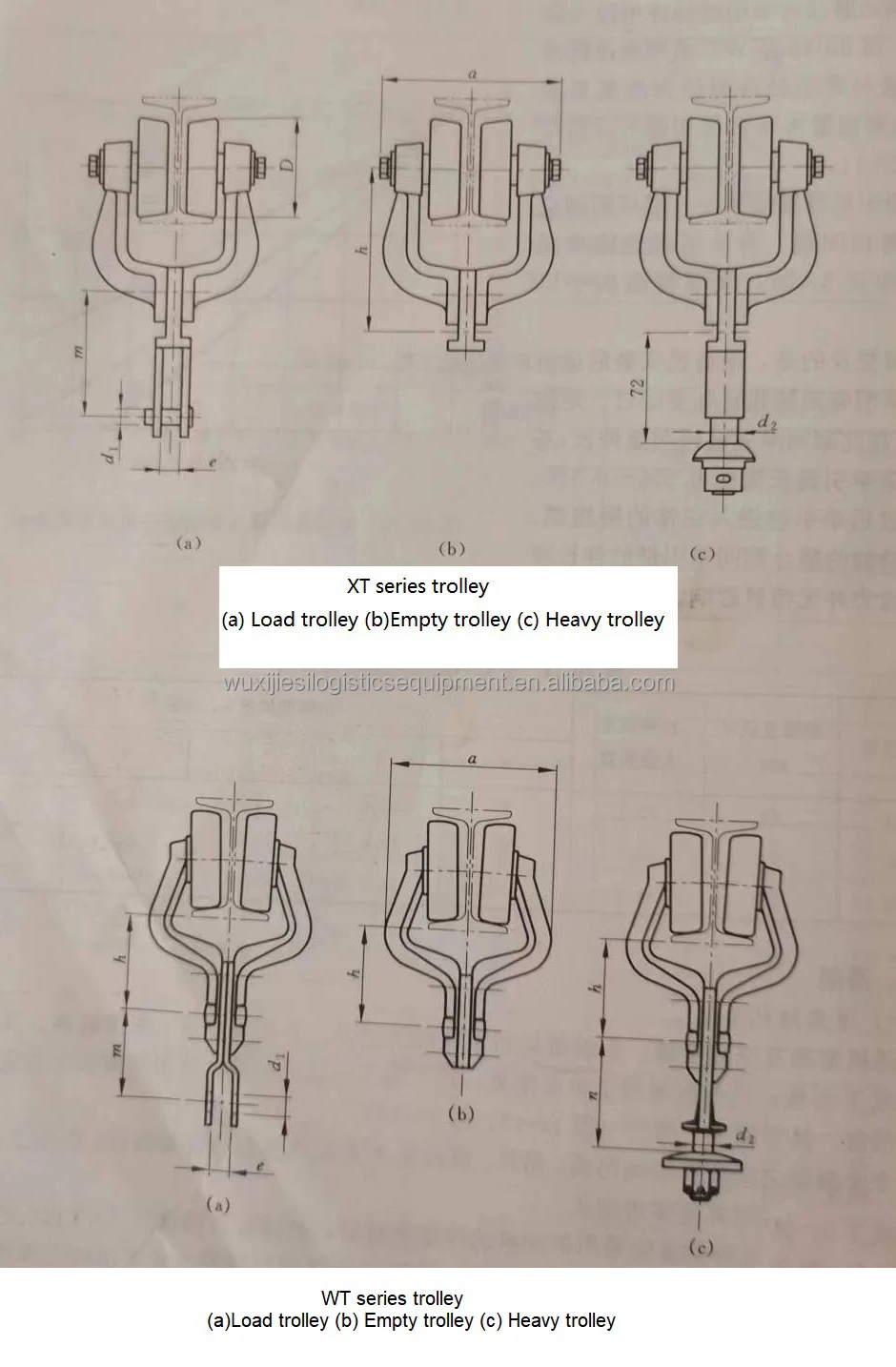

The conveyor trolley can be divided into no-load trolley, load trolley and heavy trolley. The empty trolley  is used to support the chain, and its lower end is a partition or T-shaped plate; The load trolley is used for single-point lifting, and its lower end is a lifting plate; The heavy-duty trolley is connected with the load beam and used for two-point lifting. Its lower end is a suspender. As shown in the following figure:

>>Specification:

Model		XT80	XT100	XT160	WT3	WT4	WT5
h		75	105	125	64	80	100
D		65	100	120	60	82	125
Product size	a	168	224	244	100	136	175
	e	15	20	32	14	17	21
	m	90	98	85	80	73	93
	n	_	143	155	85	95	111
	d1	14	16	20	14	16	20
	d2	_	26	30	21	24	32
weight per trolley  (KG)	Empty trolley	2.42	6.9	11	1.4	2.61	8.23
	load trolley	2.58	7.6	12.4	1.52	2.65	8.87
	Heavy trolley	_	8.2	13.5	1.68	2.82	8.97
Ultimate Load(KN)		2.5	5	8	1.8	3.6	7.7
Allowable load(KN)		1.25	2.5	4	1.1	2.3	5

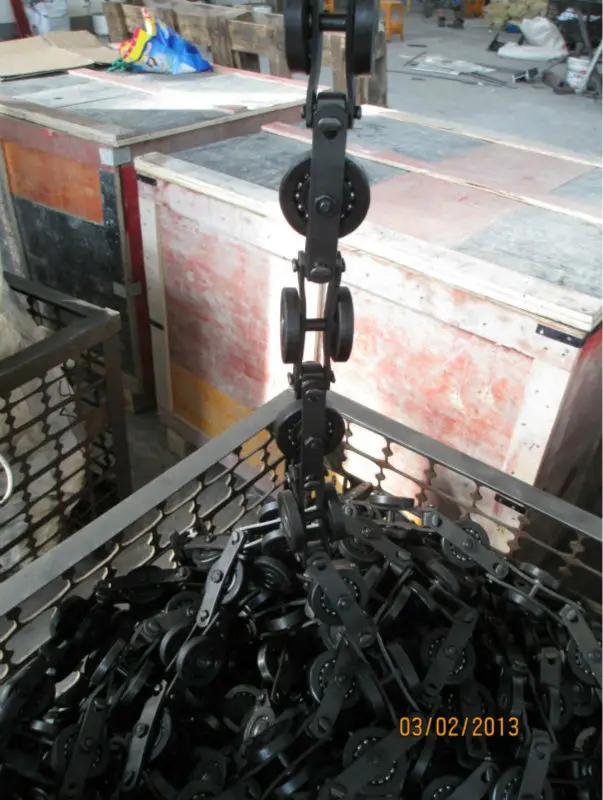

>>Pictures:

















You can send us some specifications, so that we can produce for you according to your request!

Thank you!
