30m height wall plaster cement spraying machine price for fireproof insulation ceiling
- Category: >>>
- Supplier: Wenzhou Engineering Machinery Co. Ltd.
Share on (784383234):
Product Overview
Description

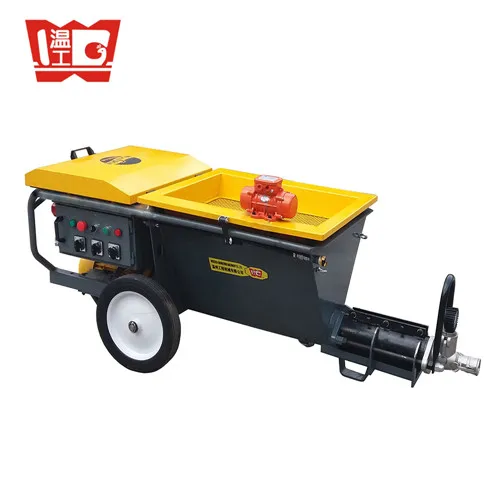

JP60-L 30m height wall plaster cement
JP60-L,JP60-P is high cost-effective machine introduced German technology. It’s applicable to delivery, bonding and plastering for various kinds of plastering mortar, thermal insulation mortar, floor surface mortar, thick layer of mortar, bonding mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar. It equips mixer system and has the combined functions of mixing, pumping, bonding and plastering. It configures large output mortar pump. It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
Technical parameters of JP60-L Mortar plastering machine
Model | — | JP60-L | JP60-P |
Supply power | — | 400V 50Hz | 400V 50Hz |
Motor power | kw | 4.0/7.5 | 4.0/7.5 |
Maximum grain size | mm | 6 | 6 |
Output | l/min | 40 | 40 |
Delivery pressure | bar | 30 | 30 |
Horizontal delivery distance | m | 60 | 60 |
Vertical delivery distance | m | 40 | 40 |
Mixer power | kw | 1.1 | — |
Mixer volume | l | 120 | — |
Hopper volume | L | 100 | 100 |
Net weight | kg | 400 | 280 |
Dimension (L×W×H) | mm | 2290×680×1220 | 2290×680×660 |
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
The products are improved without notice!
JP60-L with longer screw conveyor shaft can pump cement -mixed perlite well, JP60-L doesn't damage perlite at all.
The long screw shaft can enure the wet material pump out well.
JP60-L can be easier to move, here fits some safty hooks for lifting.
JP60-L has auto falling material device. You can pull it slightly, the wet material can fall into feeding hopper quickly.
JP60-L is included the Upper mortar mixer and below plastering machine, it can do pump, grout and plaster as it's included air compressor already!
Company Information
***10000 Square Meters factory plant,with more than 100 works
We have study and produce concrete machine Since 1973.
***Excellent Showroom
Most machine are in warehose if the phase is 3 phase, 380V,50HZ.
***Professional Production Line
Most of our workers are working hear over 5-10 years
Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing
**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
From left to right:
1. Our engineers in India to help our clients to use JP70-L
2. Our engineers in Zhejiang Zhaoshan Group
3. G.M. and doctor Falken beng of PFT visit us.
4.Expert M. Shanid Khan from Putzmeister visit us.
5.G.M., KJGS Dietar Swbada of BAUMANN in our exbibition
6.G.M. Holger Binader from famous company THIE LENHAUS pride highly of our machine.
7.Expert William from Dupont technical exchange in our factory.
8. Engineers from UAE visit Zhejiang Construction Group,
to see how our mortar machines used there.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
