Пылесборник для цеха

Product Overview

Description

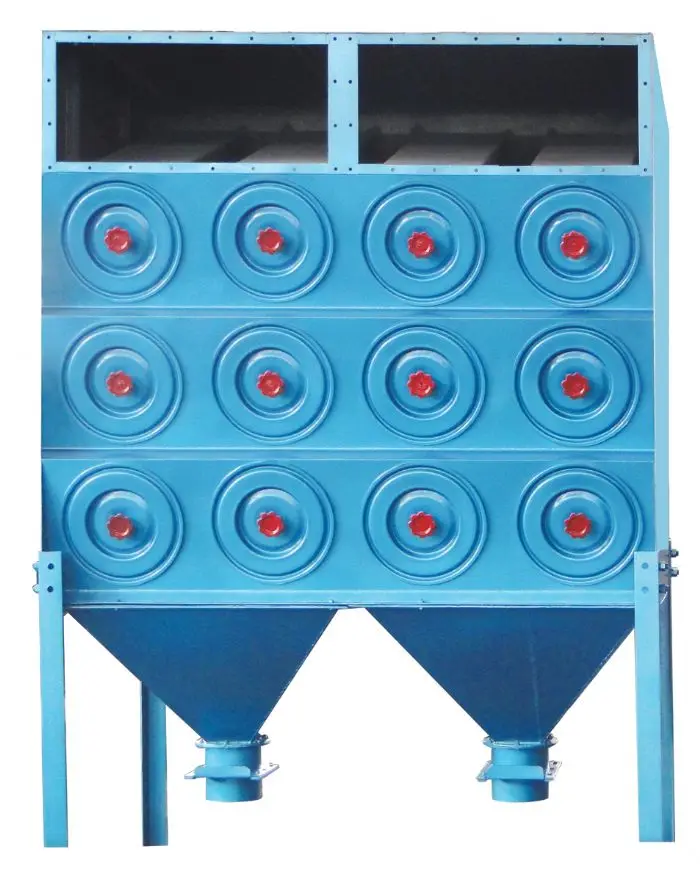

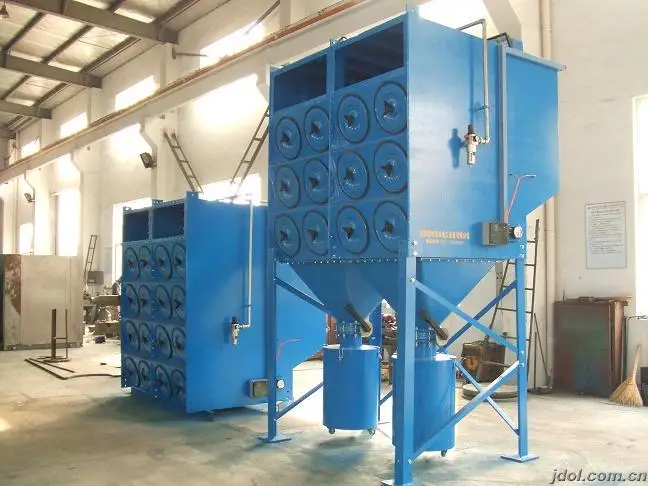

reverse pulse filter cartridge type dust collector

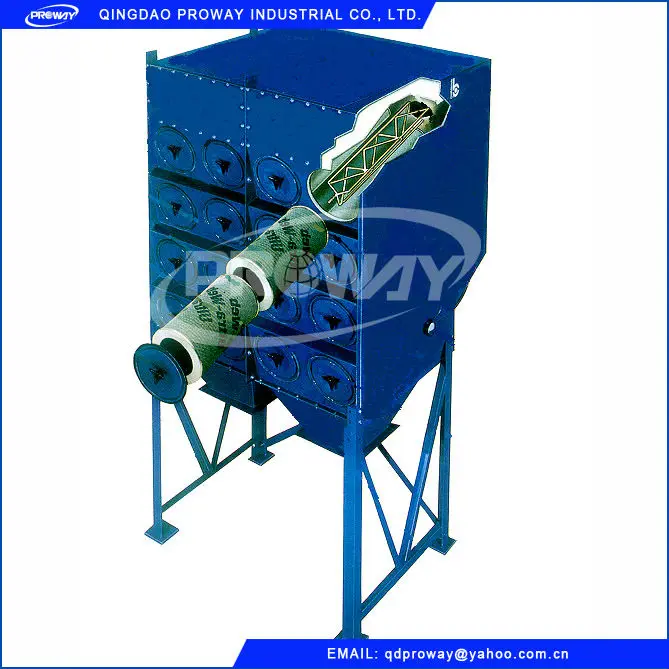

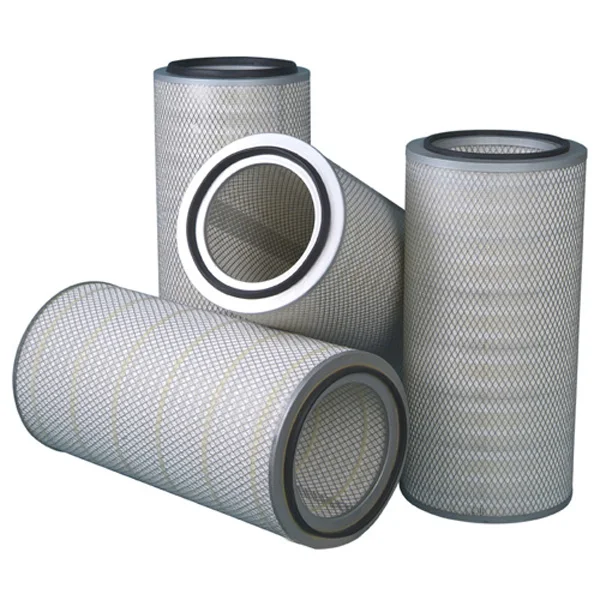

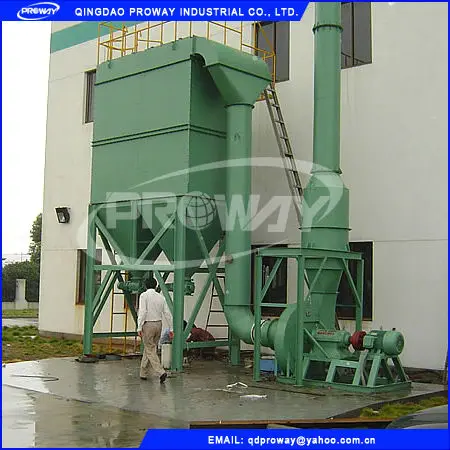

Dust Collectors can be use to remove dust particles from a process or collect dust that is the finished product. Dust collectors are large chambers that are either square or round with internal filters that are typically made of woven fabric bags or filter cartridge. In operation, the dust laden gas is collected in the chamber and passes through the filter bags or filter cartridge into a manifold where the cleaned gas exits the chamber. The dust is collected on the outside of the filter bag or filter cartridge and remains inside the chamber.

There are several methods to clean the dust off of the outside of the filter bags or cartridges.

A shaker type cleaner shakes the bags periodically to remove the dust.

The reverse air cleaner periodically blows air back though the inside of the filter bag or filter cartridge blowing the dust off the outside of the filters.

The pulse jet cleaner uses high pressure compressed air that periodically blast through the inside of the filters to blow the dust off the outside of the bags or filter cartridge.

The dust that is shaken, blown, or pulsed off the bags or cartridge falls to the chamber bottom where it is removed through a rotary valve.

All Dust Collectors are measured by the square foot of the bag or filter cartridge area, the CFM air flow through the collector, the material of construction, and type of dust discharge.

Another type of dust collector is a cyclone which uses air blown tangentially into a cylindrical chamber and inertia to separate the heavy dust particles out of the air stream.



Model	Air flow  m³/h	filtration area  m²	Blower Power  KW
HR-4	3000	60	5.5
HR-8	6000	120	7.5
HR-12	9000	180	11
HR-16	12000	240	15 OR 18.5
HR-24	18000	360	22
HR-32	24000	480	30
HR-40	30000	600	37
HR-48	36000	720	37
HR-64	56000	860	45
