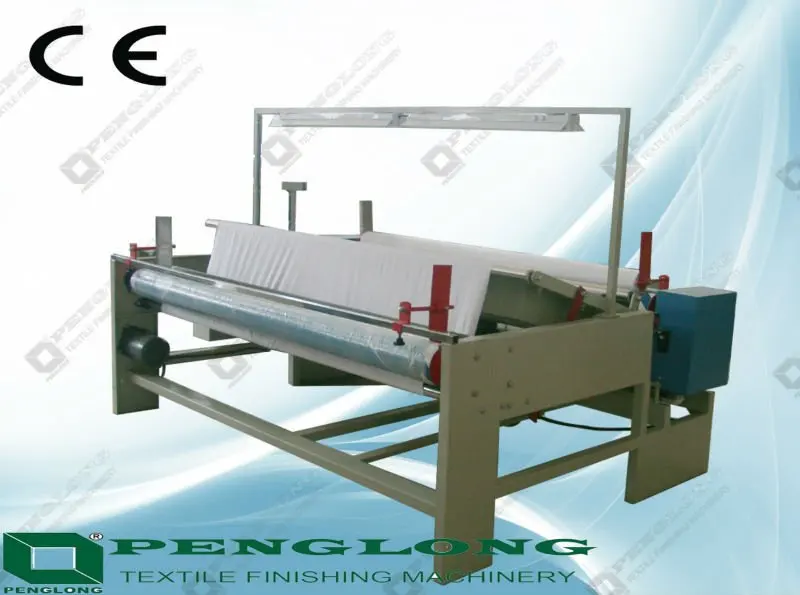

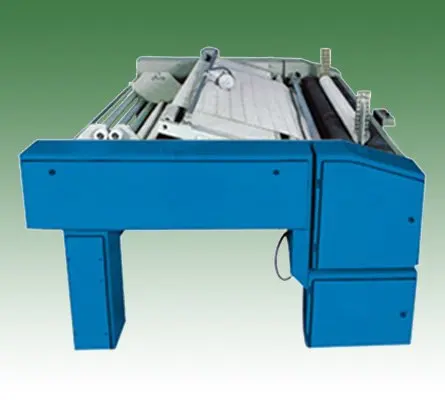

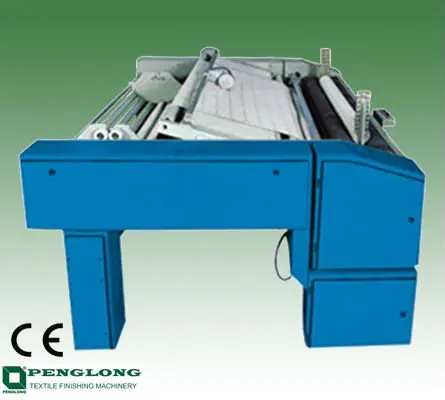

Fabric Inpsectng Machine

Product Overview

Description



Description of Products



Usage:

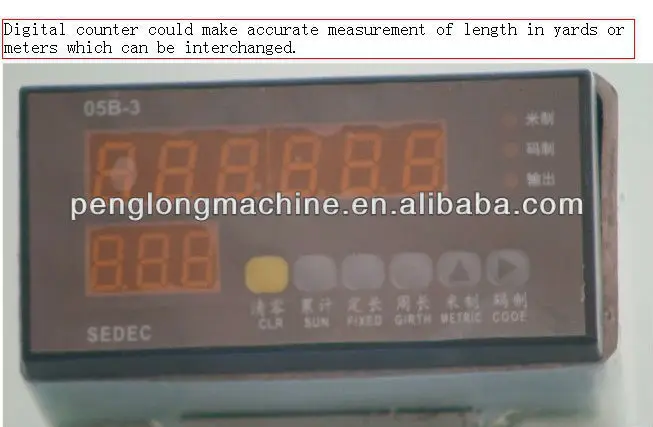

 Fabric Inpsection Machine with Digital Counter is special for inspecting and rolling up knitting,tatting and woven fabrics etc.





Characteristics

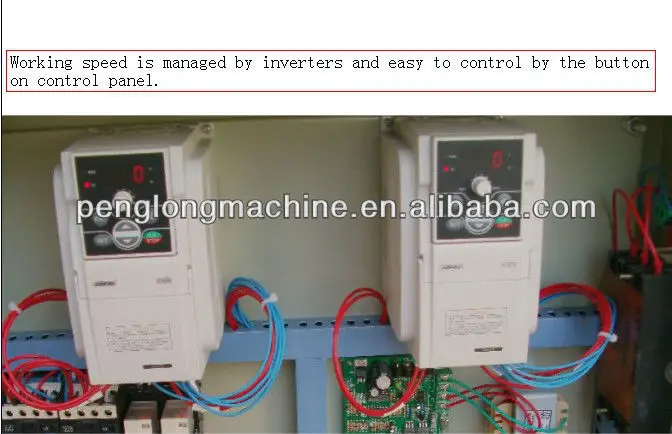

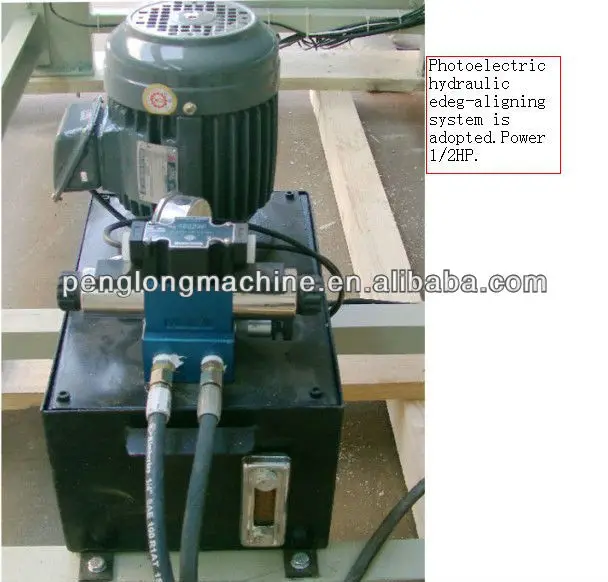

1.Equipped with inverter and photoelectrics hydraulic edge-aligning system.

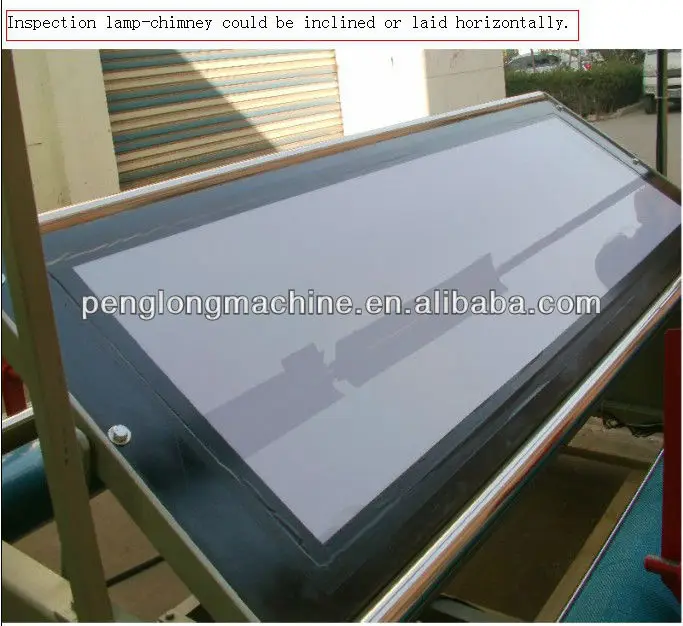

2.Inpsection Lamp-chimney could be inclined or laid horizontally.



3.Fabric tension in adjustable in accordance with the users need.

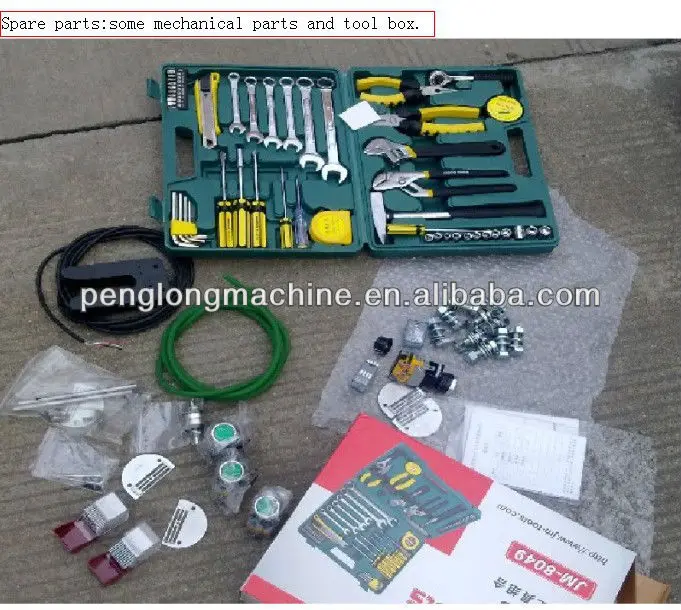

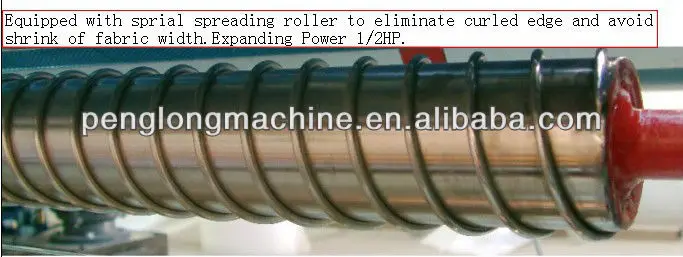

Spare Parts







Technical Parameters



Max.Fabric Width	1800-2800mm
Inspection and rolling Speed	10-80m/min  (adjustable)
Diameter of Winding Cloth	≤600mm
Edge-aligning Tolerance	≤3mm
Measurement Tolerance	≤0.5%

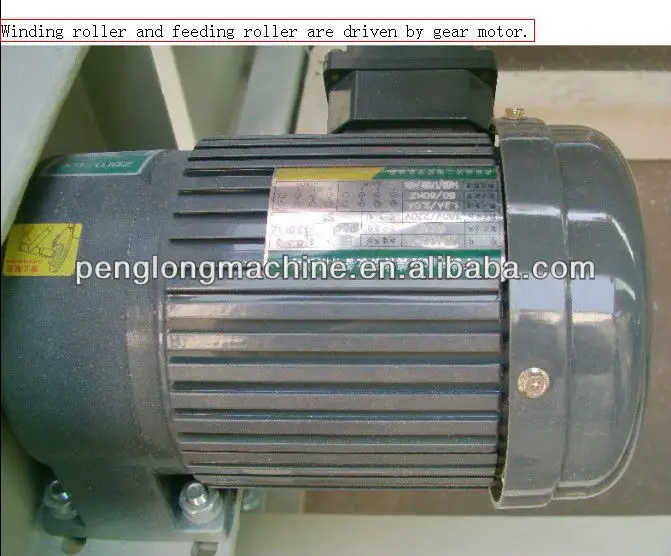

Main Motor	1HPx2
Power Supply	380V/50Hz (Customized )
Dimensions	LxWxH 1800x2300x1300mm



Mainly products



Our leading products include cloth slitting-inspecting-wnding combination machines,fabric inspection machine,rope opener,fabric relaxing machine,automatic centering machine,high-speed tubular slitting machines,swarch cutter,automatic edge sewing machine,tensionless fabric inspection machine,fabric unwinding and plaiting machine,fabric folding machine,pneumatic batch winding machine,vacuum cloth packing machines,tubular slitting inspection machine,infrared hydraulic trackers and other dyeing and finishing machines and spare parts.





Optional Device

1.Cutting device and Platform Scale are optional by users.

2.12 months warranty on mechnical parameters

3.All quotation will be based on FOB Shanghai or others,do as request



Payment Terms

1.30% Deposit,the balance should be paid before shipping normally

2.L/C at sight,Western Union ,T/T are also accepted.

3.Loading Port:Shanghai/Xiamen

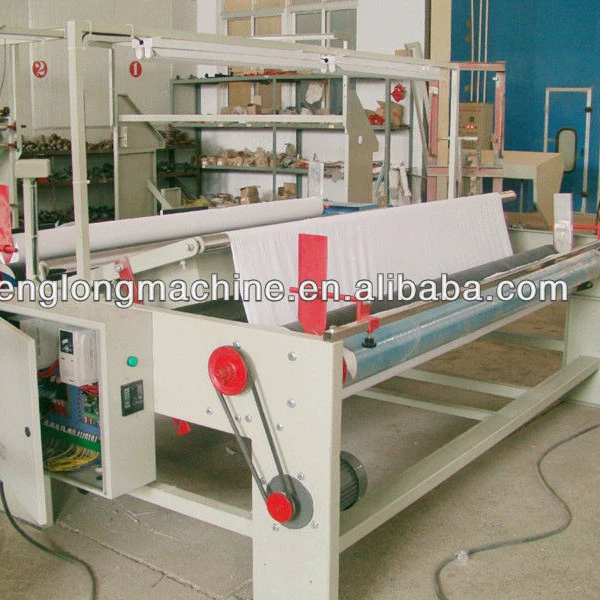

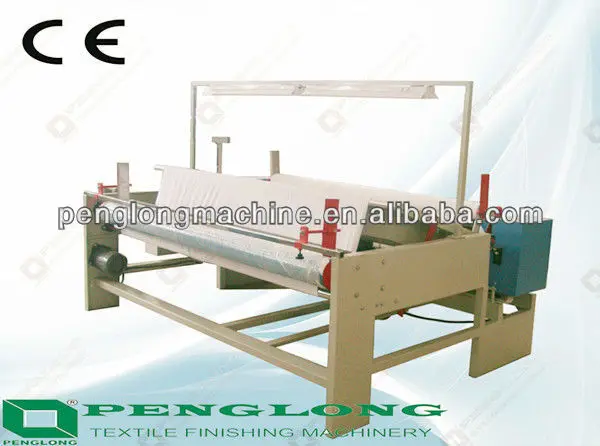

 Whole Machine







Drawing





Welcome to Inquiry our Machine
