Textile Machinery Cloth Inspecting and Rolling Machine/Cloth Winding Machine

Product Overview

Description

Company introduction



Changshu Penglong Machinery Co,. Ltd is a famous cloth inspecting,finishing and packing machinery manufacturer in textile dyeing and finishing equippment industry,just 80km away from Shanghai,with convenient ports and good highway transportation.



Our leading products include cloth slitting-inspecting-wnding combination machines,fabric inspection machine,rope opener,fabric relaxing machine,automatic centering machine,high-speed tubular slitting machines,swarch cutter,automatic edge sewing machine,tensionless fabric inspection machine,fabric unwinding and plaiting machine,fabric folding machine,pneumatic batch winding machine,vacuum cloth packing machines,tubular slitting inspection machine,infrared hydraulic trackers and other dyeing and finishing machines and spare parts.

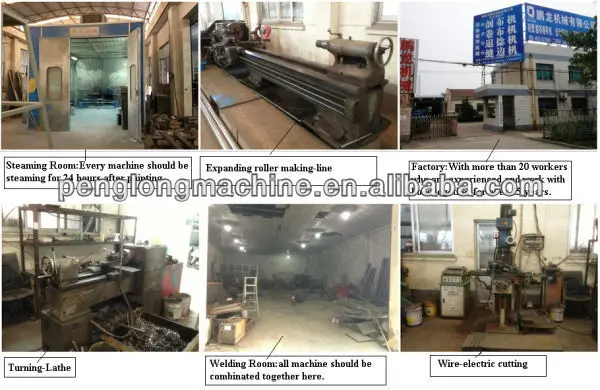

Factory Photos

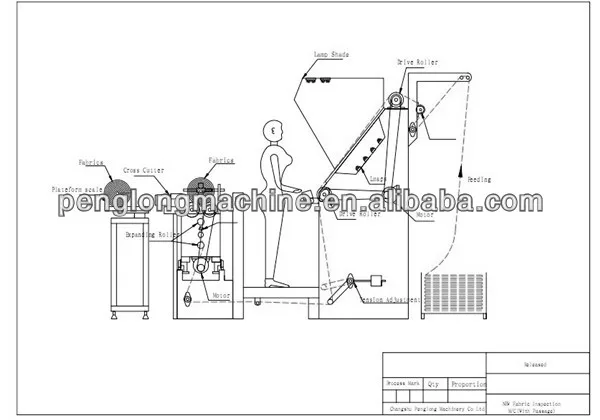

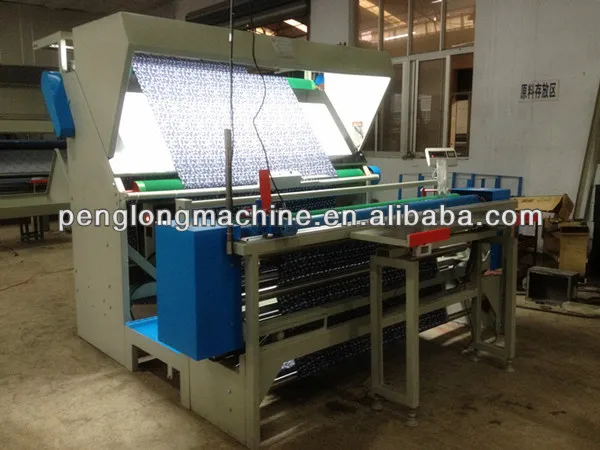

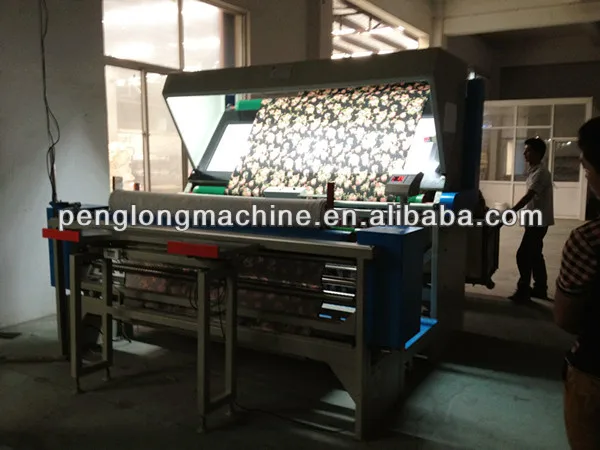

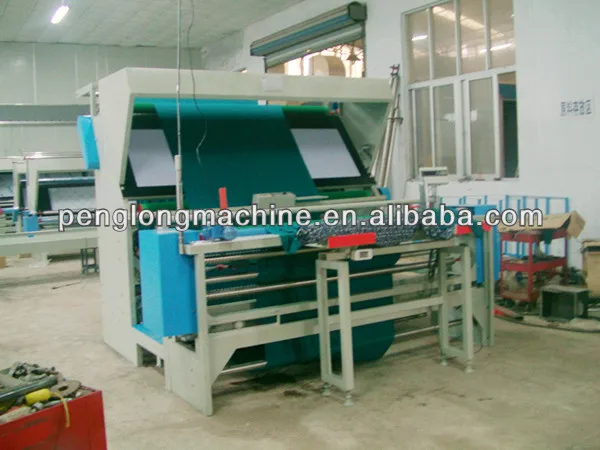

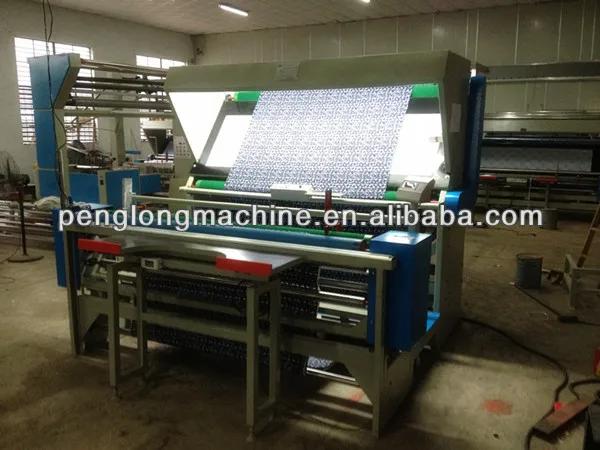

Cloth Inspecting and Rolling Machine/Cloth Winding Machine



Textile Machinery-Cloth Inspecting and Rolling Machine/Cloth Winding Machine    Cloth Inspecting and Rolling Machine/Cloth Winding Machine of Automatic Edge-aligning,inspection machine,rolling machine,roll inspection machine.



Automatic Cloth Checking Machine



Usage:

Textile Machinery-Cloth Inspecting and Rolling Machine/Cloth Winding Machine    Cloth Inspecting and Rolling Machine/Cloth Winding Machine  is suitable for inspecting and rolling up all kinds of cotton, knitted, woven, printed, and tricot fabrics etc.



Technical parameters:

1	Max. Fabric Width	2000mm~3600mm.
2	Diameter of Winding Cloth	600mm.
3	Max. Linear Velocity	80m/min.
4	Main Motor	1HP*2sets
5	Edge-aligning accuracy	±3mm
6	Dimension	2235mm(L)*2600~3600mm(W)*2000mm(H)



Characteristics:

1.   The maximum speed can be increased to 100 m/min in accordance with users need.

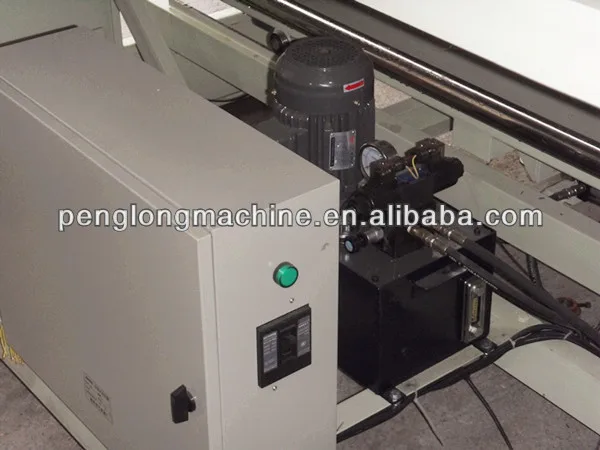

2.   Photoelectric hydraulic edge-matching system is adopted on this inspection machine.

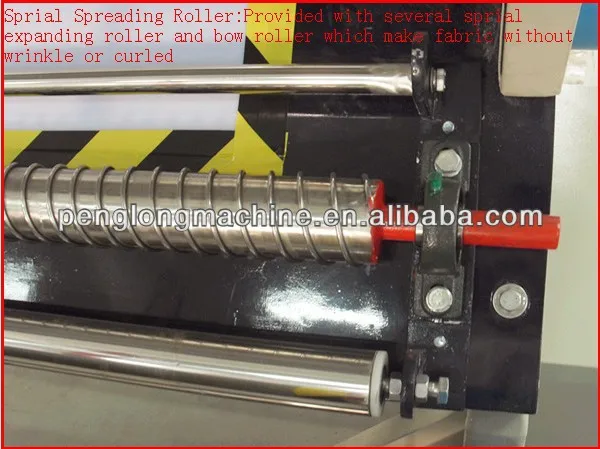

3.   Provided with cloth expending roller and bend roller to avoid wrinkle.

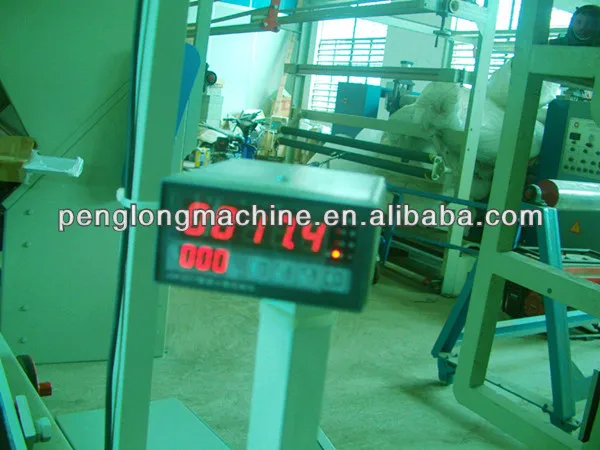

4.   Equipped with counter which can record the length of the fabric.

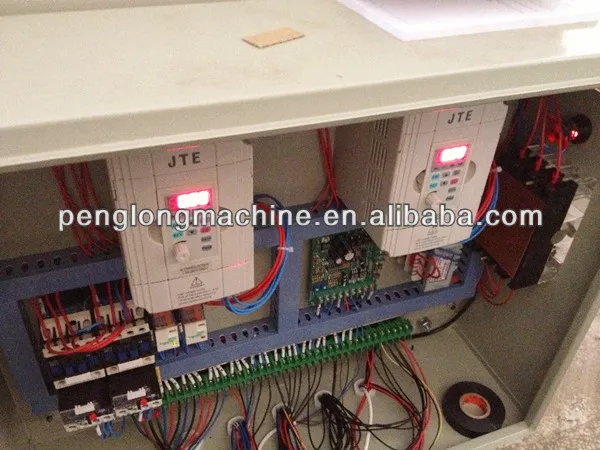

5.   It is inverter controlled and the speed is adjustable.

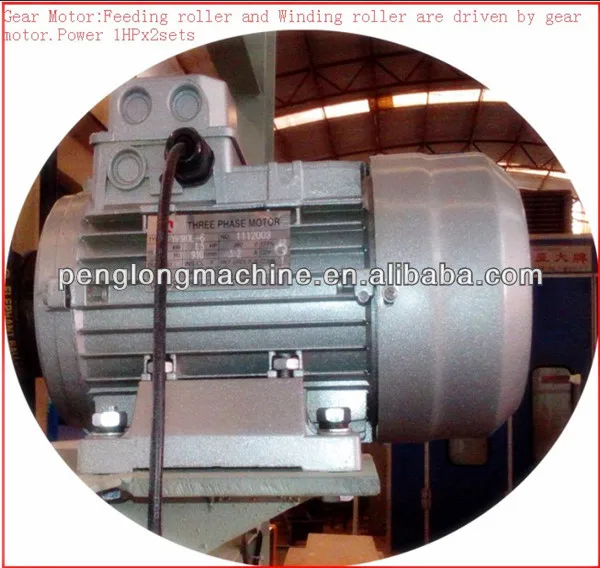

6.   Both the winding roller and overfeed roller are droved by gear motor.

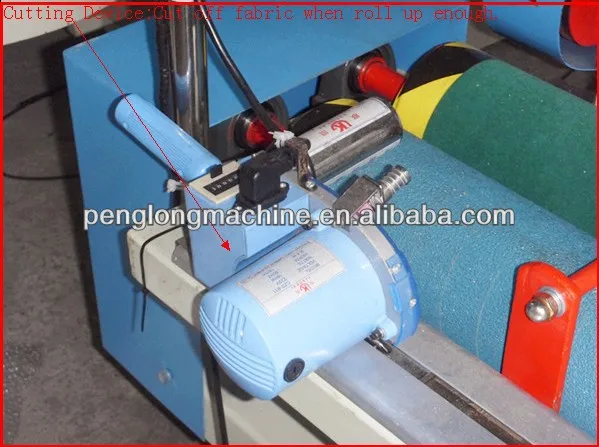

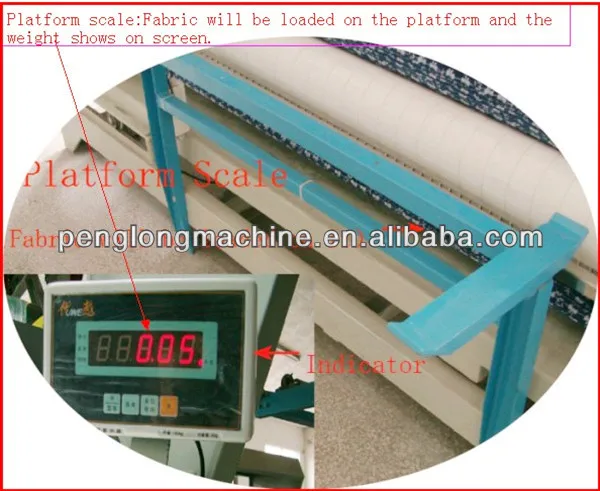

7.   Auto. Cutting device and electronic pound scale can be installed.



8.   Fabric inspection machine with cutting device and passage













CE Certificate





Welcome to Inquiry our  Machine
