Product Overview
Description

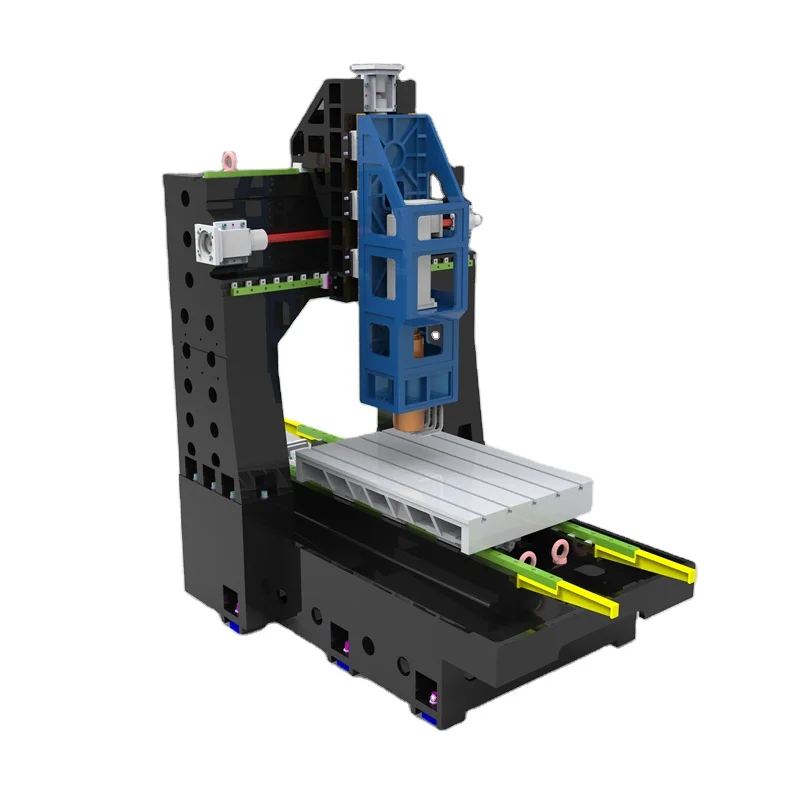

Frames of CNC Engraving Machine
1. Specification of Frame
DX-1012 | DX-1216 | DX-1620 | DX-1220 | |
Worktable Size | 1000×1200 | 1200×1600 | 1600×2000 | 1200×2200 |
X axis (Left to Right of Spindle) | 1000 | 1200 | 1600 | 1200 |
Y axis | 1200 | 1600 | 2000 | 2000 |
Z axis (Up to Down of Spindle) | 500 | 500 | 560 | 750 |
Spindle Spec. (Installing Size- Max. Speed) | BT40 Ø150-12000 | BT40 Ø150-12000 | BT40 Ø150-12000 | Ø150-18000 |
Spindle Motor Recommended (kw) | 7.5 | 7.5 | 7.5 | 7.5 |
Distance between Columns | 1220 | 1420 | 1800 | 1700 |
Slide Board to Worktable Surface | 130-630 | 130-630 | 130-690 | 290-1040 |
T-solt (number-size×distance) | 6-22*160 | 7-22×160 | 8-22*160 | 7-22×176 |
X Axis Ball Screw Spec. | 4010 | 4010 | 4512 | 4012 |
Y Axis Ball Screw Spec. | 4010 | 4010 | 4512 | 5012(Y1) 5012(Y2) |
Z Axis Ball Screw Spec. | 4010 | 4010 | 4512 | 4012 |
X Axis Linear Guideway Spec. | MSA45LS | MSA45LS | MSA55LS | HGW55CA |
Y Axis Linear Guideway Spec. | MSA45LE | MSA45LE | MSA55LE | HGH45CA |
Z Axis Linear Guideway Spec. | Box-type Guideway | Box-type Guideway | Box-type Guideway | HGH45CA |
Motor Connection of X/Y/Z Axis | Direct | Direct | Direct | Direct |
X/Y/Z Axes Motors Recommended (NM) | 16, 18, 16 | 16, 18, 16 | 18, 20, 20 | 10, 16, 10 |
Max. Load on Worktable | 1000 Kg | 1200 Kg | 1400Kg | 2000Kg |
Net Weight of Machine | 7.5t | 9.8t | 14.6t | 13t |
Remarks | Beam-fixed | Beam-fixed | Beam-fixed | Beam-moving, two drives on Y axis |

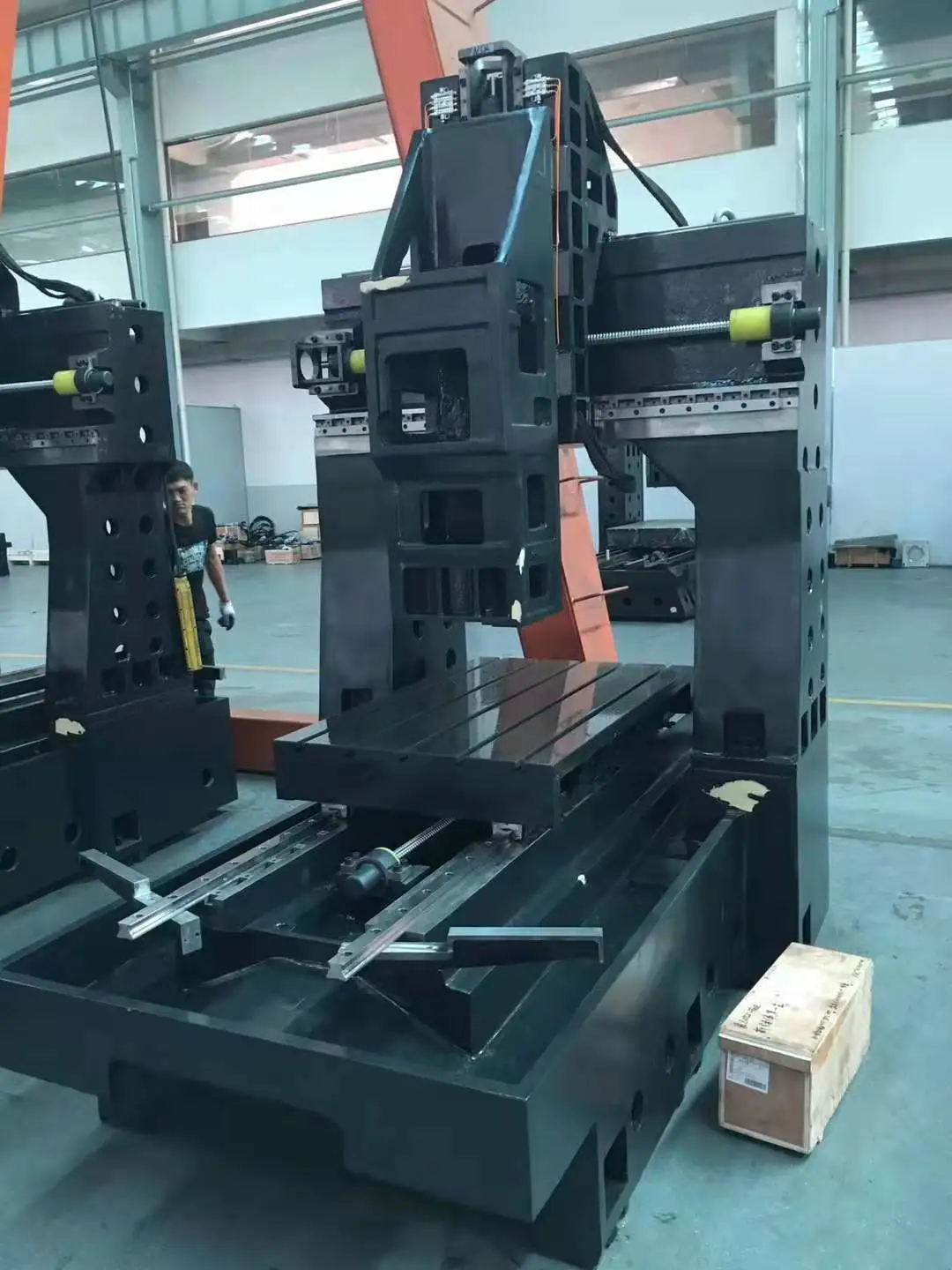

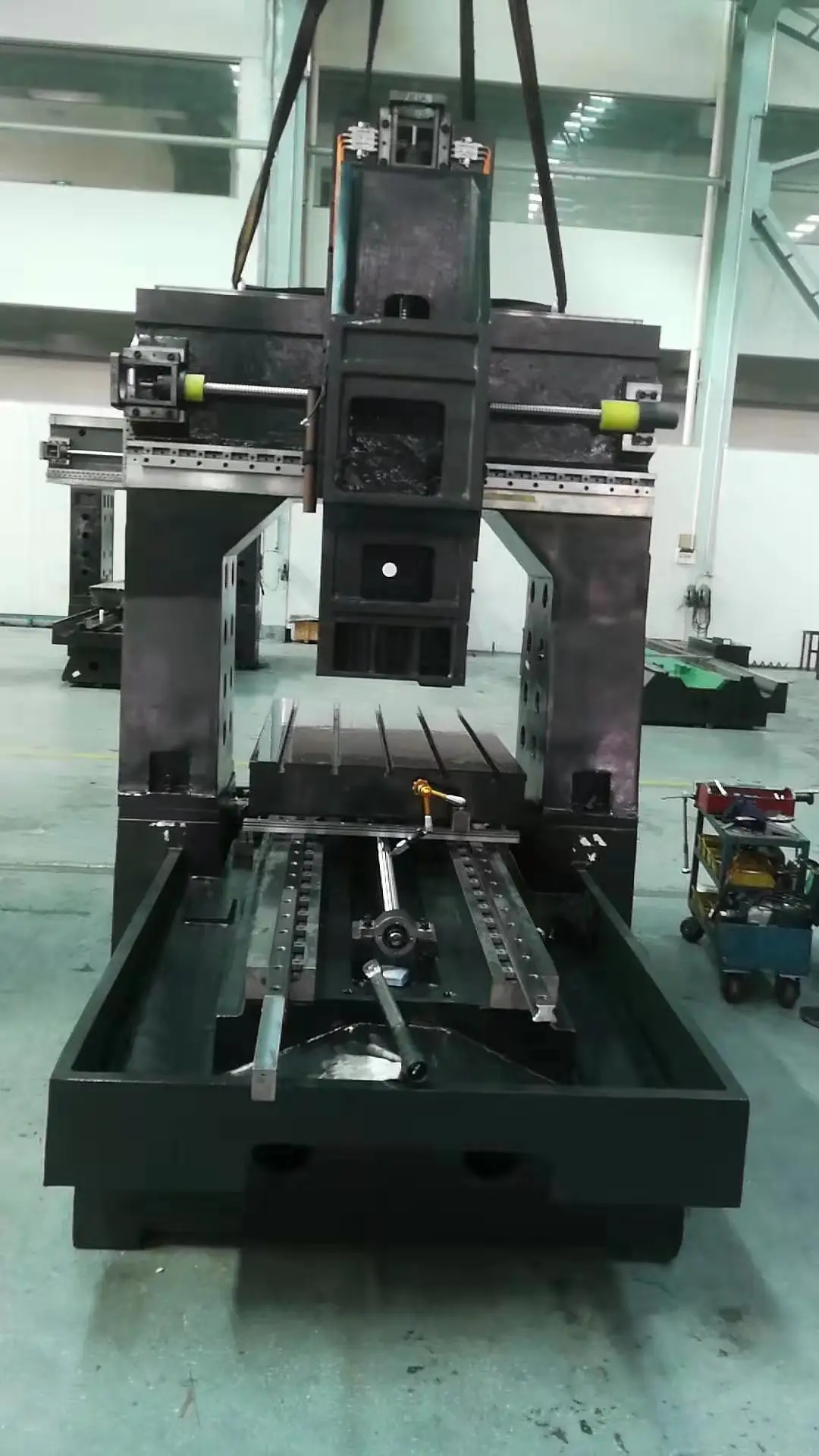

2. Drawings and photos of DX-1012
Basic Frame of DX-1012

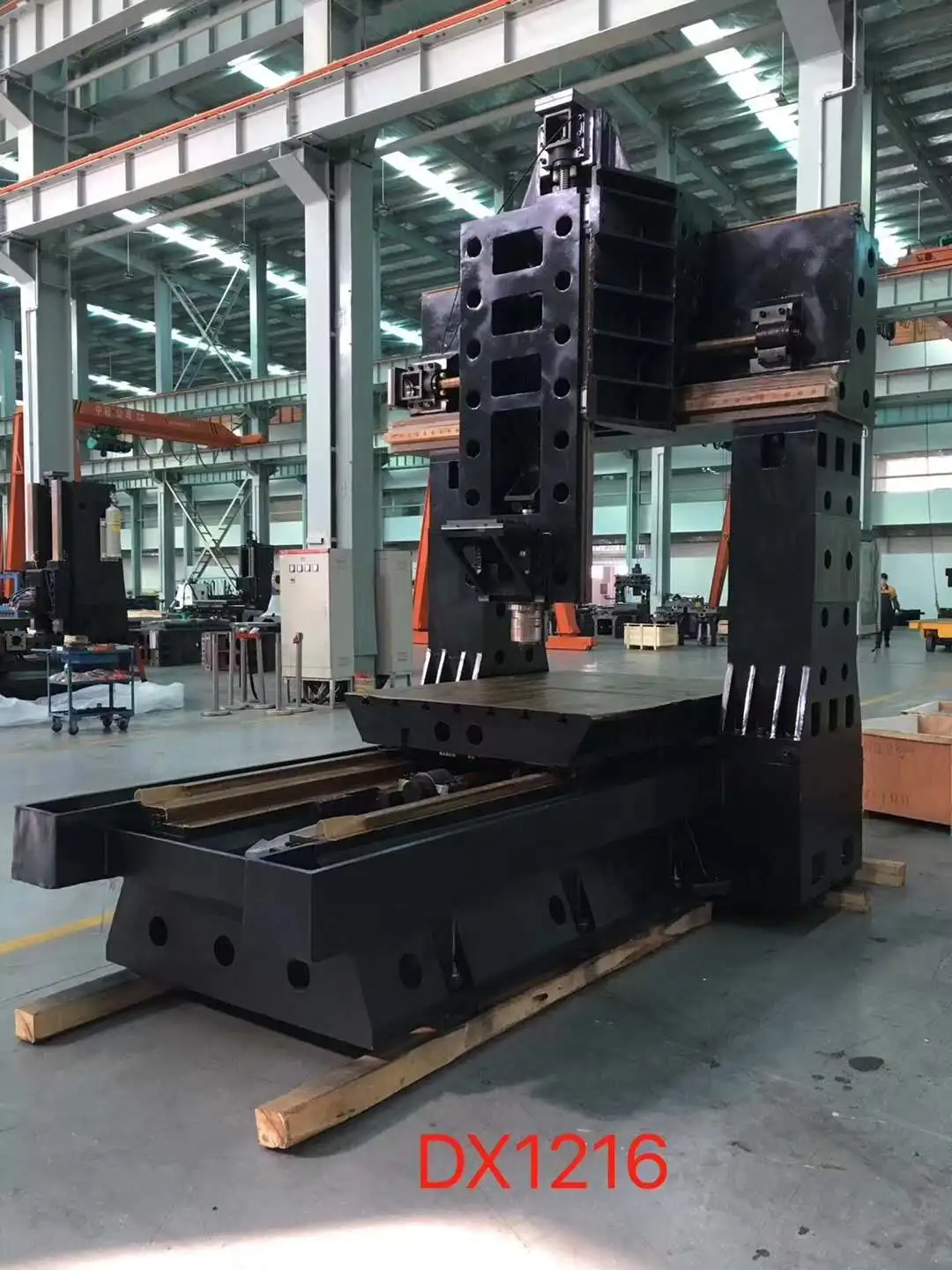

Basic Frame of DX-1216
3. Standard Components:
1) High-class casting processed by resin sand and wood mould;
2) Imported X/Y/Z Ball screw (HWIN, PMI, IF or REXROTH);
3) Imported linear guide way=IF, INA or REXROTH;
4) NSK, FAG or NTN Bearings for screw;
5) R+W coupling;
6) Counter balance system for spindle box;
7) Painting of customized color;
8) Telescopic protection for X/Y axes;
9) NIKKA centralized lubrication system;
10) Leveling bolts and pads;
11) Pipes of cooling water;
12) Tools (spanner, screw driver and so on) and tool box.
4. Optional Components:
1) Electronic spindle (motor spindle);
2) Automatic tool changer (ATC);
3) Machining seats for linear encoders and automatic tool changer.
For more details and other optional accessories , please contact us !

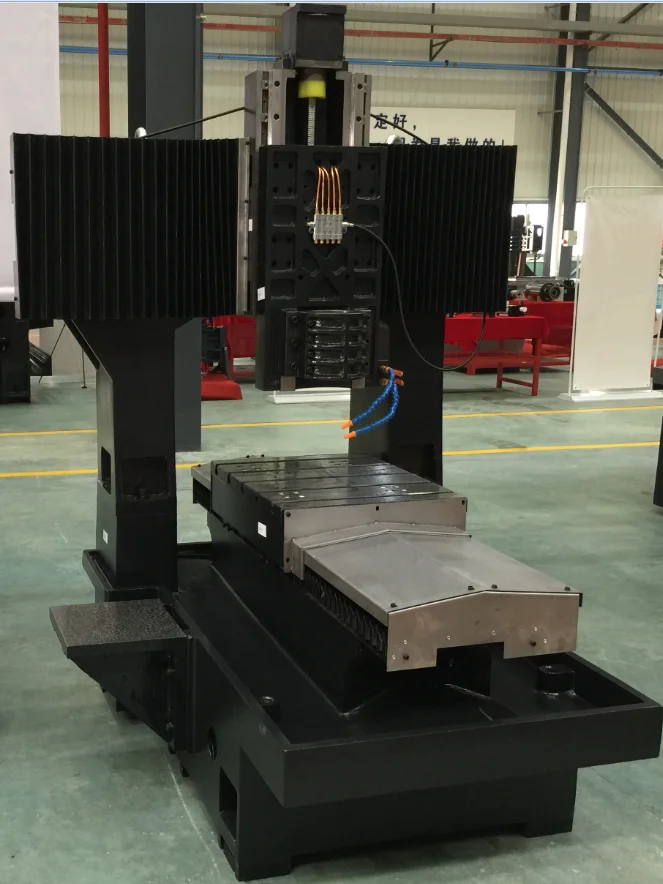

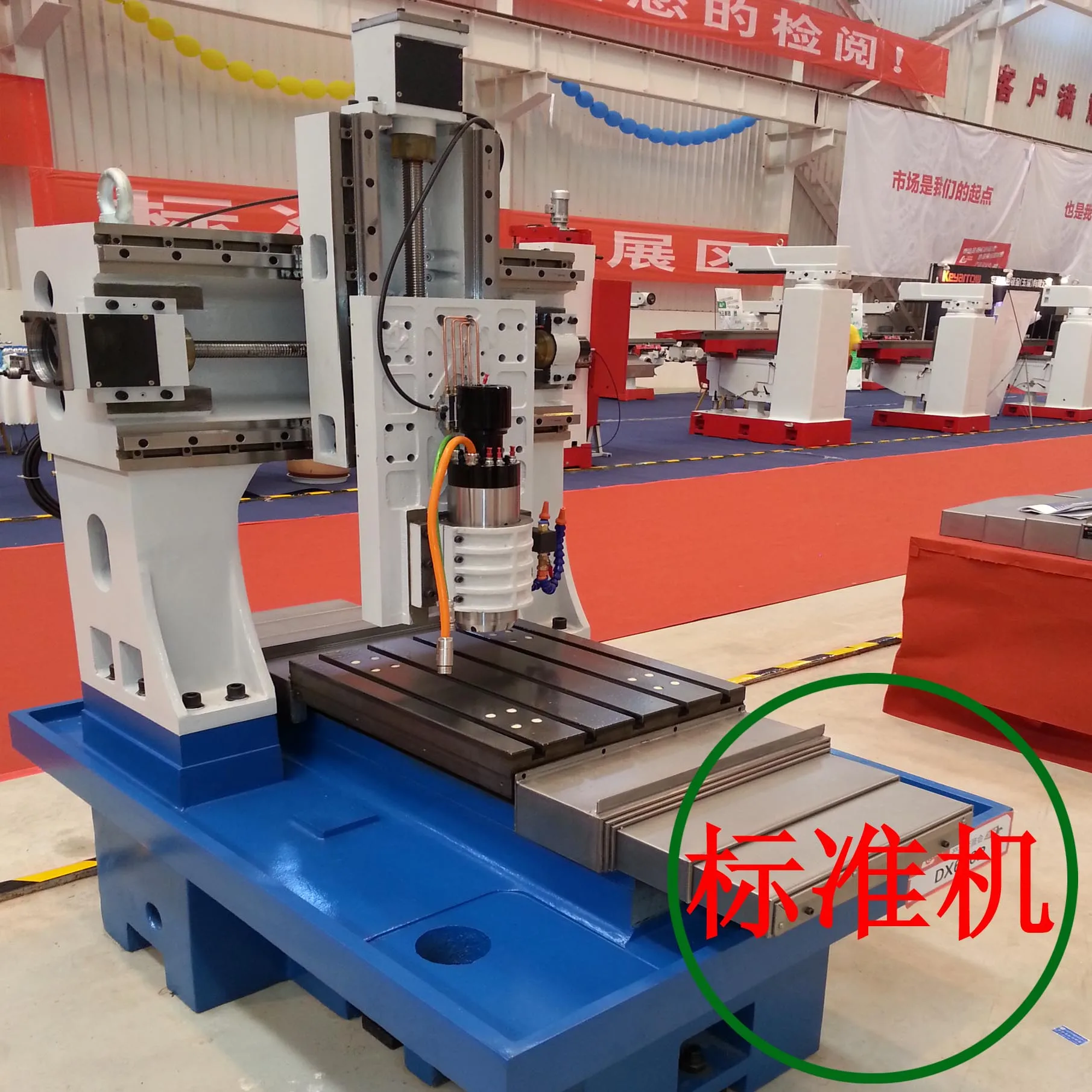

Smaller Frame of Engraving and Milling Machine: DX-650
Introduction of Frame: Casting with ball screw and guideway (without any controller, motors and drives)
