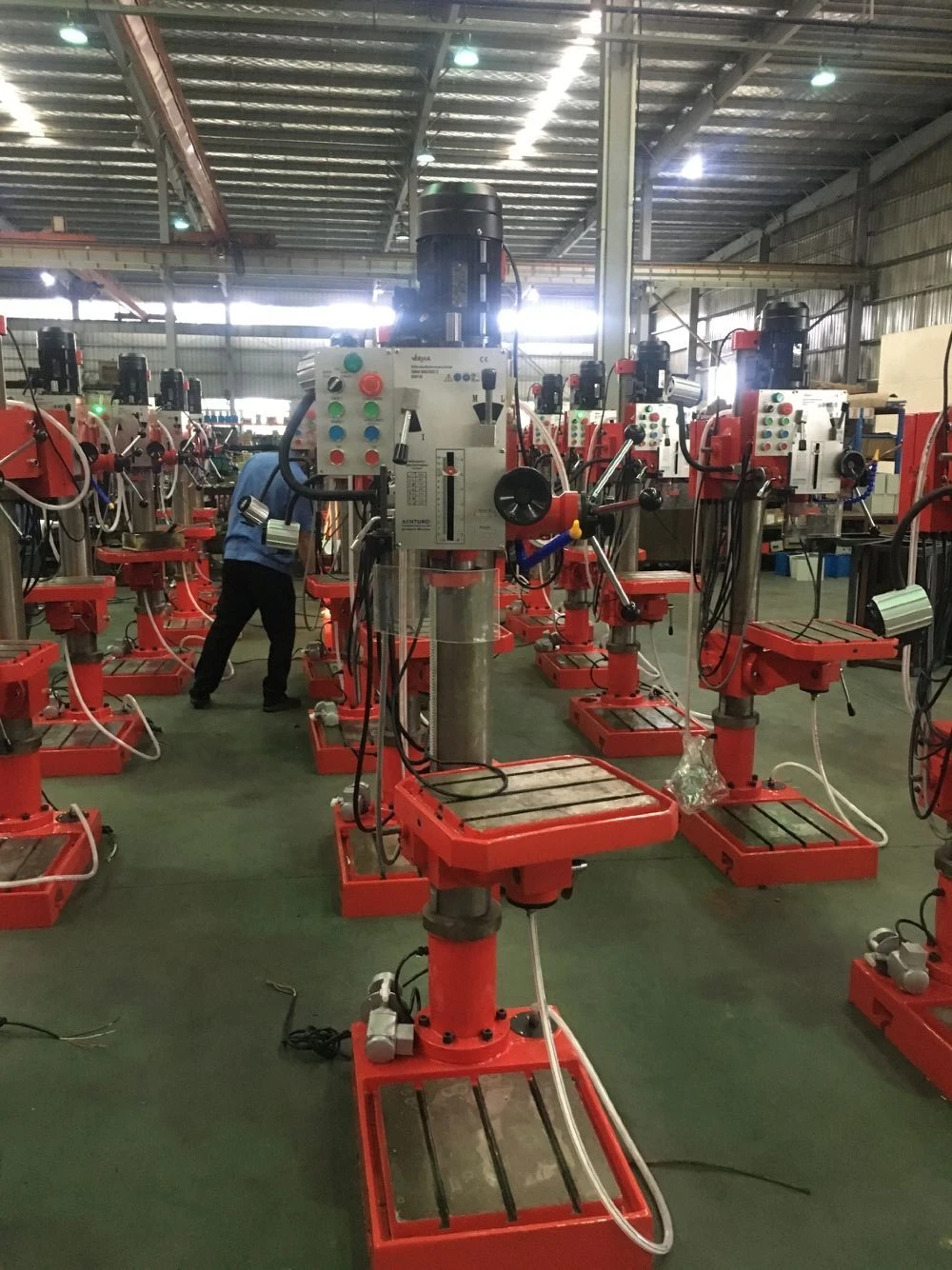

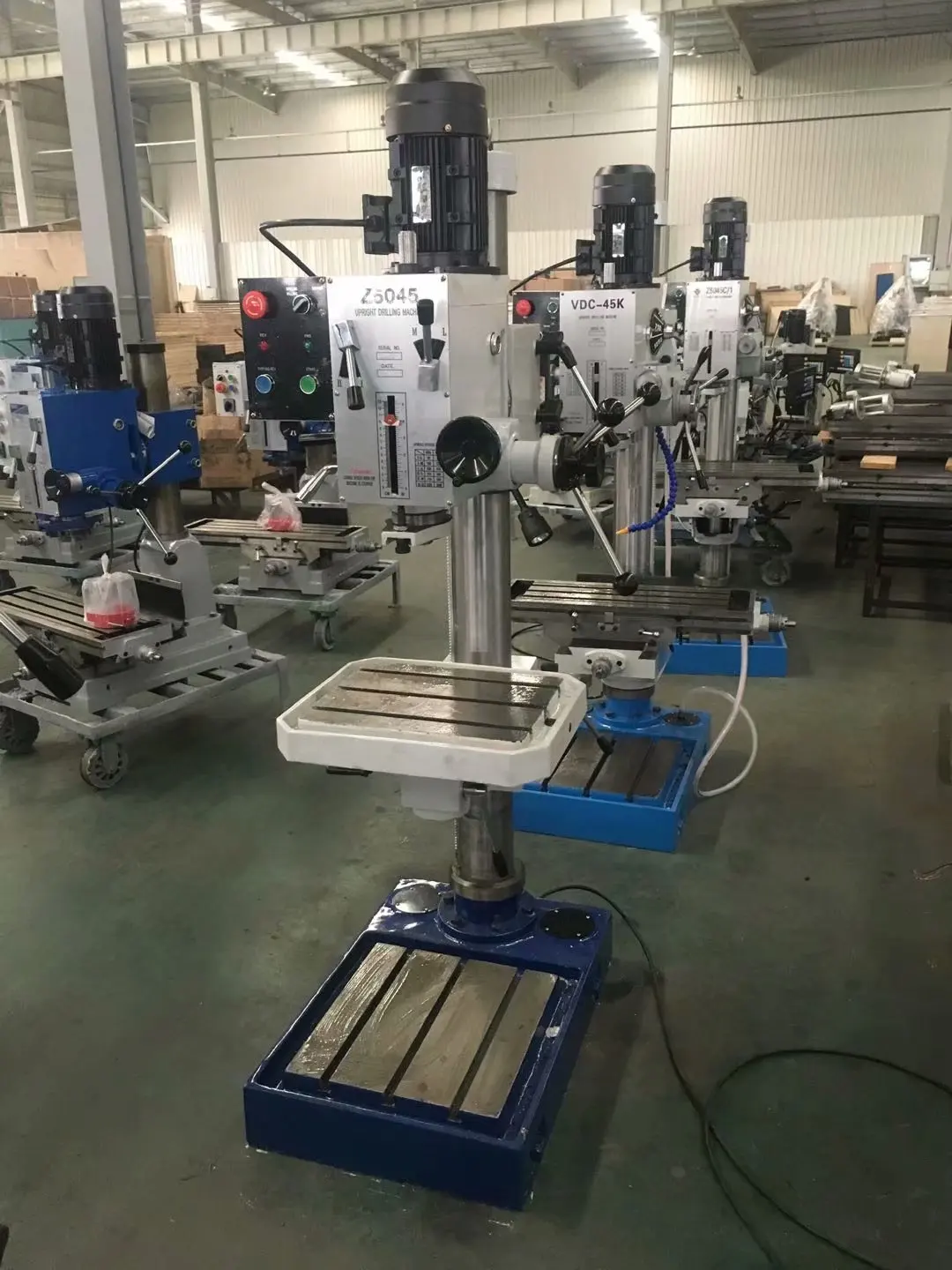

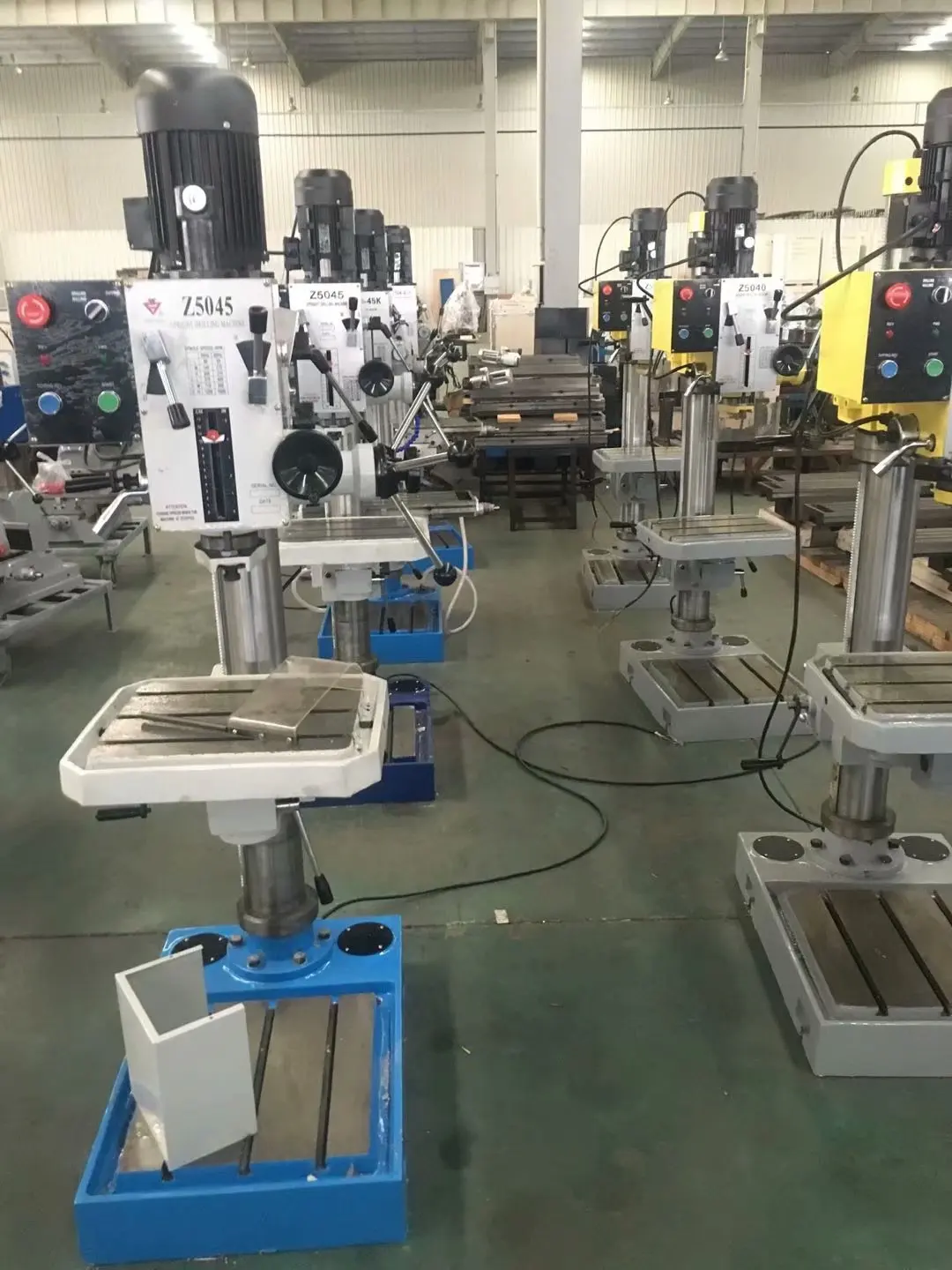

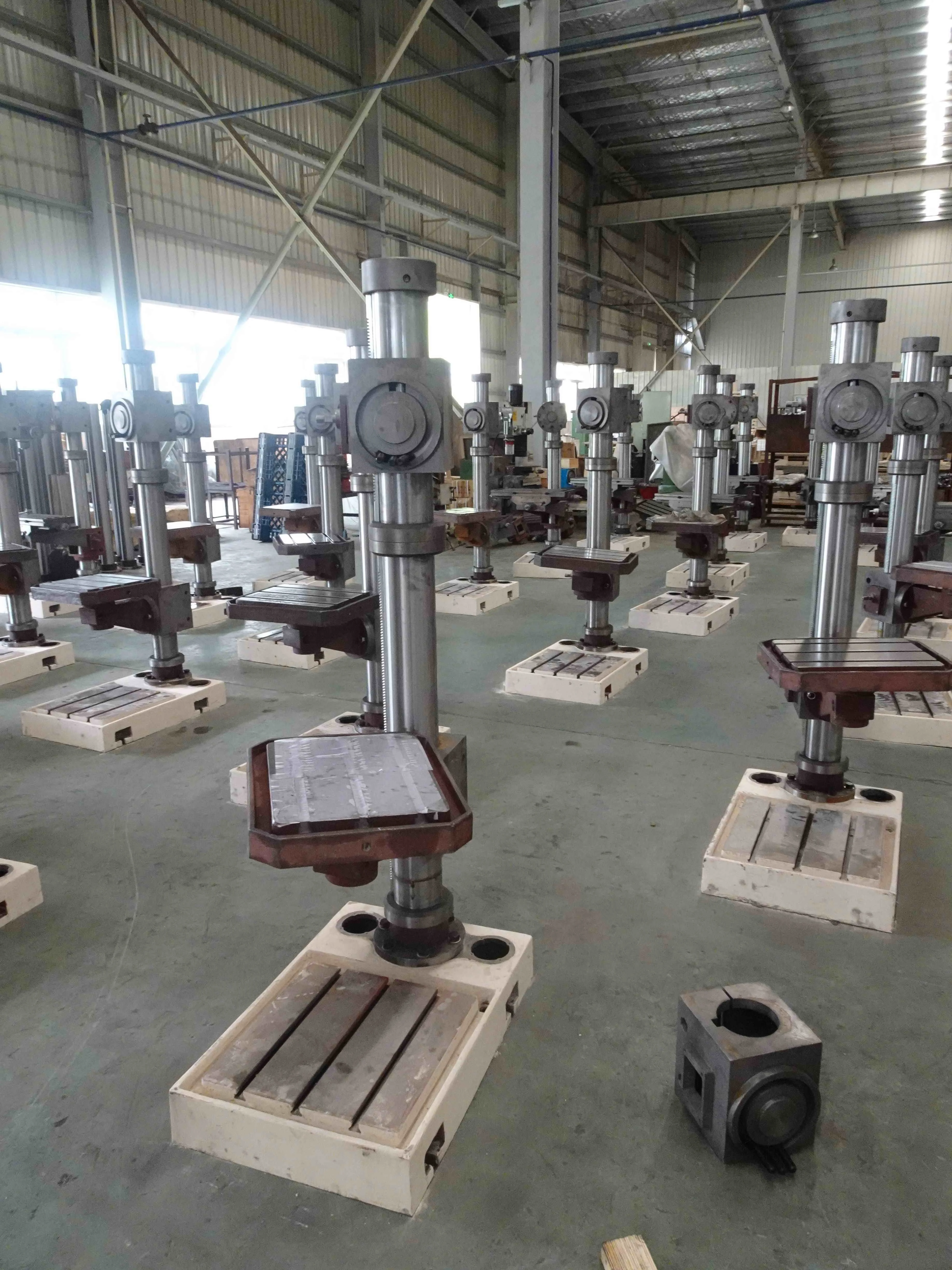

Z5045 Vertical Drilling Machine round column
- Category: >>>
- Supplier: Shenzhen Richon Industry Co. Ltd.
Share on (789296309):
Product Overview
Description
Products Description

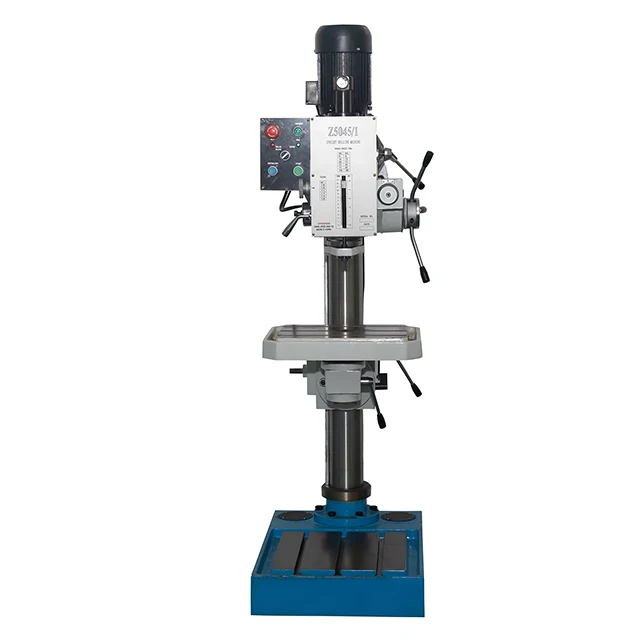

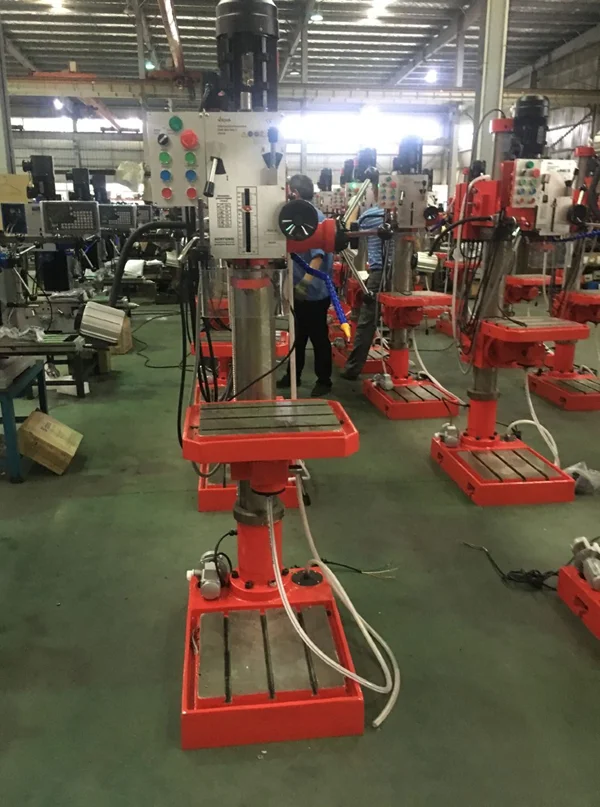

Upright Drilling Machine Z5045
1) Drilling, milling and tapping
2) Head swivels 360° horizontally
3) Headstock and worktable up & down perpendicularly
4) Super high column
5) Precision micro feed
6) Positive spindle lock
7) Distinct auto device for releasing tools, operate very easily
8) Gear driven, lower noise
2) Head swivels 360° horizontally
3) Headstock and worktable up & down perpendicularly
4) Super high column
5) Precision micro feed
6) Positive spindle lock
7) Distinct auto device for releasing tools, operate very easily
8) Gear driven, lower noise
Sepecification | Unit | Z5045 |
max.drilling diameter | mm | Φ45 |
max.travel of spindle | mm | 130 |
max.distance from spinlde axis to column | mm | 283 |
max. distance from spindle end to worktable | 725 | |
max.distance from spindle end to the surface of base worktable | mm | 1125 |
max.travel of spindle box | mm | 250 |
spindle speed steps | 6 | |
spindle speed range | r/min | 80-1250 |
effective working area of worktable | mm | 380x300 |
size of stand worktable of avaliability | mm | 417x416 |
Related Products
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
