PL Vertical High Speed Tubular knitting Fabrics Slitting Machine/ other textile machine

Product Overview

Description

PL Vertical High-Speed Tubular Fabrics Slitting Machine,Vertical High-speed Slitting Machine for Fabric, slitting machine.



-Usage:



PL Vertical High-Speed Tubular Fabrics Slitting Machine is used for slitting, expanding and dropping wet and dry knitted tubular fabrics.



-Technical parameters of Tubular Fabrics Slitting Machine:



1	Width of Roller	72"~104" (other sizes available)
2	Main Motor	2.2KW
3	Motor of Blower	2HP*4P
4	Weight	1.7T
5	Working Speed	0~110yards/min.
6	Dimension	4000mm(L)*3200mm(W)*4200(H) (72")



-Characteristics of tubular fabrics slitting machine:



1.Positioning seam on knife manually.



2.Adjusting width electrically.



3.PL Vertical High-Speed Tubular Fabrics Slitting Machine is equipped with a blower to dilate the tubular fabrics in order to make it easy for positioning.



4.Electric devices at each side of the spreading frame could adjust width and slant weft.



5.Equipped with roller to adjust fabric tension electrically.



6.Speed of main motor is controlled by inverter powers 2.2KW.

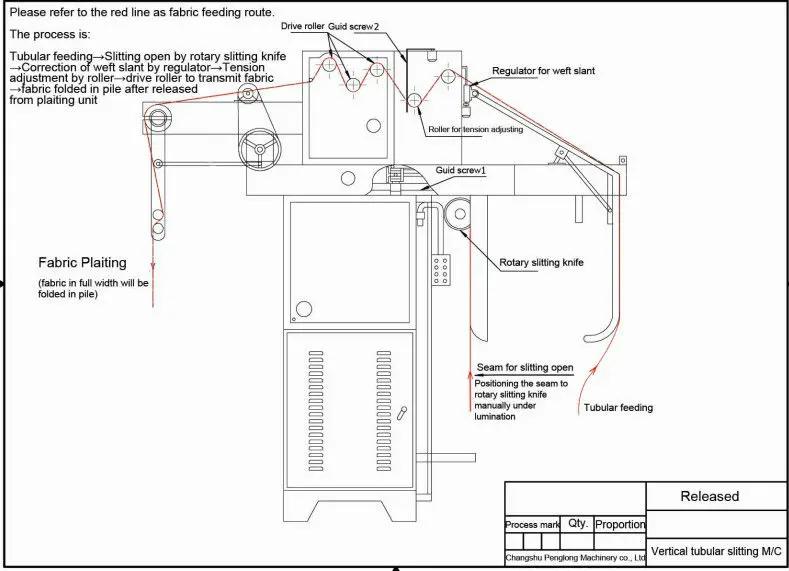

-Schematic Drawing

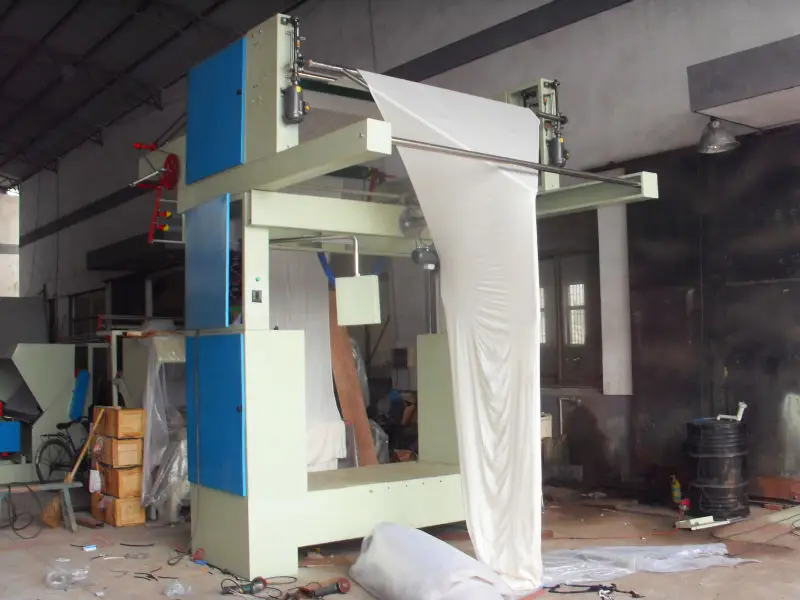

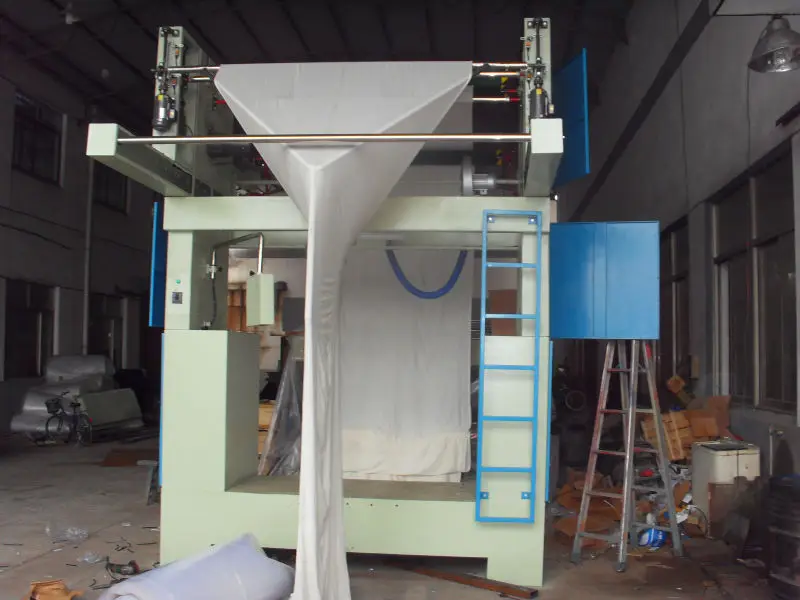

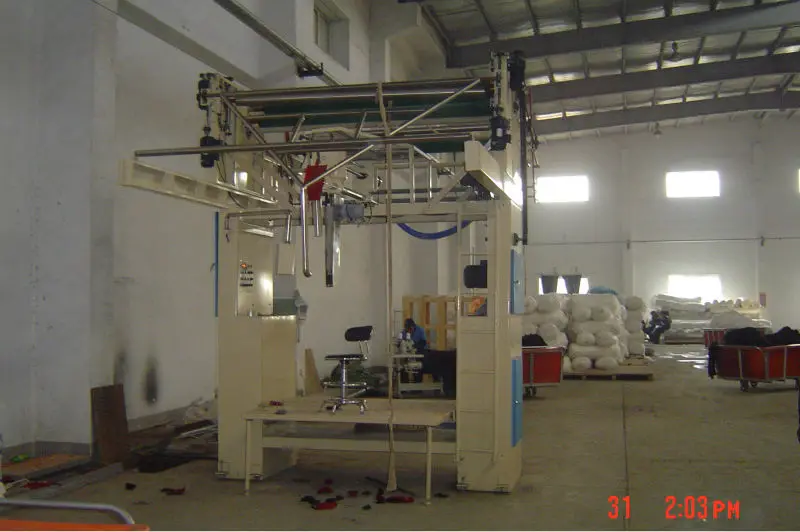

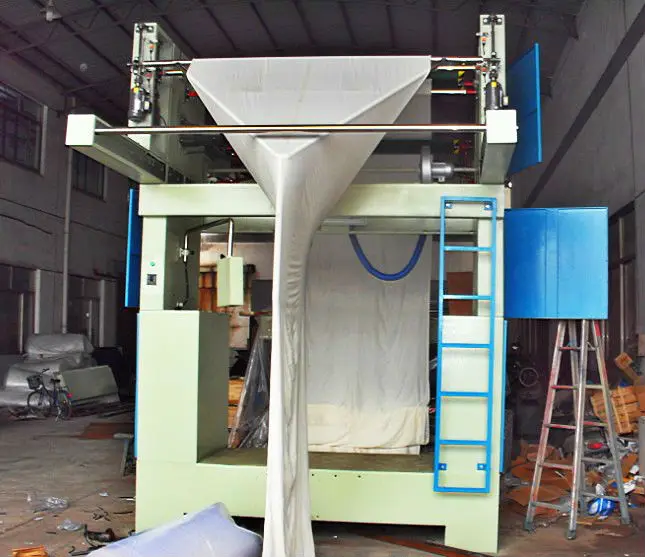

-Deatil pictures

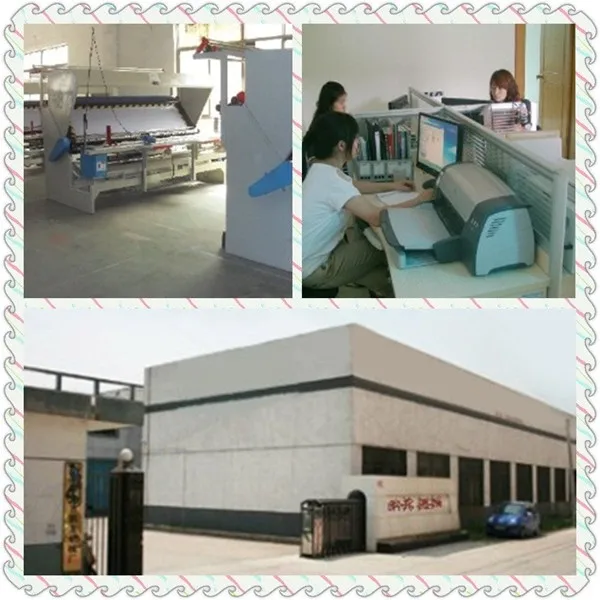

-About us





-Welcome to inquiry PL Vertical High-Speed Tubular Fabrics Slitting Machine.
