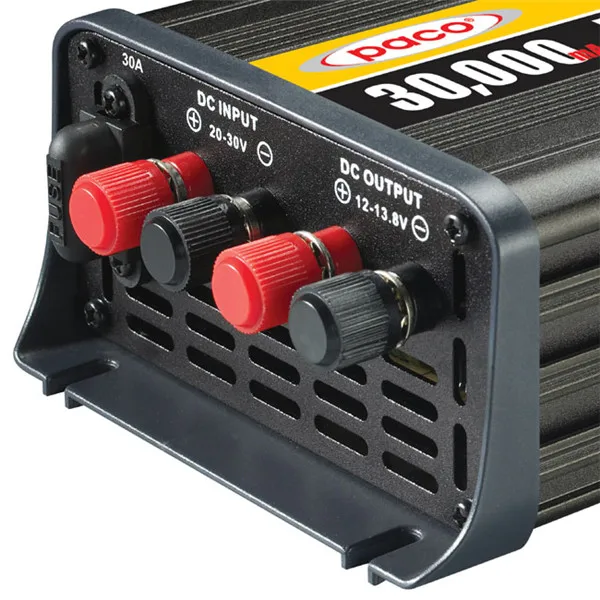

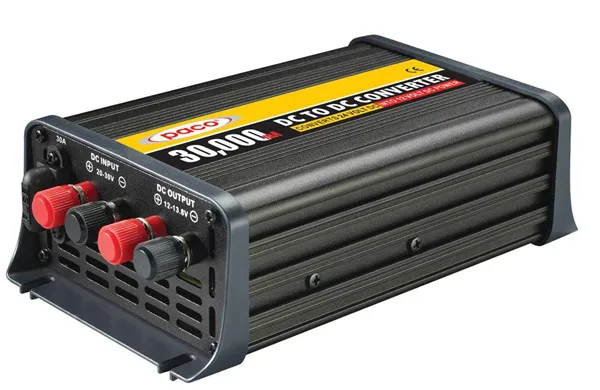

New Developed DC DC Voltage converter 30A 24V TO 12V with CE RoHS ISO9001 approval

Product Overview

Description

DC to DC converter



1.Dc to Dc converter;
2.Designed to electric vehicle;
3.Also could customize it;
4.High quality and low price converters for you choose.

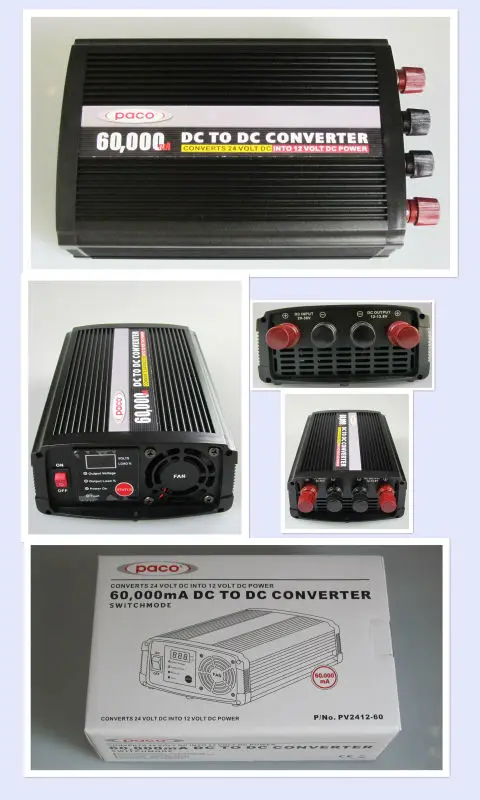

DC to DC converter

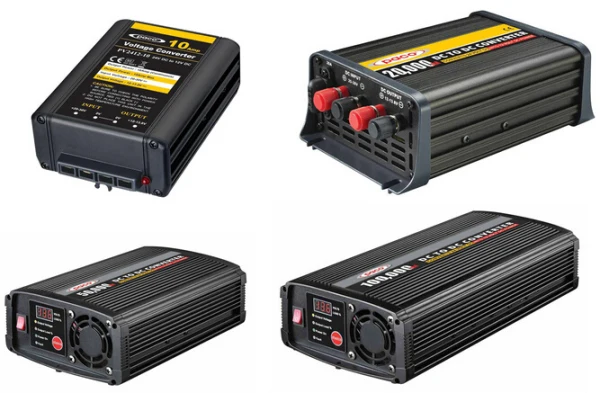

P/No.	PV2412-6	PV2412-10	PV2412-20	PV2412-30	PV2412-40	PV2412-50	PV2412-60	PV2412-100
Input voltage	20-30V
Output voltage	12-13.8V
Output power	6 Amp (continuous)	10 Amp (continuous)	20 Amp (continuous)	30Amp (continuous)	40Amp (continuous)	50 Amp (continuous)	60; Amp (continuous)	100 Amp (continuous)
Output power	;10 Amp(Max)	15 Amp(Max)	30 Amp(Max)	45 Amp(Max)	60 Amp(Max)	70 Amp(Max)	80 Amp(Max)	130 Amp(Max)
Standby current	≤15 mA	≤20 mA	≤70 mA	;≤80 mA	≤80 mA	≤90 mA	≤90 mA	≤110 mA
Input fuse	7.5A	10A	20A	30A	40A	2*30A	2*40A	4*30A
Efficiency	85%~90%
Thermal protection	65°C±5°C
Connection cable	;1.5mm2/900mm	2.0mm2/900mm	2.5mm2/900mm	4.0mm2/900mm	6.0mm2/900mm	10mm2/900mm	12mm2/900mm	;20mm2/900mm
Fuse location input	Internal		External			Internal

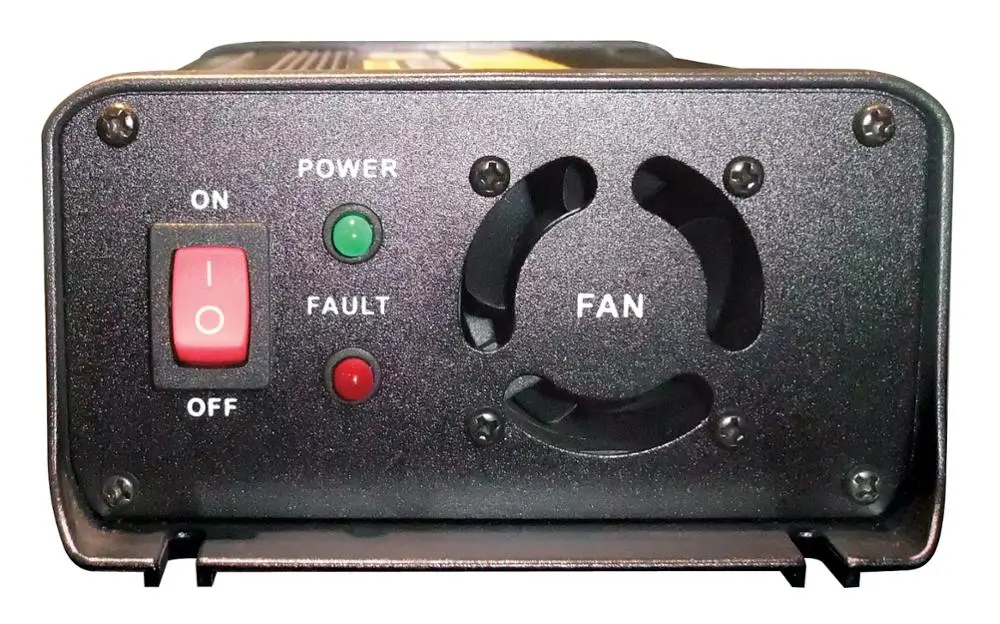

Cooling fan	No		Automatic temperature controlled

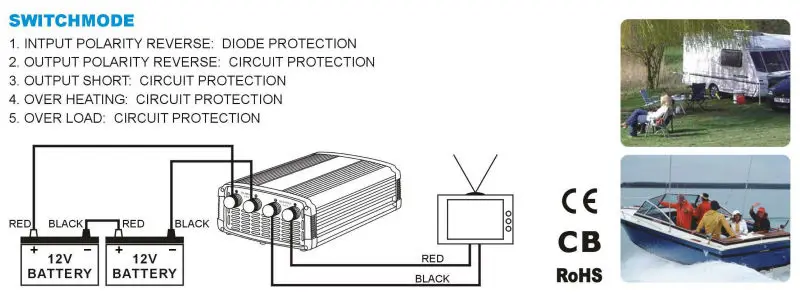

Input polarity reverse	Diode protection
Output polarity reverse	Circuit protection
Output short	Circuit protection
Over heating	Circuit protection
Over load	Circuit protection
Dimension(L*W*H)	88*87*42mm	126*87*42mm	182*115*62mm	222*115*62mm	222*115*62mm	275*165*79mm	275*165*79mm	365*165*79mm
Weight(KG)	0.35	0.45	0.8	0.95	1.0	2.0	2.0	3.03









Why choose us:



l- The good construction warranty-1 years



l- Your client satisfied on the right schedule and quality



l- Your can get good reputation from your market and obtain more orders



l- Our professional service before and after sale



l- The free inverter samples after your first 3 orders



l- The reasonable price



l- Any questions from you are welcome and will be replied in 24 hours.
