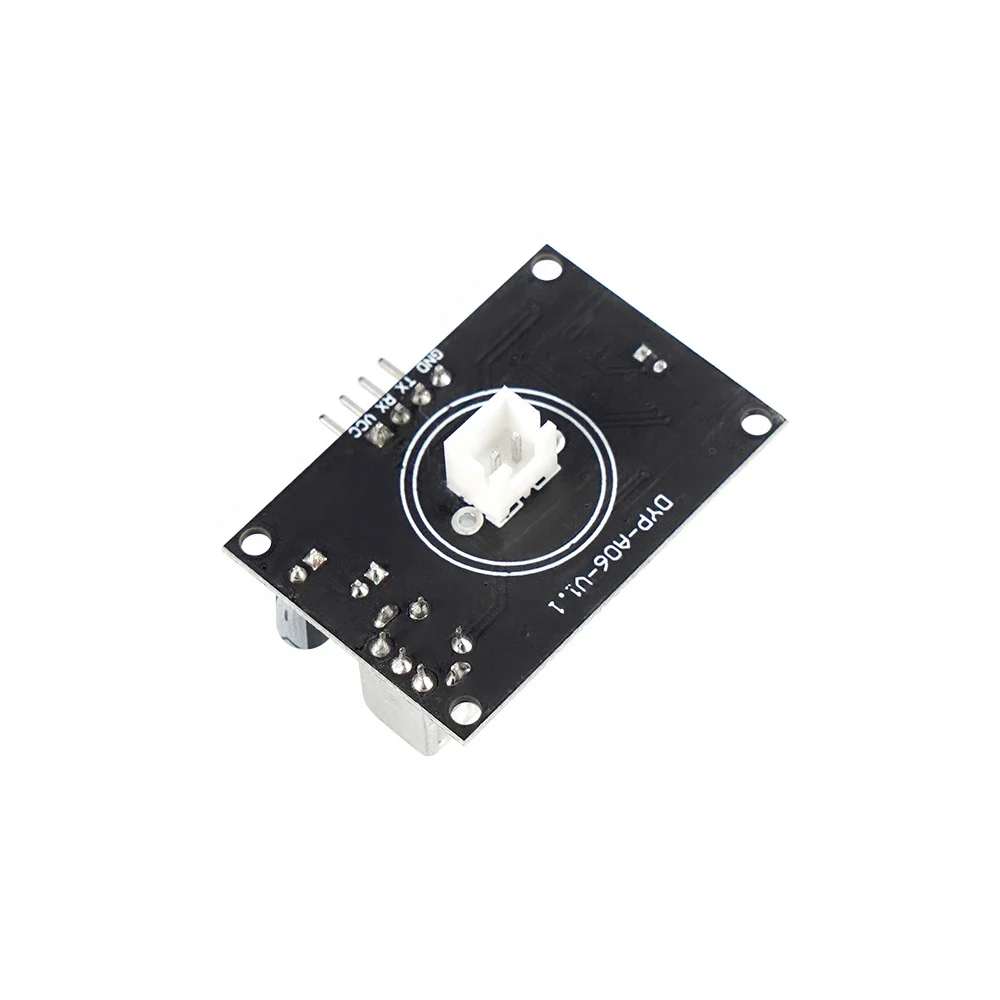

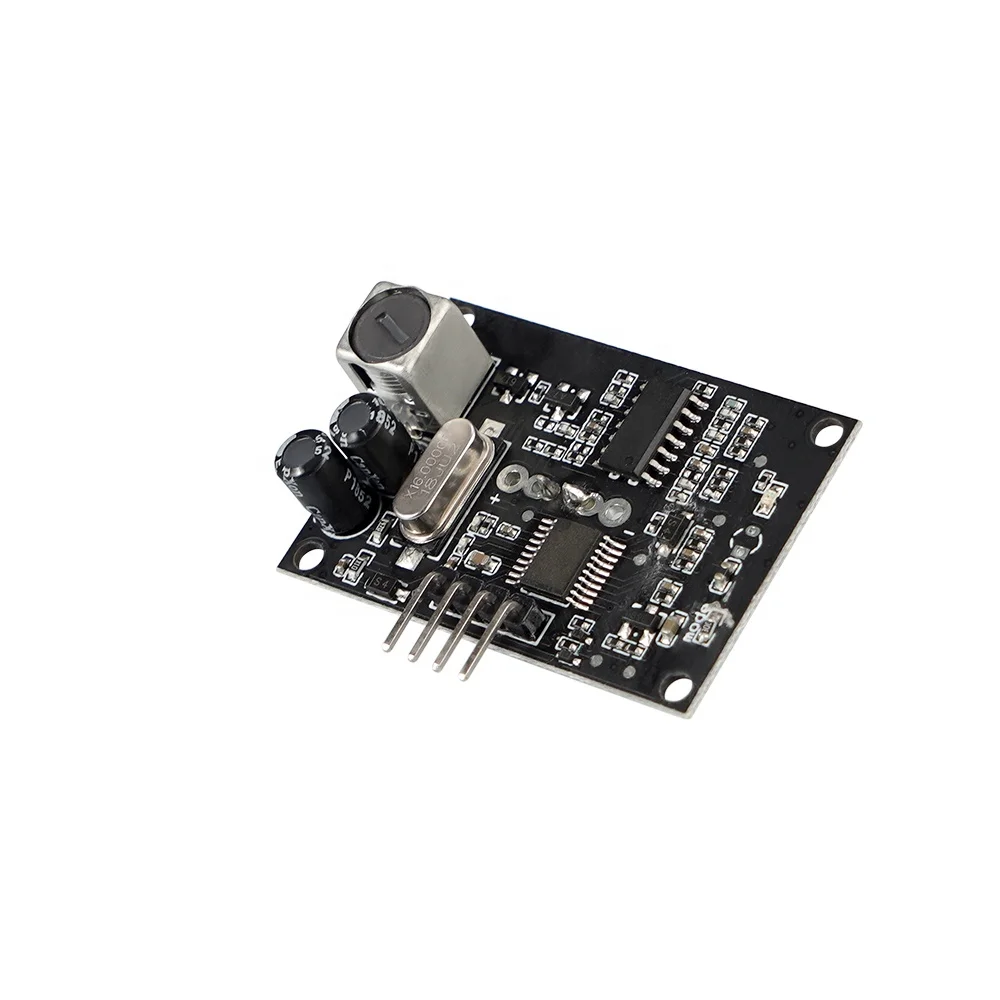

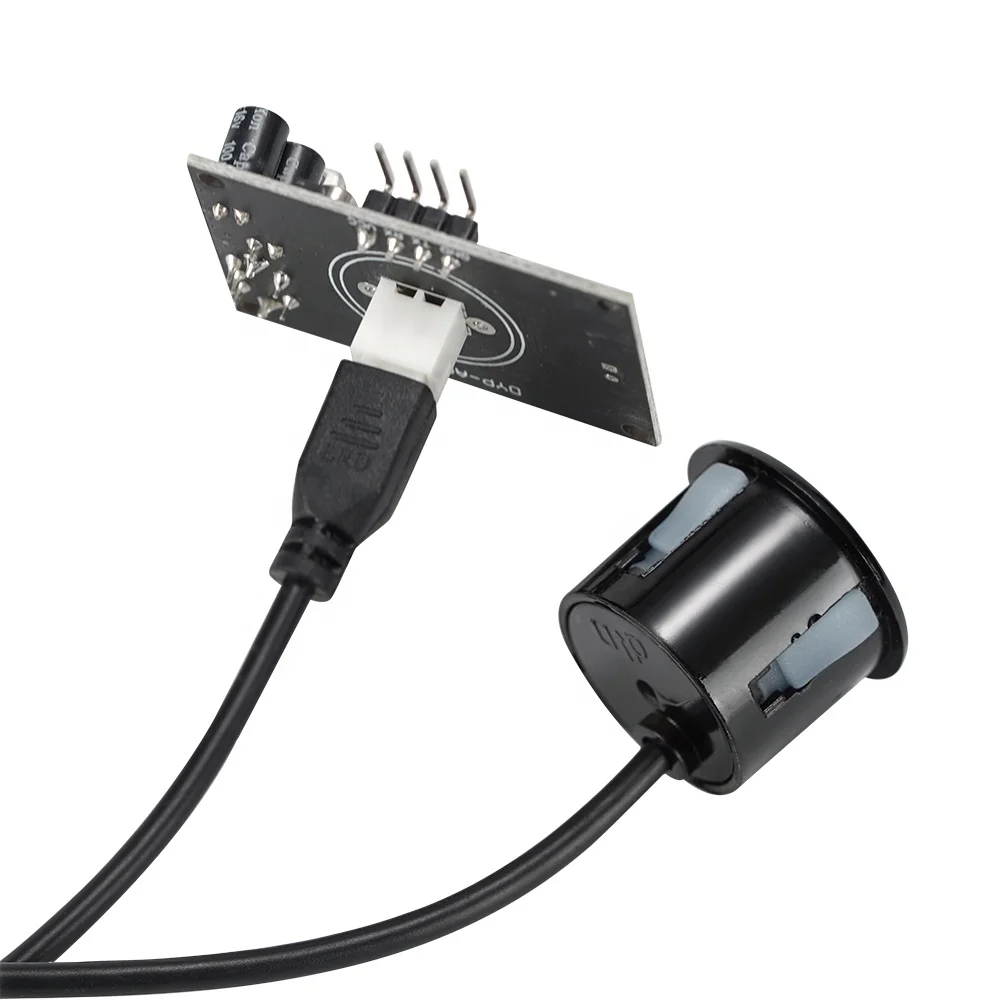

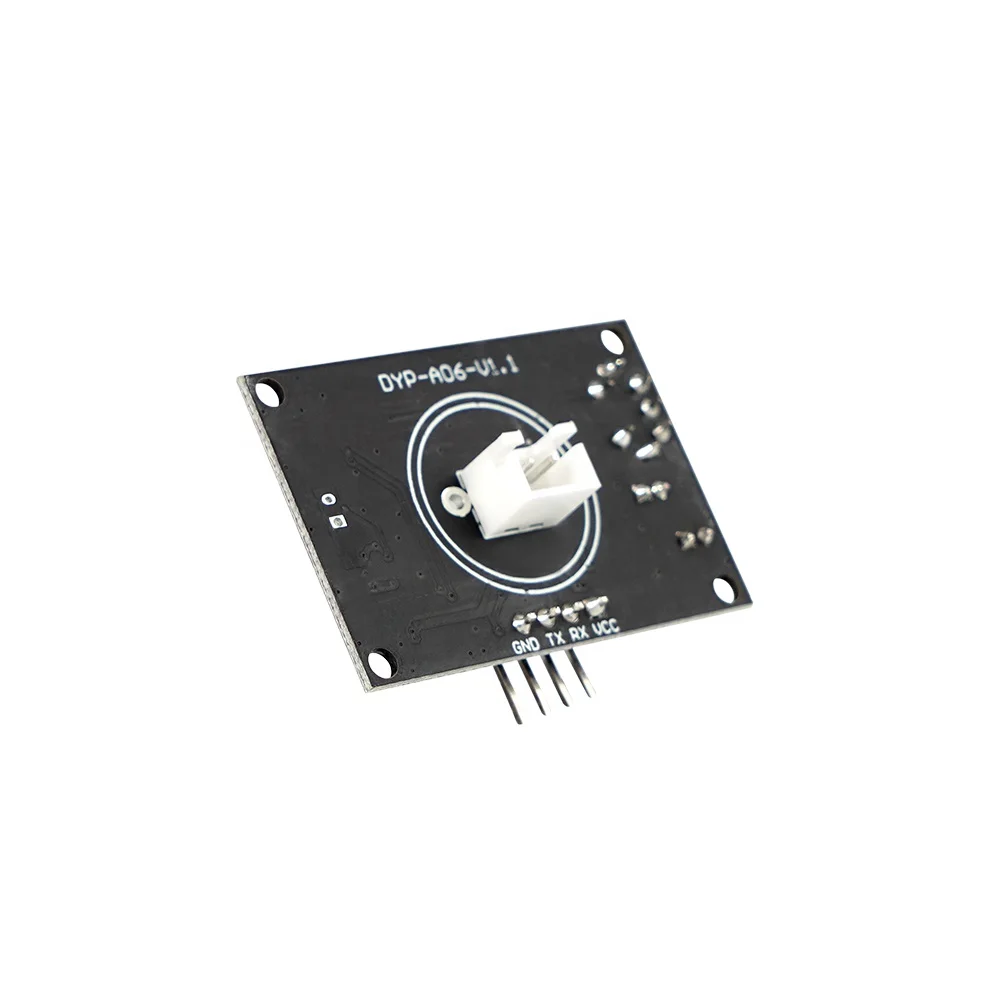

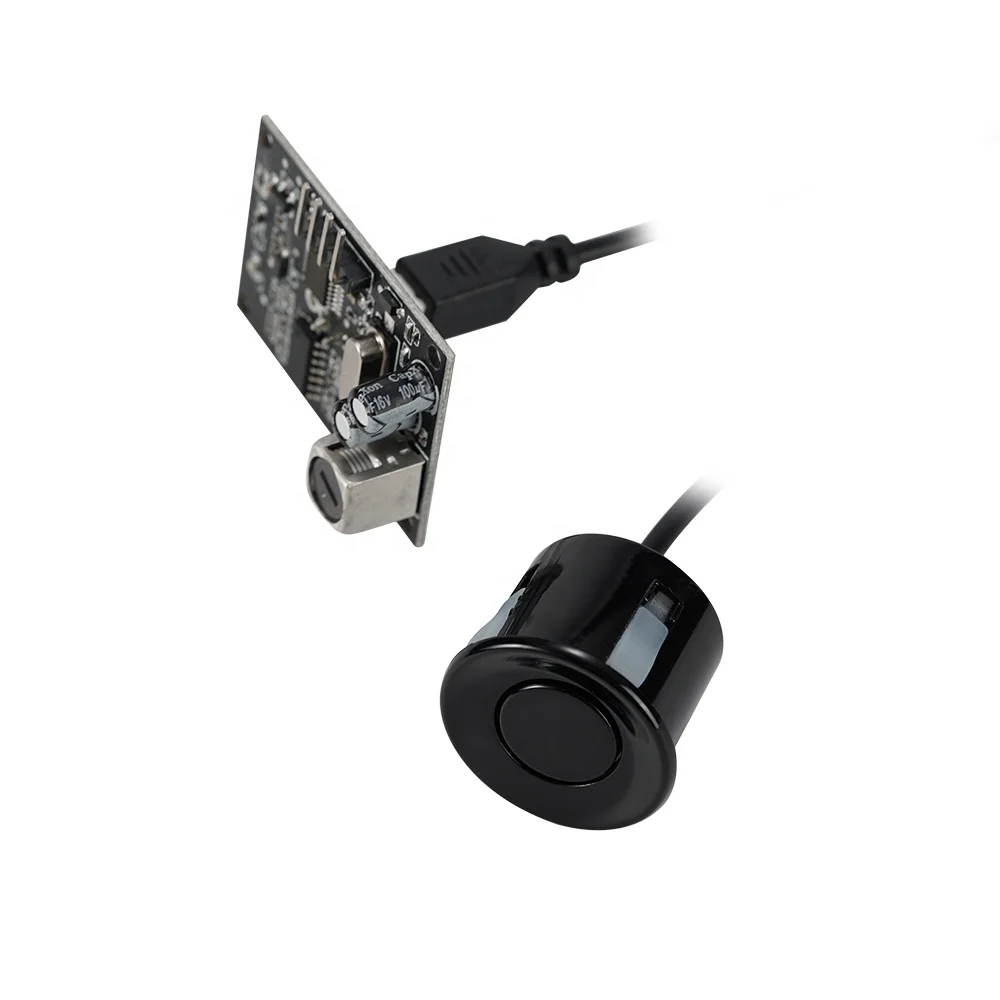

High Cost effective Working Current 20mA Low Power Consumption Underwater Ultrasonic Sensor
- Category: >>>
- Supplier: Shenzhen Dianyingpu Technology Co. Ltd.
Share on (790264010):
Product Overview
Description
Product Description
Specification
| Model | A06 | |
| Product Name | Integrated waterproof ultrasonic module | |
| Highlight | Wide voltage power input supported. Multiple output modes Strong anti-interference, anti-static abilities Data output stable and reliable Tiny size, easy to install Quickly response Long measurement range, high accuracy Automatic output mode, not occupy hardware resources Controlled output mode, low power consumption | |
| Operating Voltage | DC 3.3-5 v | |
| Operating Current | <20 mA | |
| Standby Current | <8 uA | |
| Blind Area Distance | 25 cm | |
| Measuring Range | Object mode 25-600cm / Humen mode 30-200cm | |
| Accuracy | 10 mm | |
| Angle | Object mode 45° / Humen mode 70° | |
| Measurement State Duration | Object mode <65ms / Humen mode <25ms | |
| Output Method | PWM/UART auto/UART controlled/switch | |
| Frequency | 40 KHz | |
| Temperature Compensation | Yes (only UART auto/UART controlled/switch) |
Application
 | ||
| Liquid Level Measurement in Small Bottles | Loop control | Diameter Sensing and Strip Speed Control |
 | ||
| Contour Recognition | Quality Control | Vehicle Sensing and Positioning |
 | ||
| Wire or Rope Breakage Monitoring | Stack height sensing | Bottle Counting |
 | ||
| Breakage Sensing | People Sensing, Human body Height measurement | Liquid Level Measurement in Large Vessels(Tanks, Silos) |
 | ||
| Flat Object sensing or detection | Anti-Collision, Proximity Alarm | Height Sensing |
Certificates
FAQ
1. Are you a manufacturer or trading company?
DYP is a manufacturer, our factory approved by ISO9001:2008, ISO14001:2004 standard.
2. Does your products can be ODM or OEM?
Yes, we provide ODM/OEM services, we can customize the product according to your requirement, after estimated by our R&D team, We can build the product you need on the basis of existing products, or build a brand new product.
3. What's warranty of your product?
We provide 1 year warranty, any defective items, please send back to us, we will repair/replace for you.
4. What is the terms of payment?
for the sample order, we suggest place order on alibaba directly. for the large order, we accept TT or LC.
5. Do you provide technical support?
Yes, we have our own R&D department, we can provide you technical support at any time. you can call us or write email to us.
6. How to choose the right ultrasonic sensor?
First of all, clarify the installation conditions:
a. Medium to be measured;
b. Installation location;
c. Measurement range;
d. Measurement accuracy;
e. Sensor resolution;
f. potential interference;
g. Whether vessels has pressure.
Select the corresponding series of products according to the medium, and then select the product suitable for the conditions according to the Range, Accuracy, Angle etc parameters. If there is no suitable one, we also provide OEM/ODM services, please contact us.
Company profile
We were established in 2008, located in shenzhen of china with a convenient transportation access, SHENZHEN DIANYINGPU TECHNOLOGY CO LTD is a professional manufacturer and exporter, which is dedicated to the design, research, development and production of Ultrasonic Sensor.
All of our products comply with international quality standards and are greatly appreciated in a variety of markets throughout the world. Covering an area of 30,000 square meters, we no have more over 180 skilled employees, boast an annual sales figure that exceeds USD 63,000,000 and currently export 72% of our production worldwide.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction, Besides, we have approved ISO9001:2008, ISO14001:2004 quality standards. Due to our high quality products and outstanding customer service, we have gained a global sales network reaching Europe, South America, North America, Australia, Mid-East and Southeast Asia.
If you are interest in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to establish a successful business relationship with new clients around the world. |
Contact us
Shenzhen Dianyingpu Technology Co Ltd.
Factory address: 7th floor, Block A, Dahong
High-Tech Industrial Zone, Shajing street,
Baoan district, Shenzhen 518000,
China.
Tel: +86 755 8524 5641
Features:
1) Intelligent signal processing circuit is adopted, with small blind area and long measuring distance;
2) Built-in high-precision ranging algorithm, and the minimum error is less 5mm;
3) The measuring angle is controllable, with high sensitivity and strong anti-interference ability;
4) Built-in true target recognition algorithm, target recognition accuracy is high;
5) Professional measurement mode can be set to measure human body or plane object;
6) Multiple output modes are available, including high level pulse width output, UART output or switching quantity, with strong interface adaptability;
7) Onboard temperature compensation function, automatic correction temperature deviation, 15 ℃ to + 60 ℃ can be stable range;
8) Low power consumption design, static current < 5uA, measured state current < 15mA (3.3v power supply);
9) Low voltage power supply, suitable for 3.3 ~ 5.0V;
10) Electrostatic protection design, output pin to add electrostatic protection device, in line with IEC61000-4-2 standard;
11) Working temperature is 15 ℃ to + 60 ℃;
Application:
1) Level distance measurement;
2) Parking management system;
3) Intelligent bin management system;
4) Robot obstacle avoidance,automatic control;
5) Objects approach and perceive presence;
