Product Overview

Description



 Inverter technology IGBT transistors ,Single 230V,phase,  portable design  and energy saving. DC output ,  suitable for MMA, galess and co2 gas welding process. strong wire feeder built-in.Digital display ,with inductance to ensure excellent performance ,precise regulation for welding voltage and wire speed . automatic protection for over heat



Features :

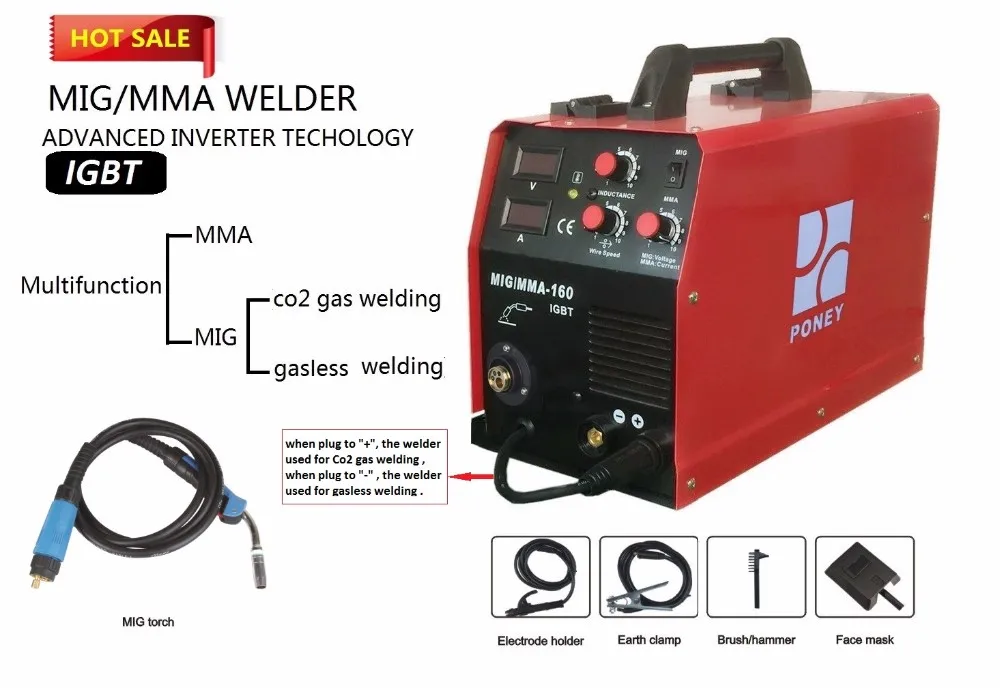

1.  multifunction for MIG and MMA welding .

2. for MIG welding , it is suitable for gas welding and gasless welding .  (   selecting plug connect "+" , for gas welding , selecting plug connect "-" , for gasless welding .)

3. with inductance for super welding performance .

4. with  digital display for welding current , and welding voltage .

5. inverter technology , IGBT transistors ,  portable design .

6.  "WIRE TEST" button built inside , to let the wire comes out quickly  before using

7. complete with welding torch , electrode holder ,earth clamp , face mask , hammer ,



Product Introduction

This newly developed MIG Welders integrates the newest MIG/MAG/MMA technology  , it gives you the perfect welding performance resulting in good welded joints causing lesser spatter, The welder device is easy to operate which is suitable for both home and industrial uses. Get the job done accurately with the assistance of Poney MIG Welder.



Perameters :



MODEL	MIG/MMA-140	MIG/MMA-160
Power input	230V - 50~60Hz	230V - 50~60Hz
Rated input capacity	5.5KVA	6.8KVA
Current range	20-140A	20-160A
Rated duty cycle	60%	60%
Usable wire	0.6-0.8mm	0.6-1.0mm
Usable electrode	1.6-2.5mm	1.6-3.2mm
Insulation degree	H	H
Weight	12kg	12kg

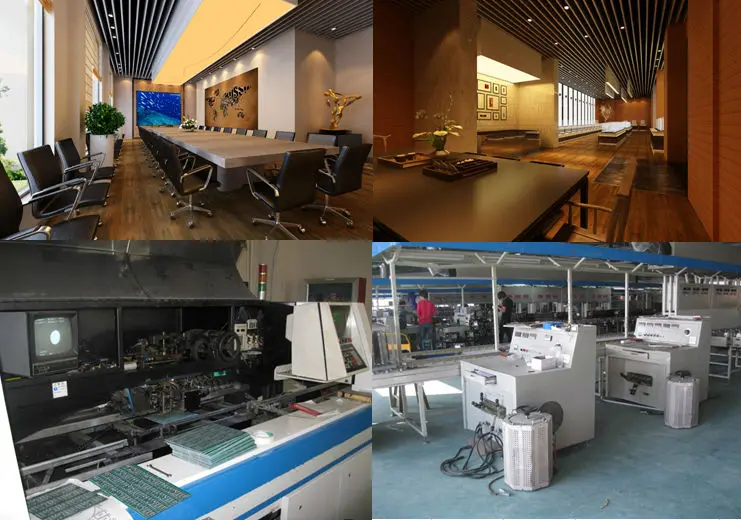

The Zhejiang Poney Electric Co.,Ltd is an export oriented enterprise which specializes in R&D , manufacturing , and sale. We are providing a diverse range of products which include welding machine , plasma cutting machine and battery charger . We believe quality is the key in the international arena ,thus sound management system and strict quality control system have been established to ensure stable performances of the goods . due to enormous investment on digital and automatic equipment , we have tripled our production capability .We pursue excellence by valuing the idea “ be careful in each detail , providing the world with the finest products “.
